612-43-328-41-001000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 612-43-328-41-001000

612-43-328-41-001000: DescriptionIC u0026 Component Sockets 28 PIN DIP CARRIER SKT .124L; CategoryThe connector socket; File Size360KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

612-43-328-41-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	612-43-328-41-001000	-	-	View	Buy Now

612-43-328-41-001000 Overview

IC u0026 Component Sockets 28 PIN DIP CARRIER SKT .124L

612-43-328-41-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP28
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	28
Base Number Matches	1

Preview

Download Datasheet

View All

DUAL-IN-LINE

SOCKETS

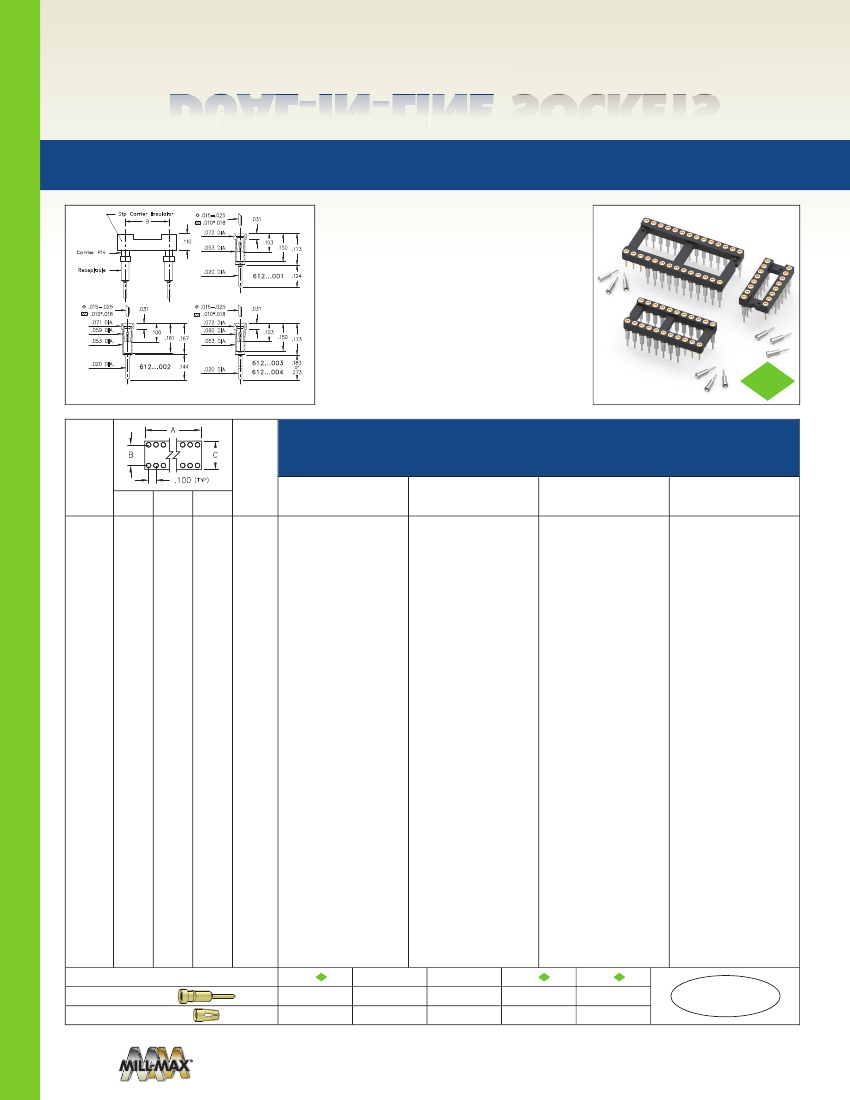

SERIES 612 • CARRIER TYPE, SOLDER TAIL • OPEN FRAME

Dip Carrier Insulator

.015-.025

.010*.018

.072 DIA.

.110

.053 DIA.

.031

•

Convenient way to load loose receptacles on

a PC board

reloading

.103

.150 .173

Carrier Pin

•

Removable plastic carriers can be returned for

•

Hi-Rel, 4- nger BeCu #30 contact is rated at

3 amps. See page 253 for details

Receptacle

.020 DIA.

612...001

.124

.015-.025

.010*.018

.071 DIA.

.059 DIA.

.053 DIA.

.031

.015-.025

.010*.018

.072 DIA.

.100

.060 DIA.

.161 .167

.053 DIA.

.031

•

Series 612 uses MM #0255, #8855, #0135 or

.103

.150 .173

.183

.273

#0132 pins. See pages 165 and 171 for details

suitable for all soldering operations

Data, see page 264 for details

.020 DIA.

612...002

.144

.020 DIA.

612...003

612...004

•

Insulators are high temperature thermoplastic,

•

For Electrical, Mechanical and Environmental

2011/65/EU

RoHS - 2

See page 130 for Insulator Details

Total number

of pins

.100

Quantity

per tube

ORDERING INFORMATION

Tail Length = .124

(.022 Min. Mounting Hole)

0.5

0.2

0.3

0.4

0.5

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.0

1.1

1.2

1.4

1.6

1.2

1.4

1.6

1.8

2.0

2.1

2.4

2.5

2.6

2.5

2.6

3.2

0.2

0.3

0.4

0.6

0.9

0.3

0.4

0.5

0.7

1.0

Tail Length = .144

(.022 Min. Mounting Hole)

Tail Length = .183

(.022 Min. Mounting Hole)

Tail Length = .273

(.022 Min. Mounting Hole)

102

612-XX-210-41-001000

612-XX-304-41-001000

612-XX-306-41-001000

612-XX-308-41-001000

612-XX-310-41-001000

612-XX-314-41-001000

612-XX-316-41-001000

612-XX-318-41-001000

612-XX-320-41-001000

612-XX-322-41-001000

612-XX-324-41-001000

612-XX-328-41-001000

612-XX-420-41-001000

612-XX-422-41-001000

612-XX-424-41-001000

612-XX-428-41-001000

612-XX-432-41-001000

612-XX-624-41-001000

612-XX-628-41-001000

612-XX-632-41-001000

612-XX-636-41-001000

612-XX-640-41-001000

612-XX-642-41-001000

612-XX-648-41-001000

612-XX-650-41-001000

612-XX-652-41-001000

612-XX-950-41-001000

612-XX-952-41-001000

612-XX-964-41-001000

µ”

612-XX-210-41-002000

612-XX-304-41-002000

612-XX-306-41-002000

612-XX-308-41-002000

612-XX-310-41-002000

612-XX-314-41-002000

612-XX-316-41-002000

612-XX-318-41-002000

612-XX-320-41-002000

612-XX-322-41-002000

612-XX-324-41-002000

612-XX-328-41-002000

612-XX-420-41-002000

612-XX-422-41-002000

612-XX-424-41-002000

612-XX-428-41-002000

612-XX-432-41-002000

612-XX-624-41-002000

612-XX-628-41-002000

612-XX-632-41-002000

612-XX-636-41-002000

612-XX-640-41-002000

612-XX-642-41-002000

612-XX-648-41-002000

612-XX-650-41-002000

612-XX-652-41-002000

612-XX-950-41-002000

612-XX-952-41-002000

612-XX-964-41-002000

200

µ”

Sn/Pb

µ”

612-XX-210-41-003000

612-XX-304-41-003000

612-XX-306-41-003000

612-XX-308-41-003000

612-XX-310-41-003000

612-XX-314-41-003000

612-XX-316-41-003000

612-XX-318-41-003000

612-XX-320-41-003000

612-XX-322-41-003000

612-XX-324-41-003000

612-XX-328-41-003000

612-XX-420-41-003000

612-XX-422-41-003000

612-XX-424-41-003000

612-XX-428-41-003000

612-XX-432-41-003000

612-XX-624-41-003000

612-XX-628-41-003000

612-XX-632-41-003000

612-XX-636-41-003000

612-XX-640-41-003000

612-XX-642-41-003000

612-XX-648-41-003000

612-XX-650-41-003000

612-XX-652-41-003000

612-XX-950-41-003000

612-XX-952-41-003000

612-XX-964-41-003000

200

µ”

612-XX-210-41-004000

612-XX-304-41-004000

612-XX-306-41-004000

612-XX-308-41-004000

612-XX-310-41-004000

612-XX-314-41-004000

612-XX-316-41-004000

612-XX-318-41-004000

612-XX-320-41-004000

612-XX-322-41-004000

612-XX-324-41-004000

612-XX-328-41-004000

612-XX-420-41-004000

612-XX-422-41-004000

612-XX-424-41-004000

612-XX-428-41-004000

612-XX-432-41-004000

612-XX-624-41-004000

612-XX-628-41-004000

612-XX-632-41-004000

612-XX-636-41-004000

612-XX-640-41-004000

612-XX-642-41-004000

612-XX-648-41-004000

612-XX-650-41-004000

612-XX-652-41-004000

612-XX-950-41-004000

612-XX-952-41-004000

612-XX-964-41-004000

XX=Plating Code

See to Left

PAGE 112 | IC SOCKETS / TO SOCKETS

SPECIFY PLATING CODE XX =

Sleeve (Pin)

Contact (Clip)

200

µ”

Sn/Pb

µ”

200

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
