116-43-624-41-001000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 116-43-624-41-001000

116-43-624-41-001000: DescriptionIC u0026 Component Sockets 24 PIN ELEVATED SKT .594L; CategoryThe connector socket; File Size371KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

116-43-624-41-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	116-43-624-41-001000	-	-	View	Buy Now

116-43-624-41-001000 Overview

IC u0026 Component Sockets 24 PIN ELEVATED SKT .594L

116-43-624-41-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP24
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

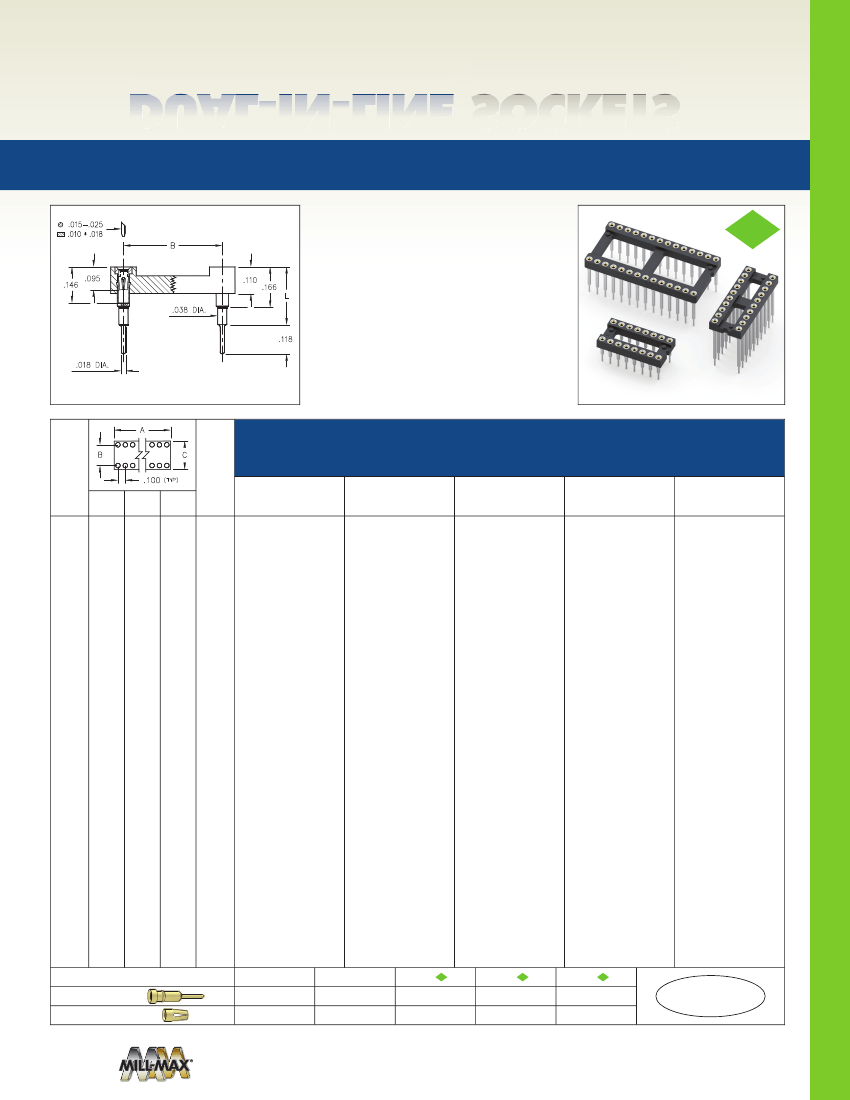

DUAL-IN-LINE

SOCKETS

SERIES 116 • ELEVATED • OPEN FRAME

.015-.025

.010 .018

•

Ideal for raised component requirements and

stacking of PCBs

2011/65/EU

RoHS - 2

.146

.095

.110

•

Sockets are XY stackable

•

Hi-Rel, 4- nger BeCu #30 contact is rated at

.166

3 amps. See page 253 for details

167 for details

.038 DIA.

•

Series 116 uses MM #0153-X pins. See page

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

Data, see page 264 for details

.118

.018 DIA.

See page 130 for Insulator Details

•

For Electrical, Mechanical and Environmental

Total number

of pins

.100

Quantity

per tube

ORDERING INFORMATION

(#0153-1 pin)

0.5

0.2

0.3

0.4

0.5

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.0

1.1

1.2

1.4

1.6

1.2

1.4

1.6

1.8

2.0

2.1

2.4

2.5

2.6

2.5

2.6

3.2

0.2

0.3

0.4

0.6

0.9

0.3

0.4

0.5

0.7

1.0

L = .236

(#0153-2 pin)

L = .315

(#0153-3 pin)

L = .402

(#0153-4 pin)

L = .472

(#0153-5 pin)

L = .594

102

116-XX-210-41-006000 116-XX-210-41-003000 116-XX-210-41-007000 116-XX-210-41-008000 116-XX-210-41-001000

116-XX-304-41-006000

116-XX-306-41-006000

116-XX-308-41-006000

116-XX-310-41-006000

116-XX-314-41-006000

116-XX-316-41-006000

116-XX-318-41-006000

116-XX-320-41-006000

116-XX-322-41-006000

116-XX-324-41-006000

116-XX-328-41-006000

116-XX-420-41-006000

116-XX-422-41-006000

116-XX-424-41-006000

116-XX-428-41-006000

116-XX-432-41-006000

116-XX-624-41-006000

116-XX-628-41-006000

116-XX-632-41-006000

116-XX-636-41-006000

116-XX-640-41-006000

116-XX-642-41-006000

116-XX-648-41-006000

116-XX-650-41-006000

116-XX-652-41-006000

116-XX-304-41-003000

116-XX-306-41-003000

116-XX-308-41-003000

116-XX-310-41-003000

116-XX-314-41-003000

116-XX-316-41-003000

116-XX-318-41-003000

116-XX-320-41-003000

116-XX-322-41-003000

116-XX-324-41-003000

116-XX-328-41-003000

116-XX-420-41-003000

116-XX-422-41-003000

116-XX-424-41-003000

116-XX-428-41-003000

116-XX-432-41-003000

116-XX-624-41-003000

116-XX-628-41-003000

116-XX-632-41-003000

116-XX-636-41-003000

116-XX-640-41-003000

116-XX-642-41-003000

116-XX-648-41-003000

116-XX-650-41-003000

116-XX-652-41-003000

116-XX-304-41-007000

116-XX-306-41-007000

116-XX-308-41-007000

116-XX-310-41-007000

116-XX-314-41-007000

116-XX-316-41-007000

116-XX-318-41-007000

116-XX-320-41-007000

116-XX-322-41-007000

116-XX-324-41-007000

116-XX-328-41-007000

116-XX-420-41-007000

116-XX-422-41-007000

116-XX-424-41-007000

116-XX-428-41-007000

116-XX-432-41-007000

116-XX-624-41-007000

116-XX-628-41-007000

116-XX-632-41-007000

116-XX-636-41-007000

116-XX-640-41-007000

116-XX-642-41-007000

116-XX-648-41-007000

116-XX-650-41-007000

116-XX-652-41-007000

116-XX-304-41-008000

116-XX-306-41-008000

116-XX-308-41-008000

116-XX-310-41-008000

116-XX-314-41-008000

116-XX-316-41-008000

116-XX-318-41-008000

116-XX-320-41-008000

116-XX-322-41-008000

116-XX-324-41-008000

116-XX-328-41-008000

116-XX-420-41-008000

116-XX-422-41-008000

116-XX-424-41-008000

116-XX-428-41-008000

116-XX-432-41-008000

116-XX-624-41-008000

116-XX-628-41-008000

116-XX-632-41-008000

116-XX-636-41-008000

116-XX-640-41-008000

116-XX-642-41-008000

116-XX-648-41-008000

116-XX-650-41-008000

116-XX-652-41-008000

116-XX-304-41-001000

116-XX-306-41-001000

116-XX-308-41-001000

116-XX-310-41-001000

116-XX-314-41-001000

116-XX-316-41-001000

116-XX-318-41-001000

116-XX-320-41-001000

116-XX-322-41-001000

116-XX-324-41-001000

116-XX-328-41-001000

116-XX-420-41-001000

116-XX-422-41-001000

116-XX-424-41-001000

116-XX-428-41-001000

116-XX-432-41-001000

116-XX-950-41-006000 116-XX-950-41-003000 116-XX-950-41-007000 116-XX-950-41-008000 116-XX-950-41-001000

116-XX-952-41-006000 116-XX-952-41-003000 116-XX-952-41-007000 116-XX-952-41-008000 116-XX-952-41-001000

116-XX-964-41-006000 116-XX-964-41-003000 116-XX-964-41-007000 116-XX-964-41-008000 116-XX-964-41-001000

200

µ”

Sn/Pb

µ”

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

Sn/Pb

µ”

200

µ”

200

µ”

200

µ”

Au Flash

XX=Plating Code

See to Left

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 111 | IC SOCKETS / TO SOCKETS

116-XX-624-41-001000

116-XX-628-41-001000

116-XX-632-41-001000

116-XX-636-41-001000

116-XX-640-41-001000

116-XX-642-41-001000

116-XX-648-41-001000

116-XX-650-41-001000

116-XX-652-41-001000
