COMPONENTS PRODUCT INFORMATION
NEW
USB Type-C
TM
Connector
CONNECTOR
MB-0297-4
December 2016

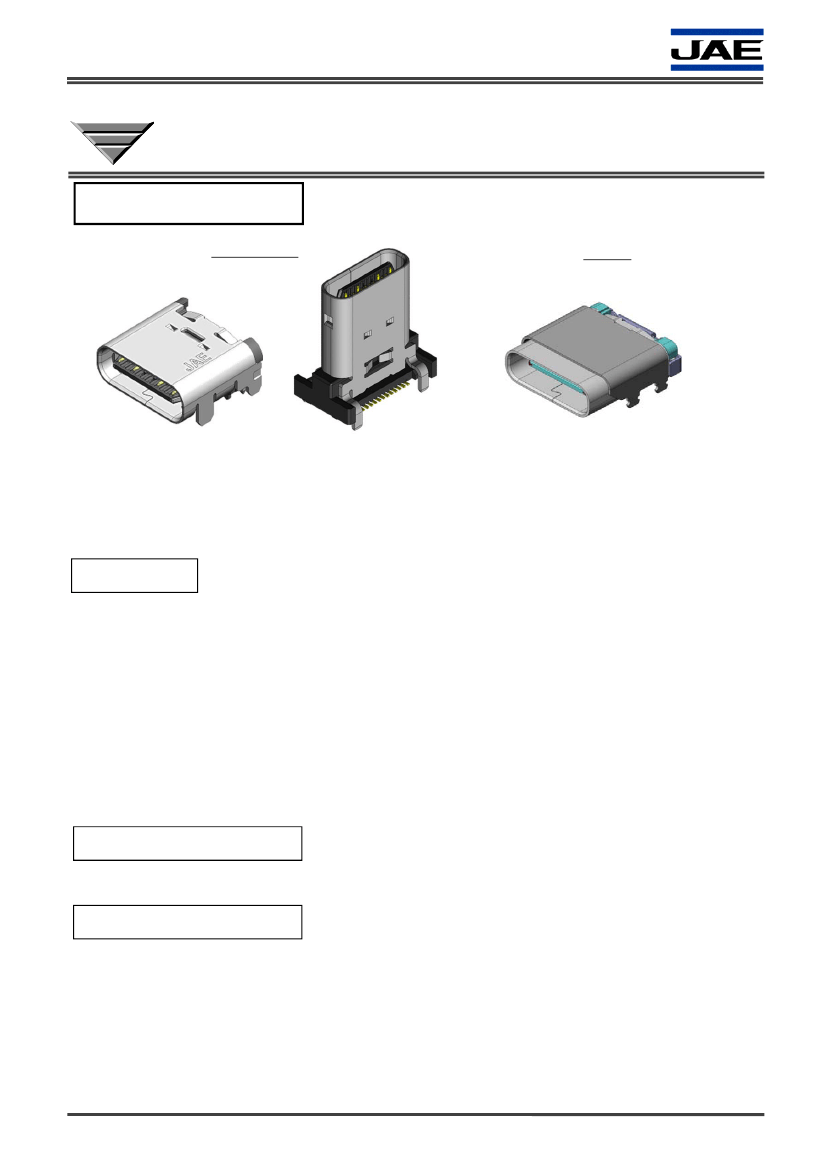

DX07 Series Receptacle
2 Row SMT
Hybrid
RoHS Compliant
<<Outline>>
The DX07 Series are connectors compatible with the next-generation USB specification
“USB Type-C
TM
” and they are expected to become popular as a standard interface for
various devices.
Note) USB Type-C
TM
is a trademark of USB Implementers Forum, Inc.
Features
Compatible
with Universal Serial Bus Type-C Specification Release 1.1
Compatible
with 10Gbps SuperSpeed communication. (USB 3.1 Gen 2)
Compatible
with USB Power Delivery.
Reversible
plug makes it possible to insert both ways.
Superior
EMI / EMC characteristics.
Design
for high mechanical strength.
Lock
structure with high durability.
Contact
mounting area is available in 2 types: space saving 2 row SMT type and
hybrid type with superior solder reworkability.
Available
in on-board type, and mid-mount type.
Applicable Markets
Smartphones, tablets, PCs, high-definition camcorders, digital still cameras (single-
lens reflex, compact), and others
General Specifications
No.
of Contacts: 24 pos.
Contact
Resistance: 40mΩmax.(initial)
Dielectric
Withstanding Voltage:
100Vrms / 1 minute
Insulation
Resistance: 100M
Ω
(initial)
Rated
Current:
Terminal No. A1, A4, A9, A12, B1, B4, B5,
B9, B12 are DC 1.25A (maximum),
Others are DC 0.25A
Rated
Voltage: 20 Vrms
Mating
Cycles: 10,000 times
Operating
Temperature:
-30 Deg. C to 80 Deg. C
1/10
JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd.
MB-0297-4
Materials and Finishes
2 Row SMT Type
Components
Insulator 1, 2
Contact A, B
Shell
Mid Plate
Ground Plate
Rear Shield
Bracket
-
Materials / Finishes
Synthetic resin
Copper alloy /
Contact area: Au flash over Palladium Ni over Ni plating
Terminal area: Au flash over Ni plating
Stainless steel / Ni plating
Stainless steel / Black Ni plating
Stainless steel / Ni plating
Stainless steel / Ni plating
Stainless steel / Ni plating
Stainless steel / Ni plating
Hybrid Type
Note) Please refer to the product drawings for more details.
Ordering Information
[Receptacle Side]
DX07 S 0 24 J J 2 R****
Reeled pcs. / reel
Modification Code #2
Plating Specification
J: Contact area:
Au flash over Palladium Ni over Ni plating
Board Connection Type
J: 2 row SMT horizontal
X: Hybrid (T/H & SMT)
W: 2 row SMT vertical
Board
Connection
Type
Connector Mounting
Orientation Type
Note
With
Rear Shield
Without
Rear Shield
With
Rear Shield
Mid-mount
Without
Rear Shield
Series
DX07: USB Type C
S: On-board, B: Mid-mount
Modification Code #1
No. of Contacts: 24 pos.
Part Number
DX07S024JJ2 (Individual Connector)
DX07S024JJ2R1300 (Reeled Product)
DX07S024JJ3 (Individual Connector)
DX07S024JJ3R1300 (Reeled Product)
DX07B024JJ1 (Individual Connector)
DX07B024JJ1R1500 (Reeled Product)
DX07B024JJ2 (Individual Connector)
DX07B024JJ2R1500 (Reeled Product)
DX07B024JJ3 (Individual Connector)
DX07B024JJ3R1600 (Reeled Product)
DX07S024WJ1 (Individual Connector)
DX07S024WJ1R350 (Reeled Product)
DX07S024WJ3 (Individual Connector)
DX07S024WJ3R400 (Reeled Product)
DX07S024XJ1 (Individual Connector)
DX07S024XJ1R1100 (Reeled Product)
DX07B024XJ1 (Individual Connector)
DX07B024XJ1R1300 (Reeled Product)
SJ Drawing Specifications
SJ115946
SJ11594
SJ115994
SJ115995
SJ115850
SJ115851
SJ115996
SJ115997
SJ117601
SJ117602
SJ117219
SJ117220
SJ117928
SJ117929
SJ116123
SJ116124
SJ116121
SJ116122
On-board
JACS-30353
2 row SMT
Horizontal
-
JACS-30368
Vertical
On-board
Without
Ground Plate
(with shell spring)
Black Ni plating
Shell
On-board
JACS-30361
Hybrid
Horizontal
Mid-mount
Note) Please order in reel units.
JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd.
2/10
MB-0297-4

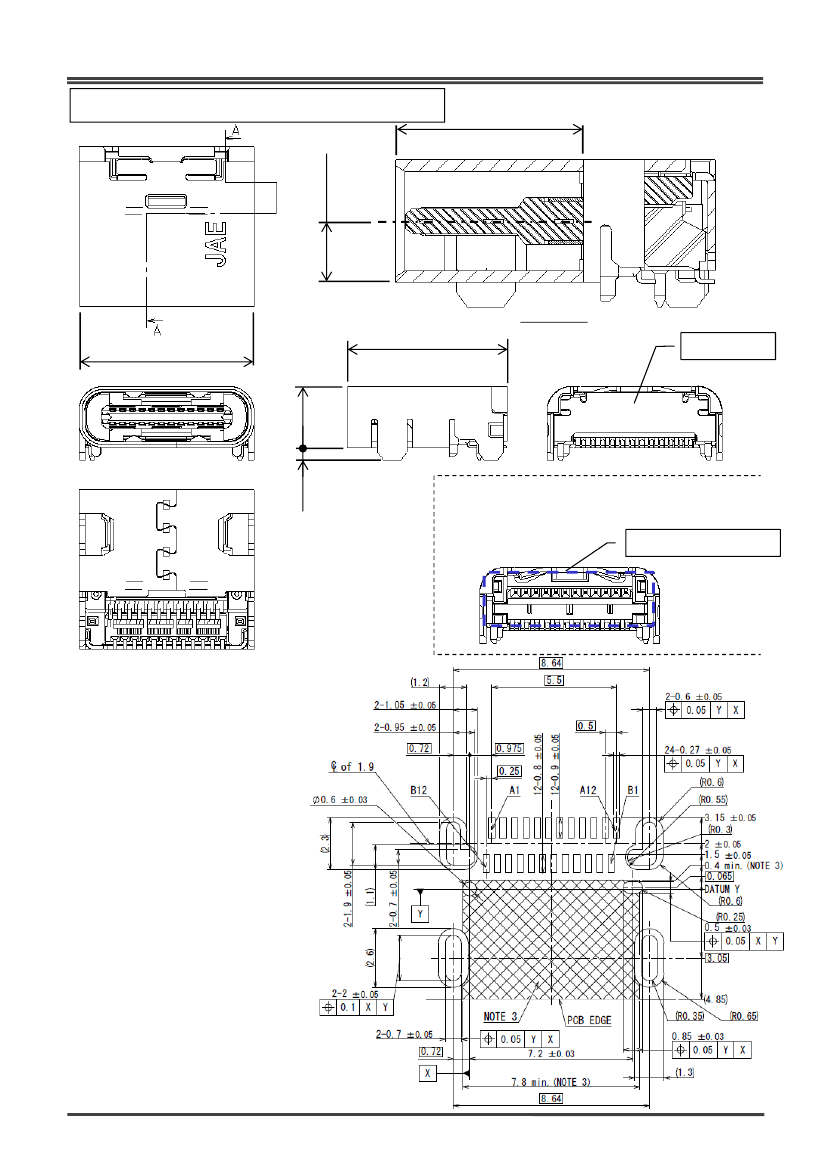

DX07S024JJ2 (Type with Rear Shield)
CENTER
HEIGHT
4.7
Unit: mm
1.57
SECT A-A
8.94
3.14
8.17
Rear Shield
0.6
DX07S024JJ3 (Type without Rear Shield)
*Design is same as DX07S024JJ2 except the
rear shield.
Without Rear Shield
JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd.
3/10
MB-0297-4

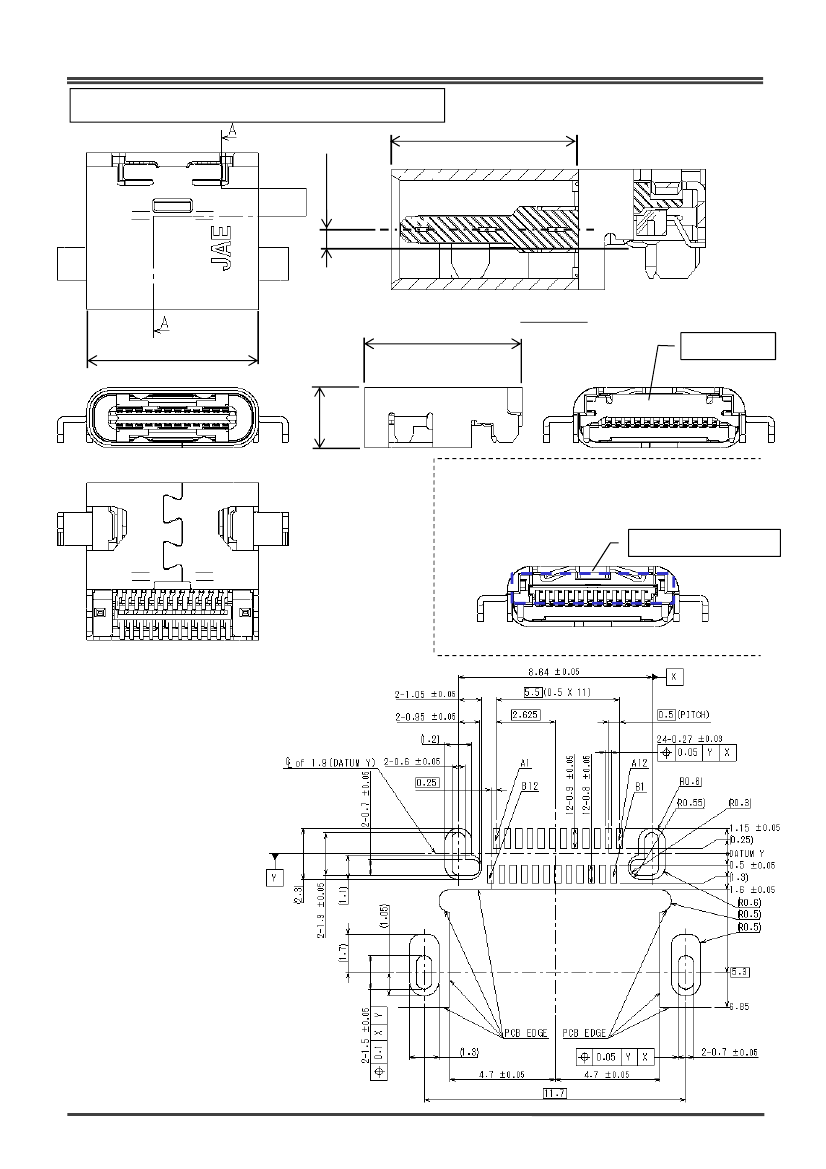

DX07B024JJ1 (Type with Rear Shield)
4.7
CENTER
HEIGHT
Unit: mm
0.47
8.94
3.14
8.17
SECT A-A
Rear Shield
DX07B024JJ2 (Type without Rear Shield)
*Design is same as DX07B024JJ1 except the
rear shield.
Without Rear Shield
JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd.
4/10
MB-0297-4

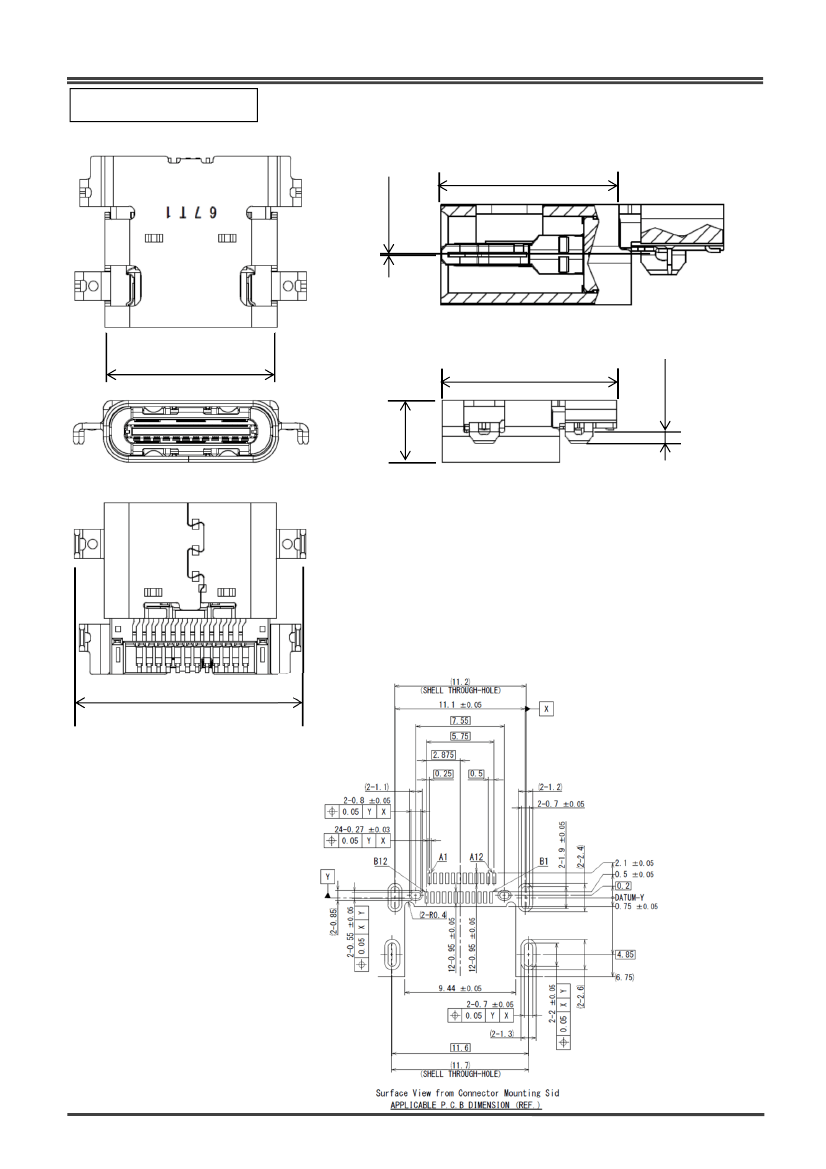

DX07B024JJ3
CENTER
HEIGHT
Unit: mm
8.94
3.14
-0.07
4.45
12.0
JAE PMK Div. Proprietary. Copyright © 2016, Japan Aviation Electronics Industry, Ltd.
0.7
8.9
5/10
