STEVAL-CCA012V1
3 W filter-free class-D audio amplifier demonstration board with
6-12 dB fixed gain select based on the TS2007
Data brief
Features
■
Operating range from V
CC
= 2.4 V to 5.5 V
■
Dedicated standby mode active low for each
channel
■
■
■
■
■
■
■
■
■
■
■
■
Output power per channel: 1.4 W @ 5 V or 0.5
W @ 3.0 V into 8
Ω
with 1% THD+N max
Output power per channel: 2.3 W @ 5 V or 0.75
W @ 3.0 V into 4
Ω
with 1% THD+N max
Two fixed gain selects: 6 dB or 12 dB
Low current consumption
Efficiency: 88% (typ)
Signal-to-noise ratio: 90 dB (typ)
PSRR: 68 dB (typ) @ 217 Hz with 6 dB gain
PWM base frequency: 280 kHz
Low pop and click noise
Thermal shutdown protection
Output short-circuit protection
RoHS compliant
Description
O

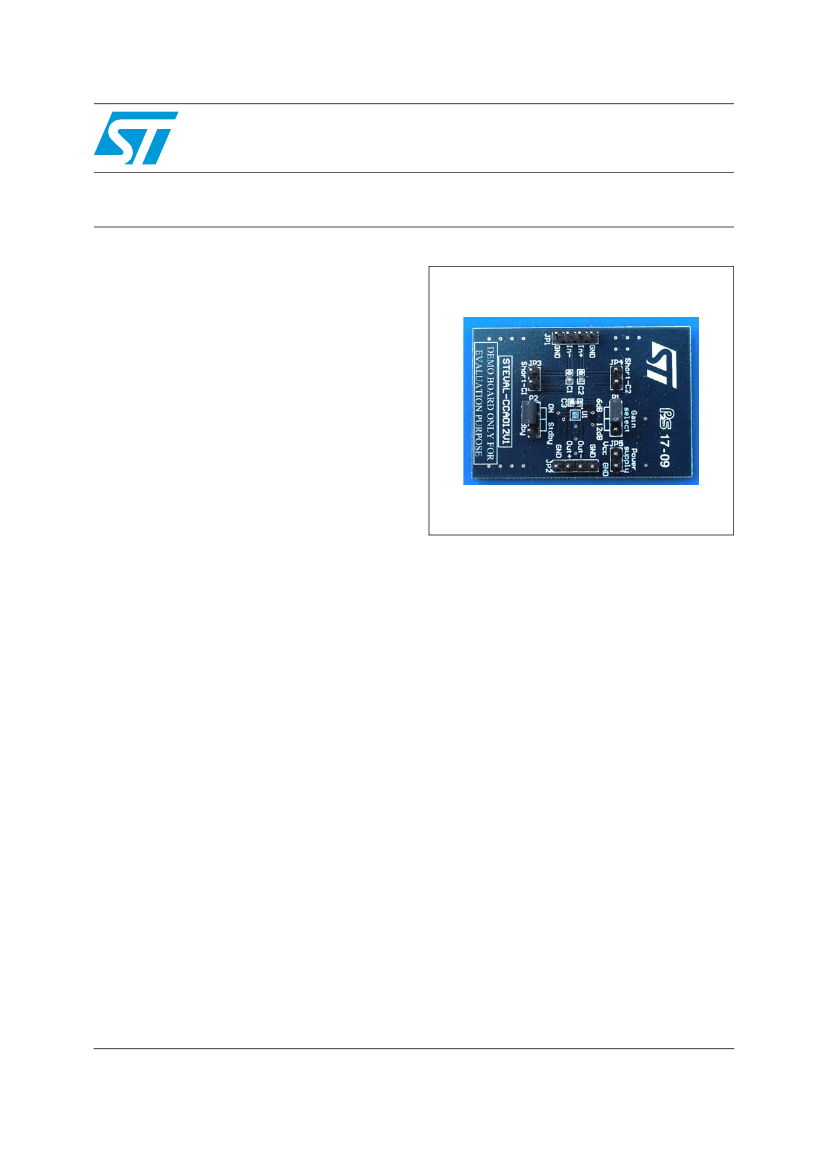

The STEVAL-CCA012V1 demonstration board is
based on the TS2007FC audio power class-D
amplifier, housed in a Flip-Chip package, which is
capable of driving up to 1.4 W into an 8
Ω
load at
5 V. The device offers improved efficiency
compared to typical class-AB audio amplifiers.
The TS2007FC allows switching between two
different gains: 6 or 12 dB via a logic signal on the
GS pin. Pop and click reduction circuitry provides
low on/off switching noise while allowing the
device to start within 1 ms. An active low standby
function permits lower current consumption (down
to 1 µA typ). The TS2007FC also integrates
output short-circuit protection and thermal
shutdown protection.
The STEVAL-CCA012V demonstration board is
constructed on a two-layer PCB with easily
accessible connectors, allowing users to change
June 2009
Doc ID 15861 Rev 1
1/4
www.st.com
4
et
l
so
b
ro
P
e
u
d
)-
(s
ct
b
O
or drive the gain select and standby control pin,
and to change the input configuration.
