Product Brief
Wi‐Fi Module Evaluation Kit
Module Block Diagram
SN8200 Module
VBAT
VDD
VDD_WIFI_IN
UART
SPI
I2C
ADC
DAC
GPIO
16 MHz
26 MHz
ANT
SN8200 EVK+
ARM
Cortex M3
Wi-Fi SoC
(802.11b/g/n
SPDT
LPF

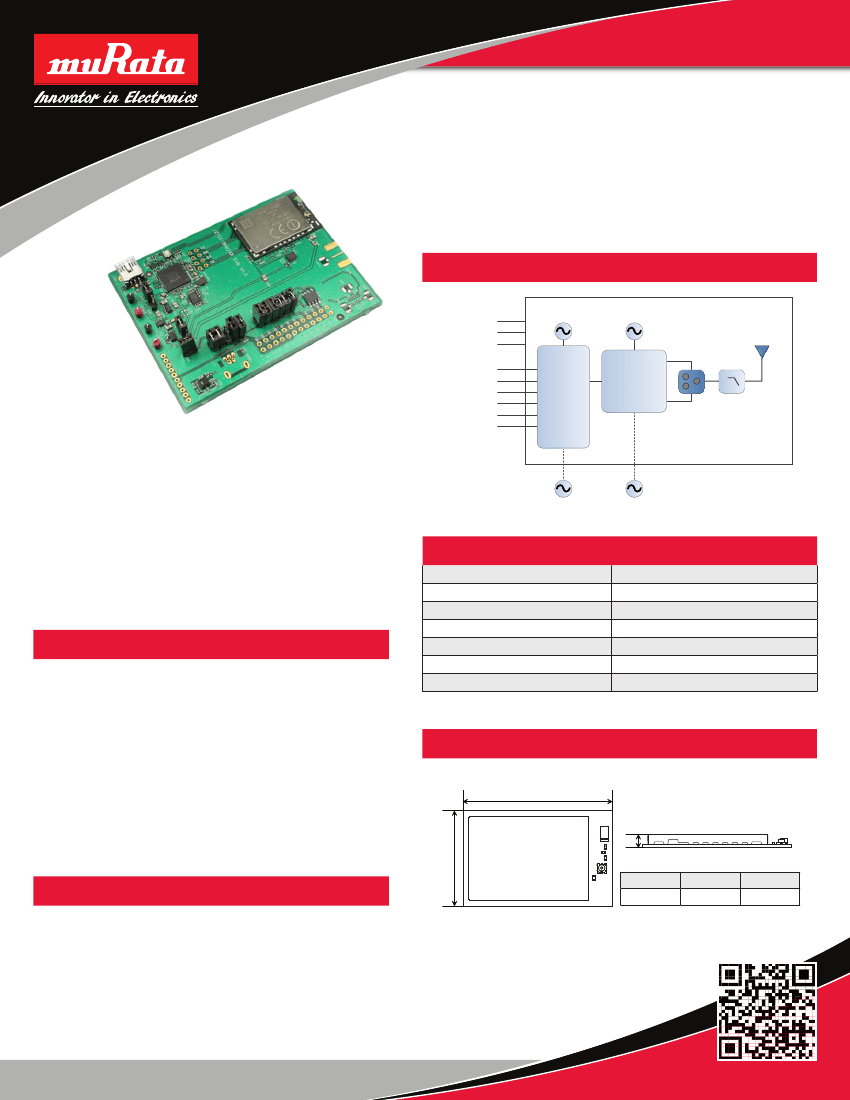

The SN8200 EVK+ facilitates evaluation of and software
development around the SN8200 Wi‐Fi Network Con-
troller Module. Major enhancements from the previous
SN8200 EVK include:
zz
Support for the latest Murata EZ Web Wizzard™ software
as well as all previous software releases
zz
Support of the Broadcom WICED SDK
zz
Jumper switches that easily connect the on‐board
module to the customer’s target host MCU/CPU
zz
On‐board serial flash for OTA software development
32 KHz
(optional)
WIFI_SLEEP
_CLK_IN
(optional)
Module Specifications
Technology
Antenna Configuration
Transmit power
Max receive sensitivity
Host Interface
Sensor applications support
Operating Temperature
2.4GHz IEEE 802.11b/g/n
On-board
+18 dBm @b mode/11Mpbs
-96dbm
UART, SPI
GPIO, I2C, ADC, DAC
-30ºC to +85ºC
SN8200 Module Features
zz
2.4GHz IEEE 802.11b/g/n
zz
Wi‐Fi® Chipset: Broadcom BCM43362
zz
MCU: ST Microelectronics STM32 ARM Cortex‐M3
zz
Supports WPA/WPA2 PSK
zz
Supports built‐in TCP/IP Stack, HTTP, Javascript, and
Module Dimensions (mm)
<Top View>
Web Server with SNIC software package
zz
Supports AP/STA Dual mode
zz
Supports custom web pages with Murata EZ Web
Wizzard™ Software
zz
Supports Broadcom WICED SDK 2.2
L
<SideView>
H
W
Applications
zz
Home Automation & Home Energy Management
L
W
H
30.5±0.2 19.4±0.2 2.8±0.2
Systems
zz
Smart Appliances
zz
Industrial Control and Monitoring
zz
Medical and Healthcare
Note: Information in this brief is subject to change without notice.
© March 2013 Murata Americas
E-mail: modules@murata.com
www.murata-ws.com
Product Brief
SN8200 module

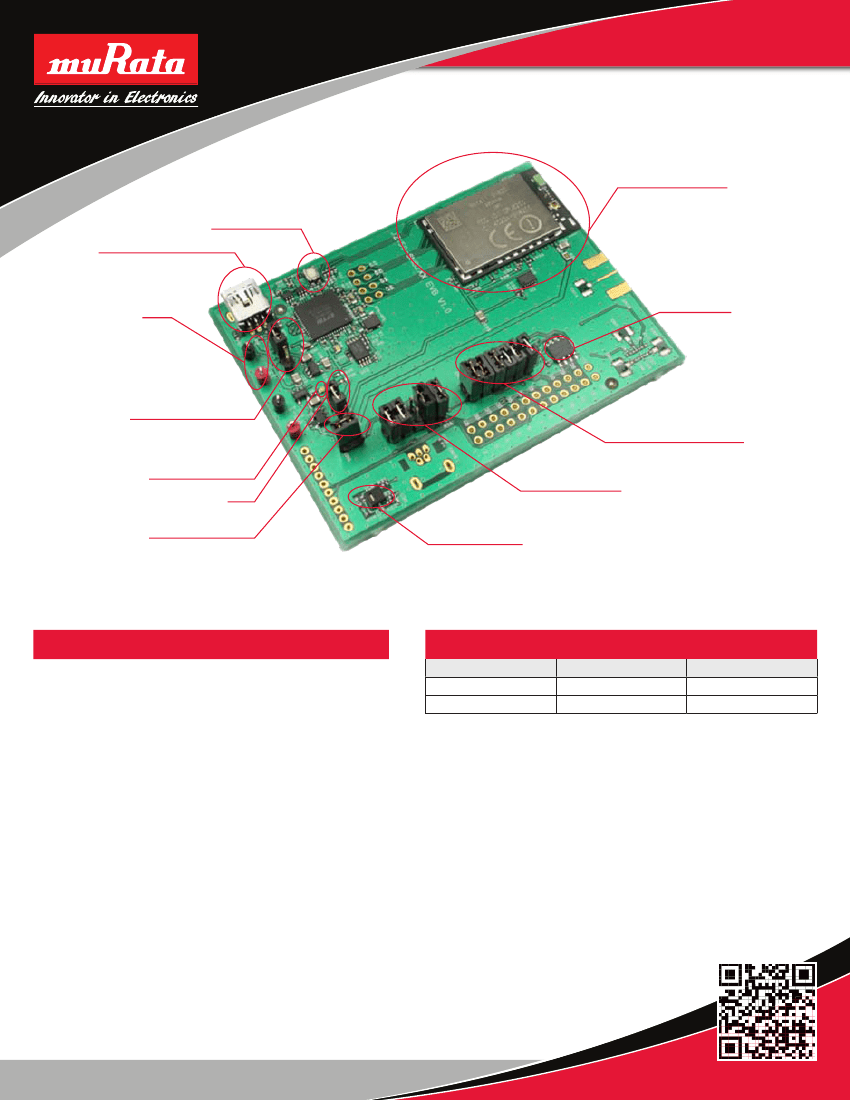

Reset button
Mini-USB connector
Serial ash
V
EXT
CN2 (V
EXT
on right)
Serial ash interface
Power indicator
CN3
CN4 (VDD_3V6)
UART interface
SHT21 sensor
Evaluation Board Features
zz
SN8200 Wi‐Fi Network Controller
zz
Mini‐USB connector supporting USB‐JTAG and USB‐
Ordering Information
Model Number
SN8200
SN8200 EVK+
Description
Module
Evaluation Kit
Part Number
88-00151-00
88-00151-95
serial interfaces
zz
Pads for headers to access the I/O pins of the SN8200
module
zz
Serial flash (8M bits) and interface header
zz
SHT21 temperature and relative humidity sensor
zz
UART interface header
Note: Information in this brief is subject to change without notice.
© March 2013 Murata Americas
E-mail: modules@murata.com
www.murata-ws.com
