Modular power supplies PS Part number 88950302
Switch mode power supply regulated and protected against overloads and short-circuits, easy to integrate into switchboards and
enclosures
The potentiometer can be used to set the output voltage between 100 and 120 % (24 VDC versions) to compensate for any voltage
drops on the line
The LED continuously signals the presence of voltage at the output and, when flashing, triggering of the self-protection
Broad range of supply voltage
Double insulation
Part numbers
Type
88950302
PS
Nominal output voltage
24 V DC (22,8 V →28,8 V)
Nominal power
60 W
Nominal output current
2,5 A
Specifications
Environmental characteristics
Conformity to standards
IEC/EN 60950-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61204-3
IEC/EN 60364-4-41 SELV : Safety Extra Low Voltage
EN 55022 (CISPR22)
CE, UL, CSA, TüV
Harmonic : IEC / EN 61000-3-2
-25 →+55 °C
-40 →+70 °C
Class 2 (Double insulation)
Certifications
Emission
Operating temperature
Storage temperature (°C)
Protection class
Electrical characteristics
Input voltage
Supply frequency range
Output voltage
Peak current on energisation
Regulation of line and load
Immunity from micro power cuts
Thermal protection
Technology
Short-circuit protection
Overload protection
Primary protection
Reset after overload
Dielectric strength
Status indication
100 →240 V AC single-phase
(-15 %/+10 %)
50/60 Hz (+4 % / -6 %)
or 47→53 Hz/57 →63 Hz
Adjustable from 100 →120 %
< 20 A (Except for 88950302 : < 90A during 1 ms)
±3%
< 10 ms (100 V AC)
< 150 ms (230 V AC)
Yes
Primary switch mode electronic power supplies
Yes
Yes
Fuse gG 2 A or circuit breaker 2 A curve D for 88950303, 88950304, 88950305, 88950306, 88950307
Fuse gG 3 A or circuit breaker 3 A curve D for 88950302
Automatic
Input / output 3000 VAC / 50 Hz / 1mn
LED at the output
Mechanical characteristics
Mounting
Screw terminals connection capacity
On section, 35 x 7, 5 mm and 35 x 15 mm or on panel (2 x Ø4 mm)
Input connection 2 x 0,14 →2,5 mm
2
(AWG 26...AWG 14)
Output connection 1 x 0,14 →2,5 mm
2
(AWG 26...AWG 14)

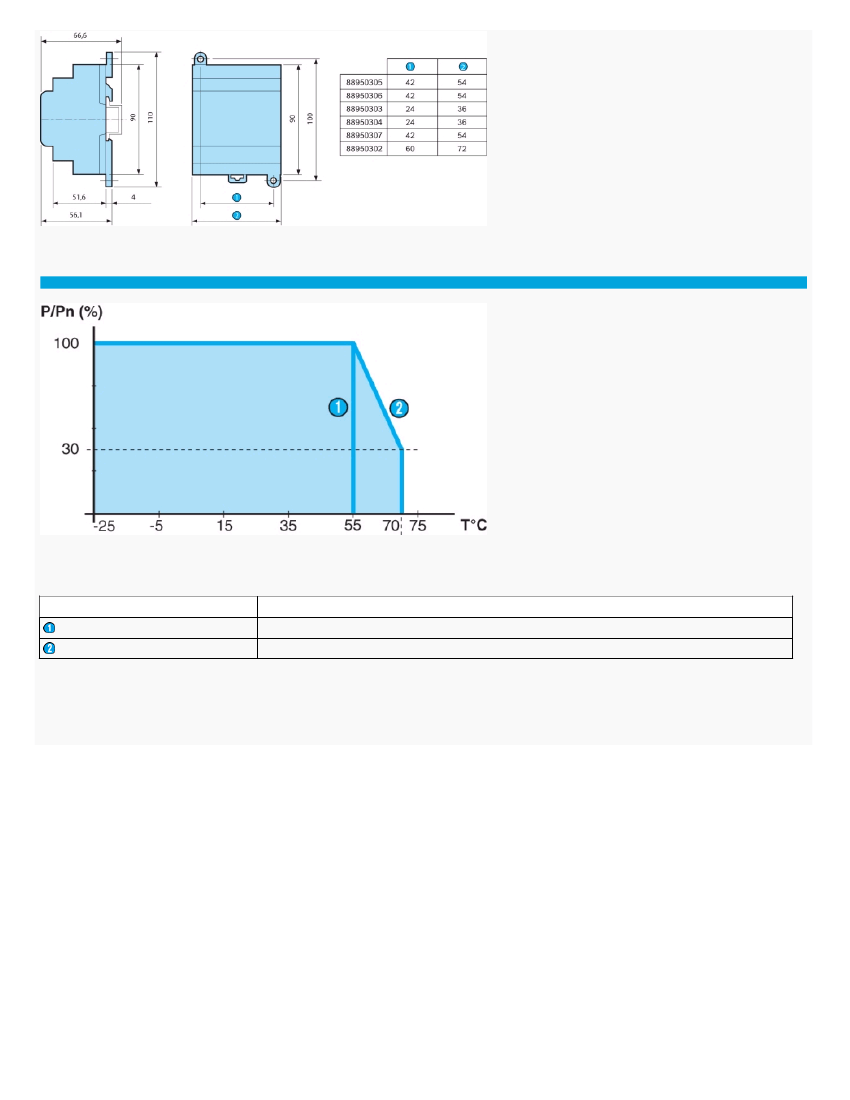

Dimensions (mm)
PS
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
Curves
Derating
The ambient operating temperature of the Millenium power supplies is 55 °C. Above this, a derating is needed upto a maximum operating temperature of 70 °C. The chart below shows the power
(compared to the nominal power) that can be permanently supplied by the power supply, depending on the operating temperature.
N
o
Legend
88950302
8895030x
