specifications
Small form factor fiber optic modules and
connectors shall be compliant with the TIA
FOCIS-6 Fiber Jack (FJ) interface specification.
RJ-45 style module and connector shall be field
terminable in one module space with no adapter.
The fibers shall terminate in 2.5mm ferrules with
non-optical disconnect and typical insertion loss
of 0.1dB per connector.
TM
NETWORK CONNECTIVITY GROUP
SPEC SHEET
M
INI
-C
OM
®
O
PTI
-J
ACK
®
Fiber Optic Module — Multimode
technical information
Fiber cable types:
3.0mm jacketed or 900µm buffered, works with 62.5/125µm or
50/125µm multimode
Ferrule type:
Insertion loss:
Return loss:
Ceramic (Zirconia)
0.1dB typical
Greater than 20dB
O
PTI
-J
ACK
Fiber Optic Module
Multimode:
Multimode:
FJJGM5C**
O
PTI
-P
LUG
™
Fiber Optic Connector
FJEPGM5C**
Plug to Plug Coupler
Plug to plug coupler:
(primarily used in testing)
FJGCCEI
Termination Tooling
key features and ...benefits
Small form factor connector
Proven 2.5mm ferrules
Robust design
Non-optical disconnect
RJ-45 form factor
Field terminable
module and connector
Adapterless
Flush mount
TIA standardization
Keyed solution available
Double the port density in one module space at
the outlet and in the telecommunications closet
Uses standard termination tools and procedures
Protects fibers from mechanical and environmental
stress
Maintains data transmission under tensile load
Familiar to end-users, snaps into all
M
INI
-C
OM
outlets and modular patch panels
Allows flexibility to assemble special length patch
cords on site
Fewer components to order and inventory
Unused ports do not protrude from the wall; can be
used with shuttered faceplates
FOCIS-6 interface approved at the TIA, required for
TIA/EIA-568-B.3
Provides network security; limits access to highly
sensitive, classified and segregated networks
Termination kit:
Consumables kit:
O
PTI
-J
ACK
module:
O
PTI
-P
LUG
connector:
O
PTI
-P
LUG
connector
to O
PTI
-P
LUG
connector:
O
PTI
-P
LUG
connector
to O
PTI
-J
ACK
module:
O
PTI
-P
LUG
connector
to SC:
O
PTI
-P
LUG
connector
to ST:
O
PTI
-P
LUG
connector
to FC:
O
PTI
-P
LUG
connector
(Keyed W) to SC:
O
PTI
-P
LUG
connector
(Keyed W) to ST:
FJKITG
FJKITG-RFB
Replacement Ferrules (Multimode)
FJJFRL-X
FJEPFRL-X
Multimode Duplex Patch Cords
F^D6P-6PM‡
F^D6P-6JM‡
F^D6P-3M‡
F^D6P-2M‡
F^D6P-4M‡
F^D6PW-3M‡
F^D6PW-2M‡
All key type (W, X, Y, Z) patch cords available
^Available in 62.5/125µm (6) and 50/125µm (5)
‡Available in 1, 2, 3 and 10 meters
applications
Fiber-to-the-desk:
The
O
PTI
-J
ACK
fiber optic
module is the ultimate desktop fiber
connector. The 2.5mm ferrule provides
robustness required for this demanding
environment. The FJ interface module and
connector design is familiar to the end user
and is polarized to prevent mismatch of
transmit and receive cables. Because there is
no adapter, unused ports remain flush with
the wall and away from damage. Shuttered
faceplates can be used for further protection
of the unused ports. The modularity with
copper connectors allows for the complete
data-communications solution to every
workstation in one outlet.
Keyed network security:
Four color-coded,
keyed configurations of the module and
connector are available to provide mechanical
and visual differentiation to prevent
unintentional insertion into adjacent ports.
Provides network security for military,
government, financial and educational
applications. Universal keyed connector
available for testing purposes.
Telecommunications closet:
The high port
density of the
O
PTI
-J
ACK
module reduces the
space requirements for fiber terminations in
the closet. This allows the end user to use
less rack space and purchase fewer fiber
enclosures. The multiple color options allow
color coding of different networks or areas of
the building for easier troubleshooting.
**Substitute for
Colors:
EI = Electric Ivory
BL = Black
BU = Blue
IW = Off White
OR = Orange
WH = White
Keyed Colors:
WBL = Keyed W in Black
XRD = Keyed X in Red
YOR = Keyed Y in Orange
ZYL = Keyed Z in Yellow
“X” = Bag of 10 ferrules and crimp sleeves
installer tip
A-B polarity
easily reversed
by removing
module cover.
V i s i t o u r w e b s i t e a t : w w w. p a n d u i t . c o m / n c g
M
INI
-C
OM
®
O
PTI
-J
ACK
®

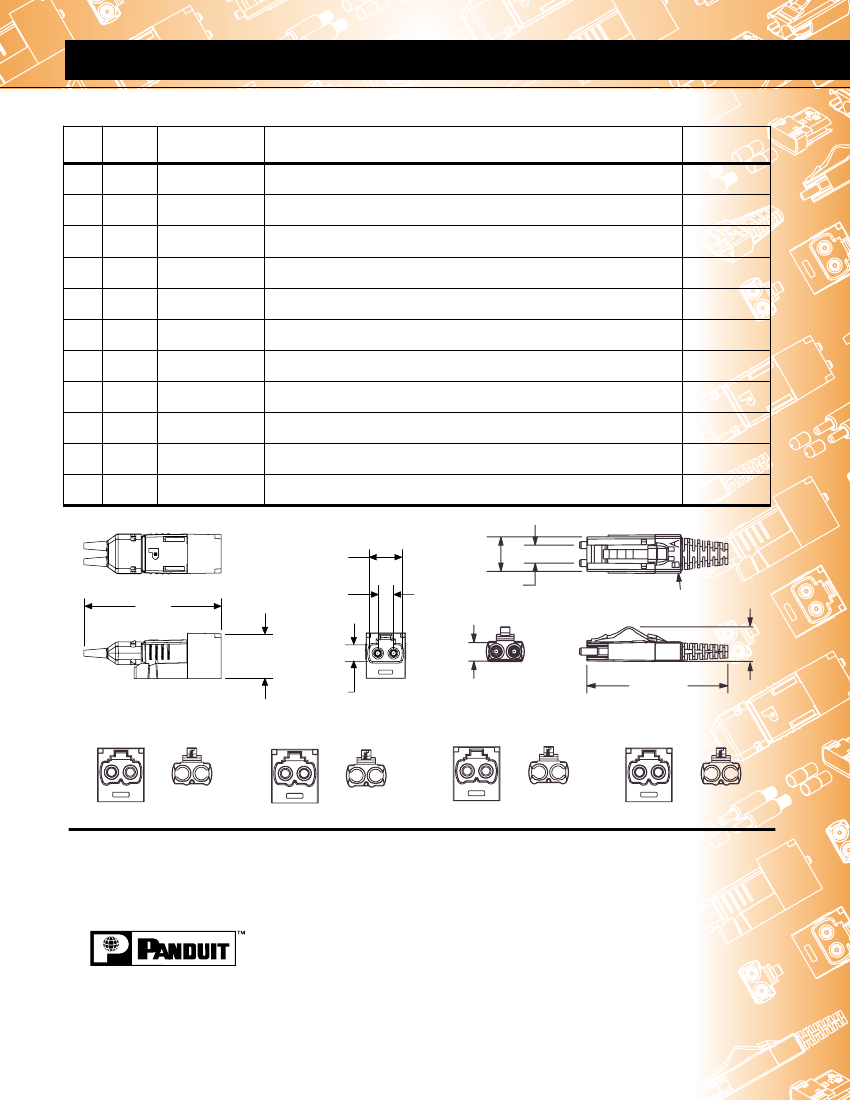

Fiber Optic Module — Multimode
Standards Compliant Connector Performance
TIA
455
1
2
4
5
6
21
34
36
107
185
188
ISO/IEC
874-1
--
4.5.11
4.5.18
4.4.19
4.5.4
4.5.32
4.4.7
4.5.5
--
4.5.6
4.5.17
Description
Flex
Impact
High Temperature
Humidity
Cable Retention
Durability
Insertion Loss
Twist
Return Loss
Coupling Strength
Low Temperature
Test Procedure and
TIA/EIA-568-B.3 Required Performance
100 cycles; -180 to 180 degrees;
max. insertion loss 0.75dB, min. return loss 20dB
8 drops from 1.8m;
max. insertion loss 0.75dB, min. return loss 20dB
4 days at 60°C followed by post-conditioning FOTP-6;
max. insertion loss 0.75dB, min. return loss 20dB
4 days at 90-95% RH and 40°C;
max. insertion loss 0.75dB, min. return loss 20dB max. change during test 0.4dB
11.24 lbs. at 0 degrees, 4.4 lbs. at 90 degrees;
max. insertion loss 0.75dB, min. return loss 20dB max. change during test 0.5dB
500 mate/unmate cycles;
max. insertion loss 0.75dB, min. return loss 20dB
max. insertion loss 0.75dB, min. return loss 20dB
10 cycles; 2.5 cw, 5 ccw, 2.5 cw;
max. insertion loss 0.75dB, min. return loss 20dB
20dB minimum return loss
7.4 lbs. at 0 degrees;
max. insertion loss 0.75dB, min. return loss 20dB
4 days at 0°C;
max. insertion loss 0.75dB, min. return loss 20dB max. change during test 0.3dB
Performance
After Test
<0.2dB
additional loss
<0.1dB
additional loss
<0.2dB
additional loss
<0.1dB
additional loss
<0.2dB
additional loss
<0.1dB
additional loss
0.1dB typical
<0.1dB
additional loss
>20dB
<0.1dB
additional loss
<0.1dB
additional loss
NOTE: Above tests performed at 850 and 1300nm on 3.0mm jacketed fiber cable.
.48
[12.1]
.25
[6.4]
.53
[13.4]
.25
[6.4]
2.17
[55.0]
“A” & “B” DESIGNATION
UNDER BOOT AFTER ASSEMBLY
.48
[12.2]
.71
[18.0]
.26
[6.7]
.26
[6.6]
1.96 [49.7]
Keyed W - Black
Keyed X - Red
Keyed Y - Orange
Keyed Z - Yellow
Dimensions are in inches (Dimensions in parentheses are in millimeters)
