GHB-3M60-Y
GHB-3M45-R
GHB-3M60-R
Description
This family of 3 mm LED Lamps is
capable of withstanding automatic
insertion and wave soldering
processes.
Designed with a thick epoxy flange
and soft leadframe material, it is
ideal for clinch and cut operations.
SEATING PLANE
5.9 ± 0.5
(0.23 ± 0.02)
3.5 ± 0.3
(0.14 ± 0.01)
0.65 (0.03) MAX.
23.0
(0.91)
1.0 ± 0.5
(0.04 ± 0.02)
CATHODE MARKS
0.4 ± 0.2
(0.02 ± 0.01)
2.5 ± 0.3
(0.10 ± 0.01)
4.4 ± 0.3
3.1 ± 0.2
(0.17 ± 0.01) (0.12 ± 0.01)
0.4 ± 0.2
(0.01 ± 0.01)
2.0 (0.08) REF.
0.45 ± 0.10
(0.02 ± 0.007)
+ 0.1
0
+ 0.00
(0.2 - 0.00 )
0.4
3.4 ± 0.2
(0.13 ± 0.01)
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. LEADS ARE MILD STEEL. SOLDER COATED.
3. EPOXY MENISCUS OF 0.8 mm (0.03 in.) MAXIMUM
MAY EXTEND TO THE LEADS.
Device Selection Guide
High Brightness Lamps
Color
Part Number
GHB-3M45-R
GHB-3M60-R
GHB-3M60-Y
Note:
1. 2q
1
/
2
is the off axis angle where the luminous intensity is
1
/
2
the on axis intensity.
Package
Tinted
Diffused
Luminous Intensity,
Min. Iv @ 20 mA
Viewing Angle,
2
q
1
/
2
A1InGaP
DC Forward Current
[1]
Reverse Voltage
(Ir = 100
mA)
Junction Temperature,
T
jmax
Storage Temperature
Range
Operating Temperature
Range
Lead Soldering
Temperature
[1.6 mm (0.063 in.)
from seating plane]
[2,3]
5
110
-40 to +85
-20 to +85
-40 to +85
mA
V
°C
°C
°C
A) DIP/DRAG Soldering: 260
°C
for 5 seconds
B) Wave Solder Temperature: 245
°C
for 3 seconds
Notes:
1. See Page 3 for maximum current derating vs. ambient temperature.
2. Suggested minimum DC current: 10 mA
3. Maximum Peak Pulsed Forward Current: 50 mA, 30 mA average.
Electrical Characteristics at T
Forward
Voltage
Vf (Volts)
Part Number
GHB-3M60-Y
GHB-3M45/60-R
Typ.
Max.
A
= 25 ¼C
Capacitance
C (pF)
Vf = 0,
f = 1 MHz
Typ.
Speed of Response
t
s
(ns)
Time Constant
e
-t
/t
s
Typ.
If (mA)
Thermal
Resistance R
q
J-PIN
(
°
C/W)
Optical Characteristics at T
A
= 25 ¼C
Typ. Dominant
Typ. Peak
Wavelength
Wavelength (nm)
(nm)
Luminous
Efficacy
Width
(lm/W)
Luminous Intensity
Part Number
GHB-3M45-R
GHB-3M60-R
GHB-3M60-Y
Min.
If (mA)
Typ. Spectral
Half Width

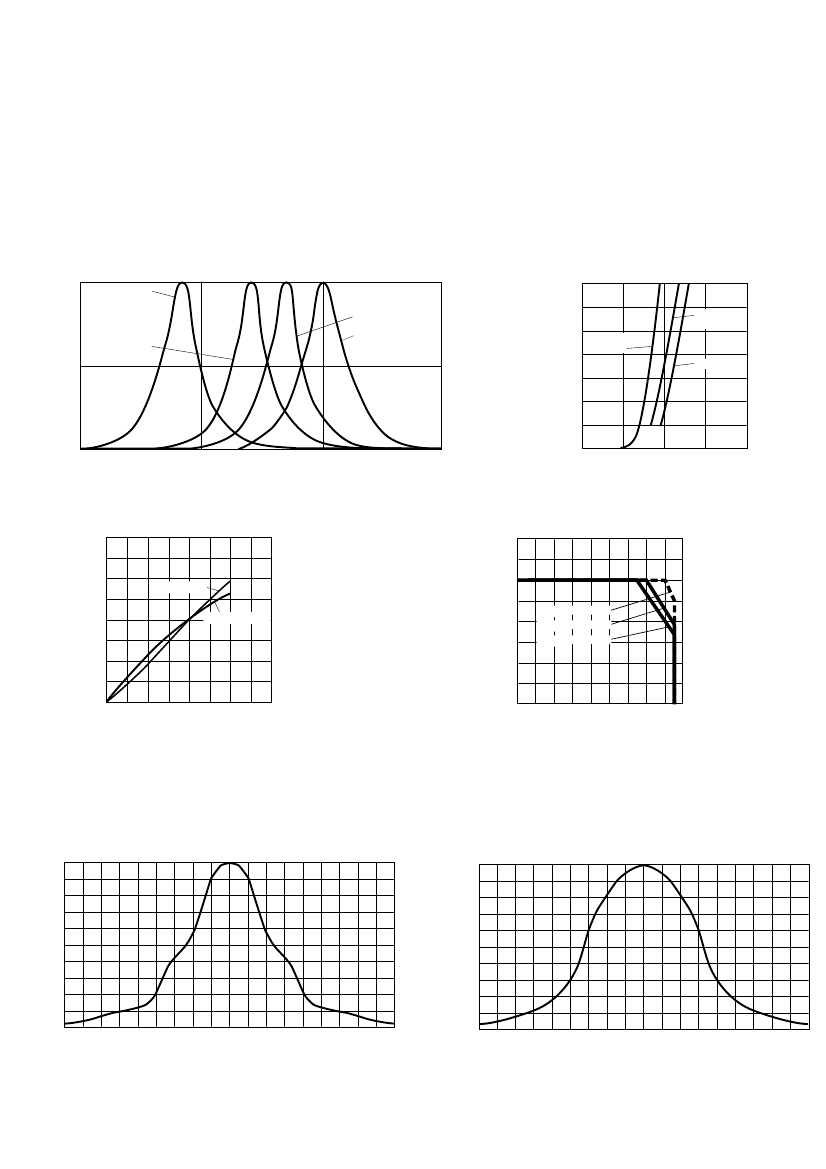

HIGH BRIGHTNESS LAMPS
1.0
I
F
Ð FORWARD CURRENT Ð mA
AMBER
AlInGaP RED
DH AlGaAs RED
RED-ORANGE
HIGH BRIGHTNESS LAMPS
70
60
50
40
30
20
10
0
1.0
1.5
2.0
2.5
3.0
DH AsAlGaAs
RED
AMBER
AlInGaP
RED
RELATIVE INTENSITY
0.5
0
550
600
WAVELENGTH Ð nm
650
700
V
F
Ð FORWARD VOLTAGE Ð V
HIGH BRIGHTNESS LAMPS
AlInGaP
40
I
F
Ð FORWARD CURRENT Ð mA
RELATIVE LUMINOUS INTENSITY
0
(NORMALIZED AT 20 mA)
0
35
30
25
Rq
JA
= 500¡ C/W
20
15
10
5
0
0
10 20 30 40
50 60 70 80 90
Rq
JA
= 650¡ C/W
Rq
JA
= 750¡ C/W
1.5
AlInGaP
DH As AlGaAs
1.0
0.5
10
20
30
40
I
F
Ð DC FORWARD CURRENT Ð mA
T
A
Ð AMBIENT TEMPERATURE Ð ¡C
1
0.9
1
0.9
NORMALIZED INTENSITY
0 10 20 30 40 50 60 70 80 90
NORMALIZED INTENSITY
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-90 -80 -70 -60 -50 -40 -30 -20 -10
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-90 -80 -70 -60 -50 -40 -30 -20 -10
0 10 20 30 40 50 60 70 80 90
ANGULAR DISPLACEMENT Ð DEGREES
ANGULAR DISPLACEMENT Ð DEGREES
°
. Representative Spatial Radiation Pattern for 45 Viewing Angle.
Representative Spatial Radiation Pattern for 60
°
Viewing Angle.
