857176

Description
Signal Conditioning 140MHz BW 28.5MHz Max IL 21dB SAW
CategoryPassive components
File Size541KB,6 Pages
ManufacturerQorvo
Websitehttps://www.qorvo.com
Download Datasheet Parametric View All

857176 Online Shopping

Suppliers Part Number Price MOQ In stock
857176 - - View Buy Now

857176 Overview

Signal Conditioning 140MHz BW 28.5MHz Max IL 21dB SAW

857176 Parametric

Parameter NameAttribute value
Product CategorySignal Conditioning
ManufacturerQorvo
RoHSDetails
ProductSAW Filters
PackagingReel
Factory Pack Quantity100
857176
140 MHz SAW Filter
Applications
For Military applications
Product Features
Typical 3dB Bandwidth of 28.5 MHz
Low loss
High attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small Size
Dimensions: 9.0 x 7.0 x 1.5mm
Hermetically Sealed
RoHS
compliant,
Pb-free
Pb

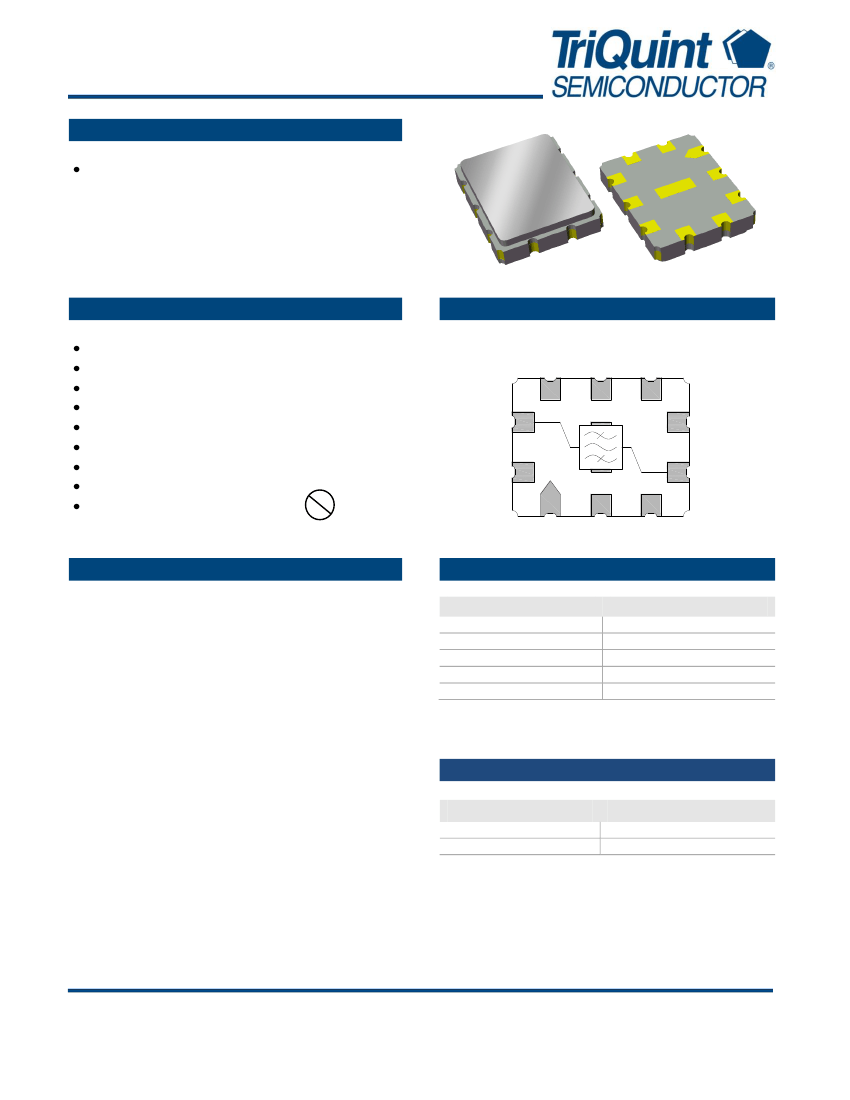

Functional Block Diagram
Top view
Gnd
8
Input
9
Gnd
7
Gnd
6
5
Output return
Input return 10
1
Gnd
2
Gnd
3
Gnd
4
Output
General Description
The 857176 is a high-performance IF SAW filter with a
center frequency of 140 MHz and a 3 dB bandwidth of 28.5
MHz.
It features low loss with excellent attenuation, and is
designed to be used with a single ended input and output.
The device is RoHS compliant and Pb-free.
Pin Configuration
Pin # SE
9
10
4
5
1,2,3,6,7,8
Description
Input
Input Return
Output
Output Return
Case Ground
Ordering Information
Part No.
857176
857176-EVB
Description
packaged part
evaluation board
Standard T/R size = 2000 units/reel.
Preliminary Data Sheet: Rev - 09/21/12
© 2012 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
