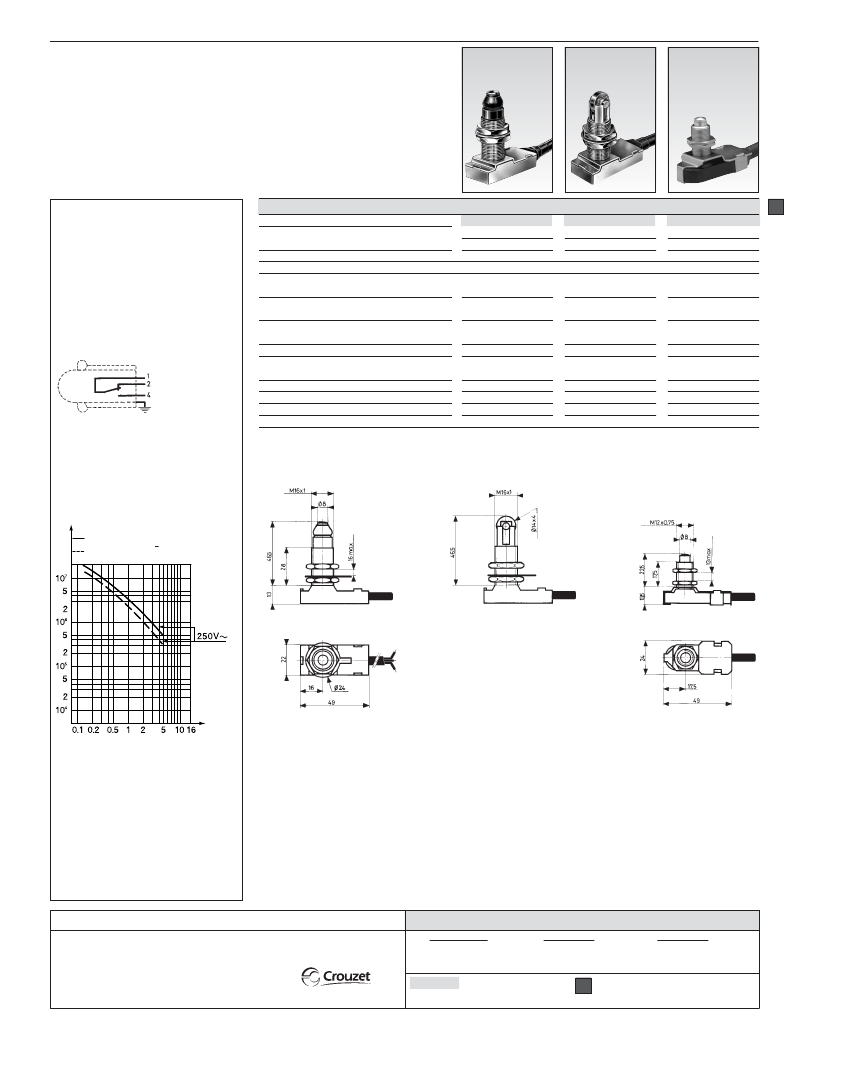

Automotive Limit Switches Series 83 731 / 83 732 / 83 733
Conform to the following standards :
IEC 356.1 - EN 60204.1
NFC 20030 : Class
I
- 83 731 - 83 732
Class
III
- 83 733
Degree of protection :
IP 56 - IP 66 depending on type
Version :
1 pole
Function :
3-terminal single break two-
way contact element (form C: inverter).
Principle :
Types
83 731 3
Control mechanisms
Top-mounted plunger
Top-mounted plunger with roller
Mechanical characteristics
Minimum operating
N (oz.)
force
Minimum total travel
N (oz.)
force
Minimum operating travel
mm (in.)
Differential travel
Max. total travel
Mechanical life
Temperature limits
Degree of protection
Weight
mm (in.)
mm (in.)
Operations
°C (°F)
°C (°F)
g (oz.)
●
●
1
83 732 3
83 733 3
●
15 (53)
35 (123.4)
2 (.079)
0.2 (.008)
6 (.236)
10
- 5 + 70
IP 66
110 (3.9)
6
15 (53)
35 (123.4)
2 (.079)
0.2 (.008)
6 (.236)
10
- 5 + 70
IP 66
110 (3.9)
6
6 (21.2)
25 (88.2)
1.5 (.059)
0.2 (.008)
4 (.157)
10
6
- 5 + 70
IP 56
70 (2.5)
Electrical characteristics :
Assigned operating current (
I
e)
83 731 - 83 732 : 5 A 250 V
83 733
: 5 A 50 V
Thermal rating (Ith) : 12 A
Operating curve :
Operations
Resistive circuit
Inductive circuit
L = 5 ms
R
a
cos
ϕ
= 0.8
c
Dimensions
83 731 3
mm
83 732 3
83 733 3
{
A
Connections :
PVC cable (A05 - VV - F) 0.50 m long
3 conductors cross-section 0.75 mm
2
Sheathed, ext. Ø : 7.6 mm
Core connections : 1 : black (common)
2 : brown (NC)
4 : blue (NO)
Electrical protection :
Earthing terminal for version 83 731
and 83 732.
Approvals :
CSA A300.
Other information
For other versions, functions and special contacts or special modes of
operation : please consult us.
To order, specify :
1/2 meter cable
83731316
83732323
#
83733315
Standard products,
non stocked
1 meter cable
83731319
83732315
83733314
2 meter cable
83731310
83732327
83733310
Type
Example : Limit switch - 83 731 319
1
