MDRR-DT-15-25-U datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> MDRR-DT-15-25-U

MDRR-DT-15-25-U: DescriptionMagnetic / Reed Switches; CategoryTopical application Mechanical and electrical/engineering/automation; File Size353KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

MDRR-DT-15-25-U Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MDRR-DT-15-25-U	-	-	View	Buy Now

MDRR-DT-15-25-U Overview

Magnetic / Reed Switches

MDRR-DT-15-25-U Parametric

Parameter Name	Attribute value
Product Category	Magnetic / Reed Switches
Manufacturer	Littelfuse
RoHS	Details
Switch Type	Miniature Switch
Contact Form	SPDT
Contact Rating	5W
Operate Range	15 AT to 25 AT
Voltage Rating AC	120 VAC
Color	Clear
Termination Style	Twin Blade Terminals
Packaging	Case
Contact Position	Normally Closed, Change Over
Mounting	Through Hole
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

Axial Lead Reed Switches

Low Power > MDRR-DT

MDRR-DT 14.7mm Miniature Changeover Reed Switch

RoHS

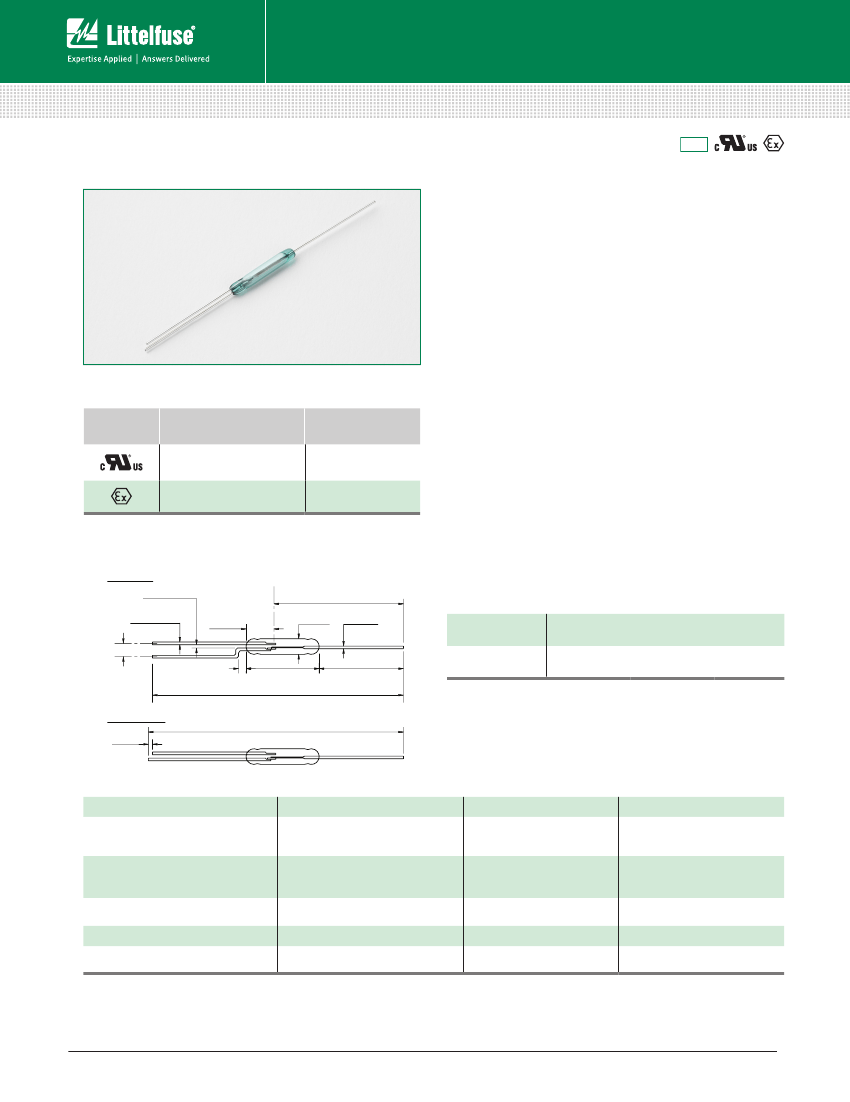

Description

The MDRR-DT Reed Switch is a miniature changeover switch with a 14.73mm

long x 2.54mm diameter (0.580” x 0.100”) glass envelope, capable of switching

175Vdc at 5W. It has insulation resistance of 10

ohms minimum, and contact

resistance less than 100 milli-ohms. The MDRR-DT is available in surface mount

version, that is, MDSM-DT.

Features

• Miniature SPDT changeover switch

• Capable of switching 175Vdc or

0.25A at up to 5W

• Available sensitivity range

10-30 AT

Agency Approvals

Agency

Agency File Number

E47258

E471070

DEMKO 14 ATEX 1393U

Note: Contact Littelfuse for specific agency approval ratings.

Benefits

Ampere-Turns Range

10-30 AT

• Hermetically sealed switch

contacts are not affected by and

have no effect on their external

environment

• Can be used as changeover or

normally closed contact

• Zero operating power required for

contact closure

• Excellent for switching

microcontroller logic level loads

Applications

• Position Sensing

• Reed Relays

• Industrial Controls

• Office Equipments

• Home Appliances

• Security

Dimensions

Dimensions in mm (inch)

F - Formed

CL OF OVERLAP

28.32 REF

(1.115)

2.54 MAX.

(.100)

Ø0.51 REF

(.020)

COMMON

14.73 MAX.

(.580)

51.66 REF

(2.034)

17 MIN.

.78

(.700)

0.20 (.008) MIN.

AT 1.6 FROM SEAL

0.55 (.022) MAX.

2XØ0.56 REF

(.022)

N.O.

2.54 REF (.100)

N.C.

1.57 (.062) REF

4.57 REF

(.180)

Switch Type

Contact Form

Materials

C (SPDT-CO)

Body: Glass

Leads: Tin-plated Ni-Fe wire

Note: SPDT-CO = Single-Pole, Double-Throw, Change Over

U - Unformed

0.80 REF

(.031)

N.O.

N.C.

52.48 REF

(2.066)

Electrical Ratings

Contact Rating

Voltage

Current

W/VA - max.

Switching

175

120

200

0.25

0.18

1.50

0.100

-40 to +125

-65 to +125

Breakdown

Switching

Carry

Contact, Initial

Insulation

Contact

Operating

Storage

Resistance

Capacitance

Temperature

Vdc - max.

Vac - max.

Vdc - min.

Adc - max.

Aac - max.

Adc - max.

Ω - max.

Ω - min.

pF - typ.

°C

Notes:

1. Contact rating - Product of the switching voltage and current should never exceed the wattage rating. Contact Littelfuse for additional load/life information.

2. When switching inductive and/or capacitive loads, the effects of transient voltages and/or currents should be considered. Refer to Application Notes AN108A and AN107 for details.

3. Electrical Load Life Expectancy - Contact Littelfuse with voltage, current values along with type of load.

4. Breakdown Voltage - per MIL-STD-202, Method 301.

5. Storage Temperature - Long time exposure at elevated temperature may degrade solderability of the leads.

Revised: 12/16/15

Specifications are subject to change without notice.

littelfuse.com

MDRR-DT-15-25-U Related Products

	MDRR-DT-15-25-U	MDRR-DT-15-20-F	MDRR-DT-25-35-F	MDRR-DT-25-30-U	MDRR-DT-20-25-U	MDRR-DT-10-15-U
Description	Magnetic / Reed Switches	Bluetooth / 802.15.1 Modules BLE v4.2 Module NFC Integrated Ant.	Magnetic / Reed Switches	Magnetic / Reed Switches MDRR-DT 1156 25-30 U	Contact Probes Std. Stroke Hi-Pro SMT .370	Magnetic / Reed Switches MDRR-DT-10-15-U
Product Category	Magnetic / Reed Switches	Magnetic / Reed Switches	Magnetic / Reed Switches	Magnetic / Reed Switches	Magnetic / Reed Switches	Magnetic / Reed Switches
Manufacturer	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse
Packaging	Case	Bulk	Bulk	Bulk	Bulk	Bulk
RoHS	Details	Details	-	Details	Details	Details
Switch Type	Miniature Switch	Miniature Switch	-	Miniature Switch	Miniature Switch	Miniature Switch
Contact Form	SPDT	SPDT	-	SPDT	SPDT	SPDT
Contact Rating	5W	5W	-	5W	5W	5W
Operate Range	15 AT to 25 AT	15 AT to 20 AT	-	25 AT to 30 AT	20 AT to 25 AT	10 AT to 15 AT
Voltage Rating AC	120 VAC	120 VAC	-	120 VAC	120 VAC	120 VAC
Color	Clear	Clear	-	Clear	Clear	Clear
Termination Style	Twin Blade Terminals	Axial	-	Twin Blade Terminals	Twin Blade Terminals	Axial
Contact Position	Normally Closed, Change Over	Normally Closed, Change Over	-	Normally Closed, Change Over	Normally Closed, Change Over	Normally Closed, Change Over
Mounting	Through Hole	Through Hole	-	Through Hole	Through Hole	Through Hole
Factory Pack Quantity	1000	1000	-	1000	1000	1000
