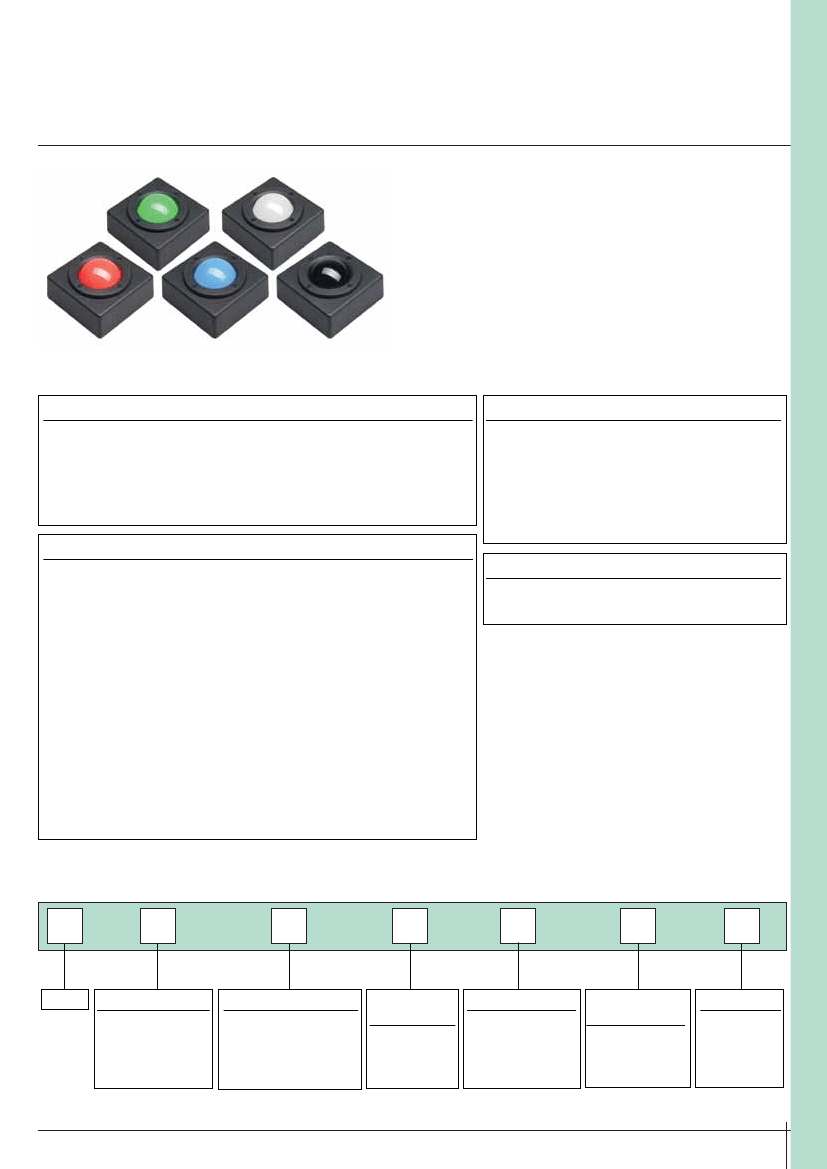

Low profile miniature trackball
LP100 series
Distinctive features and specifications
1” ball diameter
Panel mount design
Available in black or backlit illumination
Several protocol options
Additional button strips available
Environmental Protection Classification
(IP Rating): contact factory
MECHANICAL
CONFIGURATION OPTIONS
•
•
•
•
•
•
Ball Diameter:
1.00" (25.40mm)
Ball Rotation: Continuous in all directions
Tracking Force: 15g (0.35oz)
Weight: 33.5g (1.18oz)
Life Cycle (ball rotations): 5 million
Operating Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
PROTOCOL OPTIONS AND ELECTRICAL SPECIFICATIONS
• LED backlighting: Red, Blue, Green or
Clear through a translucent Thermostat
resin ball
• Additional pushbutton switch: Two, three or
four* buttons (* USB only) – see Button Strips
• Connector cables
• Conformally coated PCB
MOUNTING OPTIONS
• USB:
Input: 4.00V – 5.25V @ 25mA max
(+30mA for backlit illumination option)
Output: USB 1.1
• 180º horizontal to 90º vertical – please
specify when ordering.
NOTE: All values are nominal.
• PS/2 (2/3BTN PS/2): Input: 5.00V @ 25mA max
(+30mA for backlit illumination option)
Output: CMOS/TTL
• Quadrature: Input: 5.00V @ 30mA max
(+30mA for backlit illumination option)
Output: Quadrature Waveforms
LP
XX
SERIES
MODEL
100
1.00” (25.4mm)
Ball Diameter
3
5
7
PROTOCOL FORMAT
PS/2 (2/3 btn)
Quadrature
USB
MOUNTING
POSITION
F
- Level to 45º
N
- Level to 90º
X
- N/A
TERMINATION
H00
W00
- 160 resolution
- 320 resolution
ILLUMINATION
R
B
G
C
Red
Blue
Green
Clear
Black*
*
Non-illuminated
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com
LP100 series
Low profile miniature trackball

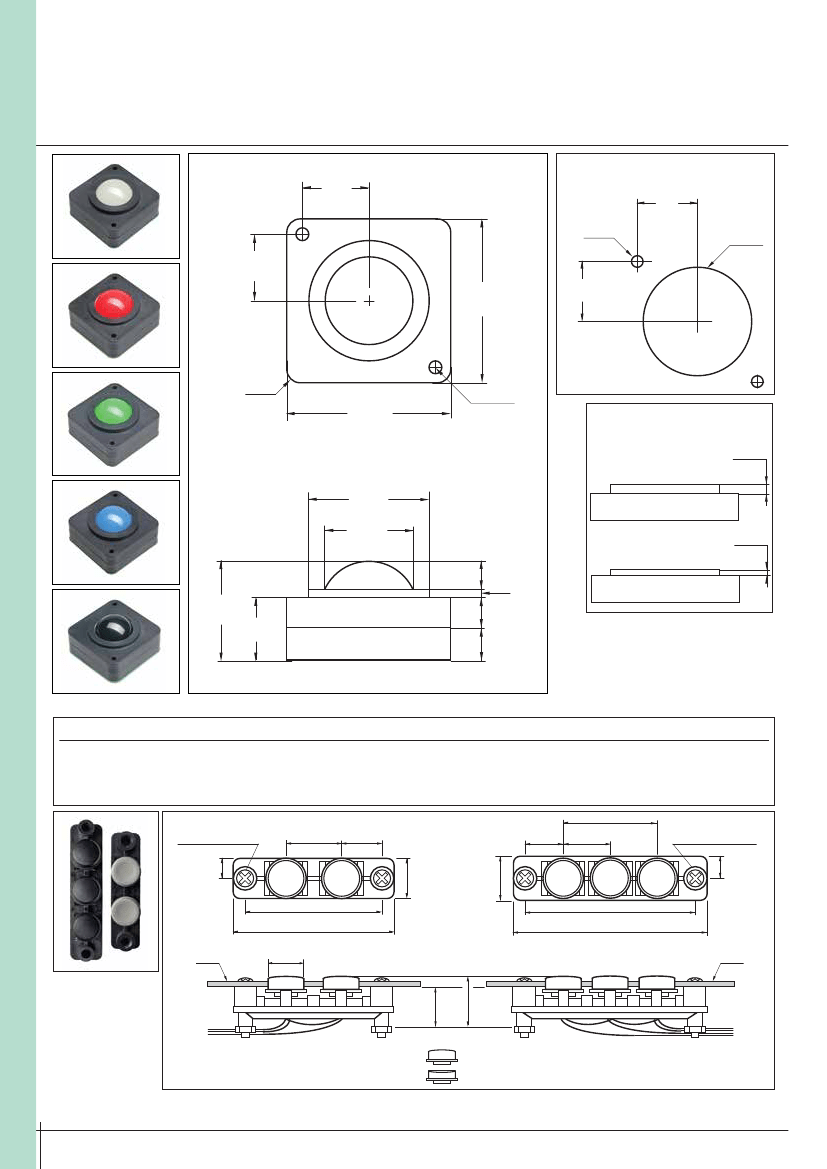

MOUNTING CUTOUT DIMENSIONS
17.53
(0.69)
17.53
(0.69)
Ø3.18
(1/8in)
17.53
(0.69)
44.45
(1.75)
17.53
(0.69)
Ø33.27
(1.31in)
Ball Diameter
25.40
(1.00)
R5.59
(0.22)
44.45
(1.75)
Mounting Hardware:
Two 4-30x3/4 Phl
Flathead screws
Ø3.05
(0.12)
OTHER AVAILABLE PANEL
DIMENSIONS*
3.30
(0.13)
33.02
(1.30)
23.11
(0.91in)
1.52
(0.06)
7.11
(0.28)
29.21
(1.15)
21.84
(0.86)
2.03
(0.08)
7.62
(0.30)
12.70
(0.50)
NOTES:
All dimensions are in mm/(inch).
* Please specify panel thickness
with your order.
BUTTON STRIP FEATURES
• Two, three, or four* (*USB only) buttons
• Tactile feedback
• Normally open momentary contact switch
• 5 million lifecycles rating at 500mA at 12VDC
• Black or gray button caps
• Choice of convex or concave design
37.08
(1.46)
#4-40 Screw, Nut
& Washer (2 Places)
7.62
(0.30)
+
20.32
(0.80)
+
50.80
(2.00)
61.21
(2.41)
15.24
(0.60)
15.24
(0.60)
16.76
(0.66)
13.97
(0.55)
+
18.54
(0.73)
+
64.77
(2.55)
73.66
(2.90)
+
#4-40 Screw, Nut
& Washer (2 Places)
8.38
(0.33)
Panel
Ø13.97
(0.55)
Panel
16.00
(0.63)
H
White
Gray
Green (Common)
For Convex Buttons
For Concave Buttons
H = 20.32/(0.80)
H = 19.30/(0.76)
White
Gray
Black
Green (Common)
NOTE: All dimensions are in mm/(inch).
Note: The company reserves the right to change specifications without notice.
LP100_JOYST1506R2US
www.apem.com
APEM
Low profile trackball
MECHANICAL
LP150 series
Distinctive features and specifications
1.5” ball diameter
Panel mount design
Available in black or backlit illumination
Several protocol options
Additional button strips available
Environmental Protection Classification
(IP Rating): contact factory
CONFIGURATION OPTIONS
•
•
•
•
•
•
Ball Diameter:
1.50" (38.10mm)
Ball Rotation: Continuous in all directions
Tracking Force: 10g (0.35oz)
Weight: 118.5.5g (4.18oz)
Life Cycle (ball rotations): 5 million
Operating Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
PROTOCOL OPTIONS AND ELECTRICAL SPECIFICATIONS
•
LED backlighting: Red, Blue, Green or
Clear through a translucent Thermostat
resin ball
• Additional pushbutton switch: Two, three or
four* buttons (* USB only) – see Button Strips
• Connector cables
• Conformally coated PCB
MOUNTING OPTIONS
•
USB:
Input: 4.00V – 5.25V @ 25mA max
(+30mA for backlit illumination option)
Output: USB 1.1
•
180º horizontal to 90º vertical – please
specify when ordering.
•
PS/2 (2/3BTN PS/2): Input: 5.00V @ 25mA max
(+30mA for backlit illumination option)
Output: CMOS/TTL
•
Microsoft Serial*:Input:DTR/RTS @ 14 mA max
(+30mA for backlit illumination option)
Output: RS-232, Serial
•
Quadrature: Input: 5.00V @ 30mA max
(+30mA for backlit illumination option)
Output: Quadrature Waveforms
•
Sun Workstation:
Input: 5.00V @ 30mA max
(Mouse Systems Serial)
(+30mA for backlit illumination option)
Output: CMOS/TTL
NOTE: * = Microsoft Serial Interface requires a 5V supply for the
LED backlighting option.
All values are nominal.
LP
SERIES
MODEL
150
1.50” Diameter
(38.1mm)
1
3
5
6
7
PROTOCOL FORMAT
Microsoft (2 btn Serial)
PS/2 (2/3 btn)
F
- Level to 45º
Quadrature
N
- Level to 90º
SUN Workstations
X
- N/A
USB
MOUNTING
POSITION
RESOLUTION
10
- 120 resolution
20
- 240 resolution
30
- 480 resolution
POWER
REQUIREMENT
V00
5V Regulated
R00
RS-232*
(DTR & RTS)
*Microsoft Protocol only
ILLUMINATION
R
B
G
C
Red
Blue
Green
Clear
Black*
*
Non-illuminated
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com
LP150 series
Low profile trackball

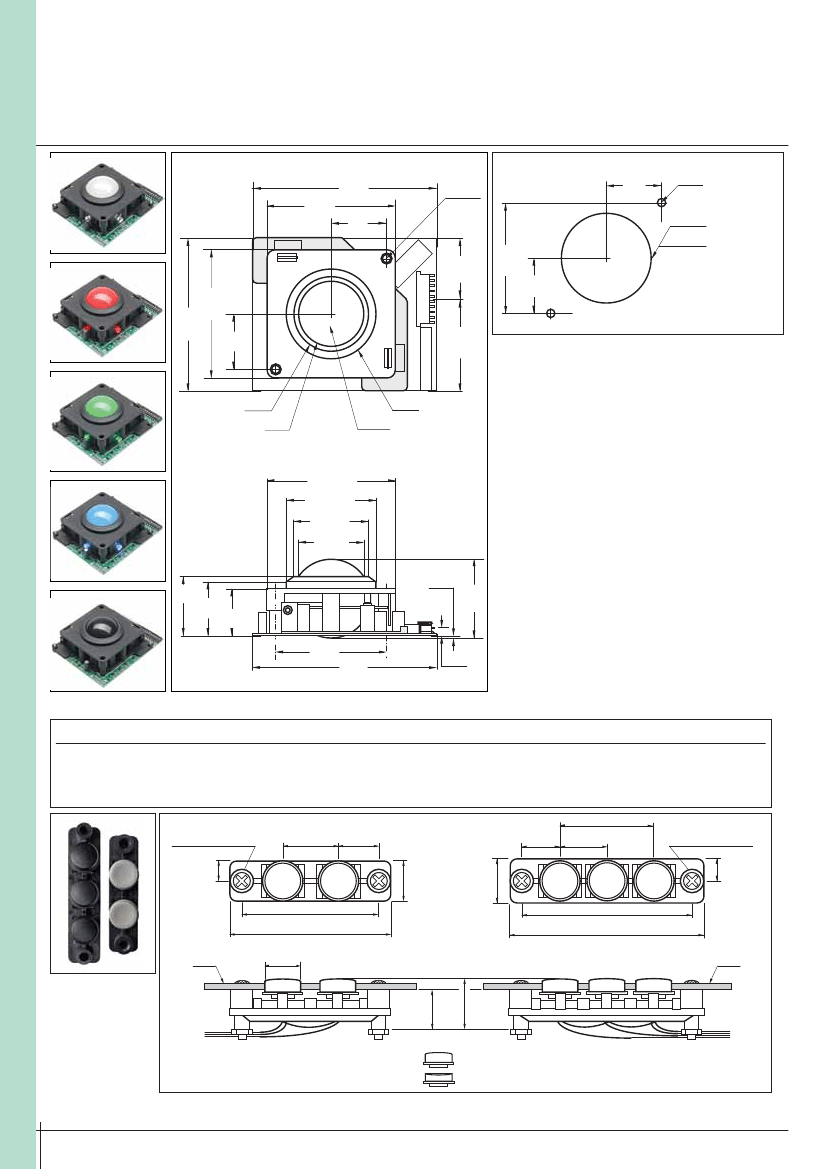

MOUNTING CUTOUT DIMENSIONS
61.98
(2.44)
88.90
(3.50)
26.67
(1.05)
53.34
(2.10)
26.67
(1.05)
Ø4.57
(0.18)
26.67
(1.05)
Ø4.57
(0.18)
43.69
(1.72)
45.47
(1.79)
- Without rubber
gasket
- With rubber
gasket
29.21
(1.15)
61.98
(2.44)
73.15
(2.88)
26.67
(1.05)
43.69
(1.72)
Mounting Hardware:
– Two #4-40x7/8
Phl Flat Screws
– Two Self Clinching
Standoffs
X4
36.32
(1.43)
32.00
(1.26)
Ø38.10
(1.50)
43.69
(1.72)
61.98
(2.44)
43.69
(1.72)
36.32
(1.43)
32.00
(1.26)
29.21
(1.15)
1.27
(0.05)
26.92
(1.06) 24.13
(0.95)
53.34
(2.10)
38.10
(1.50)
88.90
(3.50)
2.54
(0.10)
BUTTON STRIP FEATURES
•
Two, three, or four* (*USB only) buttons
•
Tactile feedback
•
Normally open momentary contact switch
•
5 million lifecycles rating at 500mA at 12VDC
•
Black or gray button caps
•
Choice of convex or concave design
37.08
(1.46)
#4-40 Screw, Nut
& Washer (2 Places)
7.62
(0.30)
+
20.32
(0.80)
+
50.80
(2.00)
61.21
(2.41)
15.24
(0.60)
15.24
(0.60)
16.76
(0.66)
13.97
(0.55)
+
18.54
(0.73)
+
+
#4-40 Screw, Nut
& Washer (2 Places)
8.38
(0.33)
64.77
(2.55)
73.66
(2.90)
Panel
Panel
Ø13.97
(0.55)
16.00
(0.63)
H
White
Grey
Green (Common)
For Convex Buttons
For Concave Buttons
H = 20.32/(0.80)
H = 19.30/(0.76)
White
Grey
Black
Green (Common)
NOTE: All dimensions are in mm/(inch).
Note: The company reserves the right to change specifications without notice.
LP150_JOYST1412R1US
www.apem.com
APEM
Panel mount trackball
Distinctive features and specifications
P200 series
2” ball diameter
Panel mount design
Available in black or backlit illumination
Several protocol options
Additional button strips available
Environmental Protection Classification
(IP Rating): contact factory
CONFIGURATION OPTIONS
MECHANICAL
•
•
•
•
•
•
Ball Diameter: 2.00" (50.80mm)
Ball Rotation: Continuous in all directions
Tracking Force: 10g (0.35oz)
Weight: 257.5g (9.07oz)
Life Cycle (ball rotations): 5 million
Operating Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
PROTOCOL OPTIONS AND ELECTRICAL SPECIFICATIONS
•
LED backlighting: Red, Blue, Green or
Clear through a translucent Thermostat
resin ball
• Additional pushbutton switch: Two, three or
four* buttons (* USB only) – see Button Strips
• Connector cables
• Conformally coated PCB
MOUNTING OPTIONS
•
USB:
Input: 4.00V – 5.25V @ 25mA max
(+30mA for backlit illumination option)
Output: USB 1.1
•
180º horizontal to 90º vertical – please
specify when ordering.
•
PS/2 (2/3BTN PS/2): Input: 5.00V @ 25mA max
(+30mA for backlit illumination option)
Output: CMOS/TTL
•
Microsoft Serial*:Input:DTR/RTS @ 14 mA max
(+30mA for backlit illumination option)
Output: RS-232, Serial
•
Quadrature: Input: 5.00V @ 30mA max
(+30mA for backlit illumination option)
Output: Quadrature Waveforms
•
Sun Workstation:
Input: 5.00V @ 30mA max
(Mouse Systems Serial)
(+30mA for backlit illumination option)
Output: CMOS/TTL
NOTE: * = Microsoft Serial Interface requires a 5V supply for the
LED backlighting option.
All values are nominal.
P
Series
Model
200
2.00” (50.8mm)
Ball Diameter
1
3
5
6
7
Protocol Format
Microsoft (2 btn Serial)
PS/2 (2/3 btn)
F
- Level to 45º
Quadrature
N
- Level to 90º
SUN Workstations
X
- N/A
USB
Mounting
Position
Resolution
10
- 160 resolution
20
- 320 resolution
30
- 640 resolution
Power
Requirement
V00
5V Regulated
R00
RS-232*
(DTR & RTS)
*Microsoft Protocol only
Illumination
R
B
G
C
Red
Blue
Green
Clear
Black*
*
Non-illuminated
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com
