FP11SPC1B1TP03: DescriptionPUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size183KB，3 Pages; ManufacturerC&K Components; Environmental Compliance

Download Datasheet Parametric Compare View All

FP11SPC1B1TP03 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FP11SPC1B1TP03	-	-	View	Buy Now

FP11SPC1B1TP03 Overview

PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

FP11SPC1B1TP03 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1002029453
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
Factory Lead Time	38 weeks
YTEOL	7.5
Actuator color	BLACK
Actuator length	0.13 inch
Actuator material	POLYPHENYLENE SULPHIDE
Actuator type	STANDARD PLUNGER
body width	4.5 mm
body height	5.6 mm
Body length or diameter	7 mm
Nozzle length	0.063 inch
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	.02A@28VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated power R load	0.4VA@28VDC
Contact (DC) maximum rated R load	.02A@28VDC
Contact resistance	0.08 mΩ
Maximum contact voltage (AC)	28 V
Maximum contact voltage (DC)	28 V
Electrical life	50000 Cycle(s)
End contact material	BRASS
End contact plating	GOLD OVER NICKEL
Shell material	POLYAMIDE
Insulation resistance	500000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
PCB hole count	4
method of packing	TRAY
seal	EPOXY TERMINAL SEALED
Solderability	MIL-STD
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal length	0.094 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

FP Series

Sealed Ultra Miniature Pushbutton Switches

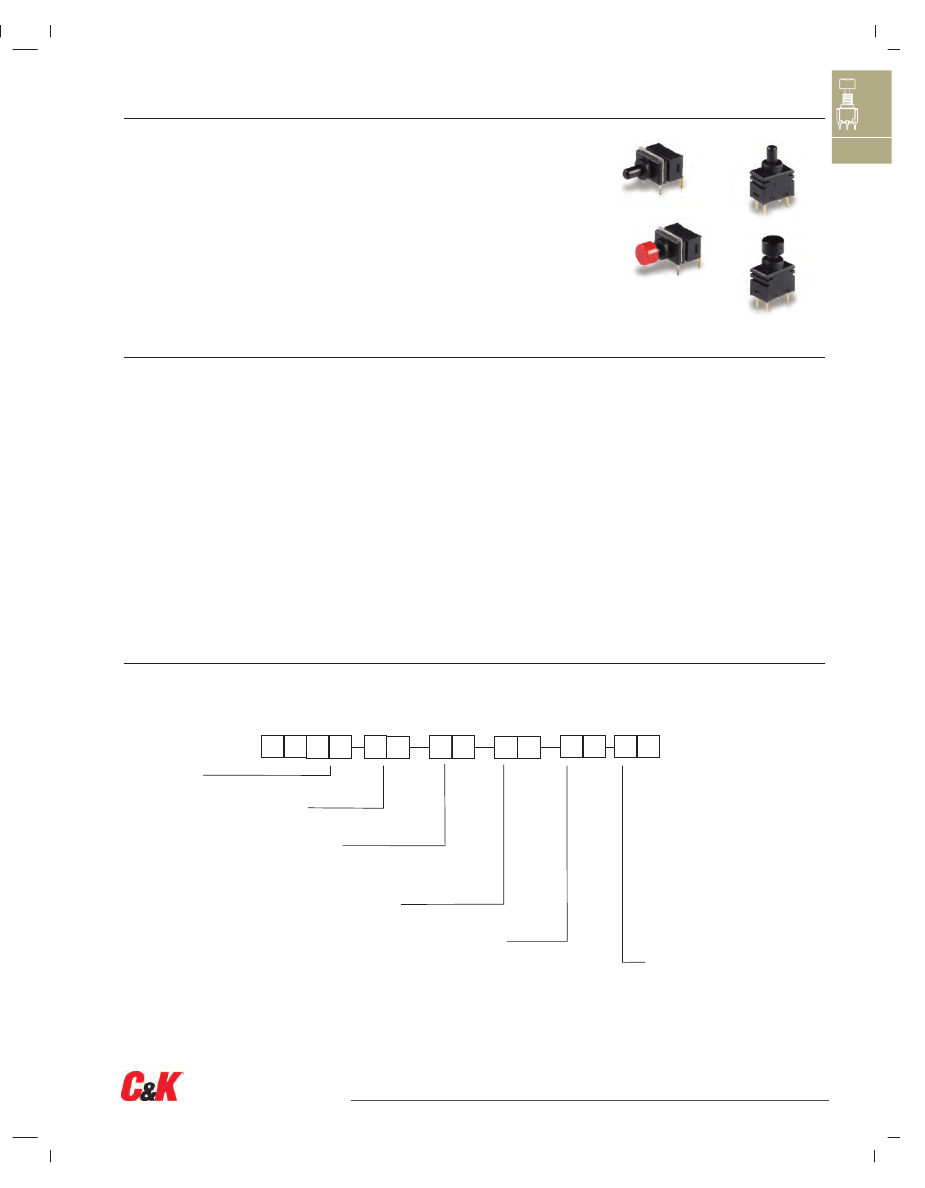

Features/Benefits

•

Vertical and right angle mount

•

Extended operating life 50,000 cycles

•

Optional caps

•

Sealed against soldering and cleaning

•

RoHS compliant

processes

Typical Applications

•

Networking equipment

•

Modems

•

Reset functions

•

Instrumentation

A

Pushbutton

Specifications

CONTACT RATING: Max. 0.4 VA (28 V DC or V AC).

ELECTRICAL LIFE: 50,000 cycles.

CONTACT RESISTANCE: (10mA @ 2 V DC) 80 mΩ max. initial.

INSULATION RESISTANCE: 500MΩ min. @ 500 V DC - 1 minute.

OPERATING TEMPERATURE: –20ºC to 80ºC.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9.

PACKAGING:

Tray pack - 100 switches per tray.

Caps (optional) - Bulk bag; 100 caps per bag.

.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Materials

MOVABLE CONTACTS:

Base metal: Phosphor bronze

Plating: Gold over nickel plate

FIXED CONTACTS:

Base metal: Brass

Plating: Gold over nickel plate

COVER: PA66 - Black

ACTUATOR: PPS - Black

BASE: PPS - Black

SUPPORT BRACKET (A1 Terminal Style only): Steel with tin plate

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and described on pages A-106 thru A-107. For additional options not shown in catalog, consult Customer Service Center.

F

Designation

FP11

SPST N.O.

Actuator Length

SP

Standard plunger 3.3mm

Terminal Style

C1

Vertical

A1

Right Angle

Contact Plating

B1

Gold over nickel plate

Packaging

TP

Tray packaging

Cap

00

01

02

03

P

1

S

P

B

1

T

P

No cap

White cap - bulk bagged

Black cap - bulk bagged

Red cap - bulk bagged

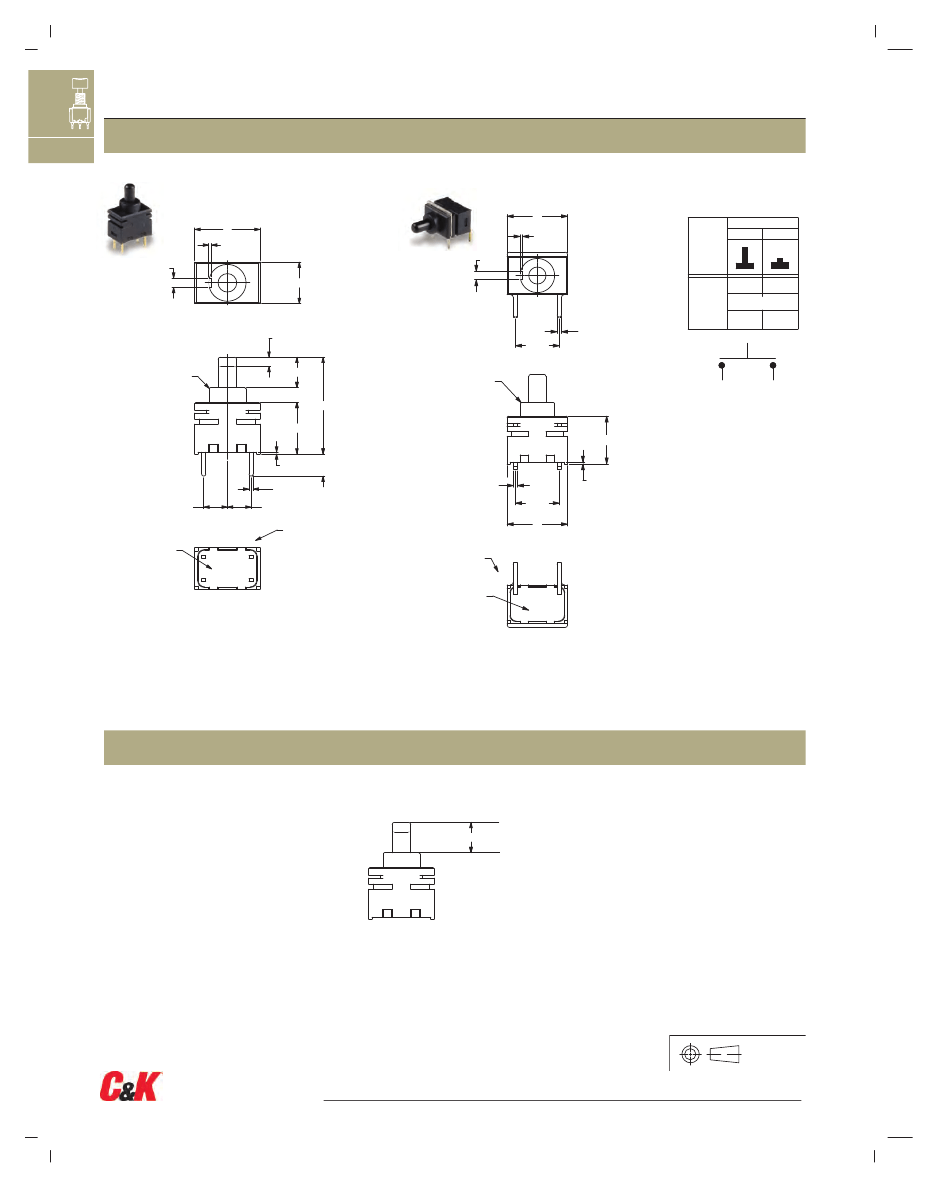

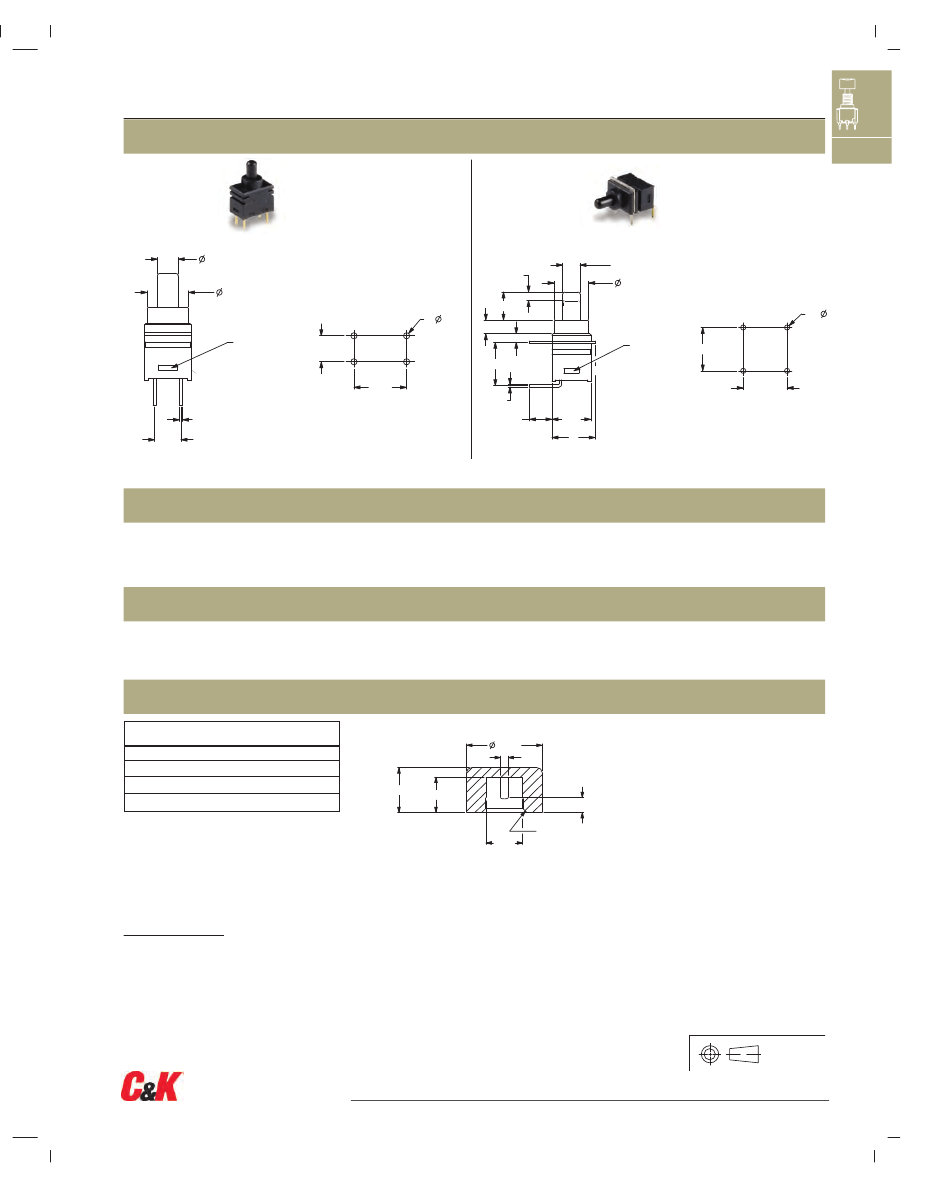

Dimensions

are shown:

Inches

(mm)

Specifications and dimensions subject to

change

A-105

www.ck-components.com
