38FSP9B6V2QT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 38FSP9B6V2QT

38FSP9B6V2QT: DescriptionPushbutton Switches Pushbutton Switch, subminiature, SPST, non-threaded, thru hole, RoHS Compliant; CategoryMechanical and electronic products switch; File Size403KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

38FSP9B6V2QT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	38FSP9B6V2QT	-	-	View	Buy Now

38FSP9B6V2QT Overview

Pushbutton Switches Pushbutton Switch, subminiature, SPST, non-threaded, thru hole, RoHS Compliant

38FSP9B6V2QT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Is Samacsys	N
Actuator type	PLUNGER
body width	5.08 mm
body height	8.6 mm
Body length or diameter	10.16 mm
Contact (AC) maximum rated R load	1A@125VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

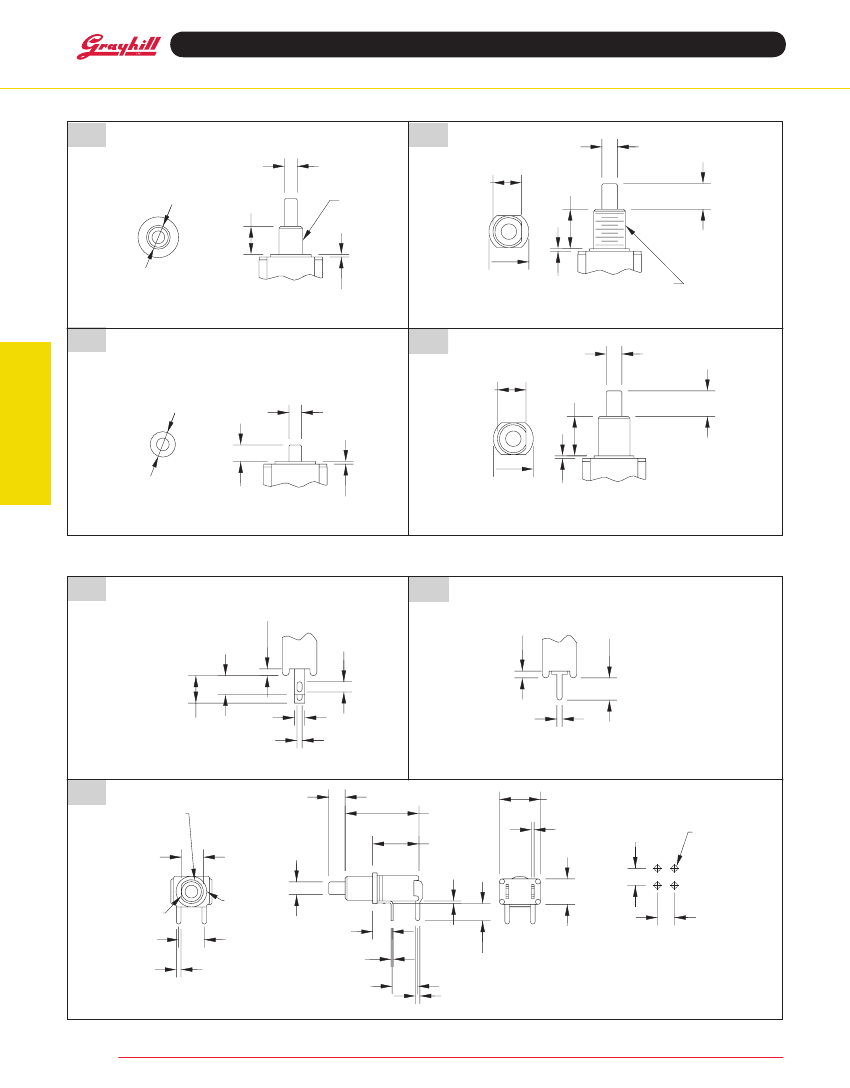

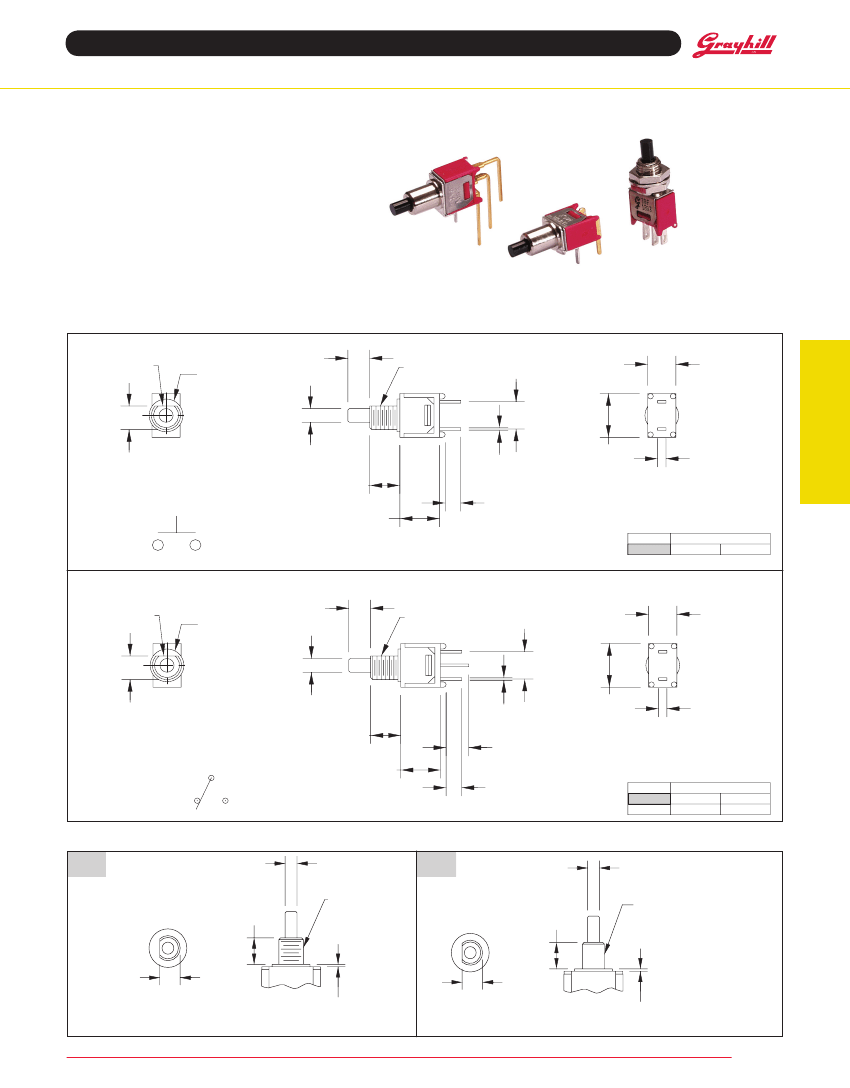

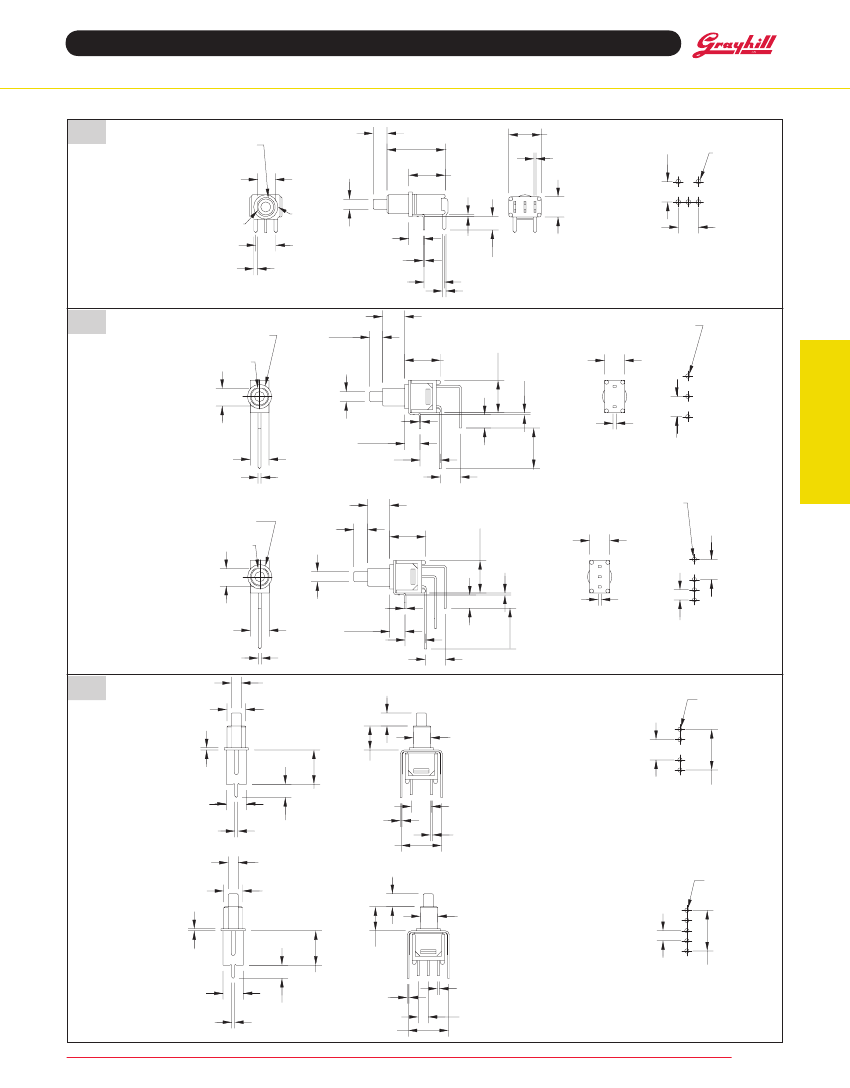

Subminiature Pushbutton Switches

SerieS 38F

Sub-Miniature

Pushbutton Switches

FeatureS

• Save Space and Weight

• SPDT and DPDT Circuitry

• Choice of Actuators, Bushings,

and Terminations

• UL Recoginized

MOdeLS

SPSt

FLAT

Ø.240

(Ø6.10)

in inches (and millimeters)

.155

(3.94)

10-48UNS

.200

(5.08)

.200

(5.08)

Pushbutton Switches

.173

(4.39)

Ø.100

(Ø2.54)

.214

(5.45)

.282

(7.18)

.020

(0.51)

.110

(2.79)

.321

(8.16)

.059

(1.52)

SCHEMATIC

()=MOMENTARY

MODEL NO.

SP9

SWITCH POSITION

OFF

(ON)

SPdt

FLAT

Ø.240

(Ø6.10)

.155

(3.94)

10-48UNS

.200

(5.08)

.200

(5.08)

.173

(4.39)

Ø.100

(Ø2.54)

.214

(5.45)

2COMM.

N.C.1

3 N.O.

.020

(0.51)

.160

(4.06)

.110

(2.79)

.321

(8.16)

.059

(1.52)

SCHEMATIC

.282

(7.18)

MODEL NO.

SP8

()=MOMENTARY

TERM. COMM.

SWITCH POSITION

(ON)

2-3

2-1

BuSHinG OPtiOnS

in inches (and millimeters)

Ø.100

(Ø2.54)

.220

(5.59)

10-48 UNS

Ø.100

(Ø2.54)

.220

(5.59)

Ø.187

(Ø4.75)

.173

(4.39)

.020

(0.51)

.173

(4.39)

.020

(0.51)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
