PCJ1A560MCL1GS: DescriptionTranslation - Voltage Levels Dual-Bit Dual Supply Transceiver; CategoryPassive components; File Size618KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

PCJ1A560MCL1GS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PCJ1A560MCL1GS	-	-	View	Buy Now

PCJ1A560MCL1GS Overview

Translation - Voltage Levels Dual-Bit Dual Supply Transceiver

PCJ1A560MCL1GS Parametric

Parameter Name	Attribute value
Product Category	Aluminum Organic Polymer Capacitors
Manufacturer	Nichicon
RoHS	Details
Product	Can
Termination Style	SMD/SMT
Capacitance	56 uF
Voltage Rating DC	10 VDC
Tolerance	20 %
ESR	28 mOhms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	5 mm
Length	6 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Factory Pack Quantity	1000
Type	Organic Polymer Aluminum - SMD Capacitors
Unit Weight	0.007055 oz

Preview

Download Datasheet

View All

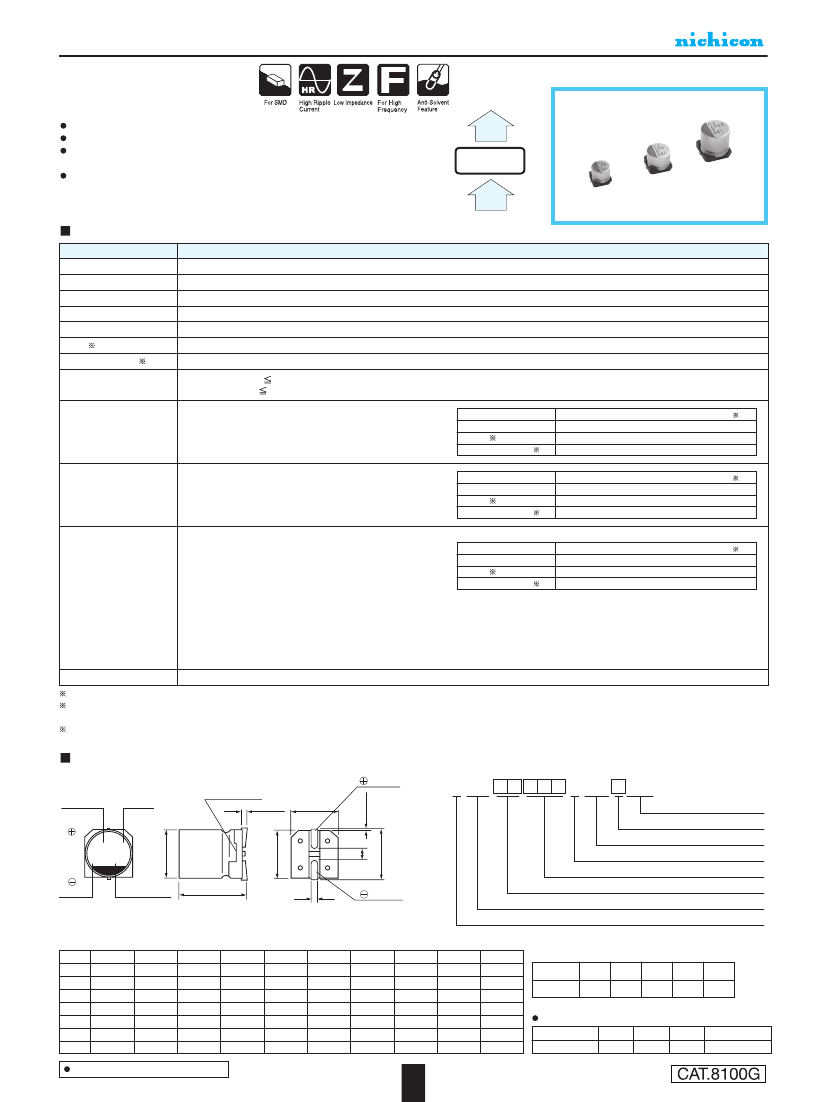

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

PCJ

Specifications

Item

Category Temperature Range

Rated Voltage Range

Chip Type, Low ESR,

Higher Capacitance

PCK

Low ESR

Low ESR, Higher Capacitance, High ripple current.

Load life of 2000 hours at 105°C.

SMD type : Lead free reflow soldering condition at

260°C peak correspondence.

Compliant to the RoHS directive (2011/65/EU).

PCJ

Low ESR

Higher

Capacitance,

PCF

Performance Characteristics

– 55 to +105°C

2.5 to 16V

33 to 2700µF

± 20% at 120Hz, 20°C

Less than or equal to the specified value at 100kHz, 20°C

Rated Capacitance Range

Capacitance Tolerance

ESR (

1)

2)

Tangent of loss angle (tan

δ)

Less than or equal to the specified value at 120Hz, 20°C

Leakage Current (

Less than or equal to the specified value .

Z+105°C / Z+20°C

Z– 55°C / Z+20°C

1.25

(100kHz)

After 2 minutes' application of rated voltage at 20°C

Temperature Characteristics

(Max.Impedance Ratio)

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 2000 hours at 105°C.

Capacitance change

tan

δ

ESR

( 1)

Leakage current ( 2)

Capacitance change

tan

δ

ESR

( 1)

Leakage current ( 2)

Within ± 20% of the initial capacitance value ( 3)

150% or less than the initial specified value

Less than or equal to the initial specified value

Within ± 20% of the initial capacitance value ( 3)

150% or less than the initial specified value

Less than or equal to the initial specified value

Damp Heat

(Steady State)

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 1000 hours at 60°C, 90% RH.

After soldering the capacitor under the soldering conditions

prescribed here, the capacitor shall meet the specifications listed at

right.

Pre-heating shall be done at 150 to 200°C and for 60 to 180 sec.

The duration for over +230°C temperature at capacitor surface shall

not exceed 60 seconds.

In case peak temperature is 250°C or less, reflow soldering shall be

two times maximum.

In case peak temperature is 260°C or less, reflow soldering shall be

once.

Measurement for solder temperature profile shall be made at the

capacitor top and the terminal.

Navy blue print on the case top

Resistance to

Soldering Heat

Capacitance change

tan

δ

ESR

( 1)

Leakage current ( 2)

Within ± 10% of the initial capacitance value ( 3)

130% or less than the initial specified value

Less than or equal to the initial specified value

Marking

1 ESR should be measured at both of the terminal ends closest where the terminals protrude through the plastic platform.

2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120

minutes at 105°C.

3 Initial value : The value before test of examination of resistance to soldering.

Dimensions

Positive

Capacitance

Type numbering system (Example : 6.3V 220µF)

1

2

3

4

5

6

7

8

9 10 11 12 13 14

0.5 MAX.

Plastic platform

PC J 0 J 2 2 1 MC L 1 GS

Taping code

Size code

Configuration

Lot No.

0.3 MAX.

C±0.2

φD±0.5

B ±0.2

A±0.2

CJ

220

j

841

Capacitance tolerance (±20%)

Rated capacitance (220µF)

E

Series

Voltage

( j:6.3v)

L

+0.1

-0.4

H

Negative

Rated voltage (6.3V)

Series name

Type

Size

φD

L

A

B

C

E

H

φ5

×

6L

5.0

5.9

6.0

5.3

1.6

φ6.3

×

6L

φ6.3

×

8L

6.3

5.9

7.3

6.6

2.1

7.9

7.3

6.6

2.1

φ8

×

7L

8.0

6.9

9.0

8.3

3.2

φ8

×

8L

8.0

7.9

9.0

8.3

3.2

φ8

×

10L

8.0

9.9

9.0

8.3

3.2

φ8

×

12L

8.0

11.9

9.0

8.3

3.2

(mm)

φ10

×

8L

φ10

×

10L

φ10

×

12.7L

10.0

7.9

11.0

10.3

4.6

9.9

11.0

10.3

4.6

12.6

11.0

10.3

4.6

Voltage

V

Code

2.5

e

4

g

6.3

j

10

A

16

C

Frequency coefficient of rated ripple current

0

Frequency0/ 120Hz

Coefficient

0.05

1kHz

0.30

10kHz 100kHz or more

0.70

1.00

0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1

Dimension table in next page.
