36DA561F250AA2A datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 36DA561F250AA2A

36DA561F250AA2A: DescriptionAluminum Electrolytic Capacitors - Screw Terminal 250V 560UF; CategoryPassive components capacitor; File Size236KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

36DA561F250AA2A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36DA561F250AA2A	-	-	View	Buy Now

36DA561F250AA2A Overview

Aluminum Electrolytic Capacitors - Screw Terminal 250V 560UF

36DA561F250AA2A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	560 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35 mm
dielectric materials	ALUMINUM (WET)
ESR	158 mΩ
leakage current	1.496663 mA
length	54 mm
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	CAN
polarity	POLARIZED
positive tolerance	50%
Rated (DC) voltage (URdc)	250 V
ripple current	2150 mA
surface mount	NO
Terminal shape	BINDING POST
Base Number Matches	1

Preview

Download Datasheet

View All

36DA

Vishay Sprague

Aluminum Capacitors

+ 85 °C and + 95 °C, Large Can

FEATURES

•

The industry standard for large can aluminum

capacitors

•

Ideal for high wattage power supplies and

energy storage applications

•

Largest capacitance available

•

Highest voltage available

•

Metric threads and stud mount versions included

Fig.1 Component Outlines

•

Replaces type 36DY

QUICK REFERENCE DATA

DESCRIPTION

Nominal case size

Ø D x L in inches (mm)

Operating temperature

Rated capacitance range, C

Tolerance on C

Rated voltage range, U

Termination

VALUE

1.375 x 1.625 (35.0 x 41.2)

to 3.000 x 8.675 (76.2 x 220.3)

- 40 °C to + 95 °C: 6.3 WVDC to

100 WVDC; - 40 °C to + 85 °C;

125 WVDC to 500 WVDC

100 µF to 2.2 F

- 10 % to 50 %

6.3 WVDC to 500 WVDC

Screw insert or solderable

terminals

2000 h:

ΔCAP ≤

15 % from

initial measurement

ΔESR ≤

1.5 x initial specified

limit

500 h:

ΔCAP ≤

15 %

from initial measurement

ΔESR ≤

1.2 x initial

specified limit

I = K CV

K = 4.0 at + 25 °C; 32.0 at + 85 °C

I in µA, C in µF, V in Volts

RIPPLE CURRENT MULTIPLIERS

TEMPERATURE

AMBIENT TEMPERATURE

+ 85 °C

+ 75 °C

+ 65 °C

+ 55 °C and below

FREQUENCY (Hz)

RATED WVDC

0 to 50

51 to 100

150 to 300

301 to 500

120

1.0

400

1.05

1.10

1.15

1.20

1000 AND UP

1.10

1.15

1.25

1.30

MULTIPLIERS

1.0

1.4

1.7

2.0

Life validation test

at 85 °C

Shelf life at 85 °C

DC leakage current

5 min charge time

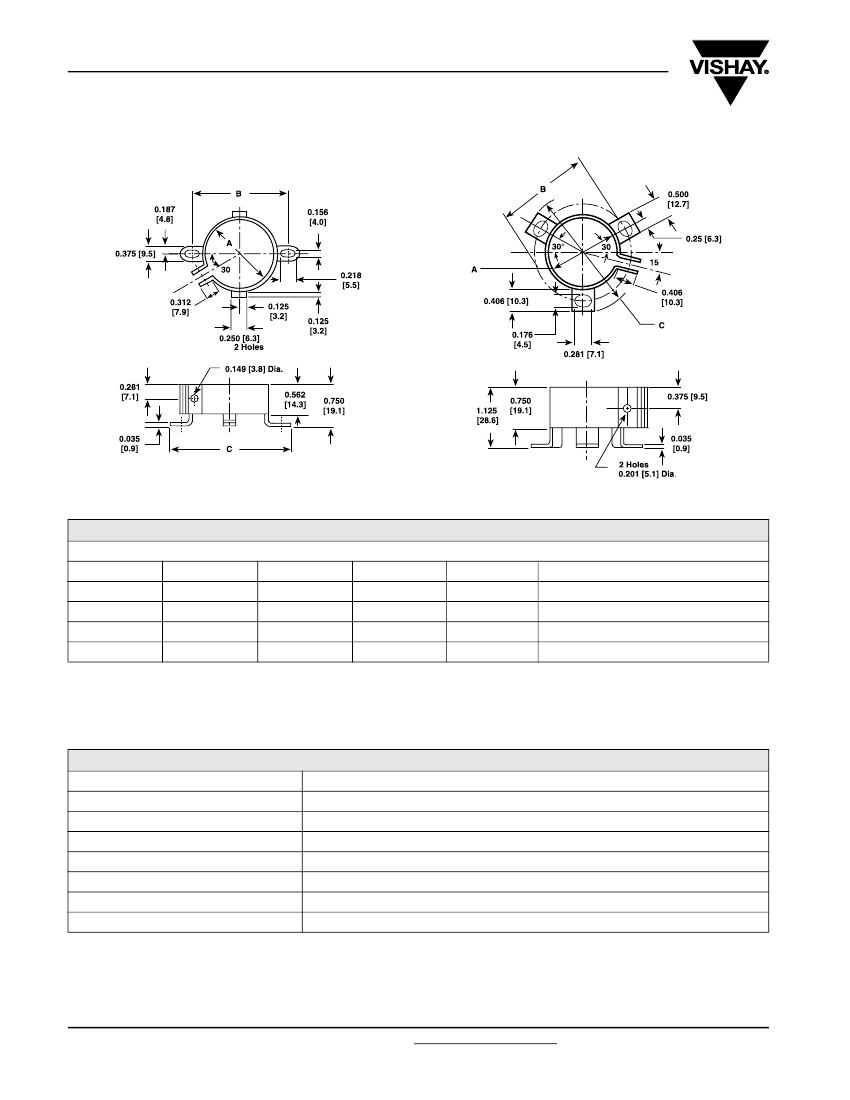

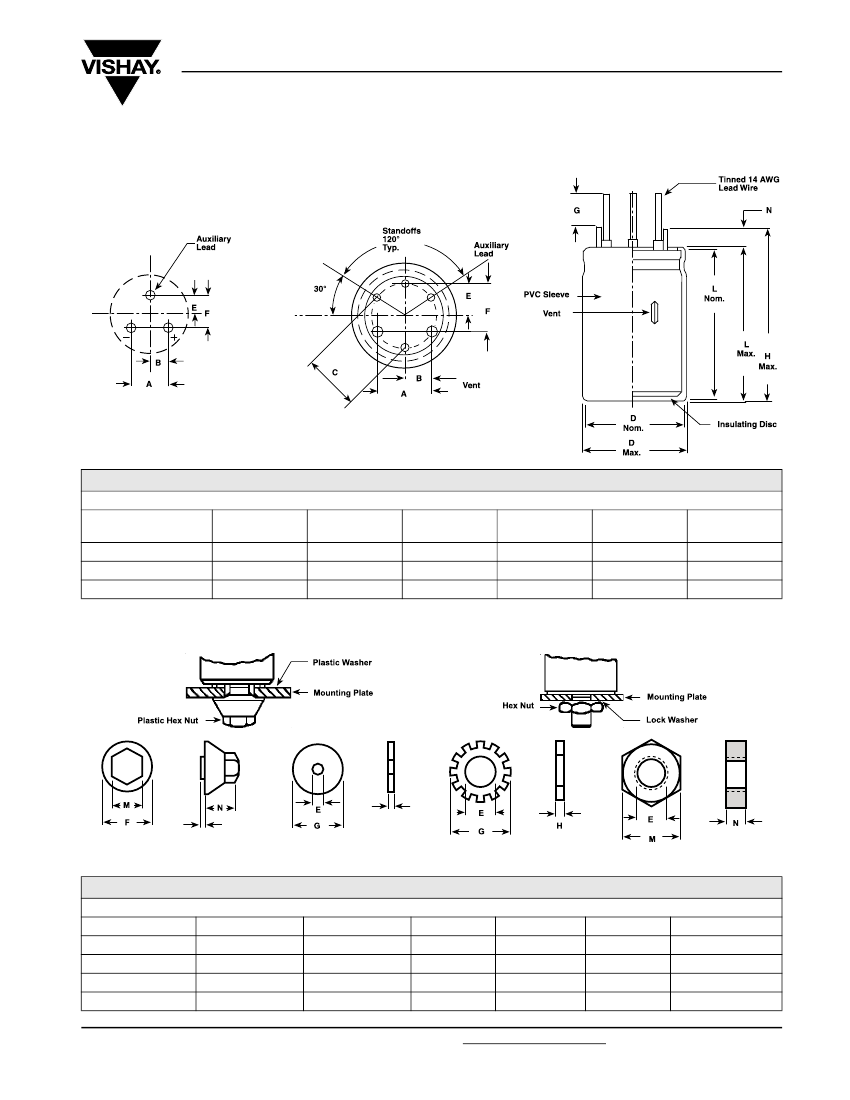

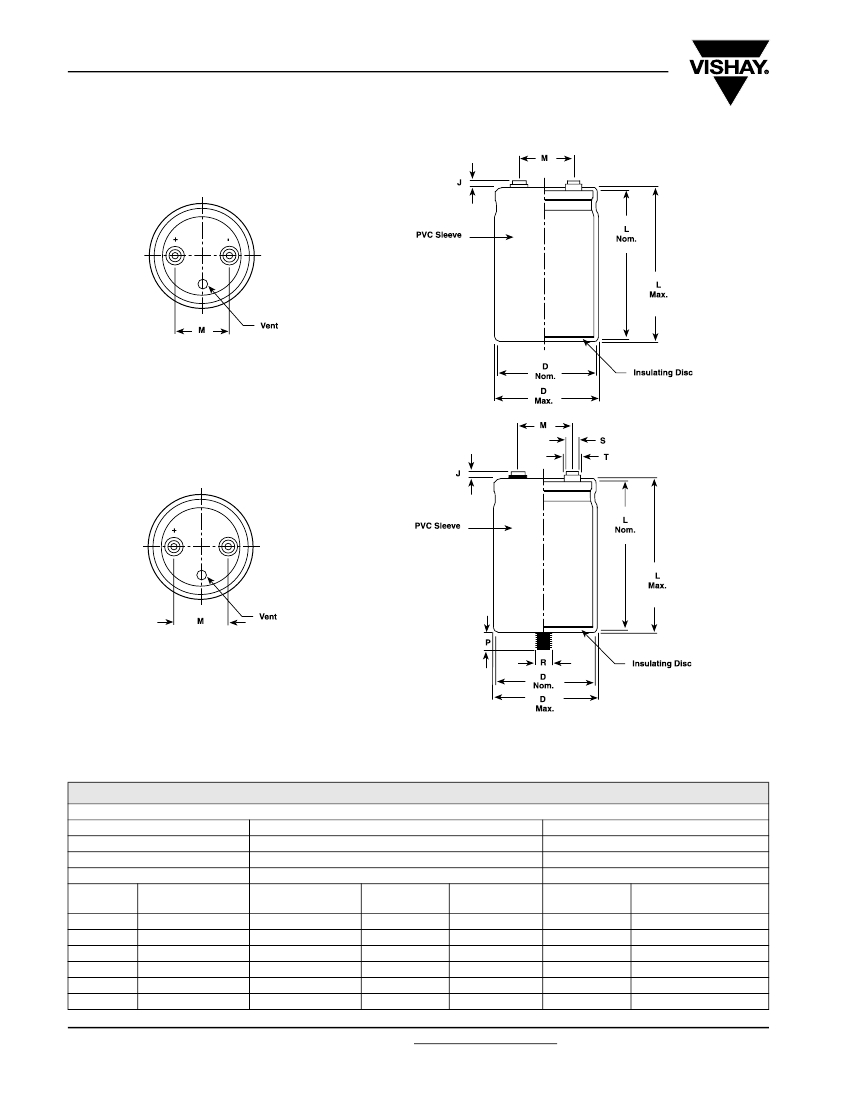

DIMENSIONS

in inches (millimeters)

LARGE CAN CAPACITORS

CASE

CODE

NOMINAL

± 0.032 (0.8)

1.375 (35.0)

± 0.063 (1.6)

1.625 (41.0)

1.875 (48.0)

2.125 (54.0)

2.625 (67.0)

3.125 (79.0)

3.625 (92.0)

4.125 (105.0)

(Max.)

1.453 (36.9)

WITH INSULATING SLEEVE

(Max.)

1.750 (44.5)

2.000 (50.8)

2.250 (57.2)

2.750 (69.9)

3.250 (82.6)

3.750 (95.3)

4.250 (108.0)

(P TERMINAL)

H (Max.)

1.849 (47.0)

1.099 (53.3)

1.349 (59.7)

1.849 (72.4)

1.349 (85.1)

1.849 (97.8)

1.349 (110.5)

TERMINAL

SPACING

M ± 0.016 (0.4)

0.500 (12.7)

TYPICAL

WEIGHT

(g)

43.0

54.0

63.0

82.0

105.0

122.0

129.0

www.vishay.com

288

For technical questions, contact: aluminumcaps4@vishay.com

Document Number: 42067

Revision: 04-Mar-09
