5962R9568301VCX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9568301VCX

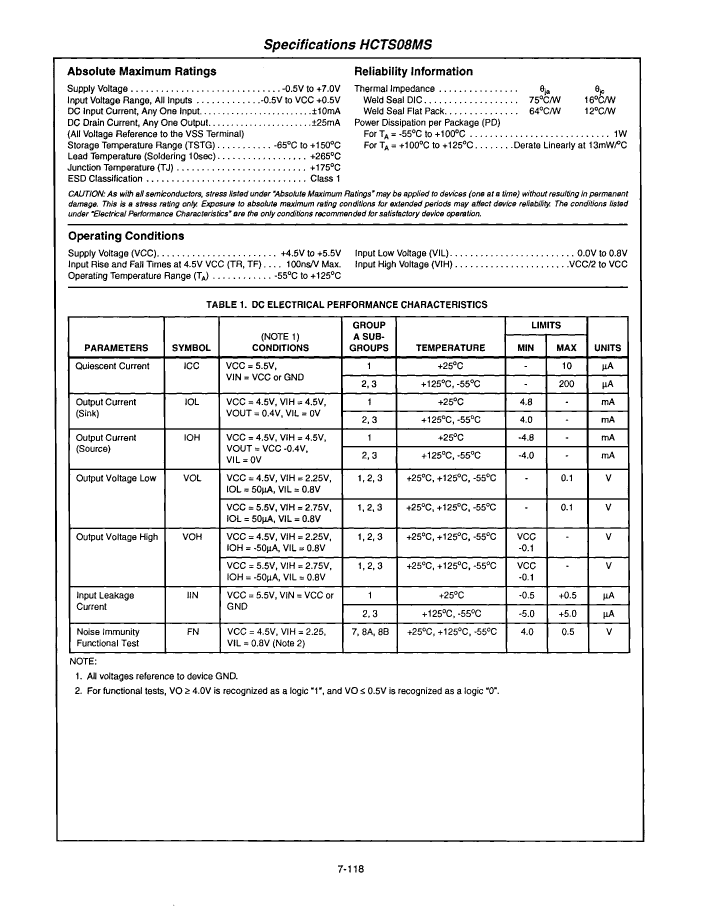

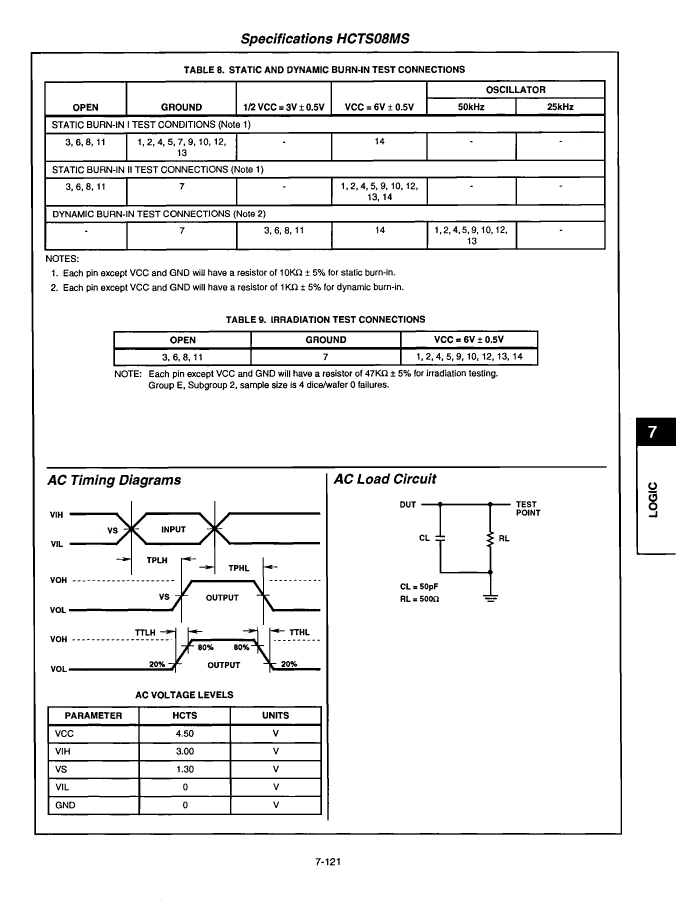

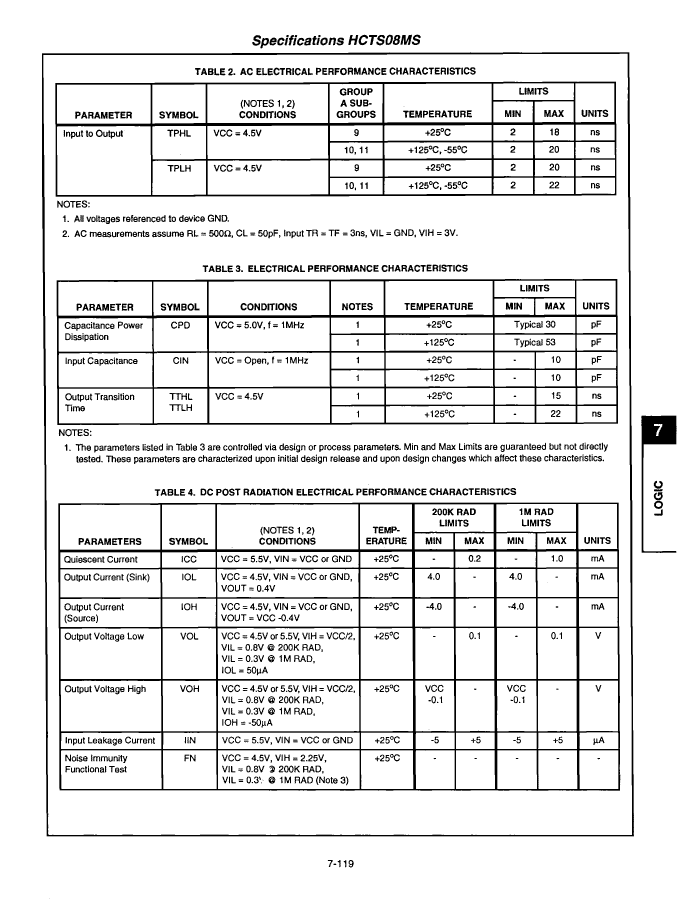

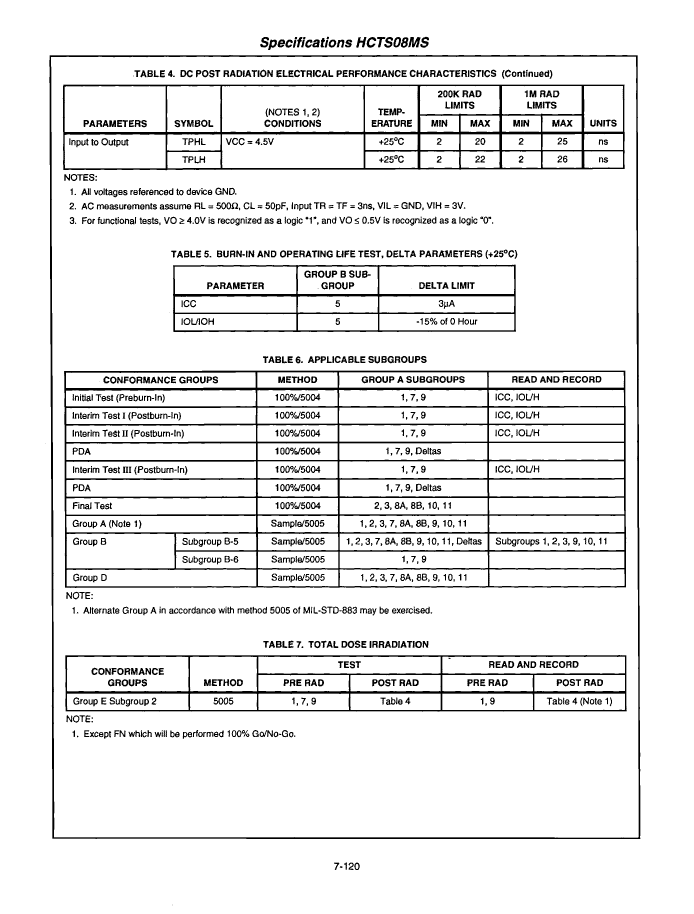

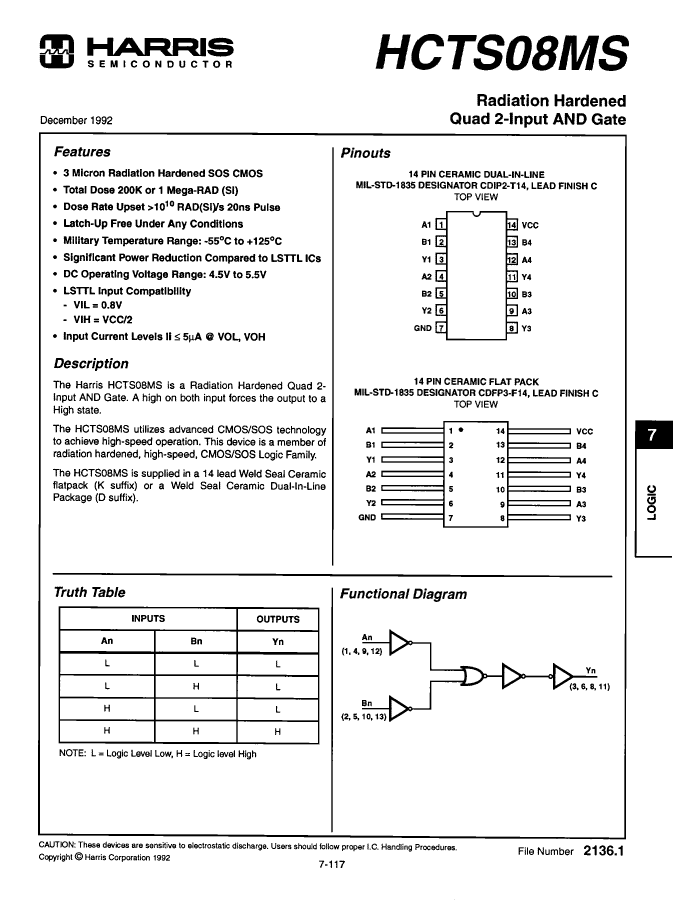

5962R9568301VCX: DescriptionAND Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14; Categorylogic logic; File Size221KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9568301VCX Overview

AND Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14

5962R9568301VCX Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HCT
JESD-30 code	R-CDIP-T14
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

5962R9568301VCX Related Products

	5962R9568301VCX	5962R9568301VXC	5962R9568301VXX	5962R9568301VCC	HCTS08DMSH	HCTS08KMSH
Description	AND Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14	AND Gate, HCT Series, 4-Func, 2-Input, CMOS, CDFP14	AND Gate, HCT Series, 4-Func, 2-Input, CMOS, CDFP14	AND Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14	AND Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14	AND Gate, HCT Series, 4-Func, 2-Input, CMOS, CDFP14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HCT	HCT	HCT	HCT	HCT	HCT
JESD-30 code	R-CDIP-T14	R-CDFP-F14	R-CDFP-F14	R-CDIP-T14	R-CDIP-T14	R-CDFP-F14
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	FLATPACK
propagation delay (tpd)	20 ns	20 ns	20 ns	20 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V
Base Number Matches	1	1	1	1	1	-
JESD-609 code	-	e4	-	e4	e0	e0
Load capacitance (CL)	-	50 pF	-	50 pF	50 pF	50 pF
Terminal surface	-	GOLD	-	GOLD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
