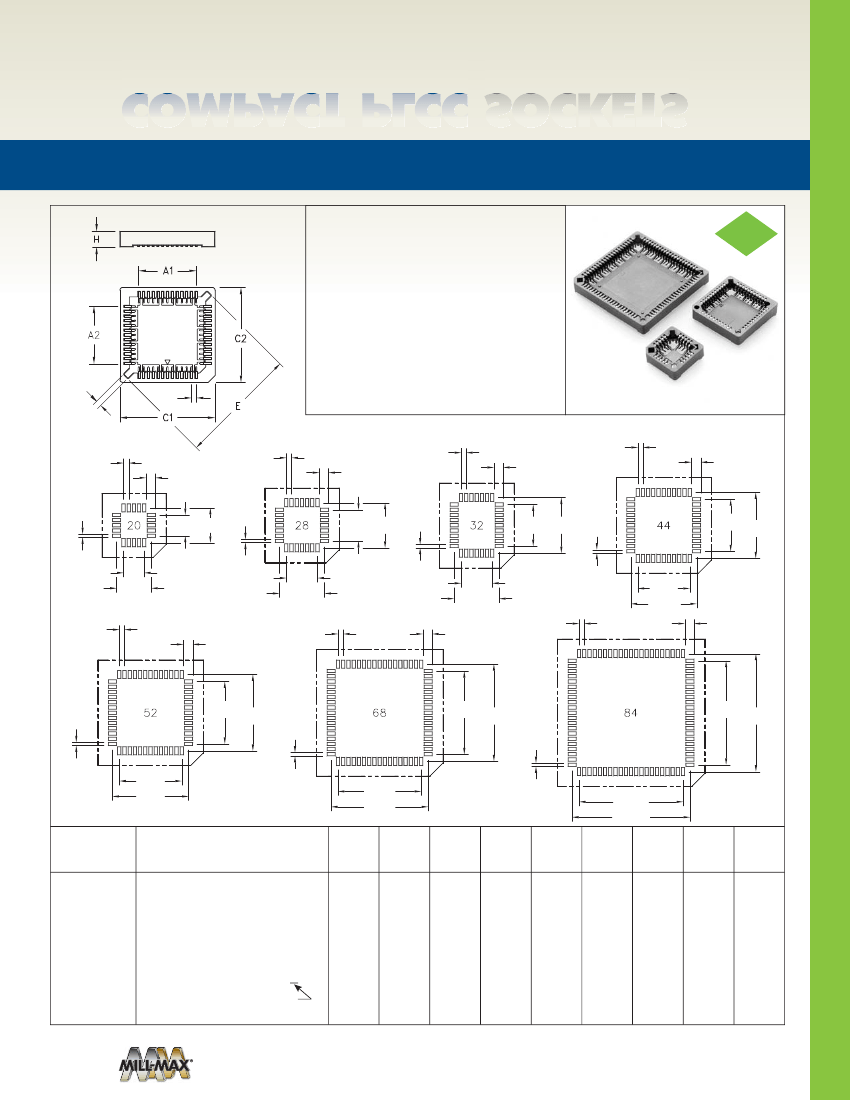

COMPACT PLCC

SOCKETS

SERIES 540 • SURFACE MOUNT

•

Note: Not end stackable

•

Designed for JEDEC type devices

•

Open frame design in solder area improves

results of IR soldering and facilitates visual

inspection of solder pads

RoHS - 2

2011/65/EU

•

Contacts are plated with 150

”

tin

•

The insulator is molded PPS (Ryton R-4)

.051

.050

•

For Electrical, Mechanical and Environmental

Data, see page 141 for details

PCB LAYOUT FOR SURFACE MOUNT

.050

.075

.050

.075

.050

.075

.050

.075

.030

.200 .320

.030

.300 .420

.030

.400 .520

.030

.500

.620

.200

.320

.300

.420

.300

.420

.050

.075

.500

.620

.075

.050

.075

.600

.030

.720

.030

.800

.920

.030

1.000

1.120

.600

.920

1.000

1.120

RECTANGULAR

*

Number of

Contacts

20

28

32

*

44

52

68

84

Ordering Information

540-44-020-17-40000X

540-44-028-17-40000X

540-44-032-17-40000X

*

540-44-044-17-40000X

540-44-052-17-40000X

540-44-068-17-40000X

540-44-084-17-40000X

Packaging Codes:

X = 0 (Tubes)

X = 4 (Tape & Reel)

- A1 - - A2 - - C1 - - C2 -

0.200

0.300

0.500

0.600

0.800

1.000

0.200

0.300

0.400

0.500

0.600

0.800

1.000

0.585

0.685

0.670

0.885

1.000

1.202

1.400

0.585

0.685

0.770

0.885

1.000

1.202

1.400

-E-

0.657

0.799

0.885

1.082

1.224

1.507

1.791

-H-

0.180

0.148

0.180

Qty.

per

Tube

34

29

26

22

20

16

14

Tape

Width

mm

24

32

44

56

Qty.

per

Reel

490

400

250

220

200

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 145 | IC SOCKETS / TO SOCKETS

.720

.800

540-99-020-17-400000 Related Products

	540-99-020-17-400000	540-99-044-17-400000	540-99-028-17-400200
Description	IC u0026 Component Sockets 20 POS. TIN PLATED	IC u0026 Component Sockets 44 POS. TIN PLATED	IC u0026 Component Sockets 28 POS. W/PEGS TIN
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Mill-Max	Mill-Max	Mill-Max
Reach Compliance Code	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	PLCC SOCKET	PLCC SOCKET	PLCC SOCKET
Contact to complete cooperation	TIN LEAD (150)	TIN LEAD (150)	TIN LEAD (100) OVER NICKEL (50)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC20	PLCC44	PLCC28
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
JESD-609 code	e0	e0	e0
Number of contacts	20	44	28
Base Number Matches	1	1	1
Is it lead-free?	Contains lead	Contains lead	-
