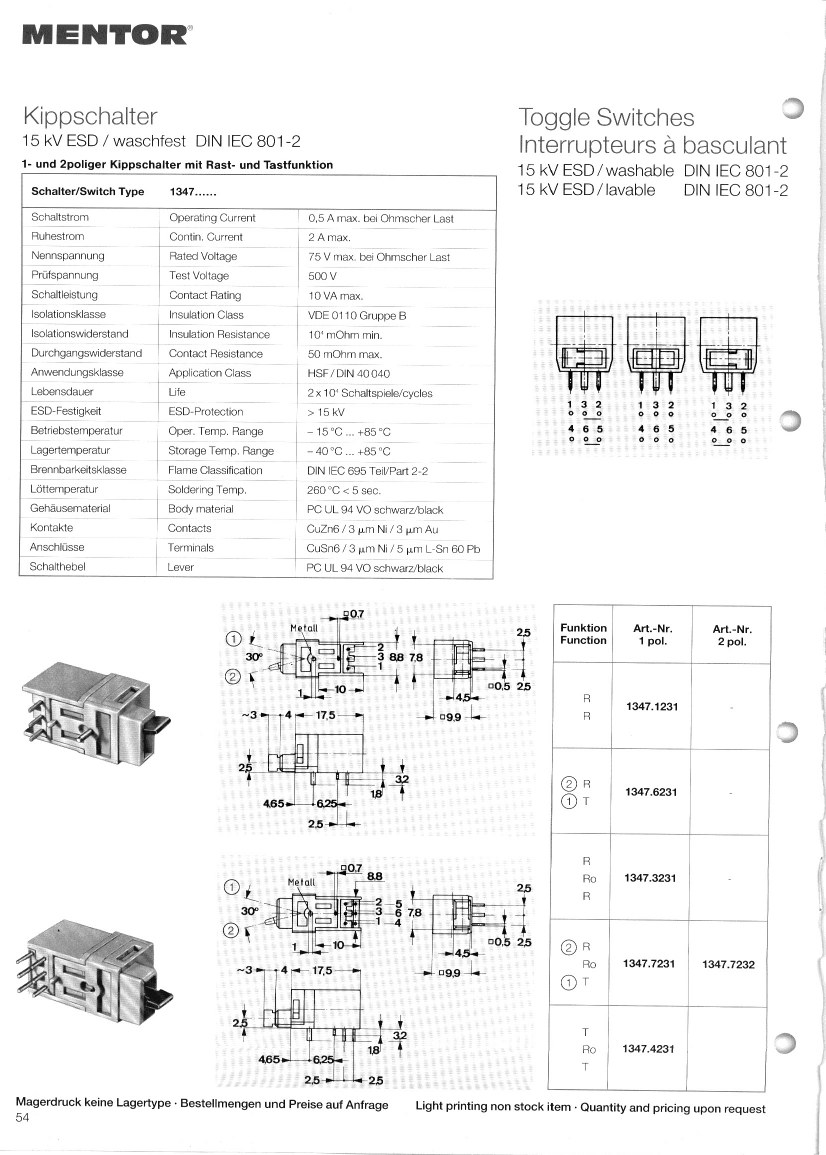

Toggle Switch, SPDT, Latched And Momentary, 0.5A, 75VDC, Solder Terminal, Lever Actuator, Through Hole-right Angle
| Parameter Name | Attribute value |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Actuator type | LEVER |
| body width | 9.9 mm |
| body height | 9.9 mm |
| Body length or diameter | 17.5 mm |
| Contact (AC) maximum rated R load | .5A@75VAC |
| Maximum contact current (AC) | 0.5 A |
| Maximum contact current (DC) | 0.5 A |
| Contact (DC) maximum rated R load | .5A@75VDC |
| Maximum contact voltage (AC) | 75 V |
| Maximum contact voltage (DC) | 75 V |
| Electrical life | 20000 Cycle(s) |
| JESD-609 code | e0 |
| Manufacturer's serial number | 1347 |
| Installation features | THROUGH HOLE-RIGHT ANGLE |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -15 °C |
| surface mount | NO |
| Switch action | LATCHED AND MOMENTARY |
| switch function | SPDT |
| Switch type | TOGGLE SWITCH |
| Terminal surface | TIN LEAD |
| Termination type | SOLDER |
| Base Number Matches | 1 |
| 1347.7231 | 1347.6231 | 1347.7232 | 1347.1231 | 1347.3231 | 1347.4231 | |
|---|---|---|---|---|---|---|
| Description | Toggle Switch, SPDT, Latched And Momentary, 0.5A, 75VDC, Solder Terminal, Lever Actuator, Through Hole-right Angle | Toggle Switch, SPDT, Latched And Momentary, 0.5A, 75VDC, Solder Terminal, Lever Actuator, Through Hole-right Angle | Toggle Switch, DPDT, Latched And Momentary, 0.5A, 75VDC, Solder Terminal, Lever Actuator, Through Hole-right Angle | Toggle Switch, SPDT, Latched, 0.5A, 75VDC, Solder Terminal, Lever Actuator, Through Hole-right Angle | Toggle Switch, SPDT, Latched, 0.5A, 75VDC, Solder Terminal, Lever Actuator, Through Hole-right Angle | Toggle Switch, SPDT, Momentary, 0.5A, 75VDC, Solder Terminal, Lever Actuator, Through Hole-right Angle |
| Reach Compliance Code | compli | compli | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Actuator type | LEVER | LEVER | LEVER | LEVER | LEVER | LEVER |
| body width | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm |
| body height | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm |
| Body length or diameter | 17.5 mm | 17.5 mm | 17.5 mm | 17.5 mm | 17.5 mm | 17.5 mm |
| Contact (AC) maximum rated R load | .5A@75VAC | .5A@75VAC | .5A@75VAC | .5A@75VAC | .5A@75VAC | .5A@75VAC |
| Maximum contact current (AC) | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Maximum contact current (DC) | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Contact (DC) maximum rated R load | .5A@75VDC | .5A@75VDC | .5A@75VDC | .5A@75VDC | .5A@75VDC | .5A@75VDC |
| Maximum contact voltage (AC) | 75 V | 75 V | 75 V | 75 V | 75 V | 75 V |
| Maximum contact voltage (DC) | 75 V | 75 V | 75 V | 75 V | 75 V | 75 V |
| Electrical life | 20000 Cycle(s) | 20000 Cycle(s) | 20000 Cycle(s) | 20000 Cycle(s) | 20000 Cycle(s) | 20000 Cycle(s) |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Installation features | THROUGH HOLE-RIGHT ANGLE | THROUGH HOLE-RIGHT ANGLE | THROUGH HOLE-RIGHT ANGLE | THROUGH HOLE-RIGHT ANGLE | THROUGH HOLE-RIGHT ANGLE | THROUGH HOLE-RIGHT ANGLE |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -15 °C | -15 °C | -15 °C | -15 °C | -15 °C | -15 °C |
| surface mount | NO | NO | NO | NO | NO | NO |
| Switch action | LATCHED AND MOMENTARY | LATCHED AND MOMENTARY | LATCHED AND MOMENTARY | LATCHED | LATCHED | MOMENTARY |
| switch function | SPDT | SPDT | DPDT | SPDT | SPDT | SPDT |
| Switch type | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH | TOGGLE SWITCH |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Manufacturer's serial number | 1347 | 1347 | 1347 | - | 1347 | 1347 |
