74548-0207 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 74548-0207

74548-0207: DescriptionComputer Cables IPASS EXT CABLE 26P 2M; CategoryThe connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

74548-0207 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74548-0207	-	-	View	Buy Now

74548-0207 Overview

Computer Cables IPASS EXT CABLE 26P 2M

74548-0207 Parametric

Parameter Name	Attribute value
Product Category	High Speed / Modular Connectors
Manufacturer	Molex
RoHS	Details
Number of Positions	26 Position
Number of Rows	2 Row
Pitch	0.8 mm
Termination Style	Through Hole
Current Rating	500 mA
Mounting Angle	Horizontal
Packaging	Tray
Factory Pack Quantity	245
Voltage Rating	30 VAC/DC
Unit Weight	0.747314 oz

Preview

Download Datasheet

View All

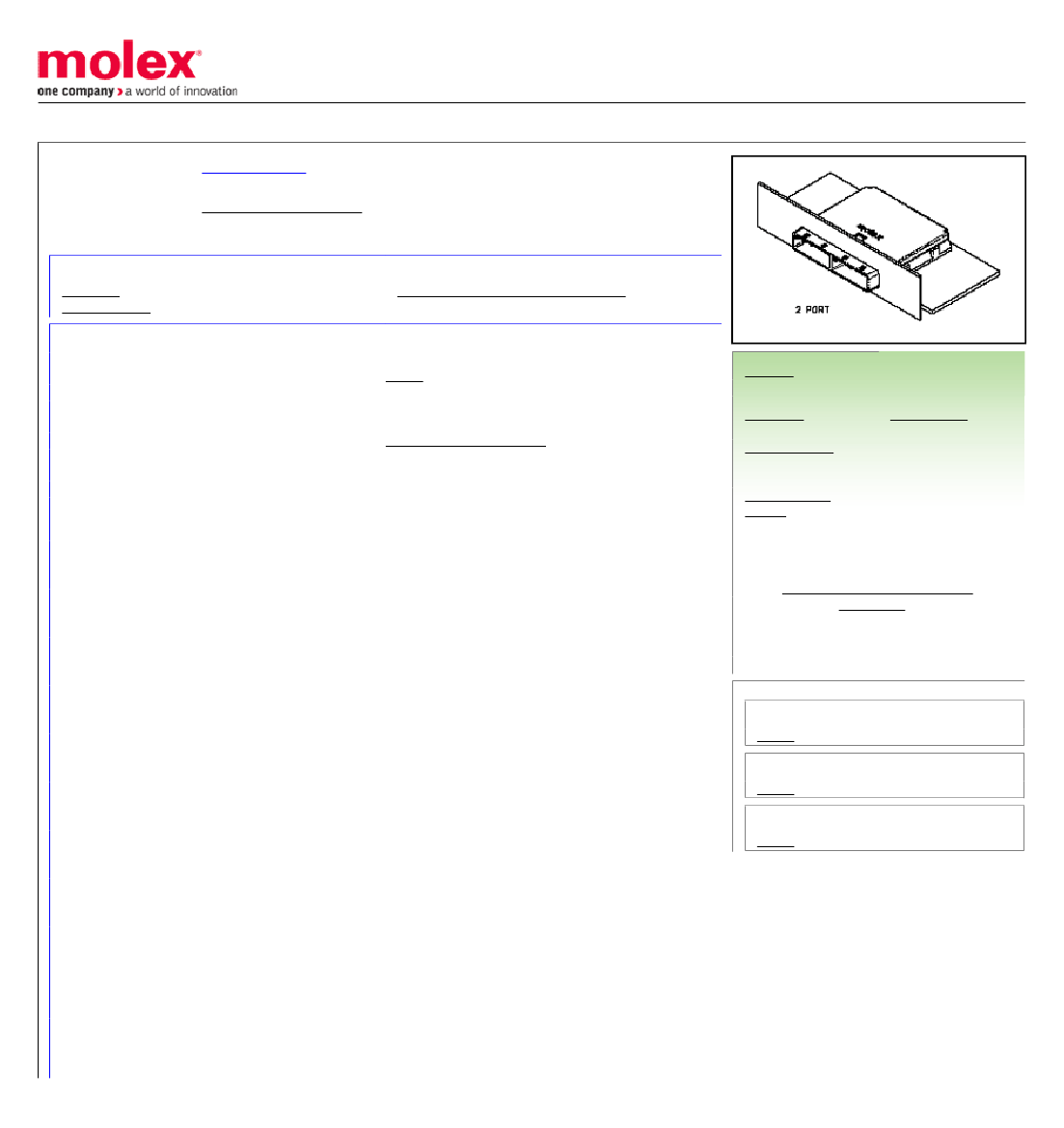

This document was generated on 06/29/2015

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0745480207

Active

iPass™ Connector System

External iPass™ Mini Multi-Lane SAS Guide Frame for Standard Host Boards, 1-by-2

Port Size, Port Keying 4 and 6

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Type

UPC

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

Gender

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Insulation Diameter

Wire Size AWG

Electrical

Current - Maximum per Contact

Grounding to Panel

Shielded

Voltage - Maximum

Material Info

RoHS Certificate of Compliance (PDF)

Series image - Reference only

I/O Connectors

74548

Module-to-Board

Port Keying 4 and 6

Guide

iPass™ Connector System

iPass™, Mini Multi-Lane, PCI Express*

N/A

822350368896

N/A

200

N/A

Yes

N/A

21.186/g

Horizontal

Yes

1.60mm, 2.38mm, 3.20mm

Tray

Yes

0.80mm

Yes

-40°C to +80°C

Through Hole

N/A

0.5A

N/A

30V AC (RMS)/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Contains SVHC(2014

December 17): No

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Green Image

Not Relevant

Search Parts in this Series

74548 Series

Mates With

74547 iPass™ Cable Assembly

Use With

75586 Receptacle
