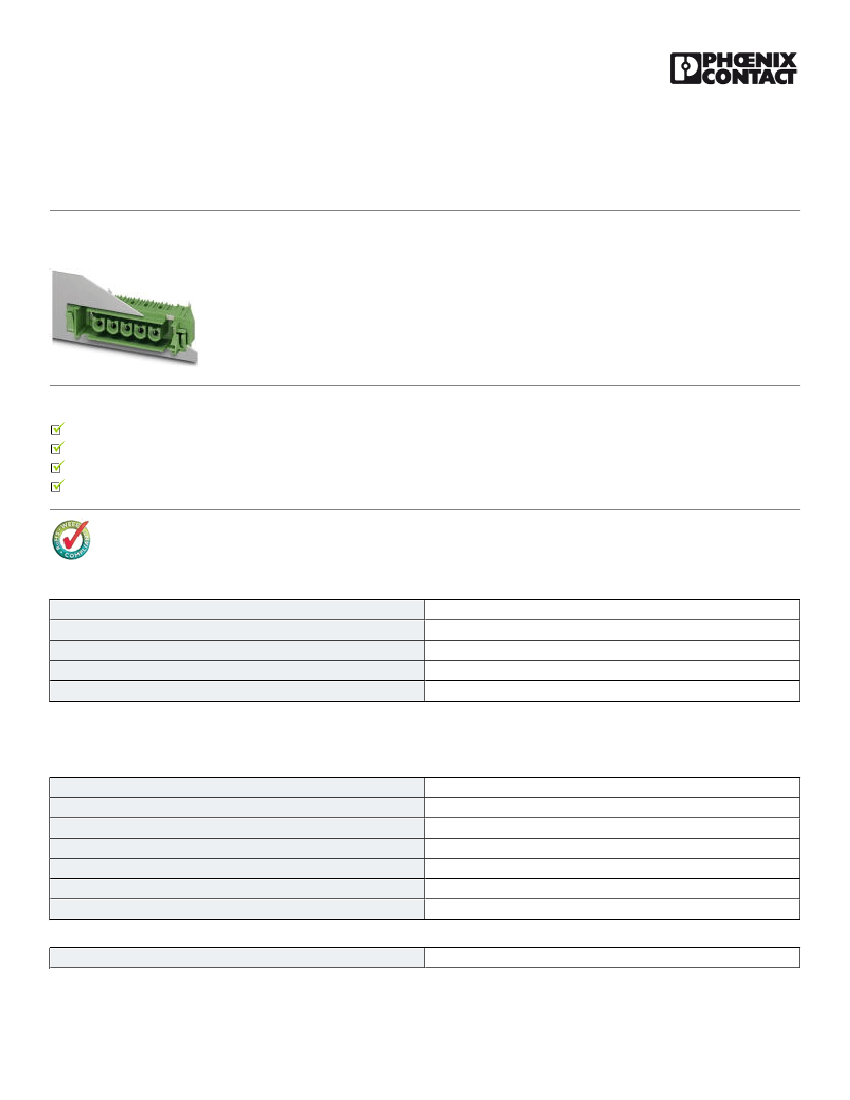

Base strip - DFK-IPC 16/ 5-GF-SH-10,16 - 1703001
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Header, Nominal current: 76 A, Rated voltage (III/2): 1000 V, Number of positions: 5, Pitch: 10.16 mm, Color:
green, Contact surface: Silver, Assembly: Soldering
Product Features
Panel thickness of 1 mm to 3 mm
Inverted feed-through headers for implementing a touch-proof PCB output (in combination with IPC 16 ST)
For soldering onto the PCB
Tool-free snap-lock mechanism or conventional screw connection
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
10 pc
24.5 GRM
85366990
Germany
Technical data
Dimensions
Length
Height
Pitch
Dimension a
Pin dimensions
Pin spacing
Hole diameter
34.55 mm
22 mm
10.16 mm
40.64 mm
0,8 x 1,2
10.16 mm
1.7 mm
General
Range of articles
DFK-IPC 16/..-GF-SH
3/5/14 Page 1 / 3
https://www.phoenixcontact.com/us/products/1703001
Base strip - DFK-IPC 16/ 5-GF-SH-10,16 - 1703001
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Inflammability class according to UL 94
Color
Number of positions
I
8 kV
8 kV
6 kV
1000 V
1000 V
1000 V
EN-VDE
76 A
76 A
PA
V0
green
5
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27141190
27260704
27440402
27141134
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC001283
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
3/5/14 Page 2 / 3
https://www.phoenixcontact.com/us/products/1703001
Base strip - DFK-IPC 16/ 5-GF-SH-10,16 - 1703001

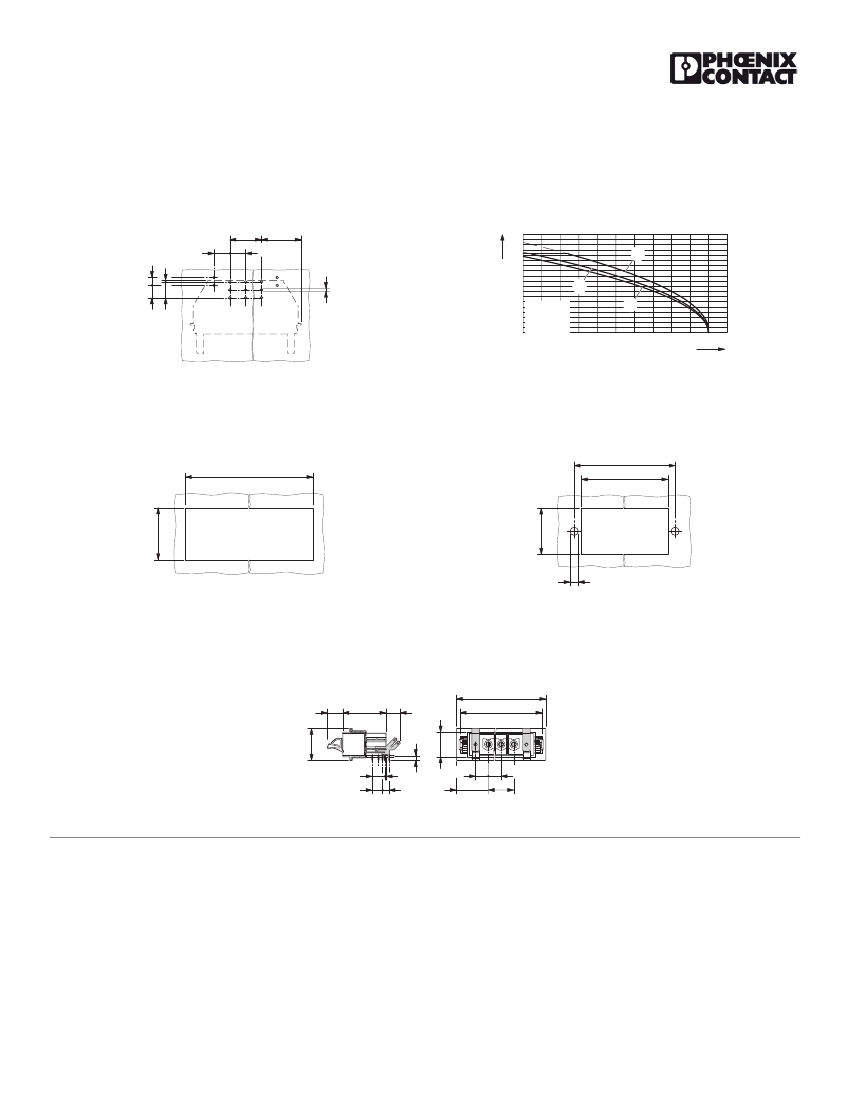

Drawings
Drilling diagram
Current carrying capacity [A]
a
10,16
25,62
10,16
90
80
70
60
50
40
30
20
10
0
0
Diagram
1
2
1
= 2-pos.
2
= 5-pos.
3
= 9-pos.
20
40
5,08
1,1
1,7
8,53
10,16
3
60
80
100
Ambient temperature [°C]
The illustration shows the derating curve for DFK-IPC 16/..-G-10,16
inverted plugs in combination with the inverted header IPC 16/..-ST-10,16.
Dimensioned drawing
a+45,24
+0,2
Dimensioned drawing
a+39,44
a+33,64
+0,2
20
±0,1
20
±0,1
Ø3,5
Sheet metal cutout for snap-on.
Sheet metal cutout for screw connection.
Dimensioned drawing
a+51,24
12,4
34,55
11,35
a+45,24
25,6
19,8
4
10,16
8,53
1,1
5,08
10,16
25,62
a
10,16
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
3/5/14 Page 3 / 3
