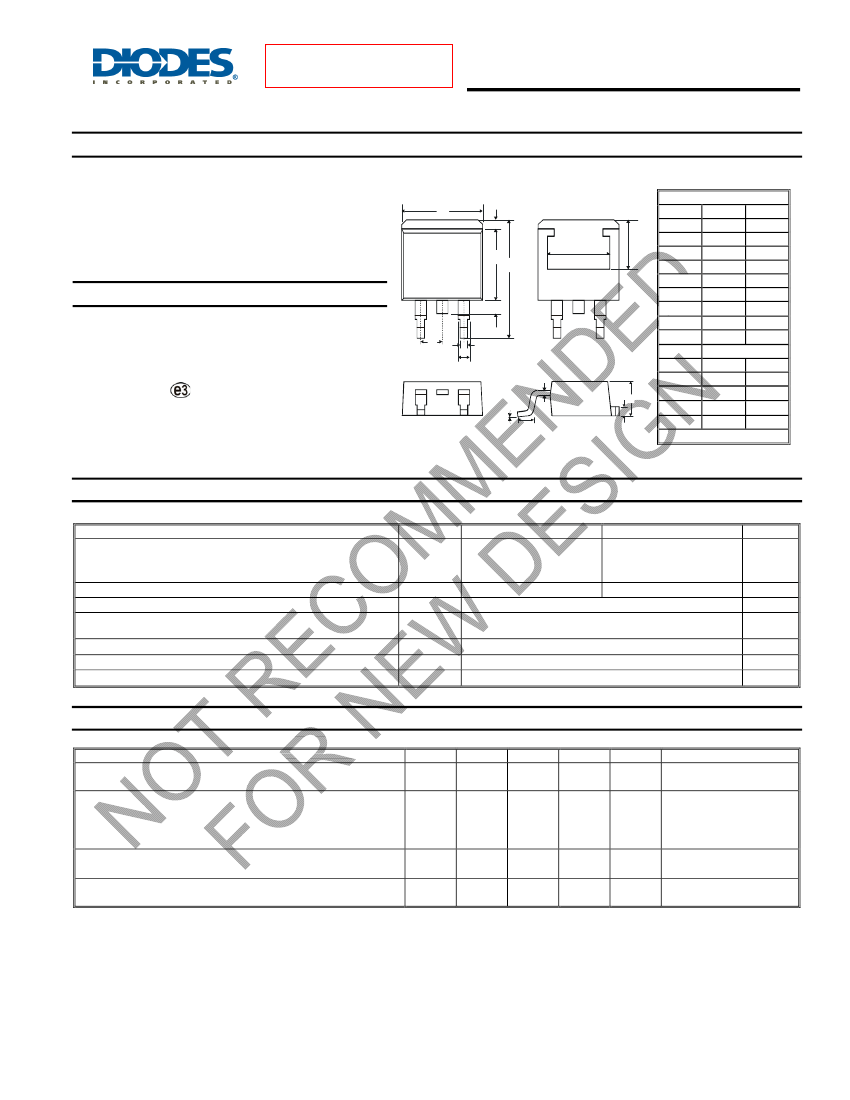

SBG1025L - SBG1030L
10A SCHOTTKY BARRIER RECTIFIER
Features
•
•
•
•
•
•
Guard Ring Die Construction for
Transient Protection
Low Power Loss, High Efficiency
High Surge Capability
Very Low Forward Voltage Drop
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
Lead Free Finish, RoHS Compliant (Note 2)
1
E
L1
D1
E1
D
H
Mechanical Data
•
•
•
•
•
•
•
•
Case: D2PAK
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Tin. Solderable per MIL-STD-202,
Method 208
Polarity: See Diagram
Marking: Type Number
Ordering Information: See Page 2
Weight: 1.7 grams (approximate)
K
2
L2
e
b
b1
c
A
a
L
c1
D PAK
Dim
Min
Max
A
4.07
4.82
b
0.51
0.99
b1
1.15
1.77
c
0.356
0.58
c1
1.143
1.65
D
8.39
9.65
D1
6.55
⎯
E
9.66
10.66
E1
6.23
⎯
e
2.54 Typ
H
14.61 15.87
L
1.78
2.79
L1
1.67
⎯
L2
1.77
⎯
a
0°
8°
All Dimensions in mm
2
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@ T
C
= 120°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
Typical Thermal Resistance Junction to Case (Note 1)
Operating Temperature Range
Storage Temperature Range
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
R
θ
JC
T
j
T
STG
SBG1025L
25
18
10
200
3.0
-65 to +125
-65 to +150
SBG1030L
30
21
Unit
V
V
A
A
°C/W
°C
°
C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 3)
@T
A
= 25°C unless otherwise specified
Symbol
SBG1025L
SBG1030L
V
(BR)R
Min
25
30
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Typ
⎯
⎯
⎯
0.34
⎯
0.48
⎯
150
350
Max
⎯
⎯
0.45
0.36
0.55
0.50
1.0
260
⎯
Unit
V
V
V
Test Condition
I
R
= 1mA
@ I
F
= 10A, T
C
= 25°C
@ I
F
= 10A, T
C
= 125°C
@ I
F
= 20A, T
C
= 25°C
@ I
F
= 20A, T
C
= 125°C
@ T
C
= 25°C
@ T
C
= 125°C
f = 1.0MHz, V
R
= 4.0V DC,
Per Element
Forward Voltage
Peak Reverse Current
at Rated DC Blocking Voltage (Note 3)
Typical Total Capacitance
Notes:
V
FM
I
RM
C
T
mA
pF
1. Thermal resistance: junction to case mounted on heat sink
2. RoHS revision 13.2.2003. High temperature solder exemption applied, see
EU Directive Annex Note 7.
3. Short duration pulse test used to minimize self-heating effect.
DS30127 Rev. 8 - 3
1 of 3
www.diodes.com
SBG1025L – SBG1030L
© Diodes Incorporated
NOT RECOMMENDED
FOR NEW DESIGN
10
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
I
(AV)
, AVERAGE RECTIFIED CURRENT (A)
100
8
10
6
4
1.0
2
0
0
25
50
75
100
125
150
T
C
, CASE TEMPERATURE (
°
C)

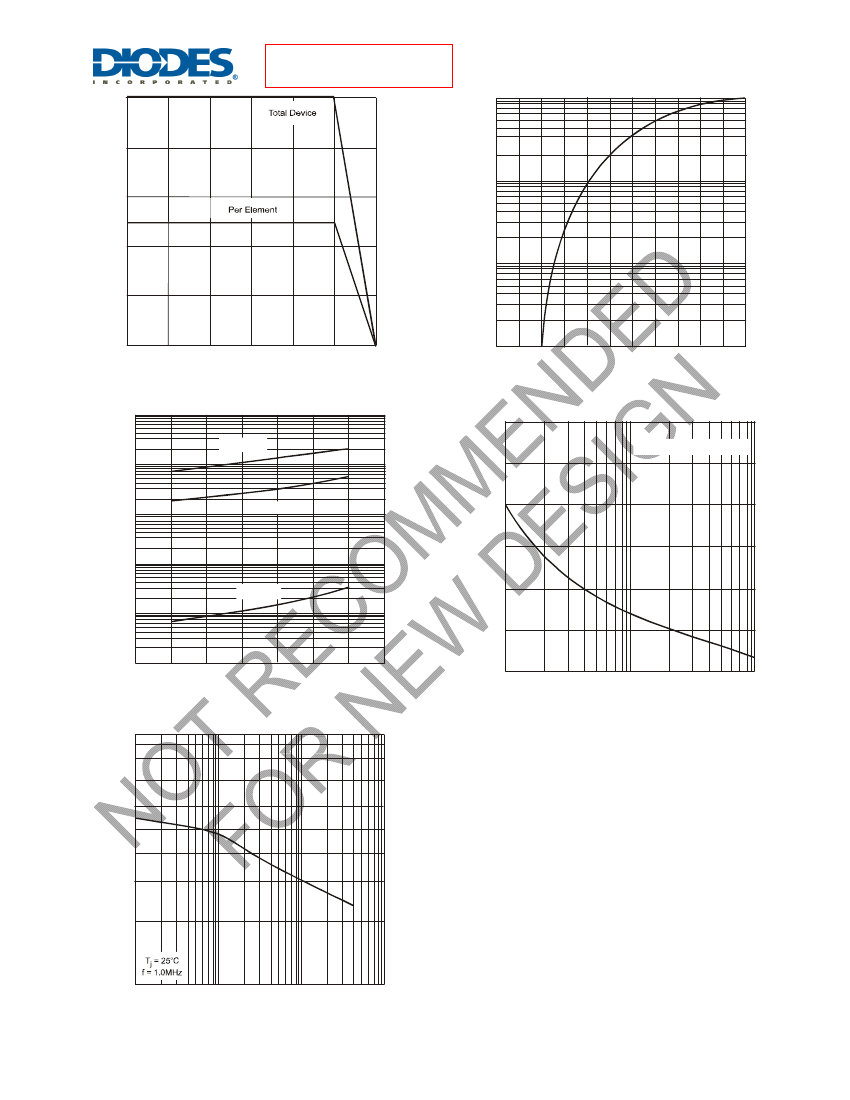

Fig. 1 Forward Derating Curve
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
1000
T
j
= 125ºC
0.1
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics, Per Element
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
300
8.3 ms single half-sine-wave
100
250
10
T
j
= 100ºC
200
150
1
T
j
= 25ºC
100
0.1
50
0.01
0
5
10
15
20
25
30
35
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 4 Maximum Non-Repetitive Surge Current
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics, Per Element
1000
C
T
, TOTAL CAPACITANCE (pF)
500
10
0.1
1.0
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 5 Typical Total Capacitance, Per Element
DS30127 Rev. 8 - 3
2 of 3
www.diodes.com
SBG1025L – SBG1030L
© Diodes Incorporated
NOT RECOMMENDED
FOR NEW DESIGN
Ordering Information
Device
SBG1025L-F
SBG1025L-T-F
SBG1030L-F
SBG1030L-T-F
Notes:
4.
(Note 4)
Packaging
2
D PAK
2
D PAK
2
D PAK
2
D PAK
Shipping
50/Tube
800/Tape & Reel
50/Tube
800/Tape & Reel
For packaging details, visit our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
YWW
SBG10XXL
SBG10XXL = Product type marking code (SBG1025L or SBG1030L)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year ex: 2 for 2002
WW = Week code 01 to 52
