614-93-950-41-001

Description
IC Socket, DIP50, 50 Contact(s), 2.54mm Term Pitch, 0.9inch Row Spacing, Solder,
CategoryThe connector    socket
File Size121KB，1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric View All

614-93-950-41-001 Overview

IC Socket, DIP50, 50 Contact(s), 2.54mm Term Pitch, 0.9inch Row Spacing, Solder,

614-93-950-41-001 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMill-Max
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresDIP SOCKET
body width1 inch
subject depth0.098 inch
body length2.5 inch
Contact to complete cooperationGOLD (30) OVER NICKEL (100)
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact materialNOT SPECIFIED
Contact styleRND PIN-SKT
current rating1 A
Device slot typeIC SOCKET
Type of equipment usedDIP50
Dielectric withstand voltage1000VAC V
Shell materialGLASS FILLED POLYETHYLENE POLYESTER
Insulation resistance10000000000 Ω
JESD-609 codee0
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Number of contacts50
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing0.9 mm
Terminal pitch2.54 mm
Termination typeSOLDER
Base Number Matches1

Preview

Download Datasheet

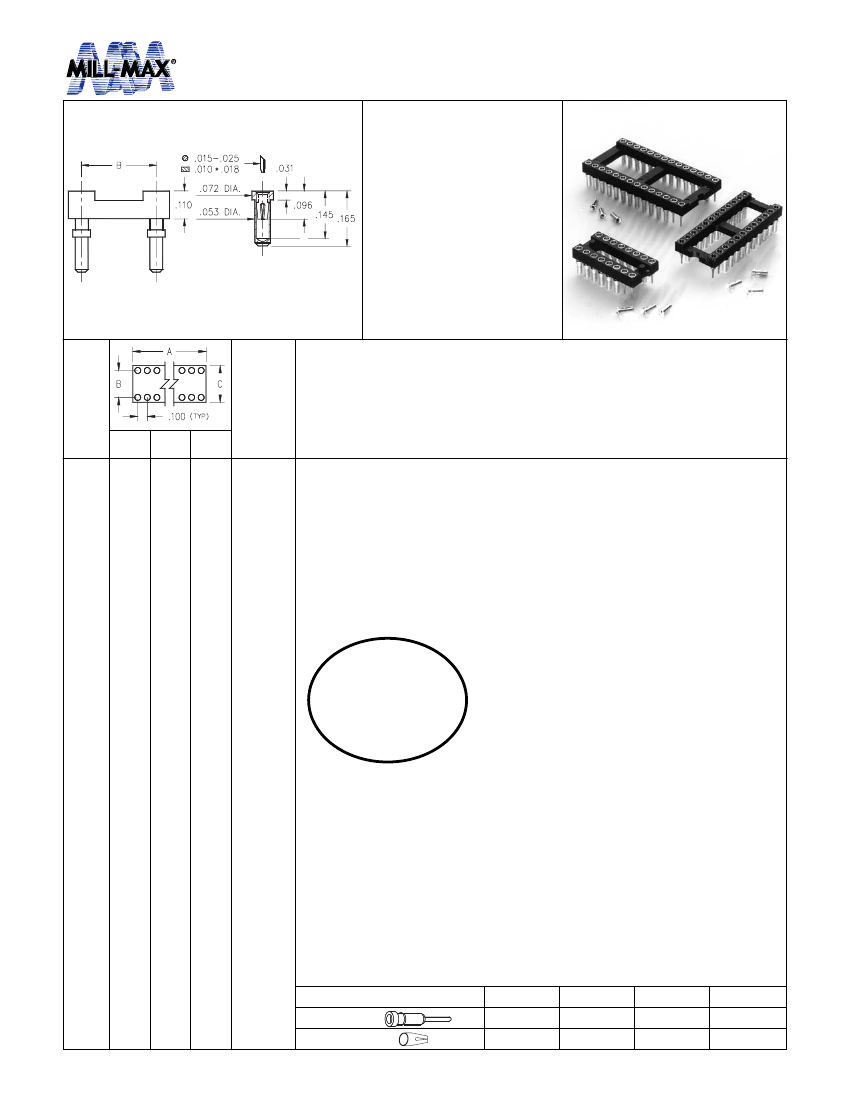

DUAL-IN-LINE SOCKETS
Carrier Type
Low Profile
•
Convenient way to load
loose receptacles on PC
board. See page 32 for
application details.
•
Removable plastic carri-
ers can be returned for
reloading.
•
Hi-Rel, 4-finger BeCu
#30 clip rated at 3 amps.
See page 208 for details.
•
Uses M-M#1401 pin.
See page 139 for details.
Total number
of pins
Series 614...001
Quantity
per tube
Ordering Information
A
0.5
0.2
0.3
0.4
0.5
0.7
0.8
0.9
1.0
1.1
1.2
1.4
1.0
1.1
1.2
1.4
1.6
1.2
1.4
1.6
1.8
2.0
2.1
2.4
2.5
2.6
2.5
2.6
3.2
B
0.2
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.4
0.4
0.4
0.4
0.4
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.9
0.9
0.9
C
0.3
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.4
0.5
0.5
0.5
0.5
0.5
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
1.0
1.0
1.0
40
102
67
50
40
28
25
22
20
18
16
14
20
18
16
14
12
16
14
12
11
10
9
8
8
7
8
7
6
SPECIFY PLATING CODE XX=
10
4
6
8
10
14
16
18
20
22
24
28
20
22
24
28
32
24
28
32
36
40
42
48
50
52
50
52
64
614-XX-210-41-001
614-XX-304-41-001
614-XX-306-41-001
614-XX-308-41-001
614-XX-310-41-001
614-XX-314-41-001
614-XX-316-41-001
614-XX-318-41-001
614-XX-320-41-001
614-XX-322-41-001
614-XX-324-41-001
614-XX-328-41-001
XX= Plating Code
See Below
614-XX-420-41-001
614-XX-422-41-001
614-XX-424-41-001
614-XX-428-41-001
614-XX-432-41-001
614-XX-624-41-001
614-XX-628-41-001
614-XX-632-41-001
614-XX-636-41-001
614-XX-640-41-001
614-XX-642-41-001
614-XX-648-41-001
614-XX-650-41-001
614-XX-652-41-001
614-XX-950-41-001
614-XX-952-41-001
614-XX-964-41-001
93
30µ” Au
99
200µ” Sn/Pb
Sleeve (Pin)
Contact (Clip)
200µ” Sn/Pb 200µ” Sn/Pb
w w w. m i l l - m a x . c o m
33
516-922-6000
