35585X datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 35585X

Preview

35585X: DescriptionRCA Phono Connectors PHONO PLUG RoHS; CategoryThe connector The connector; File Size190KB，1 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric Compare View All

35585X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35585X	-	-	View	Buy Now

35585X Overview

RCA Phono Connectors PHONO PLUG RoHS

35585X Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	AUDIO/RCA CONNECTOR
Manufacturer's serial number	3558
Base Number Matches	1

Preview

Download Datasheet

View All

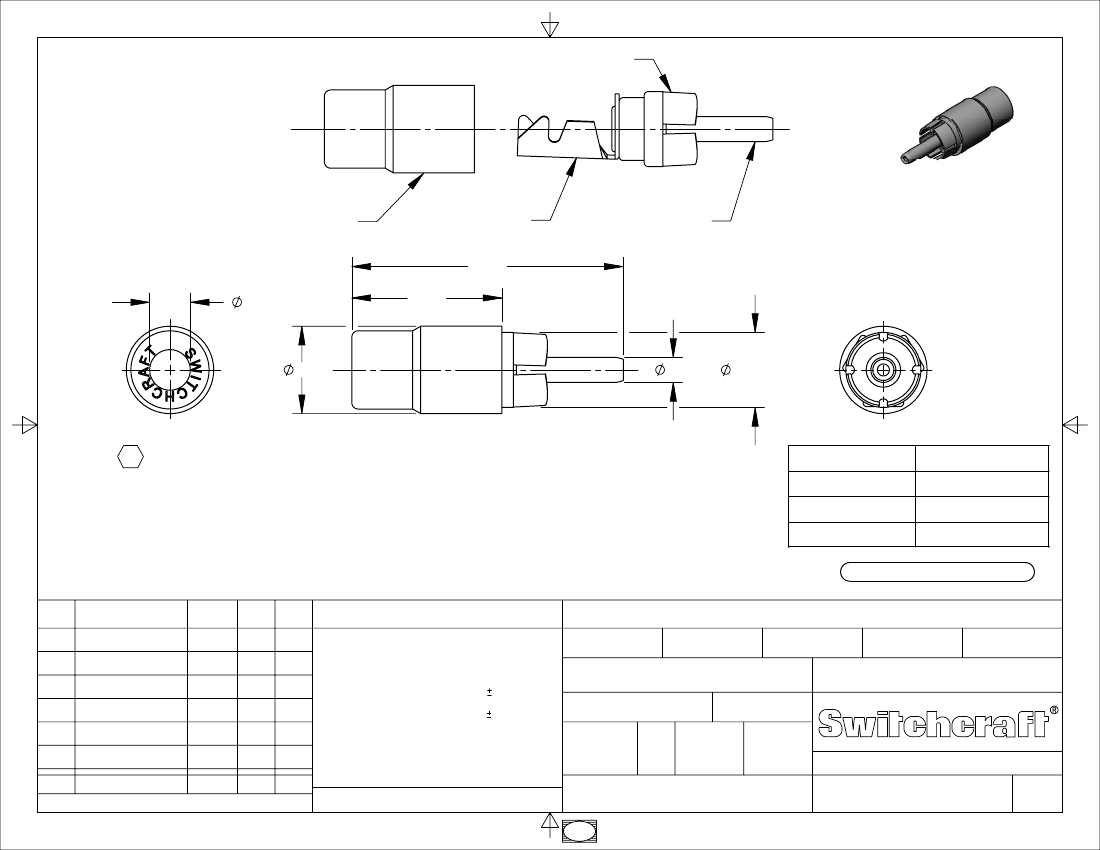

PLUG BODY

HANDLE

SHIPPED UNASSEMBLED

CLAMP

TERMINAL

1.36

PIN AND WASHER

ASSEMBLY

0.203

REF

0.44

0.75

0.13

0.38 O.D.

NOTES:

B

PART NUMBER

35581X

35582X

35585X

HANDLE COLOR

RED

BLACK

WHITE

1. MATERIALS:

PLUG BODY - COPPER ALLOY, NICKEL PLATED

CLAMP TERMINAL - COPPER ALLOY, TIN PLATED

PIN - COPPER ALLOY, NICKEL PLATED

WASHER - PHENOLIC

HANDLE - THERMOPLASTIC

2. THESE PRODUCTS ARE RoHS COMPLIANT.

CUSTOMER DRAWING

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

UNLESS OTHERWISE SPECIFIED

1. ALL DIMENSIONS IN INCHES

- TWO PLACE DECIMALS

- THREE PLACE DECIMALS

B

A

REV

SIZE

FINISH

WIDTH

MULT

MATERIAL

SPEC No.

SCALE

LBS/M

TEMPER

0.02

0.005

SPEC No.

FIRST USED ON

DATE DRAWN

BY

CHKD

2:1

26479

26212

ECO NUMBER

1/11/10

1/22/07

DATE

RS

BY

TJK

APVD

8/13/08

RS

8/13/08

TJK

10/28/09

PART No.

APVD

SHEET

REVISIONS

DO NOT SCALE DRAWING

NAME

COLOR CODED

PHONO PLUGS, RoHS

1

OF

1

REV

35581X-35585X

SolidWorks CAD File

B

A

35585X Related Products

	35585X	35582X	35581X
Description	RCA Phono Connectors PHONO PLUG RoHS		Multi-Paired Cables 22AWG 1PR SHIELD 100ft SPOOL BLACK
Reach Compliance Code	compliant	compliant	compliant
Connector type	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR
Base Number Matches	1	1	1
Is it Rohs certified?	-	conform to	conform to
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED
