NAZJ331M10V8X10.5KBF

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 330uF, SURFACE MOUNT, 3333, CHIP, ROHS COMPLIANT
File Size62KB，3 Pages
ManufacturerNIC Components Corp
Download Datasheet Parametric View All

NAZJ331M10V8X10.5KBF Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 330uF, SURFACE MOUNT, 3333, CHIP, ROHS COMPLIANT

NAZJ331M10V8X10.5KBF Parametric

Parameter NameAttribute value
Objectid1734721770
package instruction, 3333
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance330 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
ESR80 mΩ
JESD-609 codee6
leakage current0.033 mA
Manufacturer's serial numberNAZJ
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
method of packingTR, 13 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)10 V
ripple current552.5 mA
size code3333
surface mountYES
Delta tangent0.19
Terminal surfaceTIN BISMUTH
Terminal shapeFLAT

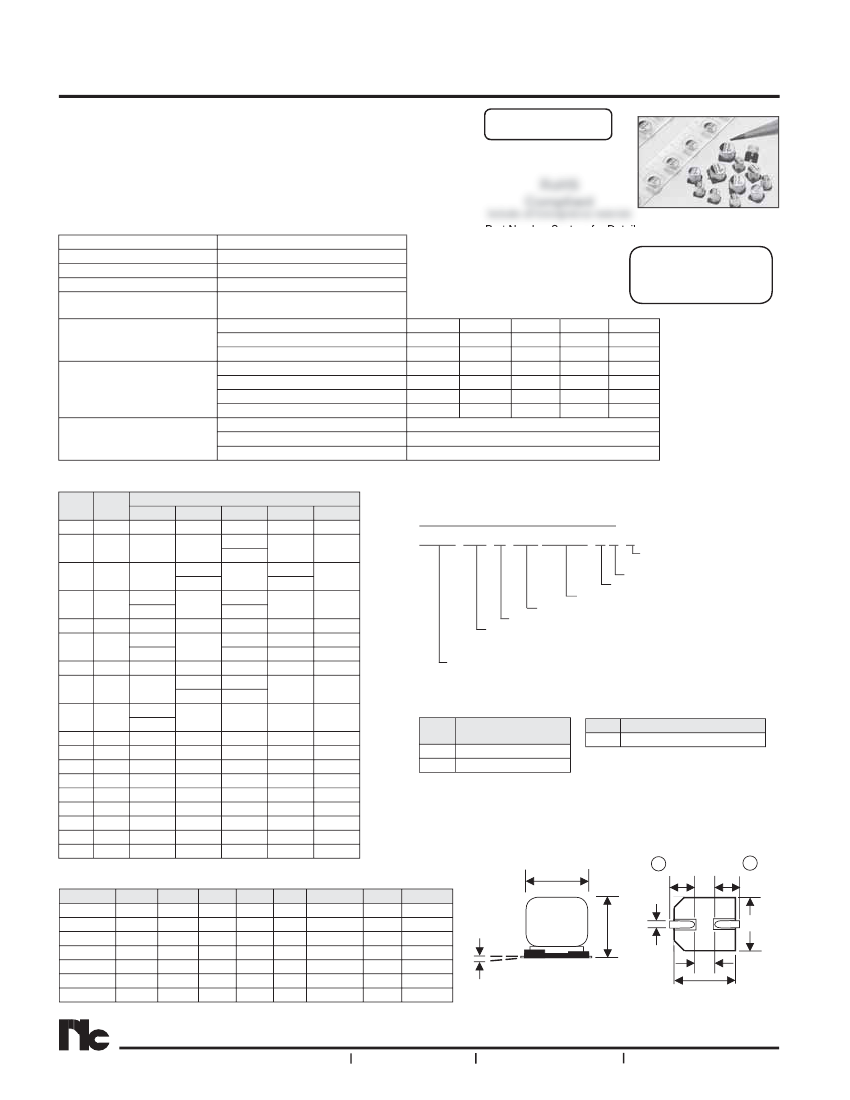

NAZJ331M10V8X10.5KBF Preview

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
•
•
•
•
•
CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
REDUCED CASE SIZE (SMALLER THEN NAZT)
LOW ESR & HIGH RIPPLE CURRENT AT 100KHz
LOAD LIFE (2,000 HOURS @ +105°C)
DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
SAC
Alloy Compatible
245°C ~ 260°C
NAZJ Series
RoHS
Compliant
includes all homogeneous materials
CHARACTERISTICS
Rated Voltage Rating
Rated Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Miuntes @ 20°C
Dissipation Factor
Low Temperature
Stability
Impedance Ratio @ 120Hz
Load Life Test @ 105°C
2,000 hours
6.3 ~ 35Vdc
10 ~ 1,800μF
-55 ~ +105°C
±20% (M)
0.01CV or 3μA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
Tan
δ
@ 120Hz/20°C
W.V. (Vdc)
Z-25°C/Z+20°C
Z-40°C/Z+20°C
Z-55°C/Z+20°C
Capacitance Change
Tan
δ
Leakage Current
*See Part Number System for Details
LOW ESR COMPONENT
LIQUID ELECTROLYTE
For Performance Data
see www.LowESR.com
6.3
10
16
25
35
8.0
13
20
32
44
0.26
0.19
0.16
0.14
0.12
6.3
10
16
25
35
2
2
2
2
2
3
3
3
3
3
4
4
4
3
3
Within ±30% of initial measured value
Less than ±200% of the specified maximum value
Less than the specified maximum value
STANDARD VALUES AND CASE SIZES (mm)
Cap.
Code
(μF)
10
100
22
33
47
68
100
150
220
330
390
470
560
680
820
1000
1200
1500
1800
220
330
470
680
101
151
221
331
391
471
561
681
821
102
122
152
182
Working Voltage (Vdc)
6.3
10
16
25
35
-
-
4x6.1
4x6.1
4x6.1
4x6.1
4x6.1
4x6.1
5x6.1
5x6.1
5x6.1
4x6.1
5x6.1
-
-
6.3x6.1
5x6.1
6.3x6.1
4x6.1
5x6.1
-
6.3x6.1 6.3x6.1
5x6.1
6.3x6.1
-
-
6.3x6.1 6.3x6.1 6.3x8
5x6.1
6.3x6.1 6.3x8
6.3x8
-
6.3x6.1
6.3x8
8x6.5 8x10.5
-
6.3x6.1 6.3x8 8x10.5 8x10.5
6.3x8
6.3x8
6.3x6.1
8x10.5 8x10.5
8x6.5
8x6.5
6.3x8
8x10.5 8x10.5 8x10.5 10x10.5
8x6.5
-
-
-
-
10x10.5
8x10.5 8x10.5 8x10.5 10x10.5
-
-
-
-
10x10.5
-
-
8x10.5 10x10.5
-
-
-
-
10x10.5
-
-
8x10.5 10x10.5
-
-
-
-
10x10.5
-
-
-
10x10.5
-
-
-
-
10x10.5
-
-
-
-
PART NUMBER SYSTEM
NAZJ 101 M 16V 6.3x6.1 N B F
RoHS Compliant
Termination/Packaging Code
Reflow Temperature Code
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in
μF,
first 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
PEAK REFLOW
TERMINATION FINISH &
TEMPERATURE CODES PACKAGING OPTIONS CODES
Code
N
K
Peak Reflow
Temperature
260°C
245°C
Code
B
Finish & Reel Size
Sn-Bi Finish & 13" Reel
Dφ
DIMENSIONS (mm) AND REEL QUANTITIES
Case Size
φD±0.5
L max. A±0.2 B±0.2 I±0.3
W
P±0.3 Qty/Reel
4x6.1
4.0
6.1
4.3
4.3
1.8 0.55~0.75 1.0
1,200
5x6.1
5.0
6.1
5.3
5.3
2.2 0.55~0.75 1.5
800
6.3x6.1
6.3
6.1
6.6
6.6
2.6 0.55~0.75 1.8
800
6.3X8
6.3
8.0
6.6
6.6
2.6 0.55~0.75 1.8
500
8x6.5
8.0
6.5
8.3
8.3
3.4 0.55~0.75 2.2
800
8x10.5
8.0
10.5
8.3
8.3
3.4
0.7~1.1
3.1
300
10x10.5
10.0
10.5
10.3 10.3 3.5
0.7~1.1
4.6
300
W
0.3mm max.
+
I
I
-
L
P
B
A
64
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Surface Mount Aluminum Electrolytic Capacitors
STANDARD VALUES, CASE SIZES AND SPECIFICATIONS
NIC Part Number
NAZJ220M6.3V4X6.1NBF
NAZJ470M6.3V4X6.1NBF
NAZJ470M6.3V5X6.1NBF
NAZJ101M6.3V5X6.1NBF
NAZJ101M6.3V6.3X6.1NBF
NAZJ221M6.3V6.3X6.1NBF
NAZJ331M6.3V6.3X8NBF
NAZJ331M6.3V8X6.5KBF
NAZJ471M6.3V8X10.5KBF
NAZJ102M6.3V8X10.5KBF
NAZJ152M6.3V10X10.5KBF
NAZJ182M6.3V10X10.5KBF
NAZJ220M10V4X6.1NBF
NAZJ330M10V4X6.1NBF
NAZJ330M10V5X6.1NBF
NAZJ151M10V6.3X6.1NBF
NAZJ221M10V6.3X8NBF
NAZJ221M10V8X6.5KBF
NAZJ331M10V8X10.5KBF
NAZJ471M10V8X10.5KBF
NAZJ681M10V8X10.5KBF
NAZJ102M10V10X10.5KBF
NAZJ122M10V10X10.5KBF
NAZJ100M16V4X6.1NBF
NAZJ220M16V4X6.1NBF
NAZJ220M16V5X6.1NBF
NAZJ470M16V5X6.1NBF
NAZJ470M16V6.3X6.1NBF
NAZJ680M16V6.2X6.1NBF
NAZJ101M16V6.3X6.1NBF
NAZJ101M16V8X6.5NBF
NAZJ151M16V6.3X8NBF
NAZJ221M16V6.3X8NBF
NAZJ221M16V8X6.5KBF
NAZJ331M16V8X10.5KBF
NAZJ471M16V8X10.5KBF
NAZJ681M16V10X10.5KBF
NAZJ821M16V10X10.5KBF
NAZJ100M25V4X6.1NBF
NAZJ220M25V5X6.1NBF
NAZJ330M25V5X6.1NBF
NAZJ330M25V6.3X6.1NBF
NAZJ470M25V6.3X6.1NBF
NAZJ680M25V6.3X6.1NBF
NAZJ101M25V6.3X8NBF
NAZJ101M25V8X6.5KBF
NAZJ151M25V8X10.5KBF
NAZJ221M25V8X10.5KBF
NAZJ331M25V8X10.5KBF
NAZJ471M25V10X10.5KBF
NAZJ561M25V10X10.5KBF
Cap.
(μF)
22
47
47
100
100
220
330
330
470
1000
1500
1800
22
33
33
150
220
220
330
470
680
1000
1200
10
22
22
47
47
68
100
100
150
220
220
330
470
680
820
10
22
33
33
47
68
100
100
150
220
330
470
560
W.V.
(Vdc)
Dissipaton Factor
(Tan
δ)
0.26
0.26
0.26
0.26
0.26
0.26
0.26
0.26
0.26
0.26
0.26
0.26
0.19
0.19
0.19
0.19
0.19
0.19
0.19
0.19
0.19
0.19
0.19
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
Max. ESR (Ω)
100KHz, +20°C
0.85
0.85
0.36
0.36
0.26
0.26
0.16
0.18
0.08
0.08
0.06
0.08
0.85
0.85
0.36
0.26
0.16
0.18
0.08
0.08
0.08
0.06
0.08
0.85
0.85
0.36
0.36
0.26
0.26
0.26
0.16
0.16
0.16
0.18
0.08
0.08
0.06
0.08
0.85
0.36
0.36
0.26
0.26
0.26
0.16
0.18
0.08
0.08
0.08
0.06
0.08
Max. Ripple Current (mA)
+105°C, 100KHz
160
160
240
240
300
300
600
500
850
850
1190
850
160
160
240
300
600
500
850
850
850
1190
850
160
160
240
240
300
300
300
600
600
600
500
850
850
1190
850
160
240
240
300
300
300
600
500
850
850
850
1190
850
NAZJ Series
6.3
10
16
25
Load Life Hours
@ +105°C
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
65
Surface Mount Aluminum Electrolytic Capacitors
STANDARD VALUES, CASE SIZES AND SPECIFICATIONS
NIC Part Number
NAZJ100M35V4X6.1NBF
NAZJ220M35V5X6.1NBF
NAZJ330M35V6.3X6.1NBF
NAZJ470M35V6.3X6.1NBF
NAZJ680M35V6.3X8NBF
NAZJ101M35V6.3X8NBF
NAZJ101M35V8X10.5KBF
NAZJ151M35V8X10.5KBF
NAZJ221M35V8X10.5KBF
NAZJ331M35V10X10.5KBF
NAZJ391M35V10X10.5KBF
Cap.
(μF)
10
22
33
47
68
100
100
150
220
330
390
W.V.
(Vdc)
Dissipaton Factor
(Tan
δ)
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
Max. ESR (Ω)
100KHz, +20°C
0.85
0.36
0.26
0.26
0.16
0.16
0.08
0.08
0.08
0.06
0.08
Max. Ripple Current (mA)
+105°C, 100KHz
160
240
300
300
600
600
850
850
850
1190
850
NAZJ Series
35
Load Life Hours
@ +105°C
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
RIPPLE CURRENT FREQUENCY
CORRECTION FACTOR
Frequency
10 ~ 470μF
680 ~ 1800μF
120Hz
0.65
0.70
1KHz
0.85
0.90
10KHz
0.95
0.95
100KHz ~
1.00
1.00
PEAK REFLOW TEMPERATURE AND DURATION
Diameter
4 ~ 6.3mm
φ
8 ~ 10mm
φ
Time above 200°C
70 sec.
70 sec.
Time above 230°C
30 sec.
30 sec.
Peak Temperature
260°C
255°C
245°C
Duration
Time > 250°C 5 sec.
Time > 250°C 10 sec.
Time > 240°C 10 sec.
Capacitors can withstand two times reflow at the above conditions.
Second reflow shall be at least one hour after natural cool to room
temperature.
RECOMMENDED LAND PATTERN DIMENSIONS (mm)
Temperature - Deg. C
Case Size
4x6.1
5x6.1
6x3x6.1
6.3x8
8x6.5
8x10.5
10x10.5
a
1.0
1.5
1.8
2.2
3.1
4.6
b
2.5
2.8
3.2
4.0
4.0
4.1
c
1.6
1.6
1.6
1.6
2.0
2.0
c
b
Peak Temperature
(see table)
230
200
150
100
50
Time (Seconds)
Preheat - 120 seconds max.
(150°C ~ 180°C)
a
Time Above 230°C
(see table)
Time Above 200°C
(see table)
Review & Compare Reflow Soldering Heat Limits
V-chip SMT Aluminum Electrolytic Capacitors
www.niccomp.com/RSL
66
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Connection of equalizer and related circuits

Temperature regulating circuit using platinum measuring sensor

555 simple phase printing timing circuit

delayed release relay

lGBT drive circuit composed of discrete components

875p computer motherboard circuit diagram_060

Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. 671-009-103L021
  2. 2200GG6F002A2MB
  3. MS3122-22-78P
  4. 76344-443
  5. 587-10-540-16-005437
  6. NRC475M35N12
  7. C0603X7R250-683MPB6D
  8. FP-8987HR-11-1641-B
  9. SMBJ150A
  10. P6KE30C_B0_00001
  11. GSC5020YA-16R4000
  12. ECSS04072R2M050P00

Popular Articles

  1. Beijing Ingenic: The first NOR Flash chip has completed wafer production and sample production
  2. What is the difference between DCS and PLC
  3. LG develops "new" lithium iron phosphate battery, which is expected to be adopted by many car companies
  4. Is it normal to see -dBm in FFT analysis results?
  5. The late Cambrian and its competitors
  6. The role of DC resistance tester
  7. Renesas Electronics Launches New Automotive Actuator and Sensor Control MCU
  8. How to measure power supply ripple with an oscilloscope
  9. Design of intelligent heart rate and body temperature detection system based on single chip microcomputer
  10. LOTO Oscilloscope Auto Repair Special Model Selection Guide

Technical ResourceMore

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2580  227  997  2789  1877  52  5  21  57  38
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
