UM23L4100M datasheet, PDF - EEWORLD Datasheet

UM23L4100M: DescriptionMASK ROM, 512KX8, 150ns, CMOS, PDSO40; Categorystorage storage; File Size132KB，6 Pages; ManufacturerUnited Microelectronics Corporation; Websitehttp://www.umc.com/

Download Datasheet Parametric Compare View All

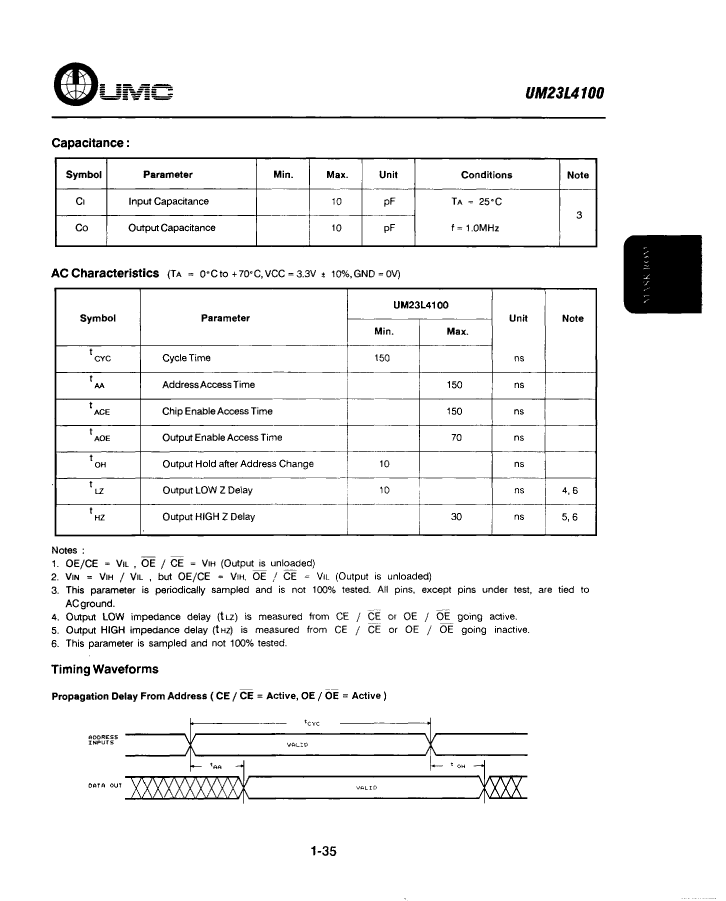

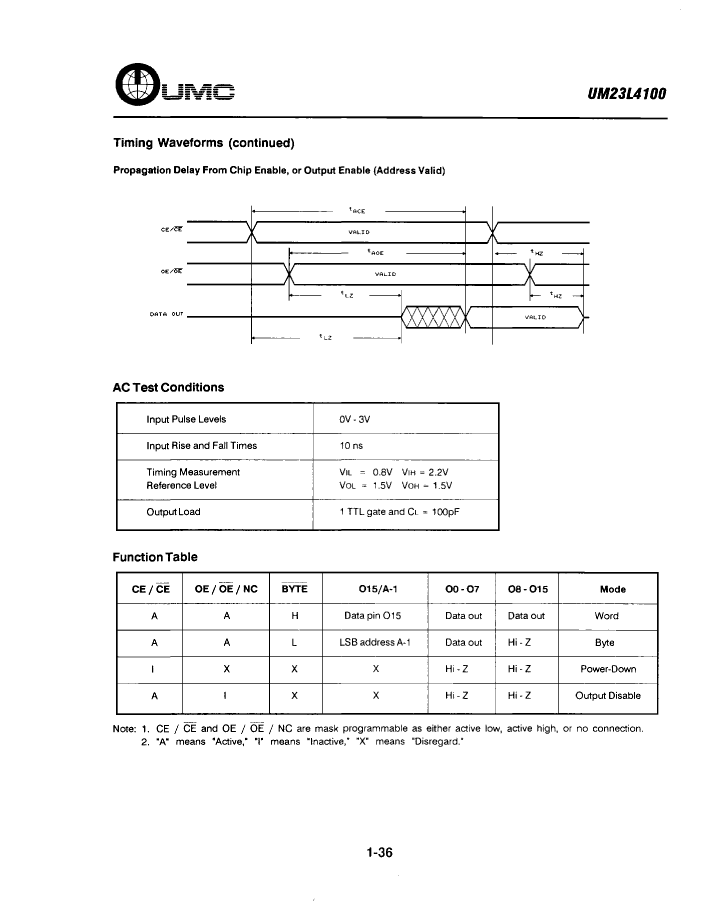

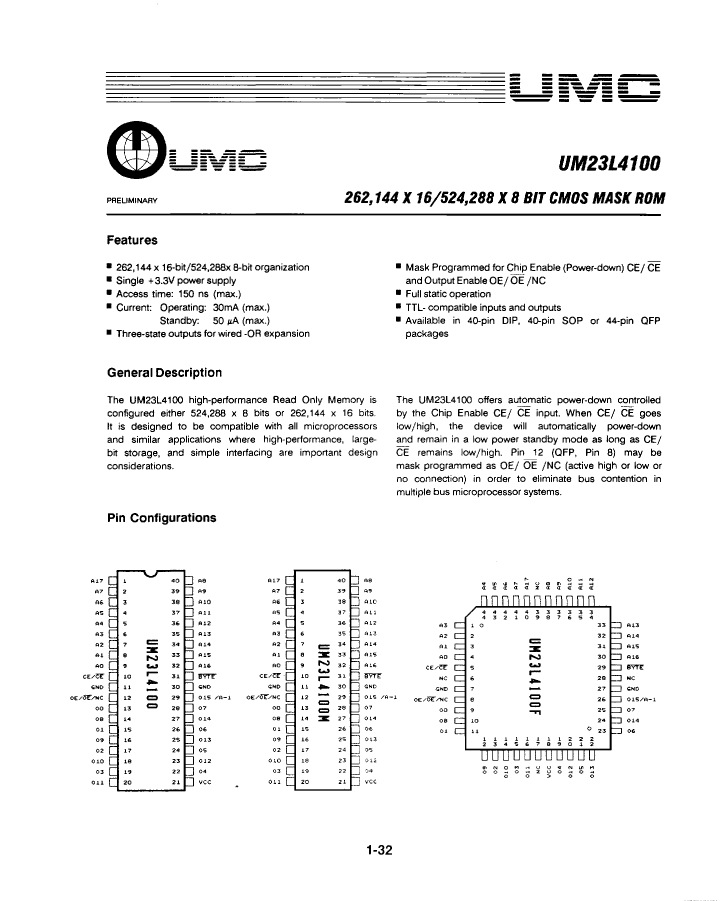

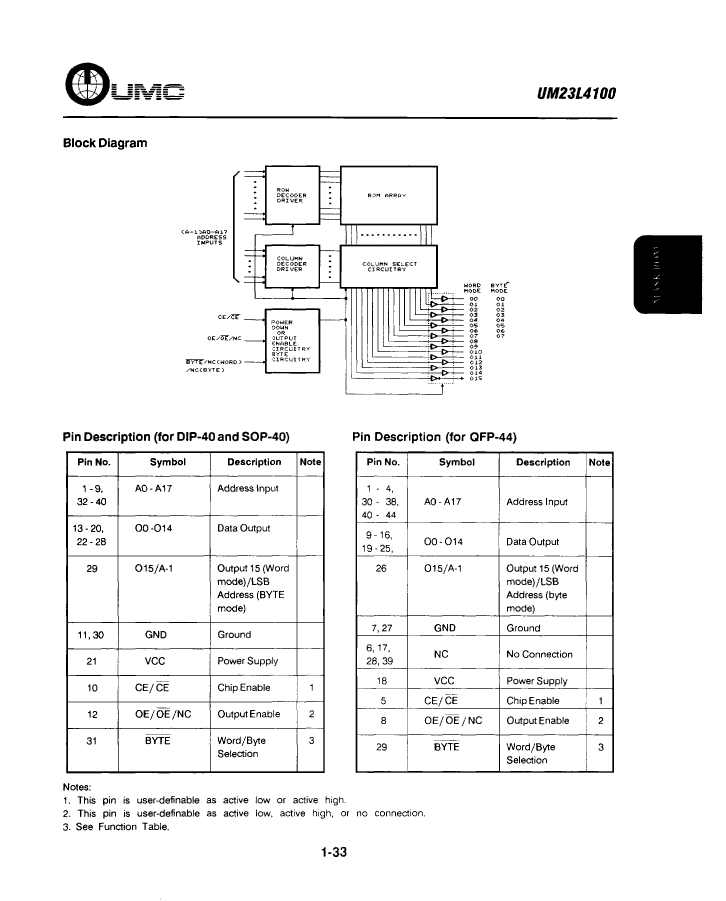

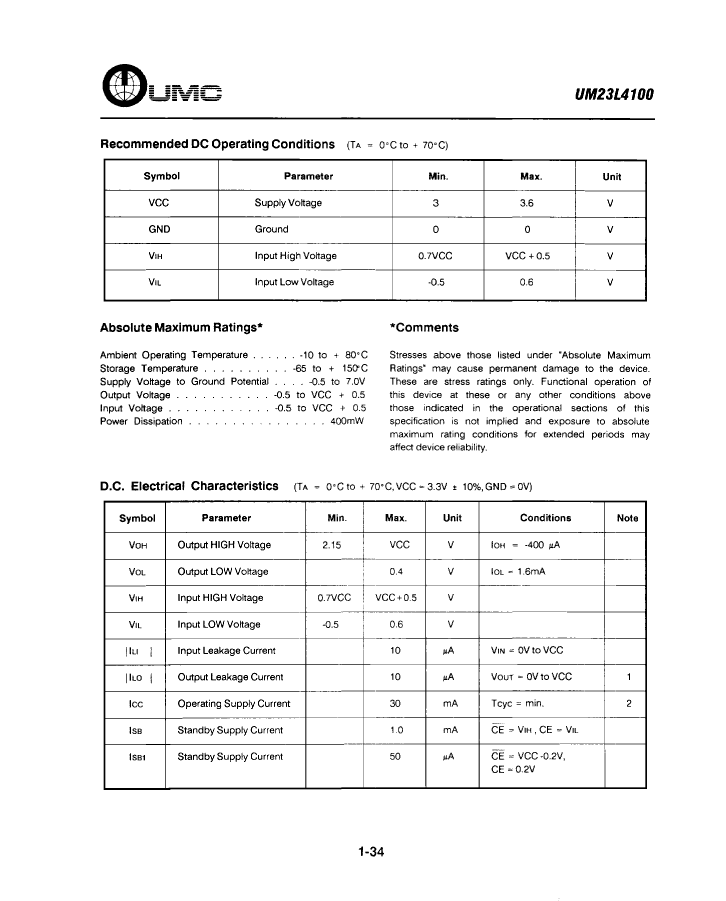

UM23L4100M Overview

MASK ROM, 512KX8, 150ns, CMOS, PDSO40

Parameter Name	Attribute value
Maker	United Microelectronics Corporation
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	150 ns
Spare memory width	16
JESD-30 code	R-PDSO-G40
memory density	4194304 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	40
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	UM23L4100M	UM23L4100F	UM23L4100
Description	MASK ROM, 512KX8, 150ns, CMOS, PDSO40	MASK ROM, 512KX8, 150ns, CMOS, PQFP44	MASK ROM, 512KX8, 150ns, CMOS, PDIP40,
Maker	United Microelectronics Corporation	United Microelectronics Corporation	United Microelectronics Corporation
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum access time	150 ns	150 ns	150 ns
Spare memory width	16	16	16
JESD-30 code	R-PDSO-G40	S-PQFP-G44	R-PDIP-T40
memory density	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	40	44	40
word count	524288 words	524288 words	524288 words
character code	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	SMALL OUTLINE	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL
Base Number Matches	1	1	1
