871-43-014-20-001000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 871-43-014-20-001000

Preview

871-43-014-20-001000: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size426KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

871-43-014-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	871-43-014-20-001000	-	-	View	Buy Now

871-43-014-20-001000 Overview

Board Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, Socket, ROHS COMPLIANT

871-43-014-20-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1047814787
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
Samacsys Manufacturer	Mill-Max
Samacsys Modified On	2019-05-27 16:58:16
YTEOL	7.8
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.78 mm
Termination type	SOLDER
Total number of contacts	14

Preview

Download Datasheet

View All

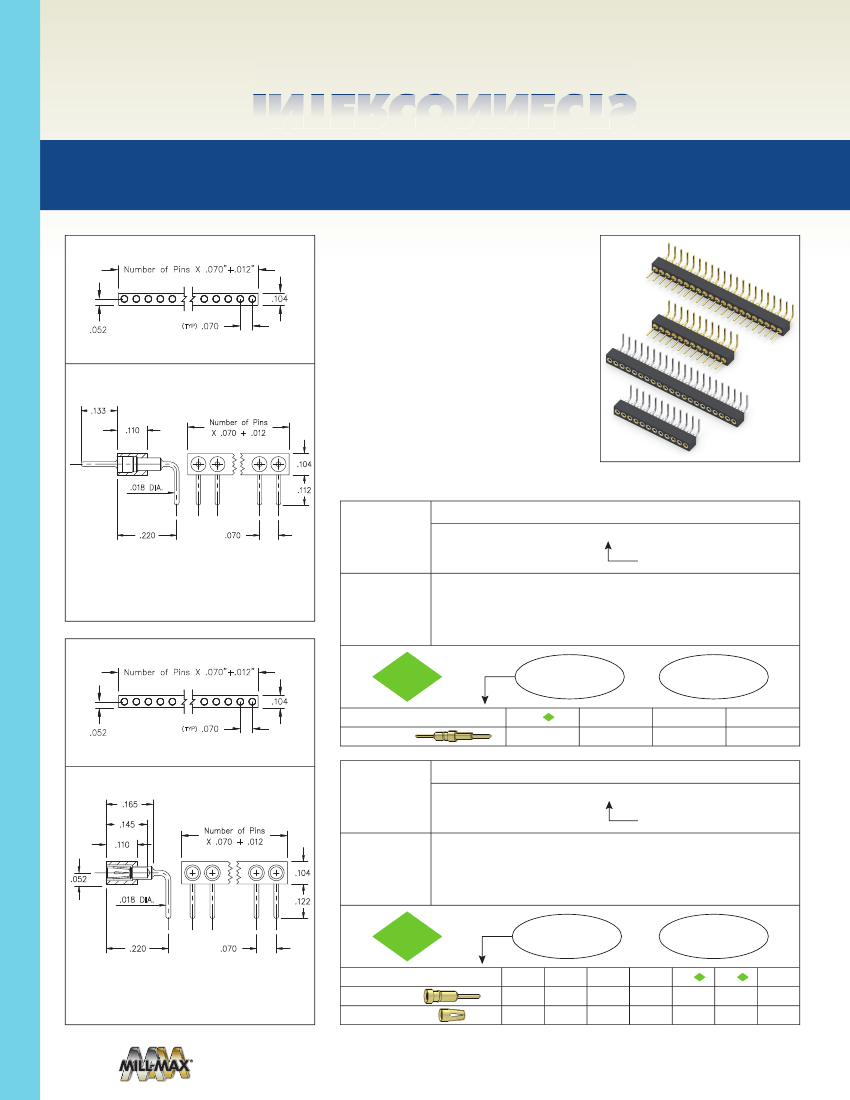

INTERCONNECTS

SERIES 870 & 871 • .070” GRID (.018” DIA.) PINS, RIGHT ANGLE

HEADERS & SOCKETS • SINGLE ROW STRIPS

•

Series 870 and 871 Interconnects feature

Number of Pins X .070"+.012"

.104

(TYP)

space saving .070” pitch

•

Series 870 uses MM #3790-0 pins. See page 209

for details

.052

.070

•

Series 871 uses MM #1805 receptacles and

accept pin diameters from .015” - .025”. See

page 169 for details

•

Receptacles use Hi-Rel, 4- nger BeCu #30

.133

.110

Number of Pins

X .070 + .012

contact rated at 3 amps. See page 253 for

details

•

Insulators are high temperature thermoplastic,

.104

suitable for all soldering operations

.018 DIA.

.112

ORDERING INFORMATION

Series 870...20-001

Right Angle Pin Header

02-21

.220

.070

FIG. 1

870 10 0_ _ 20 001000

Specify number of pins

FIG. 1

Number of Pins X .070"+.012"

.104

(TYP)

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

10

µ”

Au

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.052

.070

SPECIFY PLATING CODE XX=

Pin Plating

Series 871...20-001

.165

.145

.110

Number of Pins

X .070 + .012

Right Angle Socket

02-21

FIG. 2

871 XX 0_ _ 20 001000

Specify number of pins

PAGE 42 | INTERCONNECTS

.052

.018 DIA.

.104

.122

.220

.070

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

41

200

µ”

Sn

10

µ”

Au

43

200

µ”

Sn

30

µ”

Au

FIG. 2

Sleeve (Pin)

Contact (Clip)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
