Surge arrester
2-electrode arrester
Series/Type:
Ordering code:
Date:
Version:
EHV63-H36B2
B88069X2073B252
2015-06-17
02
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then
change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
Surge arrester
(header 1 + top left bar):
Identification/Classification 2
2-electrode arrester
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
B88069X2073B252
Series/Type: (bottom right header bar)
EHV63-H36B2
Preliminary data (optional):
Department:
PPD AB PD / PPD AB PM
Date:
2015-06-17
Version:
02
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Surge arrester
2-electrode arrester
B88069X2073B252
EHV63-H36B2
Features
Built to automotive standard (ISO/TS 16949)
Small size
Fast response time
High current capability
Stable performance over service life
Low capacitance and insertion loss
High insulation resistance
RoHS-compatible
Applications
Automotive:
On-board chargers
Vehicle charging stations
Others:
LED lighting
Power supply
Photovoltaic
Air conditioning
Electrical specifications
DC spark-over voltage
1) 2)
Tolerance
Min.
Max.
Impulse spark-over voltage
at 100 V/µs - for 99% of measured values
- typical values of distribution
at 1 kV/µs
- for 99% of measured values
- typical values of distribution
at 5 kV/µs
- for 99% of measured values
- typical values of distribution
Service life
300 operations
3 operations
1 operation
Capacitance at 1 MHz
Arc voltage at 1 A
Glow to arc transition current
Glow voltage at 0.1 A
AC withstand voltage (1 min)
Weight
Operation temperature
Recommended storage
- temperature
- humidity
- period
Climatic category (IEC 60068-1)
Following on next page
3600
±20
2880
4320
< 4350
< 4150
< 4500
< 4300
< 5000
< 4500
100
3
5
>1
<1
~ 45
< 0.3
~ 240
1800
~1
‒40
... +125
+5 ... +35
45 ... 80
2
40/125/21
V
%
V
V
V
V
V
V
V
V
A
kA
kA
G
pF
V
A
V
V
g
°C
°C
%
years
8/20 µs
8/20 µs
8/20 µs
Insulation resistance at 100 V
DC
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 5
2015-06-17

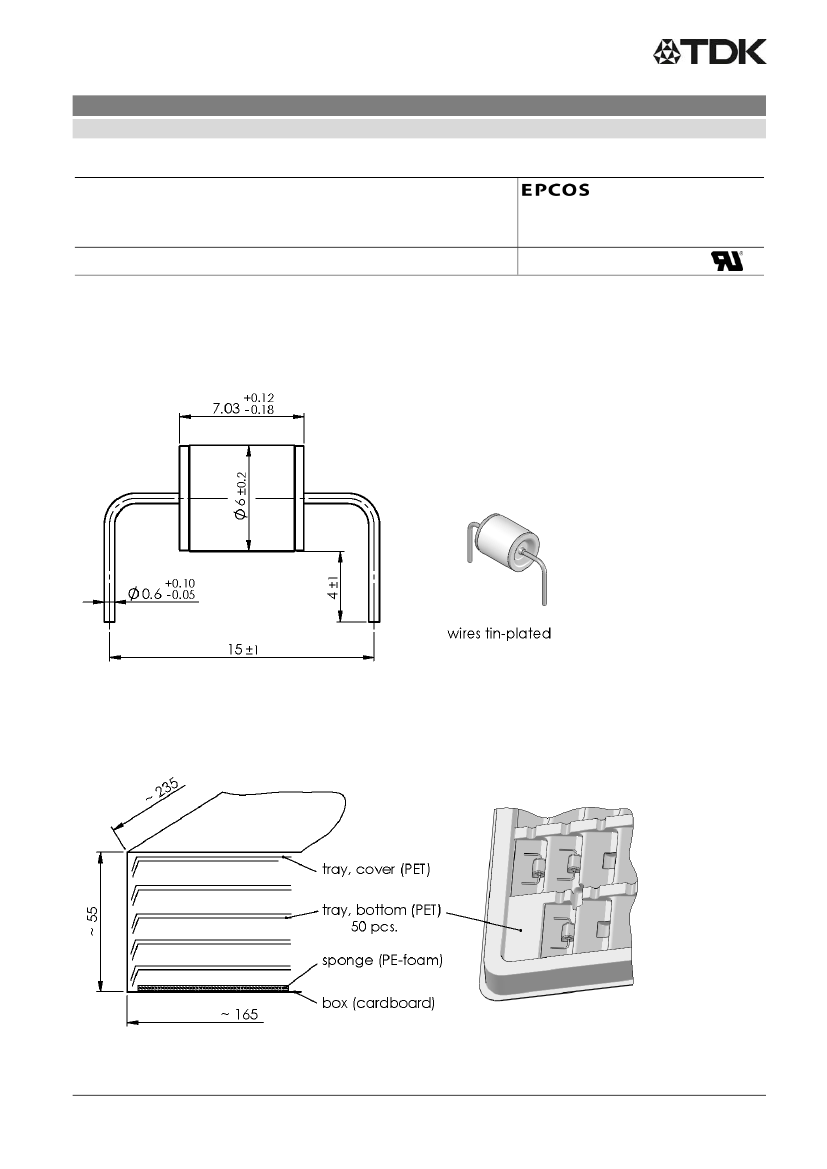

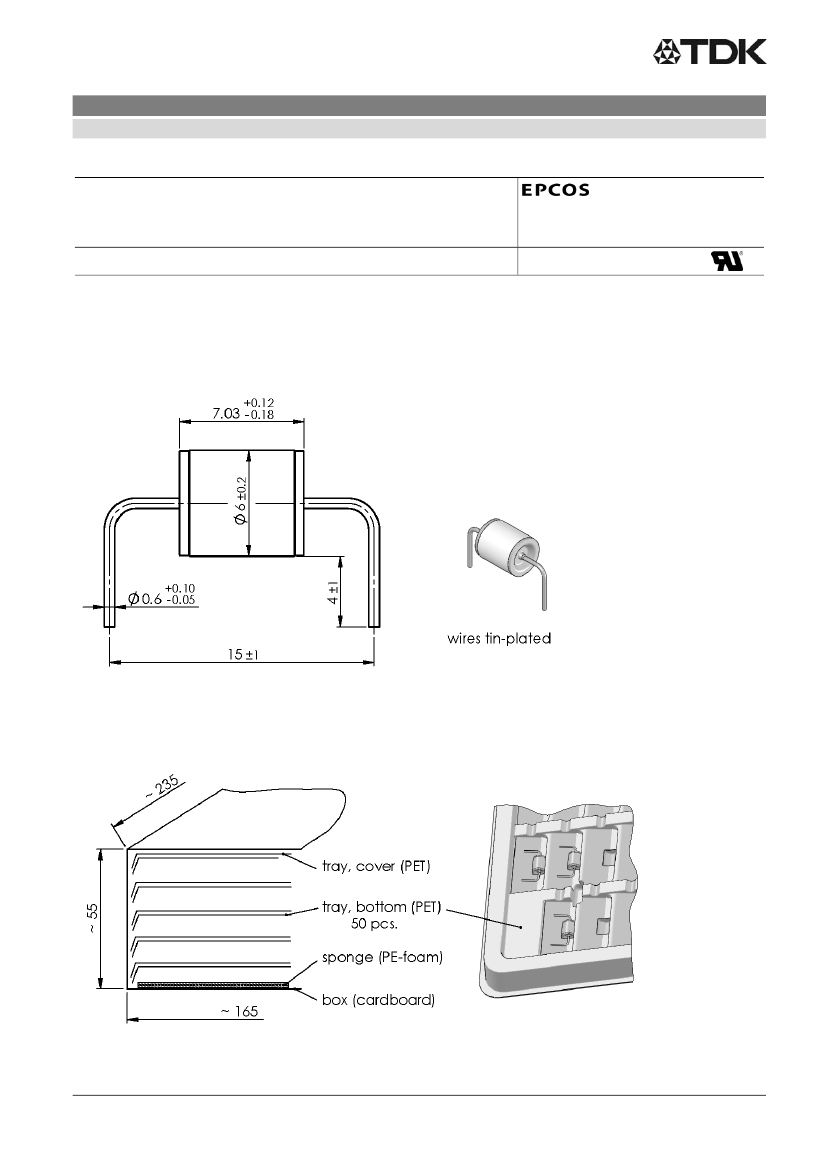

Surge arrester
2-electrode arrester
B88069X2073B252
EHV63-H36B2
Soldering parameter
Wave soldering
Wave profile features
Solder
Solder bath temperature
Dwell time
Pb-free assembly
Sn 95.5 / Ag 3.8 / Cu 0.7
263 (±3) °C
<3s
Soldering profile applied to a single soldering process.
Cautions and warnings
Do not operate surge arresters in power supply networks, whose maximum operating voltage
exceeds the minimum spark-over voltage of the surge arresters.
Electromagnetic fields and ionizing radiation may affect the electrical characteristics of the
arrester. The impact of such effects (inductive and capacitive field distortion from adjacent
components) must be avoided by appropriate circuit design measures.
Surge arresters may become hot in the event of longer periods of current stress (burn risk). In the
event of overload the connectors may fail or the component may be destroyed.
If the contacts of the surge arresters are defective, current load can cause sparks and loud
noises.
Surge arresters must be handled with care and must not be dropped.
Do not continue to use damaged surge arresters.
Display of ordering codes for EPCOS products
The ordering code for one and the same EPCOS product can be represented differently in data
sheets, data books, other publications, on the EPCOS website, or in order-related documents such as
shipping notes, order confirmations and product labels.
The varying representations of the
ordering codes are due to different processes employed and do not affect the specifications of
the respective products.
Detailed information can be found on the Internet under
www.epcos.com/orderingcodes
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 5
2015-06-17
Important notes
The following applies to all products named in this publication:
1. Some parts of this publication contain
statements about the suitability of our products for
certain areas of application.
These statements are based on our knowledge of typical
requirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out
that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application.
As a
rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them
than the customers themselves. For these reasons, it is always ultimately incumbent on the
customer to check and decide whether an EPCOS product with the properties described in the
product specification is suitable for use in a particular customer application.
2. We also point out that
in individual cases, a malfunction of electronic components or failure
before the end of their usual service life cannot be completely ruled out in the current state
of the art, even if they are operated as specified.
In customer applications requiring a very high
level of operational safety and especially in customer applications in which the malfunction or
failure of an electronic component could endanger human life or health (e.g. in accident
prevention or life-saving systems), it must therefore be ensured by means of suitable design of the
customer application or other action taken by the customer (e.g. installation of protective circuitry
or redundancy) that no injury or damage is sustained by third parties in the event of malfunction or
failure of an electronic component.
3.
The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements,
some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as hazardous).
Useful information on this will be found in our Material
Data Sheets on the Internet (www.epcos.com/material). Should you have any more detailed
questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently,
the products described in this
publication may change from time to time.
The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order.
We also
reserve the right to discontinue production and delivery of products.
Consequently,
we cannot guarantee that all products named in this publication will always be available.
The aforementioned does not apply in the case of individual agreements deviating from the
foregoing for customer-specific products.
6. Unless otherwise agreed in individual contracts,
all orders are subject to the current version of
the “General Terms of Delivery for Products and Services in the Electrical Industry”
published by the German Electrical and Electronics Industry Association (ZVEI).
7. The trade names EPCOS, Alu-X, CeraDiode, CeraLink, CeraPad, CeraPlas, CSMP, CSSP,
CTVS, DeltaCap, DigiSiMic, DSSP, ExoCore, FilterCap, FormFit, LeaXield, MiniBlue, MiniCell,
MKD, MKK, MotorCap, PCC, PhaseCap, PhaseCube, PhaseMod, PhiCap, PQSine, SIFERRIT,
SIFI, SIKOREL, SilverCap, SIMDAD, SiMic, SIMID, SineFormer, SIOV, SIP5D, SIP5K, TFAP,
ThermoFuse, WindCap are
trademarks registered or pending
in Europe and in other countries.
Further information will be found on the Internet at www.epcos.com/trademarks.
Page 5 of 5
