CIRP
MODULAR BAYONET LOCK CONNECTOR
The CIR (Connector for Industrial Range) series is derived from the American Mil-C-5015 &
VG95234 specifications and is approved to the French rail specification NF F 61 030.
The connectors are intermateable and interchangeable with corresponding types, but
feature a low fire hazard thermoplastic insulator which is removeable for repositioning at
an alternative orientation.
Contacts are retained in the insulator by means of a unique beryllium copper spring clip.
Connector sealing features a stepped wire seal grommet which removes the need to
populate unused cavities with filler plugs.
Crimp tooling is industry standard and contacts are inserted and removed using simple
hand tools.
Benefits include:
• CIRP connectors qualified to NF F 61 030 norm.
• Approved for use on railway equipment by SNCF, RATP, Alstom Transport, Bombardier and LUL.
• Compatible with existing MS 5015 reverse bayonnet types.
• Low fire hazard/low halogen insulator material tested to French NF F 16-101 norm and BS 6853.
•
•
•
•
Cadmium free surface plating. Black Zinc Cobalt – Not RoHS Compliant; Silver Zinc Cobalt – RoHS Compliant.
Removable insulator.
Positive location of insulator shell.
Pin insulators feature with or without bonded resilient rubber face seal.
• Rear individual wire seal grommet with webbed holes.
• Mated connector assemblies sealed to IP67.
• Part populated insulators achieve sealing without the fitting of grommet fillers.
• Contacts retained by high performance metal spring clip.
• Comprehensive range of screened/unscreened, sealed/unsealed backshells & accessories.
• 3D Models available to download from our website.
Tested to and meets the specifications of the Fire Barrier Testing: EN1363. BS476
RAIL ///
CIRP: MODULAR BAYONET LOCK CONNECTOR
CONTENTS
Technical Information ...................................................................................................................................................................... 3-4
Part Number Explanation ...................................................................................................................................................................5
Basic Assembly .......................................................................................................................................................................................6
Shell Assemblies .....................................................................................................................................................................................7
Insulators ...................................................................................................................................................................................................8
Individual Wire Seal Grommet ..........................................................................................................................................................9
Crimp Contacts ................................................................................................................................................................................ 10-11
Insert Arrangements ........................................................................................................................................................................... 12
Insert Arrangement Selector ........................................................................................................................................................... 13
Insulator Orientations ......................................................................................................................................................................... 14
Additional Alignment/Polarising Device .................................................................................................................................... 15
Rear Panel Mounted Receptacal .................................................................................................................................................... 16
Front Panel Mounted Receptacal .................................................................................................................................................. 17
Plug Connector (style ‘T’ less accessories) ................................................................................................................................ 18
Single Hole Mounting ......................................................................................................................................................................... 19
Plug Connector with Protective Rubber Ring (style ‘T’ less accessories) ....................................................................20
Locking Backnut for Grommet Sealing only – LBN ................................................................................................................ 21
Straight Conduit Heatshrink Screen Adaptor – SCHSA (locking) ................................................................................... 22
90˚ Elbow Conduit Heatshrink Screen Adaptor – ECHSA (locking) .............................................................................. 23
Shell Heatshrink Extender – SHE (PG/METRIC inner thread – imperial outer thread) (locking) ......................... 24
Step-Up Adapters – SUA (PG/METRIC inner thread – Imperial outer thread) (locking) ........................................ 25
Step-Down Adapters – SDA (PG/METRIC inner thread – Imperial outer thread) ..................................................... 26
Cable Gland Adapters (fitting on SCHSA & ECHSA accessory with PG/METRIC thread) ..................................... 27
Shell Extender with Screening – SPTAS (non locking) ........................................................................................................ 28
Adapters – CRA (2 piece adaptor to terminate cable screen braid to connector with conduit outer) ............ 29
Waterproof Clamp for Jacketed Cable – CIRMSP3057C .....................................................................................................30
Cable Clamp – CIRMSP3057A ........................................................................................................................................................ 31
Telescopic Bushing – SBMSH554 (use with CIRMSP3057A clamp) ................................................................................ 32
Panel Gasket, Non-Conductive/Conductive Front & Rear Mounted Connectors – RPG/S & FPG/S .................. 33
Connector Fixing Nut Plates ..........................................................................................................................................................34
Receptacle Mounting Detail ........................................................................................................................................................... 35
Metal Protective Caps ....................................................................................................................................................................... 36
RFI Braid Sock, Bandit Strap & Knitmesh Braid ...................................................................................................................... 37
Tooling for crimp contacts .............................................................................................................................................................. 38
Notes ....................................................................................................................................................................................................... 39
Notes .......................................................................................................................................................................................................40
Notes ........................................................................................................................................................................................................41
Please note all images are for reference only.
RAIL ///
CIRP: MODULAR BAYONET LOCK CONNECTOR
TECHNICAL INFORMATION
Materials
Shell:
Insulator:
Grommet & bushing:
Contacts:
Contact retaining clip:
Accessory hardware:
Aluminium Alloy
Low fire hazard thermoplastic qualified to NFF 16101 and to meet BS 6853
Low fire hazard rubber tested to NFF 16101 norm and to meet BS 6853
Copper alloy
Beryllium copper
Aluminium alloy
Standard Plating Finishes
Aluminium parts:
Contacts:
* Consult TE for alternative finishes
Black chromate over zinc cobalt and silver passivate RoHS compliant
Gold over silver (#16 gold only)
Environmental Ratings
Operating temperature range:
Shock severity:
Vibration:
Acceleration:
-55˚C to +125˚C
75g
5-500Hz long endurance. 30 hours at 10g
50g
Mechanical Features
Coupling:
Number of contacts:
Contact termination:
Minimum retention force of
the contact in the insulator:
Sealing:
Matings:
Max Coupling Torque:
3 pin reverse bayonet. 120˚coupling nut rotation
7 to 60
Crimp & PCB
Beryllium copper spring clip
70N for contacts #16 (1.6 mm)
90N for contacts #12 (2.4 mm)
110N for contacts #8 (3.6 mm)
IP67 rated when connectors are mated and used with appropriate sealed backshell
2000 minimun mating and unmating
8NM

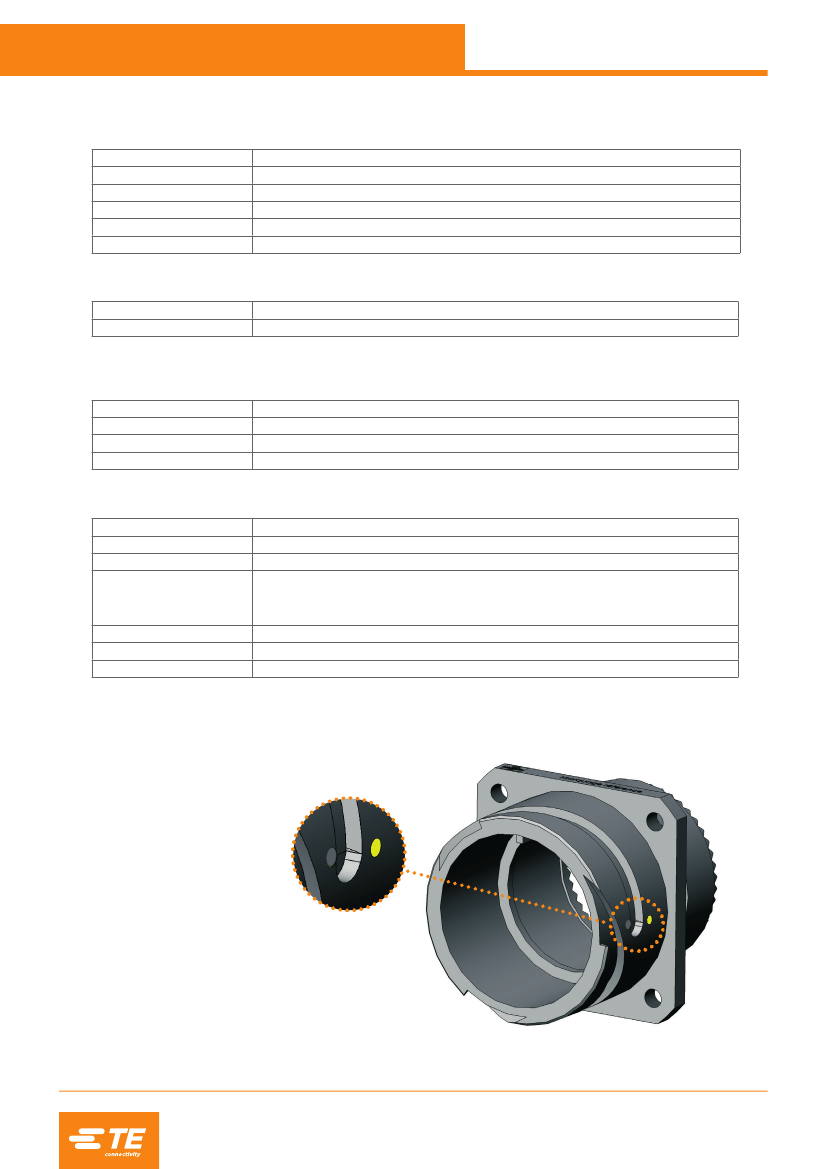

CIRP03 receptacle connectors feature stainless steel pins at critical wear points of the cam tracks. This feature is
incorporated to protect against excessive wear inflicted by continuous mating/de-mating and heavy vibration.
