3-6450120-3

Description
MBXL R/A HDR 8P+12S+3ACP
CategoryThe connector    The connector
File Size3MB,24 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

3-6450120-3 Online Shopping

Suppliers Part Number Price MOQ In stock
3-6450120-3 - - View Buy Now

3-6450120-3 Overview

MBXL R/A HDR 8P+12S+3ACP

3-6450120-3 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codeunknown
Other featuresTERMINAL PITCH FOR POWER CONTACT: 6.35 MM
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsYES
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded4
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts23
UL Flammability Code94V-0
Base Number Matches1
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
ES
00
M1
M2
ADD NEW DASH NUMBER 7-0
ADD NEW DASH NUMBER
08FEB2014
21MAR2014
AL
AL
SZ
SZ
DIM L
# .010
1

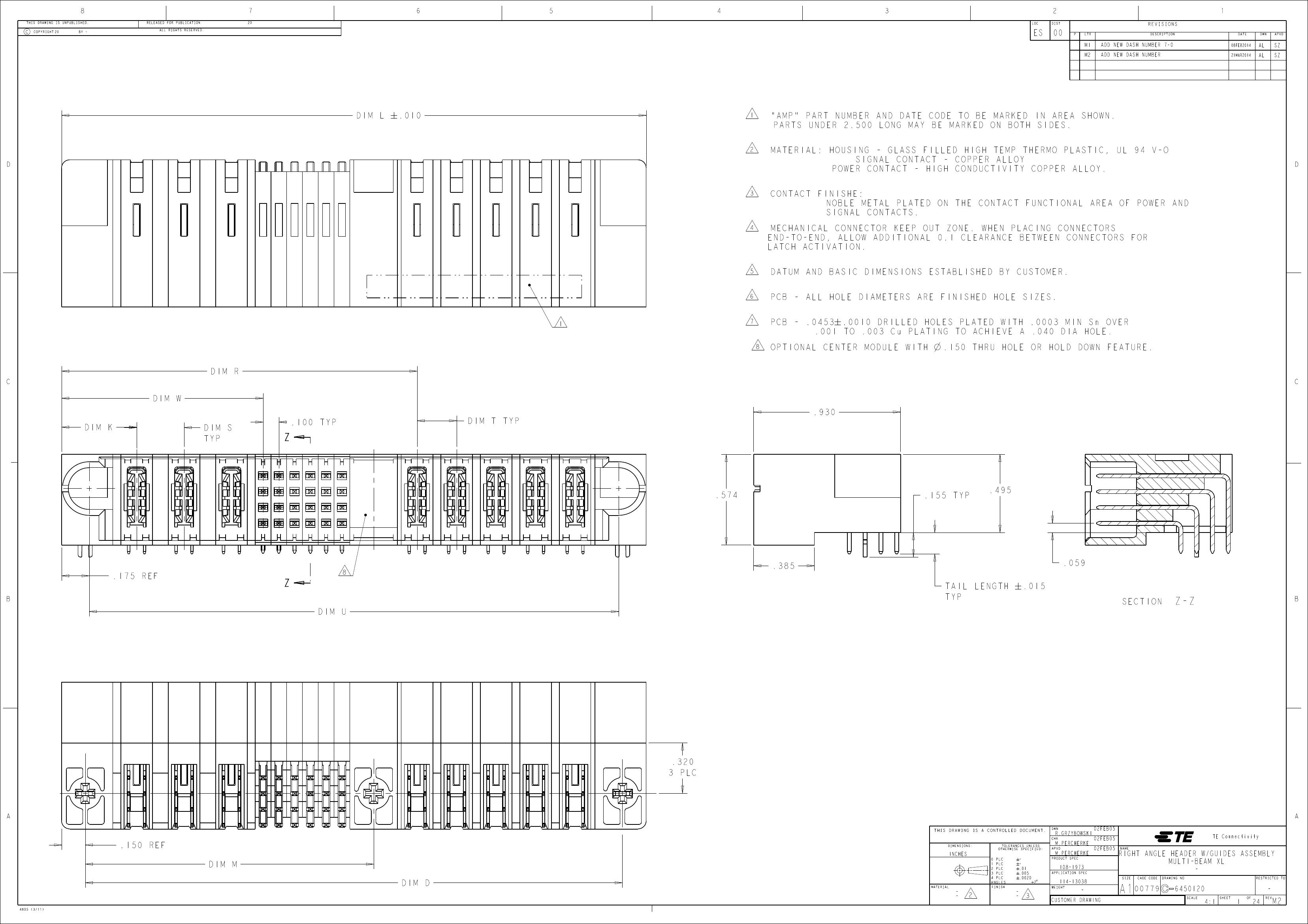

"AMP" PART NUMBER AND DATE CODE TO BE MARKED IN AREA SHOWN.
PARTS UNDER 2.500 LONG MAY BE MARKED ON BOTH SIDES.
MATERIAL: HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL 94 V-O
SIGNAL CONTACT - COPPER ALLOY
POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY.
CONTACT FINISHE:
NOBLE METAL PLATED ON THE CONTACT FUNCTIONAL AREA OF POWER AND
SIGNAL CONTACTS.
MECHANICAL CONNECTOR KEEP OUT ZONE. WHEN PLACING CONNECTORS
END-TO-END, ALLOW ADDITIONAL 0.1 CLEARANCE BETWEEN CONNECTORS FOR
LATCH ACTIVATION.
DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.
PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES.
PCB - .0453 # .0010 DRILLED HOLES PLATED WITH .0003 MIN Sn OVER
.001 TO .003 Cu PLATING TO ACHIEVE A .040 DIA HOLE.
8
2
D
D
3
4
5
6
7
1
OPTIONAL CENTER MODULE WITH
n .150 THRU HOLE OR HOLD DOWN FEATURE.
C
DIM R
DIM W
DIM K
DIM S
TYP
.100
TYP
DIM T TYP
.930
C
.574
.155
TYP
.495
.175
B
REF
8
.385
TAIL LENGTH
TYP
# .015
.059
DIM U
SECTION
Z-Z
B
.320
3 PLC
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
R.GRZYBOWSKI
M.PERCHERKE
M.PERCHERKE
108-1973
02FEB05
02FEB05
02FEB05
NAME
.150
REF
DIM M
DIM D
MATERIAL
TE Connectivity
INCHES
APVD
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
.01
.005
.0020
PRODUCT SPEC
APPLICATION SPEC

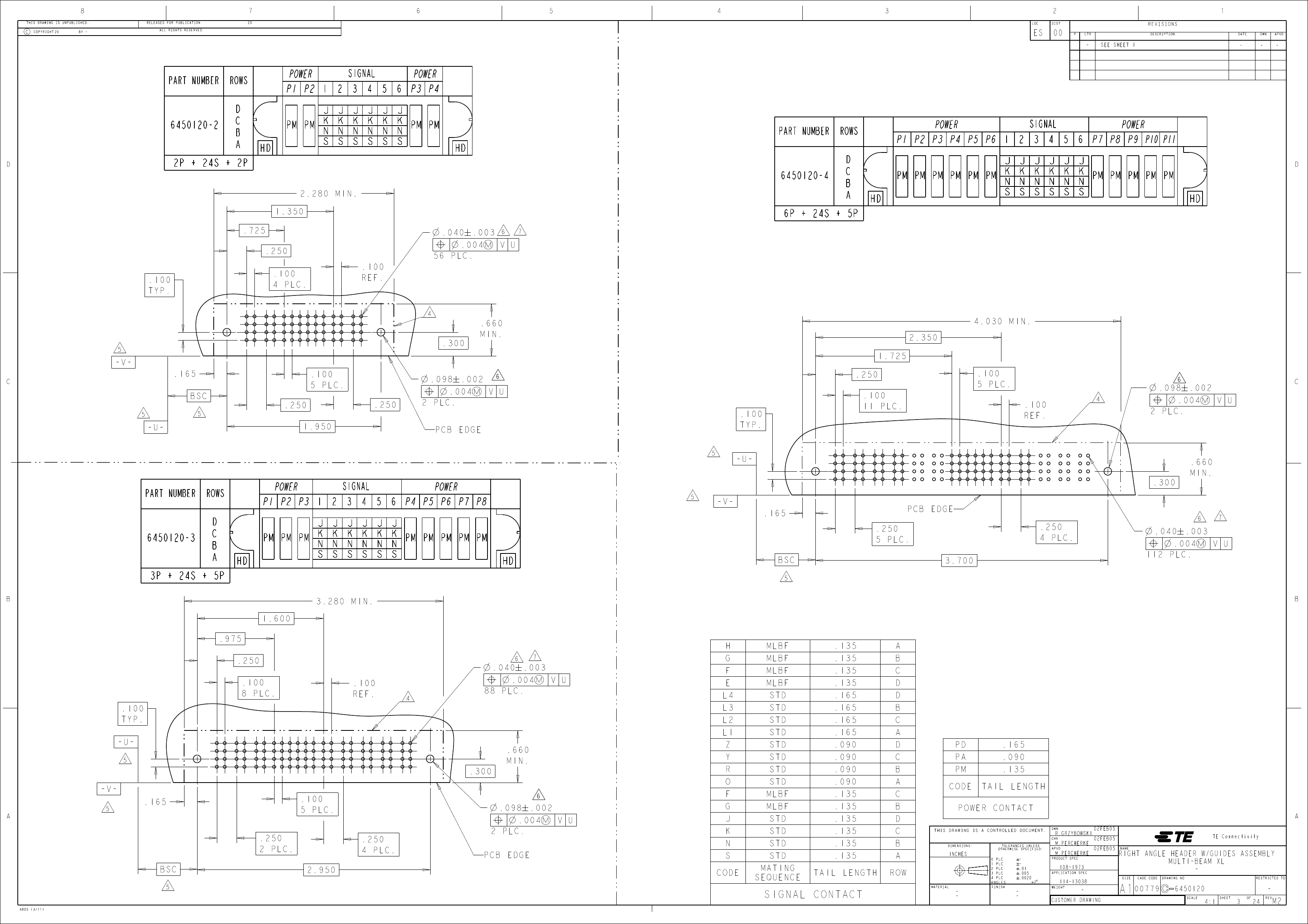

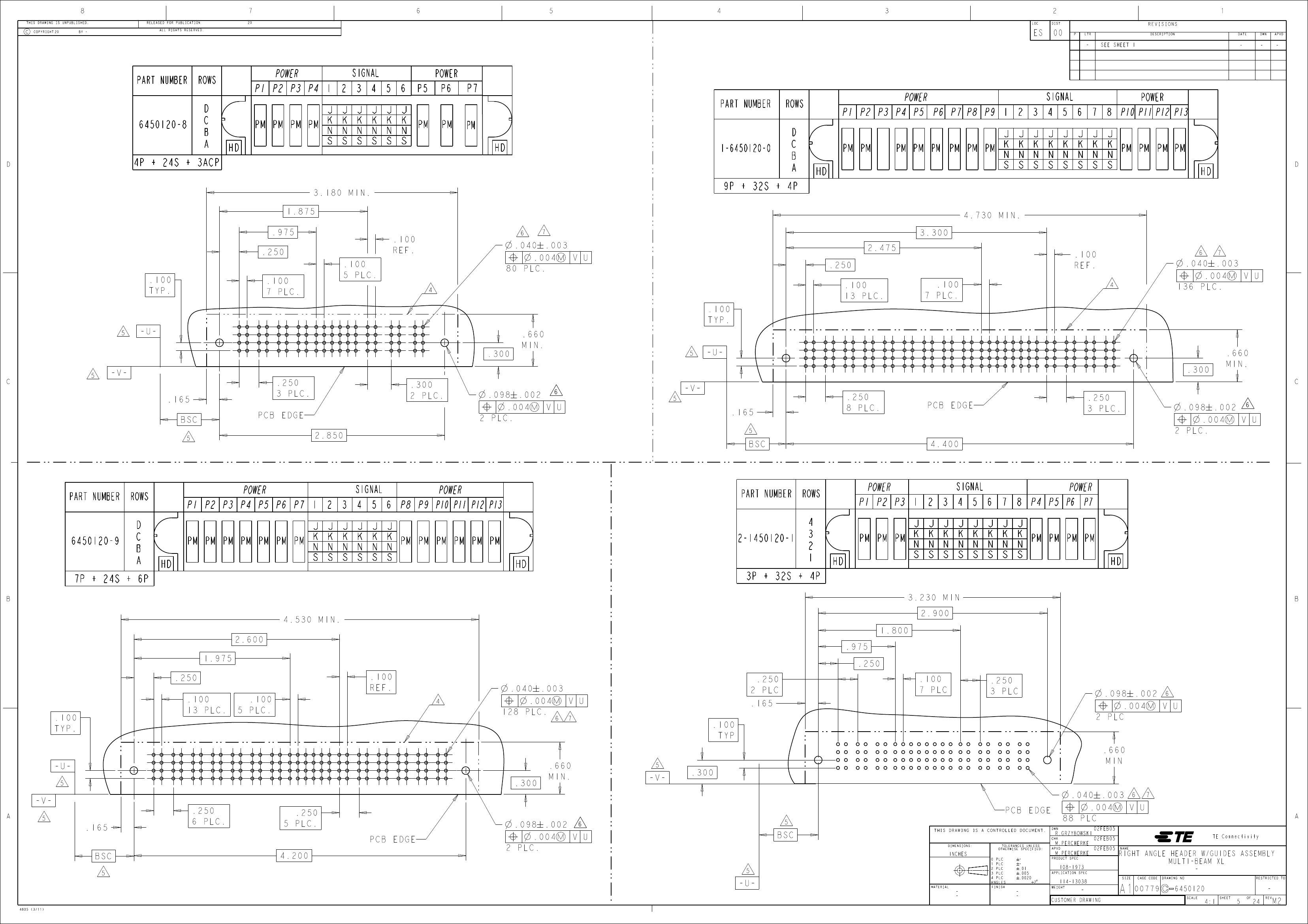

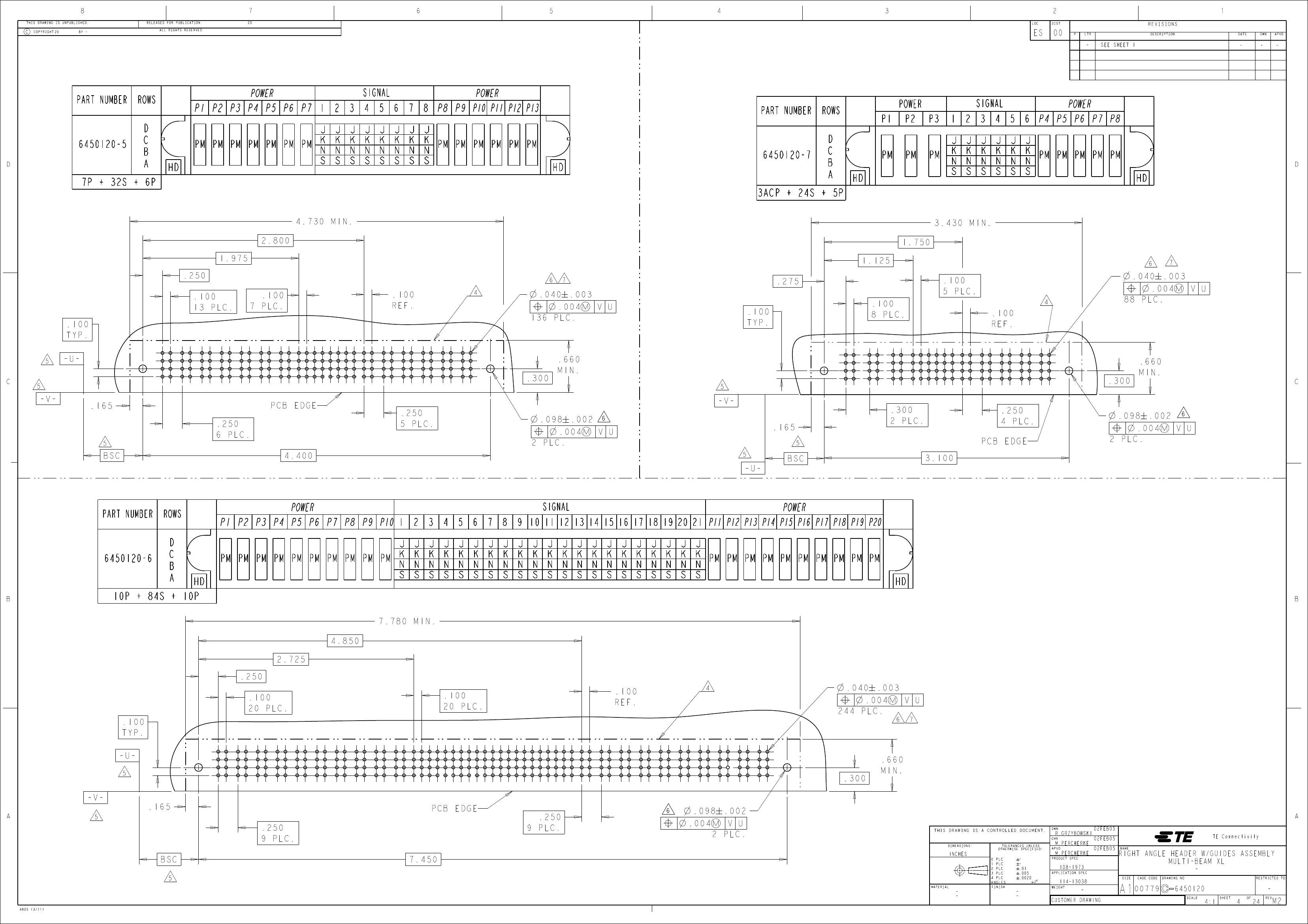

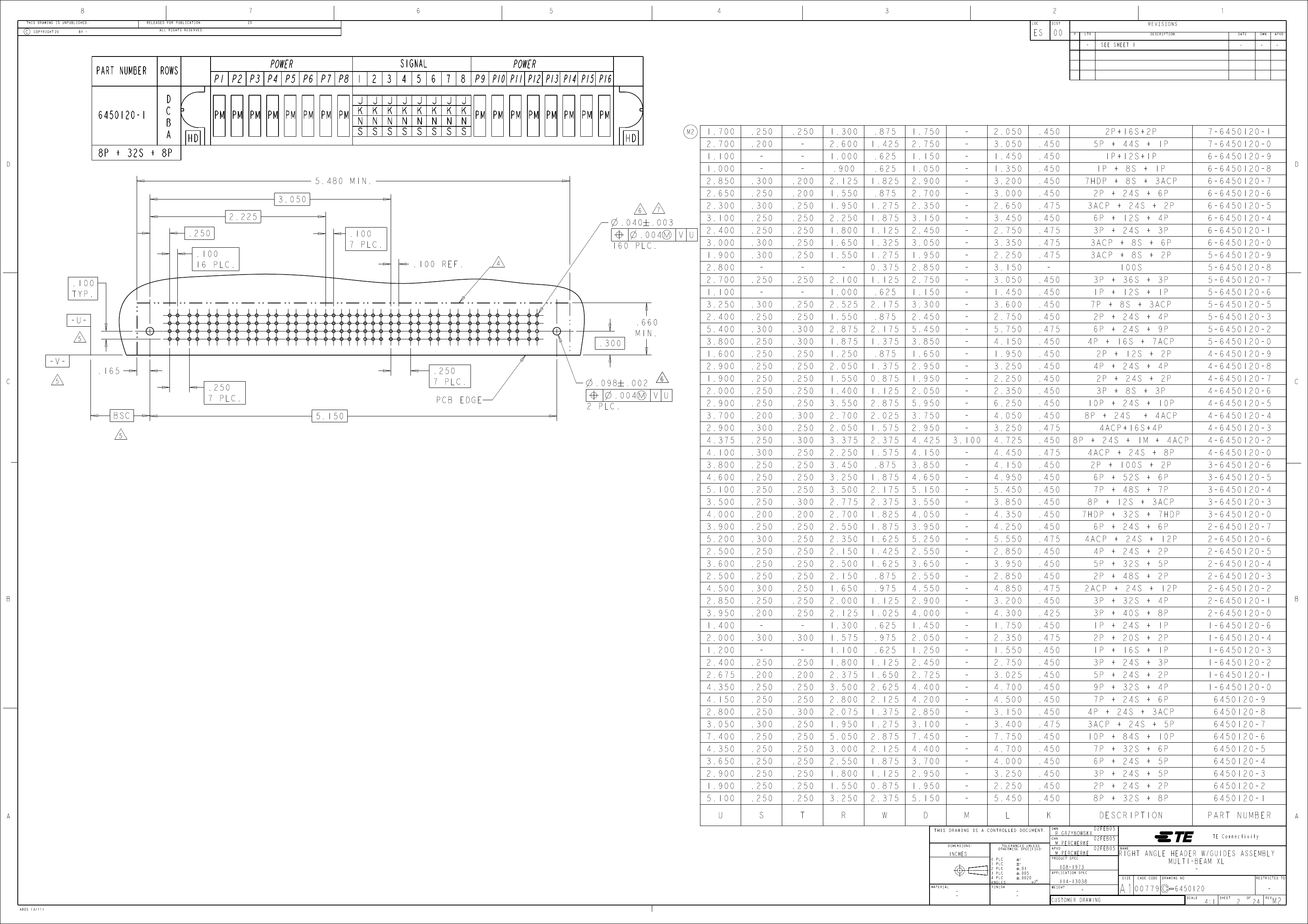

RIGHT ANGLE HEADER W/GUIDES ASSEMBLY
MULTI-BEAM XL
-
2 $
-
-
2
-
-
WEIGHT
114-13038
3
-
CUSTOMER DRAWING
A1
00779
SIZE
CAGE CODE
DRAWING NO
RESTRICTED TO
6450120
SCALE
4805 (3/11)
4:1
SHEET
1
OF
24
REV
-
M2
