ROHS COMPLIANT

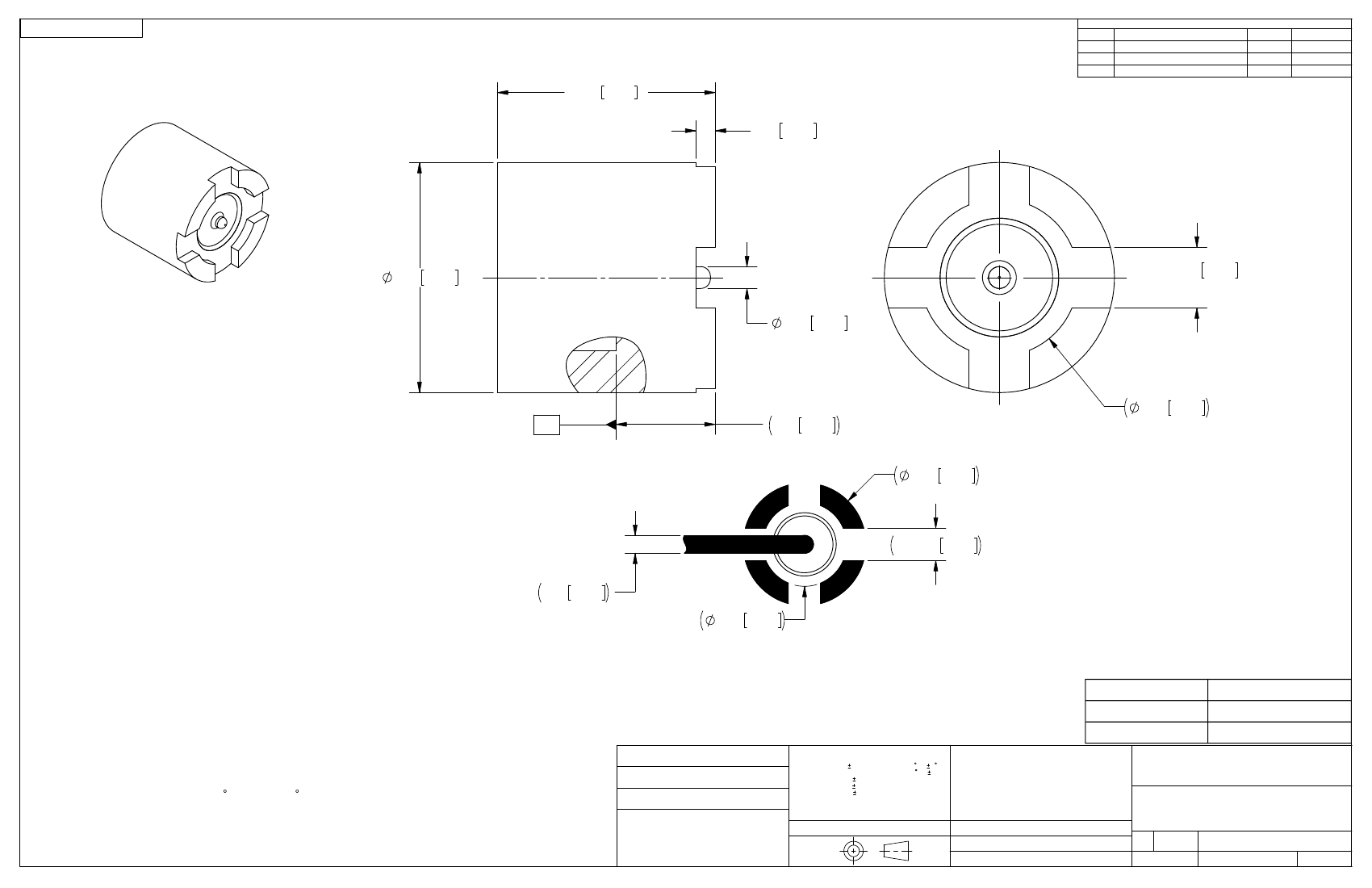

PRODUCT DATA DRAWING
.090 2.29
.008 0.20
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
A
B
DCN 38515
REV. DCN 39575
DCN 42425
09/11
12/13/12
06/16
STW
DAL
STW
.095 2.41
.009 0.23
4X .025 0.64
SLOTS
.065 1.65
RP
.041 1.04
.110 2.79
MATERIAL:
BODY:
PIN:
GLASS:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
KOVAR PER ASTM-F15
CORNING 7070 OR EQUIVALENT
.010 0.25
.065 1.65
RECOMMENDED PCB LAYOUT
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
MATERIAL:
FINISH:
4X .025 0.64
FINISH:
BODY & PIN:
SV P/N
3811-60005
3811-60006
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
INTERFACE
SMOOTH BORE
FULL DETENT
PERFORMANCE:
IMPEDANCE:
OPERATING TEMP.:
50 OHMS.
-55 C TO +125 C.
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
FED 09/01/11
STW 09/01/11
STW 09/01/11
SMPS MALE
SURFACE MOUNT
95077
SIZE CAGE CODE DWG. NO.
B
3811-60005-60006
SHEET 1 OF 1
SCALE: 30:1
