Low Profile Jumper – Gold or GXT Plated
1 of 15
AUTHORIZED BY
DATE
G
05/15/12
J.ZHOU
CLASSIFICATION
UNRESTRICTED
1.0
GENERAL
Scope - This specification covers gold or gold flash over palladium alloy plated low profile jumper connectors
designed for low power interconnection of two adjacent 0.025 inch square pins, free standing or in headers,
on 0.100 inch centers. This specification is composed of the following sections. This product meets the
requirements of the European Union Directive of Restrictions for Hazardous Substances (Directive
2002/95/EC). The specification is composed of the following sections.
Paragraph
1.0
2.0
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
4.0
4.1
4.2
4.3
4.4
5.0
Title
GENERAL
APPLICABLE DOCUMENTS
REQUIREMENTS
Qualification
Material
Finish
Design and Construction
Electrical Characteristics
Mechanical Characteristics
Environmental Conditions
QUALITY ASSURANCE PROVISIONS
Equipment Calibration
Inspection Conditions
Qualification Inspections
Requalification Testing
NOTES AND DEFINITIONS
Page
1
1
2
2
2
2
3
3
6
7
11
11
12
12
13
16
2.0
APPLICABLE DOCUMENTS
The following documents, of the issue in effect on the date of the latest revision of this specification, shall
form a part of this specification to the extent specified herein.
Military Specifications
MIL-M-24519
MIL-C-45662
MIL-P-55110
MIL-G-45204
MIL-P-45209
MIL-STD-202
MIL-STD-275
MIL-STD-1344
Molding Plastics, Polyester, Thermoplastics
Calibration System Requirements
Printed Wiring Boards
Gold Plating, Electrodeposited
Palladium Plating, Electrodeposited
Test Methods for Electronic and Electrical Component Parts
Printed Wiring for Electronic Equipment
Test Methods for Electrical Connectors
Federal Specifications
QQ-N-290
Nickel Plating (Electrodeposited)
QQ-B-750
Phosphor Bronze
PDS: Rev :G
Copyright
Form E-3334
Rev F
FCI
STATUS:Released
Printed: May 22, 2012
GS-01-001
NUMBER
TYPE
BUS-12-071
PRODUCT SPECIFICATION
TITLE
PAGE
REVISION
Low Profile Jumper – Gold or GXT Plated
2 of 15
AUTHORIZED BY
DATE
G
05/15/12
J.ZHOU
CLASSIFICATION
UNRESTRICTED
Industry Specifications/Standards
ASTM B-103
UL-94
Phosphor Bronze Plate, Sheet, Strip and Rolled Bar, Spec. for DOD ADOPTED
Tests for Flammability of Plastic Materials
3.0
REQUIREMENTS
3.1
Qualification
Connectors furnished under this specification shall be products capable of meeting the qualification
test requirements specified herein.
3.2
Material
The material for each part shall be as specified herein, or equivalent. Substitute material shall meet
the performance requirements of this specification.
3.2.1
Terminal. The body shall be 1/2 hard phosphor bronze strip C51000 in accordance with
QQ-B-750 and CA-510 specification.
Insulator Housing. The housing material shall be unfilled Polyester in accordance with
BUS-16-028. The material shall be rated flame retardant 94 V-O in accordance with UL-
94.
or
Insulator Housing. The housing material shall be 17-20% glass filled Polyester in
accordance with BUS-16-025. The material shall be rated flame retardant 94 V-0 in
accordance with UL-94.
3.2.2
3.2.3
3.3
Finish
3.3.1
Terminal.
3.3.1.1
The terminal shall be plated in the contact area with 15 microinches
(minimum) gold per MIL-G-45204 or a thin gold flash over 15 microinches
(minimum) palladium alloy per MIL-P-45209, Type II, Grade C over 50
microinches (minimum) nickel per QQ-N-290, Class 2
The terminal shall be plated in the contact area with 30 microinches
(minimum) gold per MIL-G-45204 or a thin gold flash over 27 microinches
(minimum) palladium alloy per MIL-P-45209, Type II, Grade C over 50
microinches (minimum) nickel per QQ-N-290, Class 2.
3.3.1.2
PDS: Rev :G
Copyright
Form E-3334
Rev F
FCI
STATUS:Released
Printed: May 22, 2012
GS-01-001
NUMBER
TYPE
BUS-12-071
PRODUCT SPECIFICATION
TITLE
PAGE
REVISION
Low Profile Jumper – Gold or GXT Plated
3 of 15
AUTHORIZED BY
DATE
G
05/15/12
J.ZHOU
CLASSIFICATION
UNRESTRICTED
3.4
Design and Construction
The connector typically shall be a two piece assembly comprising two interconnected contacts
retained in a plastic housing. The female (disconnect) end of the contact shall interface with 0.025
inch square (or round) pins on 0.100 inch centers.
3.4.1
Mating. The connector shall be capable of being mated or unmated by hand without the
use of special tools within the specified temperature range.
Workmanship. Connectors shall be uniform in quality and shall be free from burrs,
scratches, cracks, voids, chips, blisters, pin holes, sharp edges, and other defects that
will adversely affect life or serviceability.
Interchangeability. The connector shall be capable of mating with any appropriately
constituted male connector of the same population without degradation in performance.
3.4.2
3.4.3
3.5
Electrical Characteristics
3.5.1
Current Rating. The maximum current rating of the connector shall be 3.0 amperes DC
(2.5 amperes for multi-position assembly).
Contact Resistance. (see 5.1) The contact resistance shall not exceed the value
specified in Table 1, when measured in accordance with MIL-STD-202, Method 307. The
following details shall apply:
(a) Method of Connection - Attach current and voltage leads as shown in Figure 1.
(b) Test Current - 1 ampere DC
3.5.2
PDS: Rev :G
Copyright
Form E-3334
Rev F
FCI

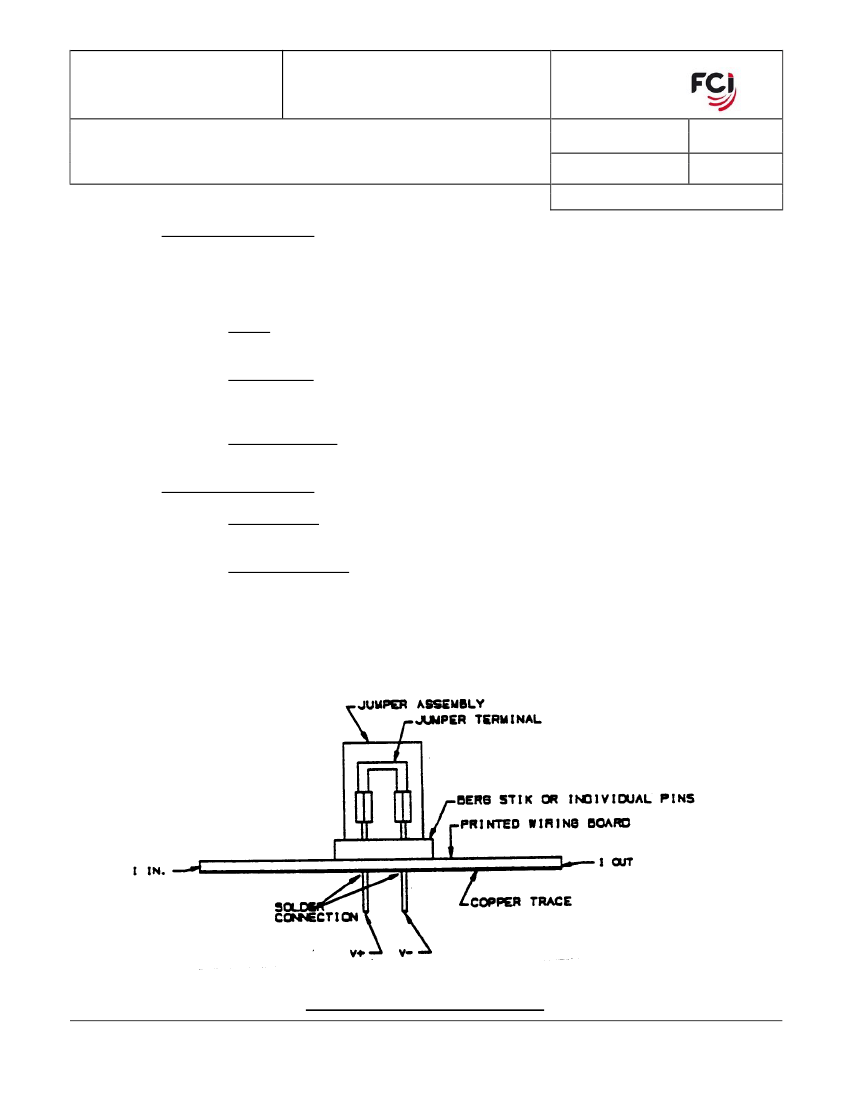

FIGURE 1 - CONTACT RESISTANCE
STATUS:Released
Printed: May 22, 2012
GS-01-001
NUMBER
TYPE
BUS-12-071
PRODUCT SPECIFICATION
TITLE
PAGE
REVISION
Low Profile Jumper – Gold or GXT Plated
4 of 15
AUTHORIZED BY
DATE
G
05/15/12
J.ZHOU
CLASSIFICATION
UNRESTRICTED
TABLE 1 - CONTACT RESISTANCE
Maximum Resistance - Milliohms
Initial
After Test
11
15
3.5.3
Low Level Circuit Resistance. (see 5.1) The low level circuit (contact) resistance shall
not exceed the value specified in Table 1, when measured in accordance with MIL-STD-
1344, Method 3002. The following details shall apply:
(a)
(b)
(c)
Method of Connection - See Figure 1
Test Current - 1 milliampere DC
Maximum Open Circuit Voltage - 20 millivolts DC
3.5.4
Capacitance. (see 5.3) The capacitance between adjacent positions of the unmated
connector shall not exceed 2.0 pf, when measured in accordance with MIL-STD-202,
Method 305. The following details shall apply:
(a)
(b)
Points of Measurement - Between adjacent contact positions
Test Frequency - 1 megahertz
3.5.5
Insulation Resistance. (see 5.3) The insulation resistance between adjacent positions of
the unmated connector shall be not less than 50,000 megohms (20,000 megohms after
exposure to the humidity environment specified in paragraph 3.7.2), when tested in
accordance with MIL-STD-202, Method 302. The following details shall apply:
(a)
(b)
(c)
Points of Measurement - Between adjacent contact positions
Test Potential - B (500 volts)
Time of Application - 60 seconds
3.5.6
Dielectric Withstanding Voltage. (see 5.3) There shall be no evidence of insulation
breakdown, arc-over, or excessive (>1 milliampere) leakage current when the unmated
connector is tested in accordance with MIL-STD-202, Method 301. The following details
shall apply:
(a)
(b)
(c)
Test Potential - 1500 volts RMS, 60 Hz at sea-level
Test Duration - 60 seconds
Points of Measurement - Between adjacent contact positions
PDS: Rev :G
Copyright
Form E-3334
Rev F
FCI
STATUS:Released
Printed: May 22, 2012
GS-01-001
NUMBER
TYPE
BUS-12-071
PRODUCT SPECIFICATION
TITLE
PAGE
REVISION
Low Profile Jumper – Gold or GXT Plated
5 of 15
AUTHORIZED BY
DATE
G
05/15/12
J.ZHOU
CLASSIFICATION
UNRESTRICTED
3.6
Mechanical Characteristics
3.6.1
Contact Retention. (see 5.2) The contact pair shall not be dislodged from the housing
when an axial force of 3.0 pounds (1.5 pounds per contact) is applied in the direction of
insertion. The force shall be applied at a crosshead speed of 1 inch per minute using
Fixture #MF 407.1. ( See Figure 6 )
Total Mating Force. The total force to mate the connector with an appropriate header
having properly configured (see Figure 2) 0.025 inch square pins shall not exceed the
value shown in Table II.
3.6.2
TABLE II - INSERTION/WITHDRAWAL FORCE
Individual Contact Force-Grams
Insert (Max.)
Withdraw (Min.)
Total Mating Force
for 2 Contacts (Grams
Avg.)
.025” Gold Pin
350
Total Withdraw Force
for 2 Contacts (Grams
Avg.)
.025” Gold Pin
150
.026” Gage Pin
450*
.024” Gage Pin
30*
* Multiply by number of positions for multi-position assembly.
3.6.3
Individual Contact Insertion Force. When measured using a maximum gage configured
as shown in Figure 3, the individual contact insertion force shall not exceed the value
shown in Table II.
Individual Contact Withdrawal Force. After three insertions of a maximum gage, the force
required to withdraw a minimum gage, configured as shown in figure 3, shall be not less
than the value shown in Table II.
Durability. After the number of mating cycles specified in Table III, the individual contact
withdrawal force shall be not less than the value shown in Table II (see 3.6.4) and the
contact resistance shall not exceed the value specified in Table I (See 3.5.2).
3.6.4
3.6.5
TABLE III - DURABILITY
Gold Plating Thickness
30 u”
15 u”
Mating Cycles
50
50
PDS: Rev :G
Copyright
Form E-3334
Rev F
FCI
STATUS:Released
Printed: May 22, 2012
GS-01-001
