RPA200H-11048SRUW/N (30004829) datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> RPA200H-11048SRUW/N (30004829)

RPA200H-11048SRUW/N (30004829): DescriptionRegulated DC/DC Converter; In-V: 16.5-140; Out-V: 48; In V MIN: 16.5; In V MAX: 140; Out V MIN: 38.4; Out V MAX: 52.8; Out-mA: 4200; Isolation: 3kV; Output: single; Power Watts or Amps: 200W; Package: Half Brick; Short Circuit Protec: No; MC INPUT-V: 110; MC OUTPUT-V: 48; Length: 60.6 mm; Width: 63.1 mm; Height: 13 mm; Packaging Type: Tube; CategoryPower/power management The power supply circuit; File Size3MB，11 Pages; ManufacturerRECOM; Environmental Compliance

Download Datasheet Parametric Compare View All

RPA200H-11048SRUW/N (30004829) Overview

Regulated DC/DC Converter; In-V: 16.5-140; Out-V: 48; In V MIN: 16.5; In V MAX: 140; Out V MIN: 38.4; Out V MAX: 52.8; Out-mA: 4200; Isolation: 3kV; Output: single; Power Watts or Amps: 200W; Package: Half Brick; Short Circuit Protec: No; MC INPUT-V: 110; MC OUTPUT-V: 48; Length: 60.6 mm; Width: 63.1 mm; Height: 13 mm; Packaging Type: Tube

RPA200H-11048SRUW/N (30004829) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	RECOM
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

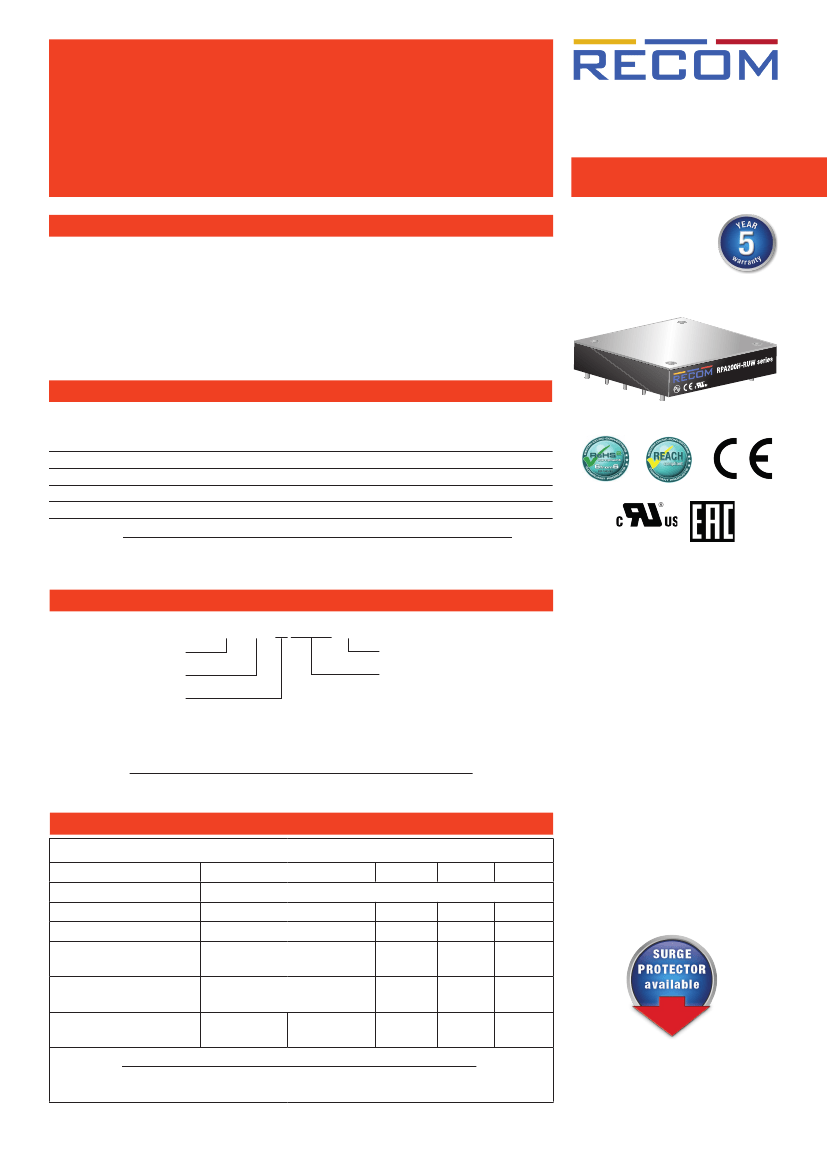

Features

Regulated

Converter

Description

• 10:1 ultra wide input voltage range

• 4.242kVAC/1 minute reinforced insulation

• UL/IEC/EN60950-1 certified

• CE marked, CB report

• Efficiency up to 93%

• -40°C to +93.5°C baseplate temperature range

DC/DC Converter

RPA200H-RUW

200 Watt

Half Brick

Single Output

The half-brick RPA200H series DC/DC converter is designed for railway rolling stock and high voltage

battery applications. It has a 10:1 input voltage range to cover all input voltages from nominal 24VDC up

to 110VDC in a single product (including EN50155 transients) and offers isolated and regulated

12V, 15V, 24V or 48VDC outputs. The converter has a consistently high efficiency over the entire

input voltage range and comes with a metal baseplate to permit a wide operating temperature range

from -40°C to +93.5°C (when baseplate cooled). The case is fitted with threaded inserts to allow

secure mounting to the PCB or bulkhead for use in high shock and vibration environments.

The converter is certified to UL/IEC/EN60950 and comes with a three year warranty.

Selection Guide

Part Number

Input

Voltage Range

(1)

[VDC]

16.5-140

Output

Voltage

[VDC]

Output

Current

[A]

16.7

13.5

8.5

4.2

Efficiency

typ.

(2)

[%]

Max. Capacitive

Load

(3)

[µF]

2200

1000

100

RPA200H-11012SRUW

(4)

RPA200H-11015SRUW

(4)

RPA200H-11024SRUW

(4)

RPA200H-11048SRUW

(4)

Notes:

Note1: Refer to input voltage graph on page PB-3

Note2: Efficiency is tested at nominal input (110V) and full load at +25°C ambient

Note3: Max. Cap Load is tested at nominal input and full resistive load

E224736

UL60950-1 certified

CAN/CSA No. 60950-1-07

IEC/EN60950-1 certified

EN50155 compliant

CB report

Model Numbering

RPA200H-__ __ SRUW/_

Input Voltage

Output Voltage

Single

Ordering Examples

RPA200H-11012SRUW/P = 110V Input, 12V Output, Single, Pos. CTRL function

RPA200H-11012SRUW/N = 110V Input, 12V Output, Single, Neg. CTRL function

Notes:

Note4: add suffix “P” for positive logic (1=ON, 0=OFF) or add

suffix “N” instead for negative logic (0=ON, 1=OFF)

CTRL Logic

(4)

Railway Ultra Wide Input

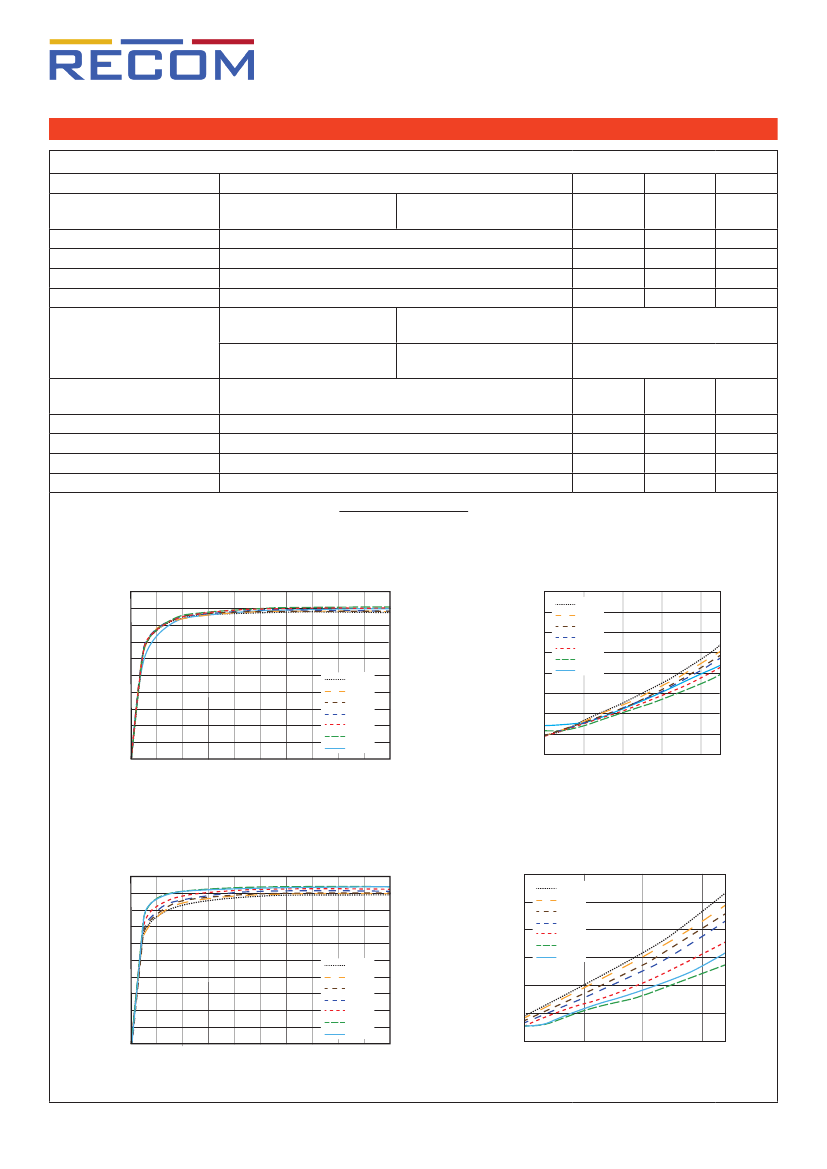

Specifications

(measured

Parameter

Internal Input Filter

Input Voltage Range

Input Surge Voltage

Under Voltage Lockout (UVLO)

(5)

Over Voltage Lockout (OVLO)

Input Current Range

@ Ta = 25°C, nom. Vin (110V), full load and after warm-up unless otherwise stated)

BASIC CHARACTERISTICS

Condition

Min.

16.5VDC

<1s

DC-DC ON

DC-DC OFF

DC-DC ON

DC-DC OFF

Vin = 16.5V

12, 15Vout

24, 48Vout

15.6VDC

13.6VDC

142VDC

154VDC

13.5A

14A

16.0VDC

14.0VDC

146VDC

156VDC

14A

14.5A

Typ.

110VDC

Max.

Pi-Type

140VDC

156VDC

16.4VDC

14.4VDC

150VDC

160VDC

14.5A

15A

Notes:

Note5: please refer to Under Voltage Lockout Adjustability on page PB-3

continued on next page

www.recom-power.com

REV.: 2/2018

https://www.recom-power.com/pdf/

Powerline_DC-DC/RSPxxx-168.pdf

PB-1
