ZXSC100X8TA

Description
Switching Controllers Single Cell DC-DC
Categorysemiconductor    Power management
File Size165KB,13 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric Compare View All

ZXSC100X8TA Online Shopping

Suppliers Part Number Price MOQ In stock
ZXSC100X8TA - - View Buy Now

ZXSC100X8TA Overview

Switching Controllers Single Cell DC-DC

ZXSC100X8TA Parametric

Parameter NameAttribute value
Product CategorySwitching Controllers
ManufacturerDiodes
RoHSDetails
Switching Frequency200 kHz
Duty Cycle - Max82 %
Input Voltage0.93 V to 3.5 V
Output Voltage1.2 V to 20 V
Output Current500 mA
Mounting StyleSMD/SMT
Package / CaseMSOP-8
PackagingReel
ProductVoltage Controllers
Factory Pack Quantity1000
Unit Weight0.004938 oz
ZXSC100X8 Obsolete
Closest Alternative is ZXSC100N8
ZXSC100
SINGLE CELL DC-DC CONVERTER SOLUTION
Description
The ZXSC100 series is designed for DC-DC applications
where step-up voltage conversion from very low input
voltages is required. These applications mainly operate from
single nickel cadmium or nickel metal hydride battery cells.
The circuit can start up under full load with regulation
maintained down to an input voltage of only 0.926 volts. The
solution configuration ensures optimum efficiency over a wide
range of load currents. Several circuit configurations are
possible with loads up to 2W. The step up output voltage is
easily programmed with external resistors. With its non-
synchronous architecture an output voltage down to the input
voltage level can be achieved. For best performance the
ZXSC100 quiescent current is a small 150μA ensuring
minimum battery drain in no load conditions.
The IC and discrete combination offers the ultimate cost vs.
performance solution for single cell DC-DC conversion.
Pin Assignments
SO-8
Features
Efficiency maintained over a wide range of input
voltages and load currents 82% efficiency @ V
BATT
= 1V
Startup under full load
Minimum operating input voltage V
BATT
= 0.926V
Adjustable output voltage down to V
BATT

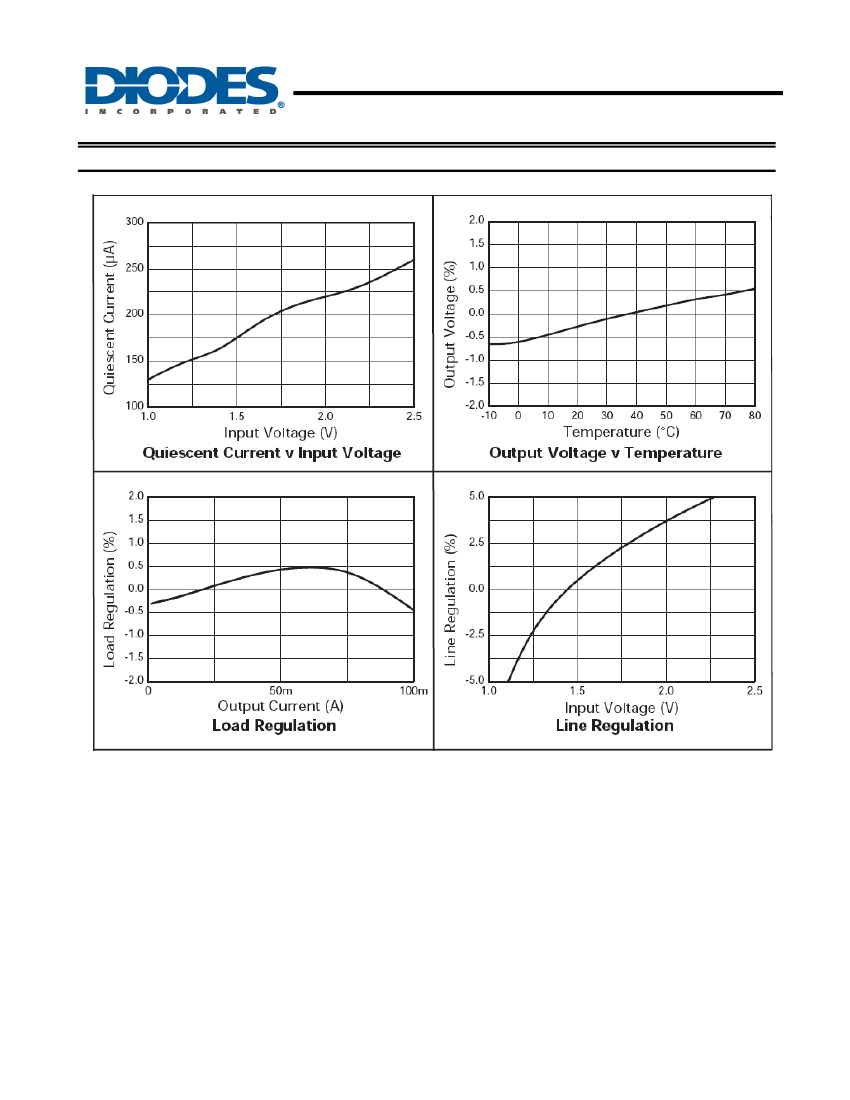

Quiescent current typically 150μA referred to input
voltage
SO-8 package in “Green” Molding Compound (No Br,
Sb) with lead Free Finish/RoHS Compliant (Note 1)
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS
exemptions applied. Please visit our website at:
http://www.diodes.com/products/lead_free.html
Applications
Cordless telephones
MP3 players
PDA
Pagers
Battery backup supplies
Electronic toothbrush
GPS receivers
Digital camera
Palmtop computers
Hand held instruments
Portable medical equipment
Solar powered equipment
Notes:
Typical Application Circuit
ZXSC100
Document number: DS33613 Rev. 6 - 2
1 of 13
www.diodes.com
January 2012
© Diodes Incorporated

ZXSC100X8TA Related Products

ZXSC100X8TA ZXSC100N8TA
Description Switching Controllers Single Cell DC-DC
Product Category Switching Controllers Switching Controllers
Manufacturer Diodes Diodes
RoHS Details Details
Switching Frequency 200 kHz 200 kHz
Duty Cycle - Max 82 % 82 %
Input Voltage 0.93 V to 3.5 V 0.93 V to 3.5 V
Output Voltage 1.2 V to 20 V 1.2 V to 20 V
Output Current 500 mA 500 mA
Mounting Style SMD/SMT SMD/SMT
Package / Case MSOP-8 SO-8
Product Voltage Controllers Voltage Controllers
Factory Pack Quantity 1000 500
Unit Weight 0.004938 oz 0.002610 oz
Packaging Reel Reel
