SMAZ16-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> SMAZ16-13

SMAZ16-13: DescriptionZener Diodes 1W 16V; Categorysemiconductor Discrete semiconductor; File Size112KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

SMAZ16-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMAZ16-13	-	-	View	Buy Now

SMAZ16-13 Overview

Zener Diodes 1W 16V

SMAZ16-13 Parametric

Parameter Name	Attribute value
Product Category	Zener Diodes
Manufacturer	Diodes
RoHS	No
Vz - Zener Voltage	16 V
Mounting Style	SMD/SMT
Package / Case	SMA
Pd - Power Dissipation	1 W
Voltage Tolerance	5 %
Zener Current	63 mA
Zz - Zener Impedance	15 Ohms
Minimum Operating Temperature	- 65 C
Maximum Operating Temperature	+ 150 C
Configuration	Single
Test Current	25 mA
Packaging	Cut Tape
Packaging	Reel
Height	2.1 mm
Ir - Reverse Current	500 nA
Length	4.6 mm
Factory Pack Quantity	5000
Width	2.92 mm
Unit Weight	0.002258 oz

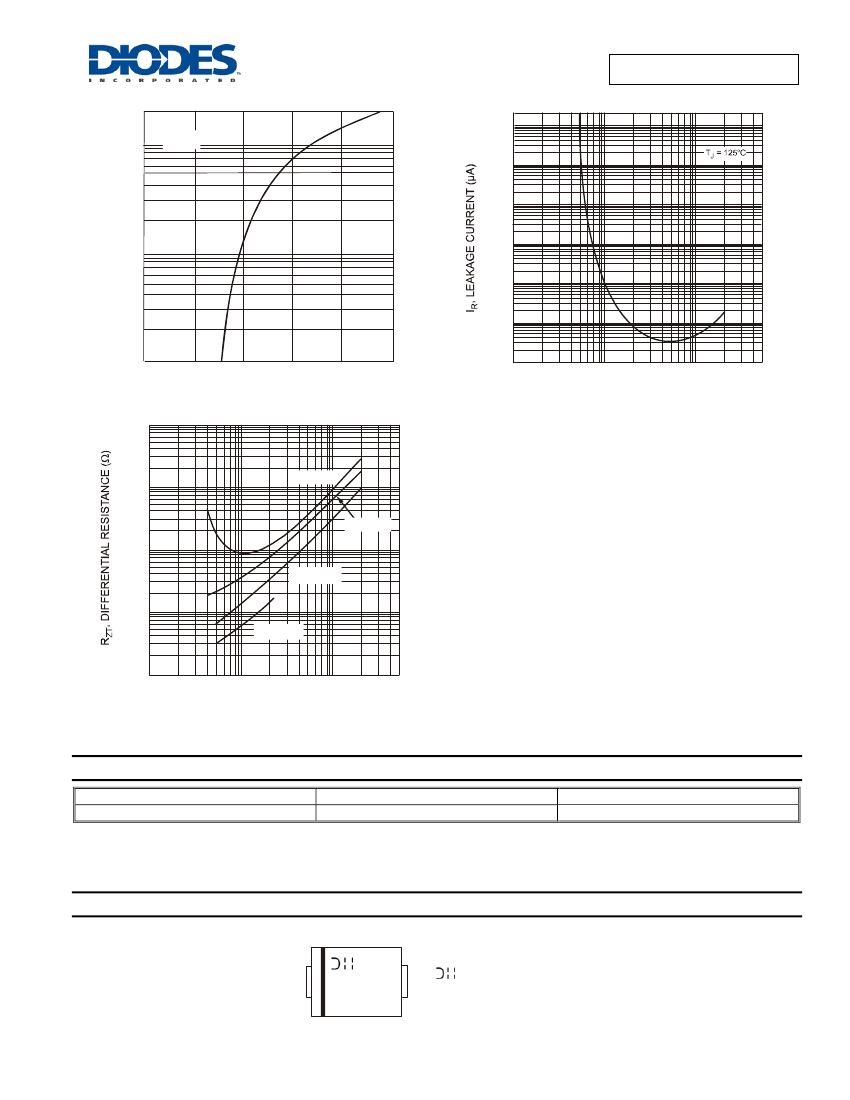

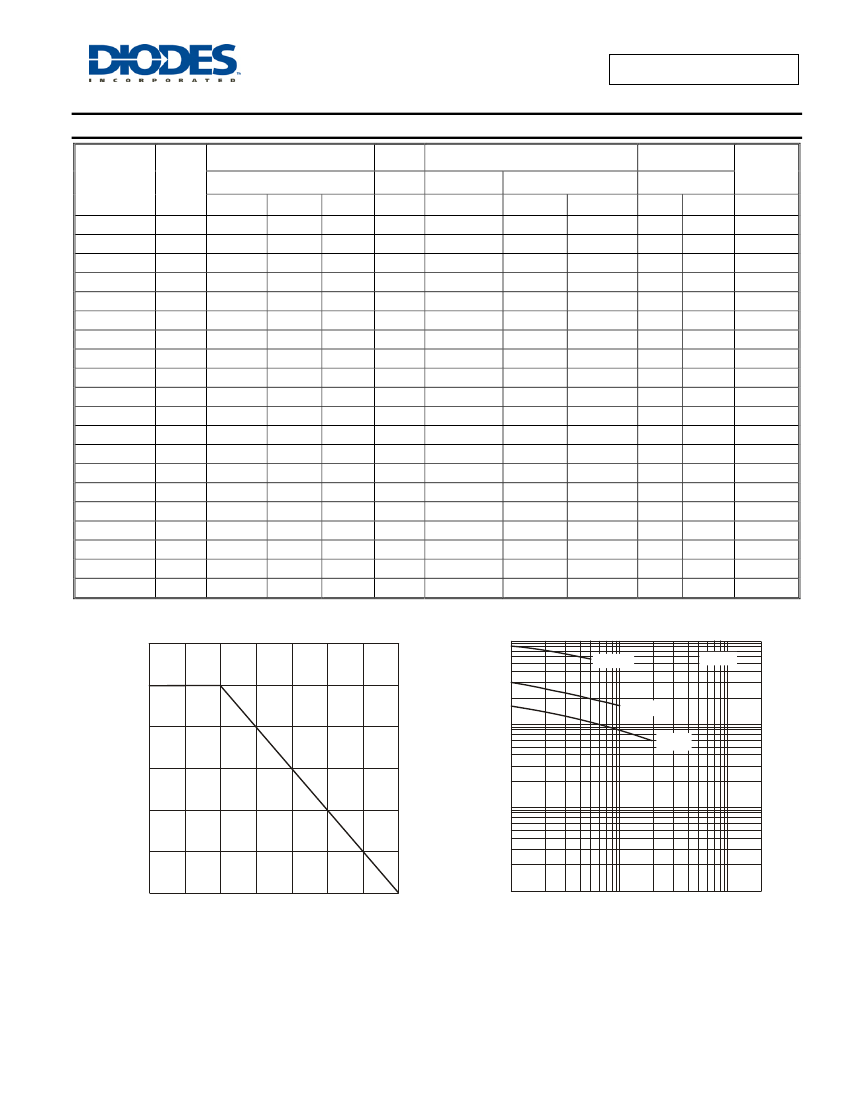

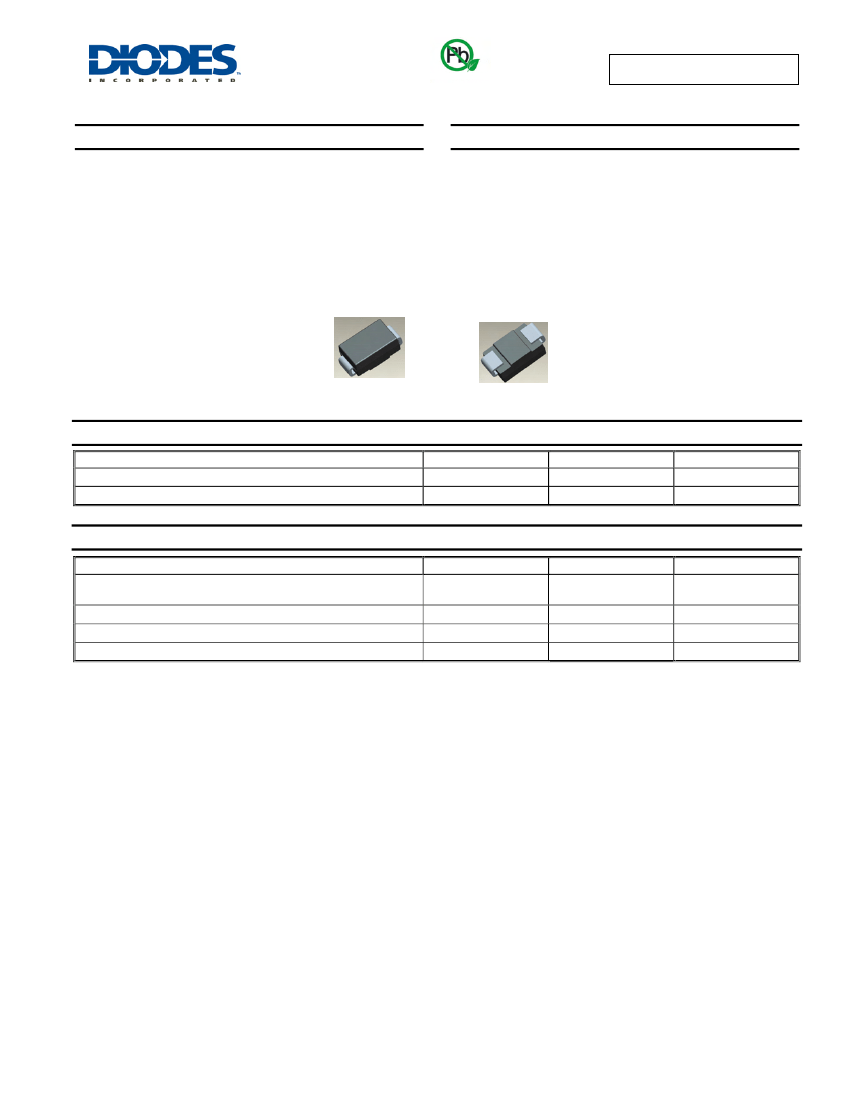

Preview

Download Datasheet

View All

Green

SMAZ5V1 - SMAZ39

1.0W SURFACE MOUNT ZENER DIODE

Please click here to visit our online spice models database.

Features

•

1.0W Power Dissipation

Ideally Suited for Automated Assembly

5.1V - 39V Nominal Zener Voltage Range

Standard V

Tolerance is ± 5%

Lead Free Finish/RoHS Compliant (Note 1)

Green Molding Compound (No Halogen and Antimony)

(Note 2)

Mechanical Data

•

Case: SMA

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Terminals: Lead Free Plating (Matte Tin Finish).

Solderable per MIL-STD-202, Method 208

Polarity: Cathode Notch or Cathode Band

Marking Information: See Page 3

Ordering Information: See Page 3

Weight: 0.064 grams (approximate)

Top View

Bottom View

Maximum Ratings

Forward Voltage

= 25°C unless otherwise specified

Symbol

= 200mA

Value

1.2

/ V

Unit

Characteristic

Zener Current (see Table page 2)

Thermal Characteristics

Characteristic

Power Dissipation

Derate Above 50°C

= 50°C

(Note 3)

Symbol

STG

Value

1.0

8.0

125

-65 to +150

Unit

mW/°C

°C/W

°C

Typical Thermal Resistance - Junction to Terminal (Note 3)

Typical Thermal Resistance - Junction to Ambient (Note 3)

Operating and Storage Temperature Range

Notes:

1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/quality/lead_free.html.

2. No purposefully added lead. Halogen and Antimony free.

3. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which

can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.

SMAZ5V1 - SMAZ39

Document number: DS18015 Rev. 16 - 2

1 of 5

www.diodes.com

June 2009

SMAZ5V1 - SMAZ39

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

SMAZ5V1 - SMAZ39

Document number: DS18015 Rev. 16 - 2

5 of 5

www.diodes.com

June 2009
