ZSC31150
Fast Automotive Sensor Signal Conditioner
Multi-Market Sensing Platforms
Precise and Deliberate
ZSC31150
Fast Automotive Sensor Signal Conditioner
Brief Description
The ZSC31150 is a CMOS integrated circuit for
highly accurate amplification and sensor-specific
correction of bridge sensor signals. Digital com-
pensation of sensor offset, sensitivity, temperature
drift, and non-linearity is accomplished via an inter-
nal 16-bit RISC microcontroller running a correction
algorithm, with calibration coefficients stored in an
EEPROM.
The ZSC31150 is adjustable to nearly all bridge sen-
sor types. Measured values are provided at the
analog voltage output or at the digital ZACwire™
and I²C™* interface. The digital interface can be
used for a simple PC-controlled calibration proce-
dure in order to program a set of calibration coeffi-
cients into an on-chip EEPROM. A specific sensor
and a ZSC31150 can be mated digitally: fast,
precise, and without the cost overhead associated
with trimming by external devices or a laser.
Benefits
No external trimming components required
Only a few external protection devices needed
PC-controlled configuration and single pass
calibration via I²C™ or ZACwire™ interface:
simple, cost efficient, quick, and precise
End-of-line calibration via I²C™ or ZACwire™
interface
High accuracy (0.25% FSO @ -25 to 85°C; 0.5%
FSO @ -40 to 125°C)
Excellent EMC/ESD robustness and AEC-Q100
qualification
Available Support
Evaluation Kits
Application Notes
Mass Calibration System
Features
Physical Characteristics
Digital compensation of sensor offset, sensitivity,
temperature drift, and non-linearity
Adjustable to nearly all bridge sensor types
Analog gain of up to 420
Output options: ratiometric analog voltage output
(5% to 95% maximum, 12.4-bit resolution) or
ZACwire™ (digital one-wire-interface)
Temperature compensation: internal or external
diode, bridge resistance, thermistor
Sensor biasing by voltage or constant current
Sample rate: up to 7.8kHz
High voltage protection up to 33V
Supply current: max. 5.5mA
Reverse polarity and short-circuit protection
Wide operation temperature depending on part
number: up to -40 to +150°C
Traceability by user-defined EEPROM entries
Safety and diagnostic functions
Supply voltage: 4.5 to 5.5 V
Operation temperature: -40°C to 125°C
(-40°C to +150°C extended temperature range)
Available as DFN14 (5mm x 4mm; wettable
flanks), SSOP14, and die

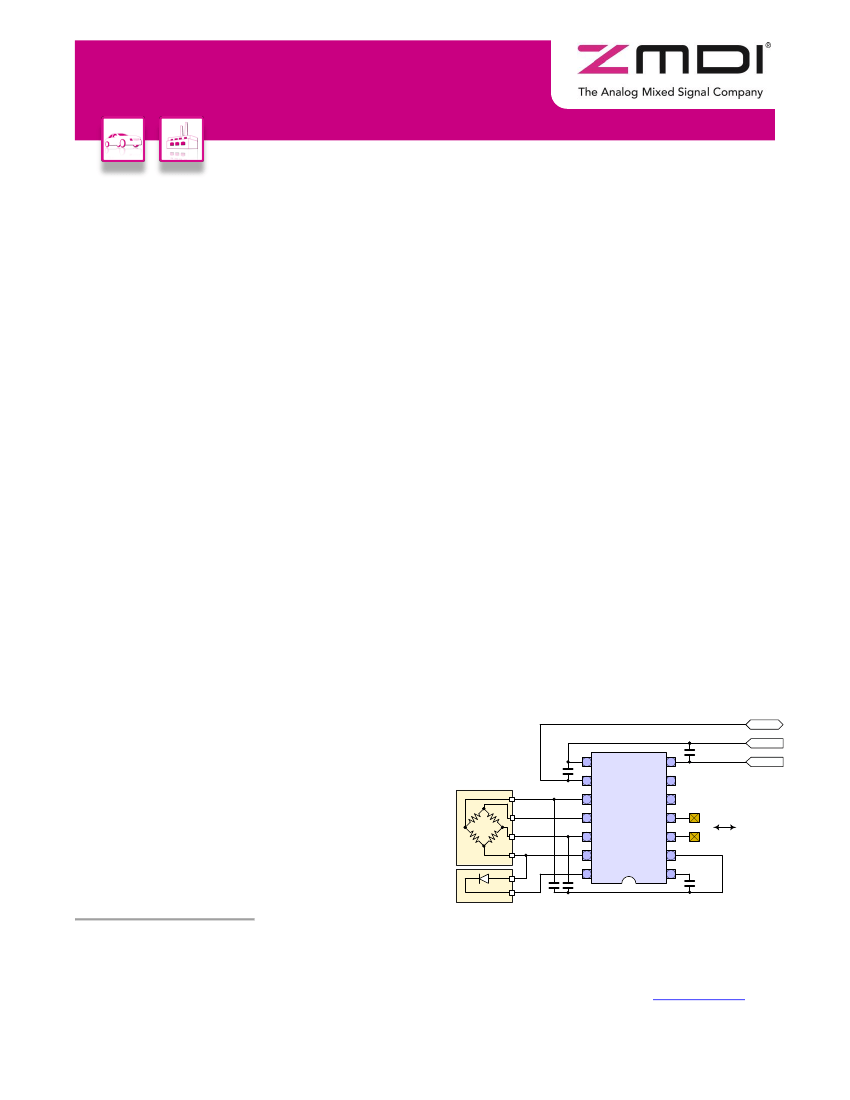

ZSC31150 Application Circuit
Out / OWI
GND
C2
100nF
8
VSSE
C3
47nF
VDDE
7
+4.5V to +5.5V
V
SUPP
Sensor Bridge
9
AOUT
10
VBN
11
VBR_B
12
VBP
13
VBR_T
14
IRTEMP
VDD
6
ZSC31150
n.c.
5
SCL
4
SDA
3
VSSA
2
VDDA
1
C1
100nF
SCL
Serial Interface
SDA
C4
C5
Temperature Sensor
* I²C™ is a trademark of NXP.
For more information, contact ZMDI via
SSC@zmdi.com.
© 2014 Zentrum Mikroelektronik Dresden AG — Rev. 2.40— December 3, 2014
All rights reserved. The material contained herein may not be reproduced, adapted, merged,
translated, stored, or used without the prior written consent of the copyright owner. The information furnished in this publication is subject to changes without notice.
ZSC31150
Fast Automotive Sensor Signal Conditioner

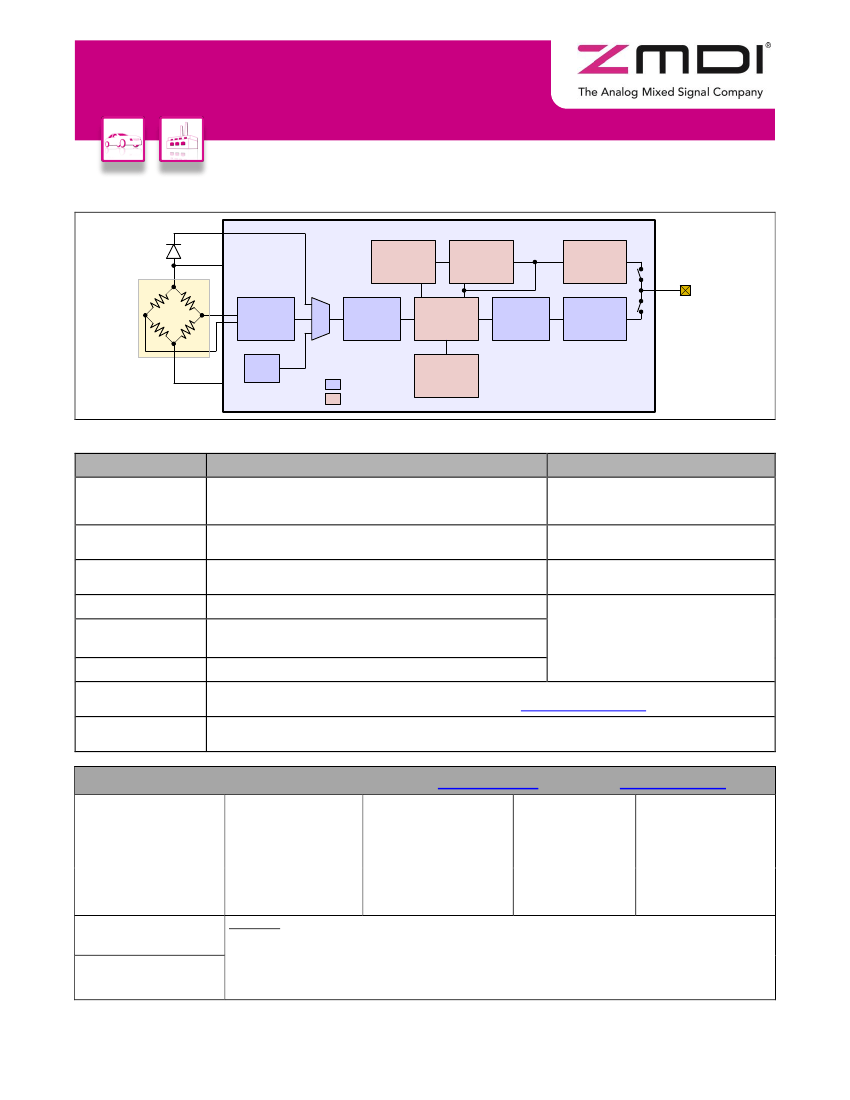

ZSC31150 Block Diagram
