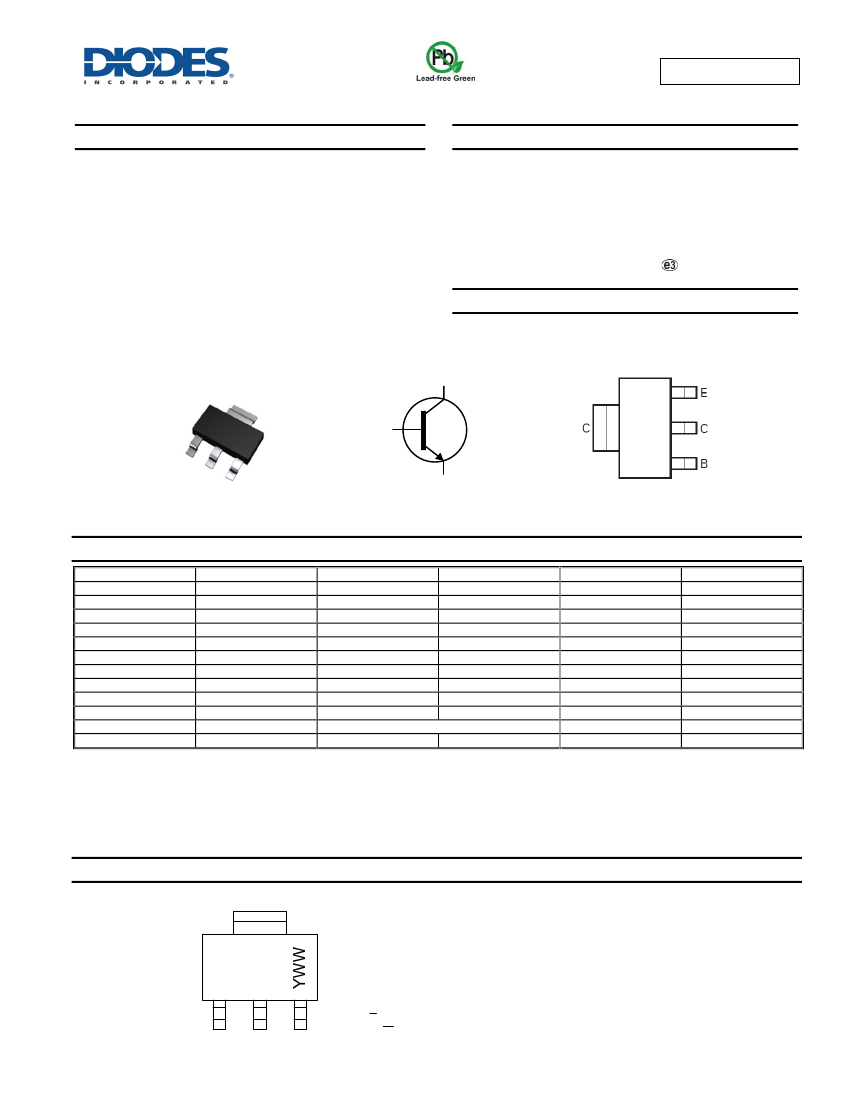

BCP 54/ 55/ 56

NPN MEDIUM POWER TRANSISTORS IN SOT223

Features

•

BV

CEO

> 45V, 60V & 80V

I

C

= 1A High Continuous Collector Current

I

CM

= 2A Peak Pulse Current

2W Power Dissipation

Low Saturation Voltage V

CE(sat)

< 500mV @ 0.5A

Gain Groups 10 and 16

Complementary PNP Types: BCP51, 52 and 53

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Mechanical Data

•

Case: SOT223

Case Material: Molded Plastic. “Green” Molding Compound;

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Plated Leads.

Solderable per MIL-STD-202, Method 208

Weight: 0.112 grams (Approximate)

Applications

•

Medium Power Switching or Amplification Applications

AF Driver and Output Stages

SOT223

C

B

E

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4 & 5)

Product

BCP54TA

BCP5410TA

BCP5416TA

BCP5416QTA

BCP55TA

BCP5510TA

BCP5516TA

BCP56TA

BCP5610TA

BCP5616TA

BCP5616QTA

BCP5616TC

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Marking

BCP 54

BCP 5410

BCP 5416

BCP 55

BCP 5510

BCP 5516

BCP 56

BCP 5610

BCP 5616

Reel size (inches)

7

13

Refer to http://diodes.com/datasheets/BCP5616Q.pdf

Tape width (mm)

12

Quantity per reel

1,000

4,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT223

BCP = Product Type Marking Code, Line 1.

XXXX = Product Type Marking Code, Line 2 as follows:

BCP 54 / 55 / 56

Datasheet Number: DS35367 Rev. 5 - 2

Y

W

BCP

XXXX

BCP54 = 54

BCP5410 = 5410

BCP5416 = 5416

BCP55 = 55

BCP5510 = 5510

BCP5516 = 5516

BCP56 = 56

BCP5610 = 5610

BCP5616 = 5616

YWW = Date Code Marking

Y or Y = Last Digit of Year (ex: 5= 2015)

WW or WW = Week Code (01~53)

1 of 7

www.diodes.com

March 2015

BCP 54/ 55/ 56

Absolute Maximum Ratings

(@T

A

= +25°C, unless otherwise specified.)

Characteristic

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Pulse Collector Current

Continuous Base Current

Peak Pulse Base Current

Symbol

V

CBO

V

CEO

V

EBO

I

C

I

CM

I

B

I

BM

BCP54

45

BCP55

60

5

1

2

100

200

BCP56

100

80

Unit

V

A

mA

Thermal Characteristics

(@T

A

= +25°C, unless otherwise specified.)

Characteristic

Power Dissipation

Thermal Resistance, Junction to Ambient

Thermal Resistance, Junction to Leads

Operating and Storage Temperature Range

(Note 6)

(Note 7)

Symbol

P

D

R

θJA

R

θJL

T

J,

T

STG

Value

2

62

19.4

-65 to +150

Unit

W

°

C/W

°

C/W

°

C

ESD Ratings

(Note 8)

Characteristic

Electrostatic Discharge - Human Body Model

Electrostatic Discharge - Machine Model

Notes:

Symbol

ESD HBM

ESD MM

Value

4,000

400

Unit

V

JEDEC Class

3A

C

6. For a device mounted with the collector lead on 50mm x 50mm 1oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still air

conditions whilst operating in steady-state.

7. Thermal resistance from junction to solder-point (at the end of the collector lead).

8. Refer to JEDEC specification JESD22-A114 and JESD22-A115.

BCP 54 / 55 / 56

Datasheet Number: DS35367 Rev. 5 - 2

2 of 7

www.diodes.com

March 2015

BCP 54/ 55/ 56

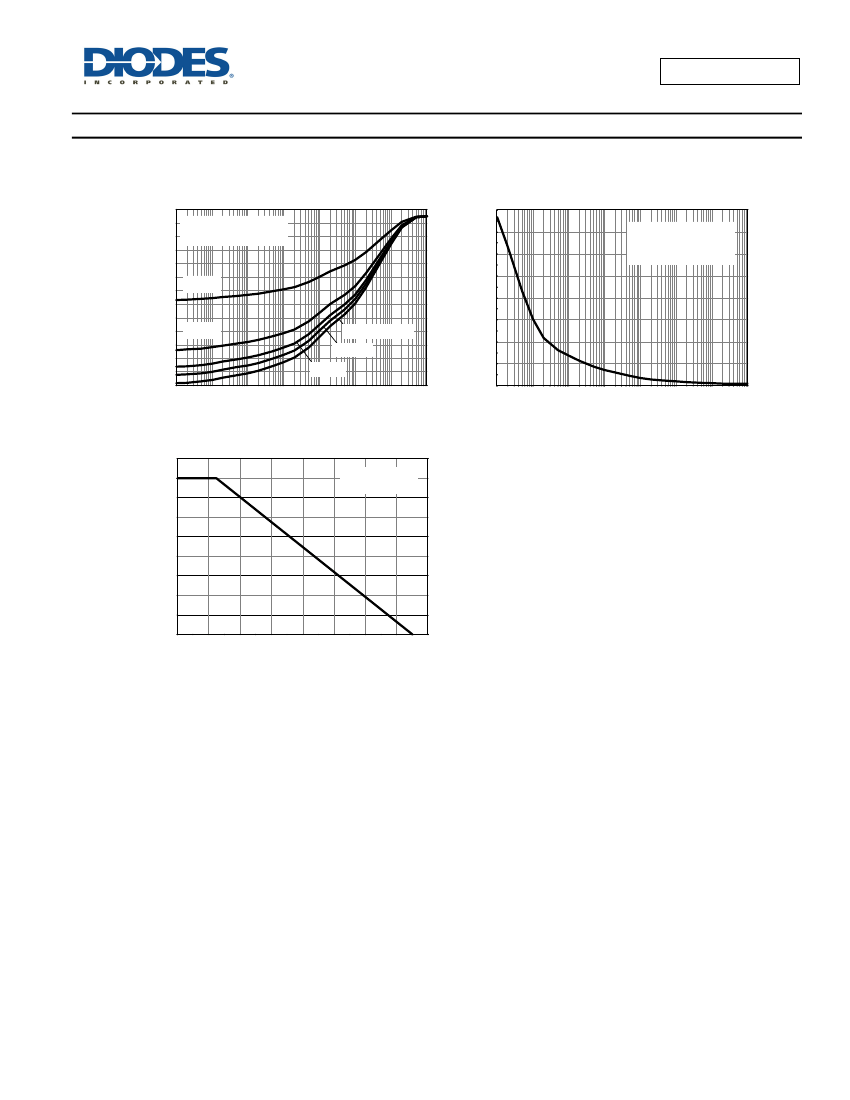

Thermal Characteristics and Derating Information

Thermal Resistance (°

C/W)

160

60

50

40

30

20

10

0

100µ

1m

10m 100m

1

D=0.2

Single Pulse

D=0.05

D=0.1

Maximum Power (W)

50mm x 50mm 1oz Cu

T

amb

=

25°

C

140

120

100

80

60

40

20

0

100µ

1m

10m 100m

50mm x 50mm 1oz Cu

T

amb

=

25°

C

Single pulse

D=0.5

10

100

1k

1

10

100

1k

Pulse Width (s)

Transient Thermal Impedance

Max Power Dissipation (W)

2.0

1.5

1.0

0.5

0.0

50mm x 50mm

1oz Cu

Pulse Power Dissipation

0

20

40

60

80

100 120 140 160

Temperature (°

C)

Derating Curve

BCP 54 / 55 / 56

Datasheet Number: DS35367 Rev. 5 - 2

3 of 7

www.diodes.com

March 2015

BCP 54/ 55/ 56

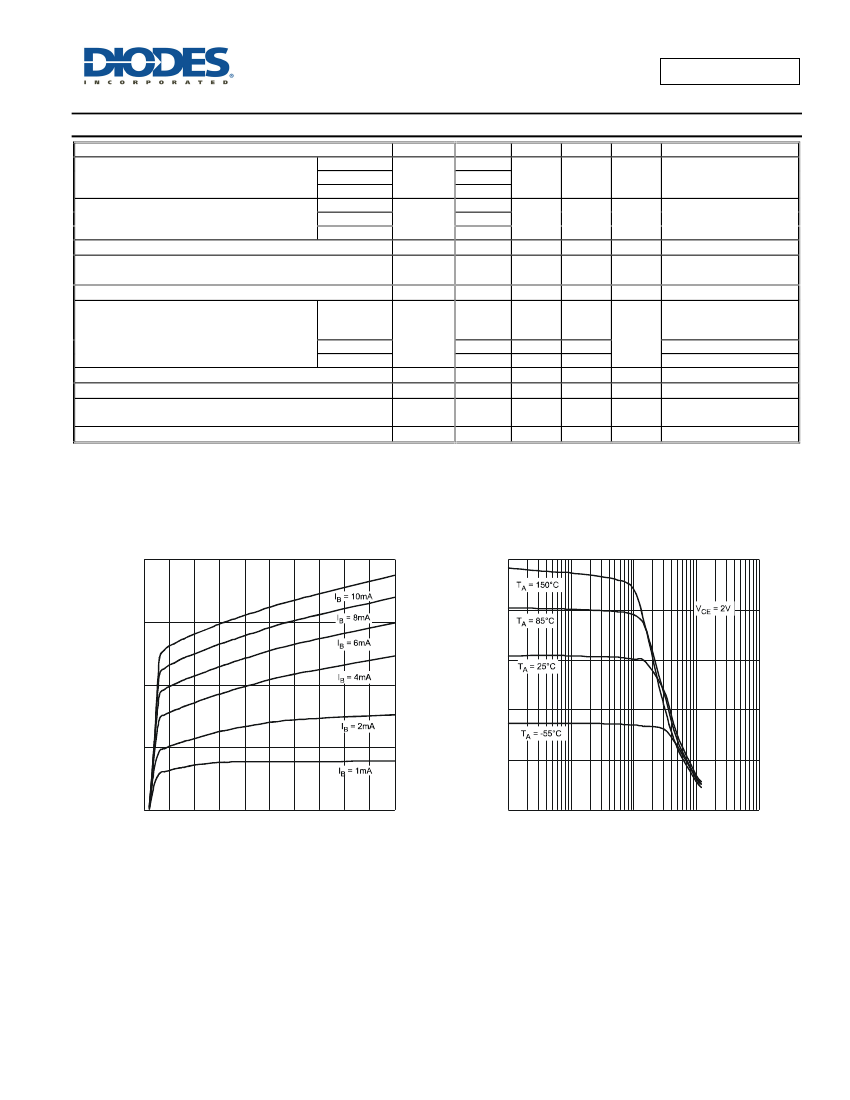

Electrical Characteristics

(@T

A

= +25°C, unless otherwise specified.)

Characteristic

Collector-Base

Breakdown Voltage

Collector-Emitter

Breakdown Voltage (Note 9)

Emitter-Base Breakdown Voltage

Collector Cut-Off Current

Emitter Cut-Off Current

All versions

Static Forward Current Transfer Ratio (Note 9)

10 gain grp

16 gain grp

Collector-Emitter Saturation Voltage (Note 9)

Base-Emitter Turn-On Voltage (Note 9)

Transition Frequency

Output Capacitance

Note:

Symbol

BCP54

BCP55

BCP56

BCP54

BCP55

BCP56

BV

CBO

BV

CEO

BV

EBO

I

CBO

I

EBO

Min

45

60

100

45

60

80

5

-

25

40

25

63

100

-

150

-

Typ

-

Max

-

Unit

V

Test Condition

I

C

= 100µA

-

0.1

20

-

250

-

160

250

0.5

1.0

-

25

V

µ

A

I

C

= 10mA

I

E

= 10µA

V

CB

= 30V

C

V

CB

= 30V, T

A

= +150°

V

EB

= 4V

I

C

= 5mA, V

CE

= 2V

I

C

= 150mA, V

CE

= 2V

I

C

= 500mA, V

CE

= 2V

I

C

= 150mA, V

CE

= 2V

I

C

= 150mA, V

CE

= 2V

I

C

= 500mA, I

B

= 50mA

I

C

= 500mA, V

CE

= 2V

I

C

= 50mA, V

CE

= 10V

f = 100MHz

V

CB

= 10V, f = 1MHz

nA

h

FE

-

V

CE(sat)

V

BE(on)

f

T

C

obo

V

MHz

pF

9. Measured under pulsed conditions. Pulse width

≤

300µs. Duty cycle

≤

2%.

0.8

250

I

C

, COLLECTOR CURRENT (A)

200

h

FE

, DC CURRENT GAIN

0

1

2

3

4

5

V

CE

, COLLECTOR-EMITTER VOLTAGE (V)

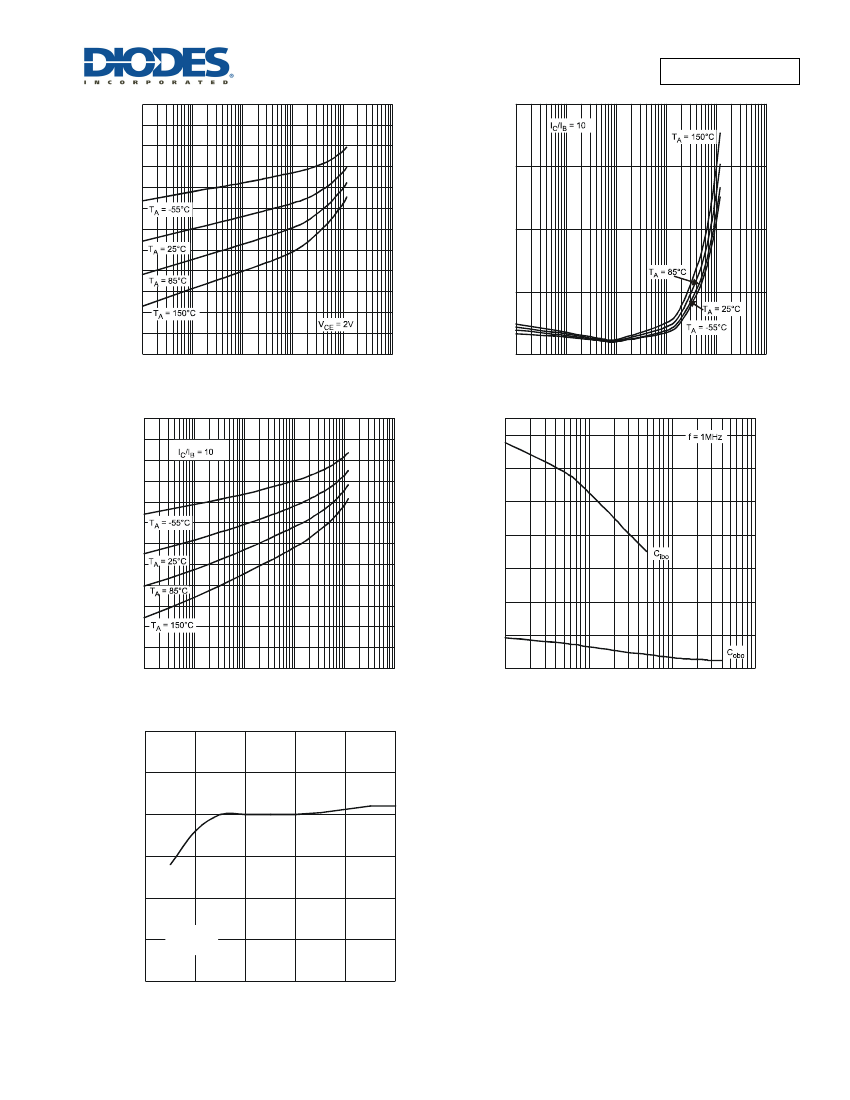

Fig. 1 Typical Collector Current

vs. Collector-Emitter Voltage

0.6

150

0.4

100

0.2

50

0

0.001

0.01

0.1

1

10

I

C

, COLLECTOR CURRENT (A)

Fig. 2 Typical DC Current Gain vs. Collector Current

BCP 54 / 55 / 56

Datasheet Number: DS35367 Rev. 5 - 2

4 of 7

www.diodes.com

March 2015

BCP 54/ 55/ 56

V

BE(ON)

, BASE-EMITTER TURN-ON VOLTAGE (V)

1.2

0.4

V

CE(SAT)

, COLLECTOR-EMITTER

SATURATION VOLTAGE (V)

0.001

0.01

0.1

1

10

I

C

, COLLECTOR CURRENT (A)

Fig. 3 Typical Base-Emitter Turn-On Voltage

vs. Collector Current

1.0

0.3

0.8

0.6

0.2

0.4

0.1

0.2

0

0.0001

0

0.0001

0.001

0.01

0.1

1

10

I

C

, COLLECTOR CURRENT (A)

Fig. 4 Typical Collector-Emitter Saturation Voltage

vs. Collector Current

V

BE(SAT)

, BASE-EMITTER SATURATION VOLTAGE (V)

1.2

140

1.0

120

CAPACITANCE (pF)

0.001

0.01

0.1

1

10

I

C

, COLLECTOR CURRENT (A)

Fig. 5 Typical Base-Emitter Saturation Voltage

vs. Collector Current

0.8

100

80

60

40

20

0

0.1

0.6

0.4

0.2

0

0.0001

1

10

100

V

R

, REVERSE VOLTAGE (V)

Fig. 6 Typical Capacitance Characteristics

300

f

T

, GAIN-BANDWIDTH PRODUCT (MHz)

250

200

150

100

V

CE

= 5V

f = 100MHz

50

0

20

40

60

80

100

I

C

, COLLECTOR CURRENT (mA)

Fig. 7 Typical Gain-Bandwidth Product

vs. Collector Current

BCP 54 / 55 / 56

Datasheet Number: DS35367 Rev. 5 - 2

5 of 7

www.diodes.com

March 2015
