7643-4642 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 7643-4642

7643-4642: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Jack; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

7643-4642 Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Jack

7643-4642 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	0.495 inch
subject depth	0.81 inch
body length	0.62 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	7643
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

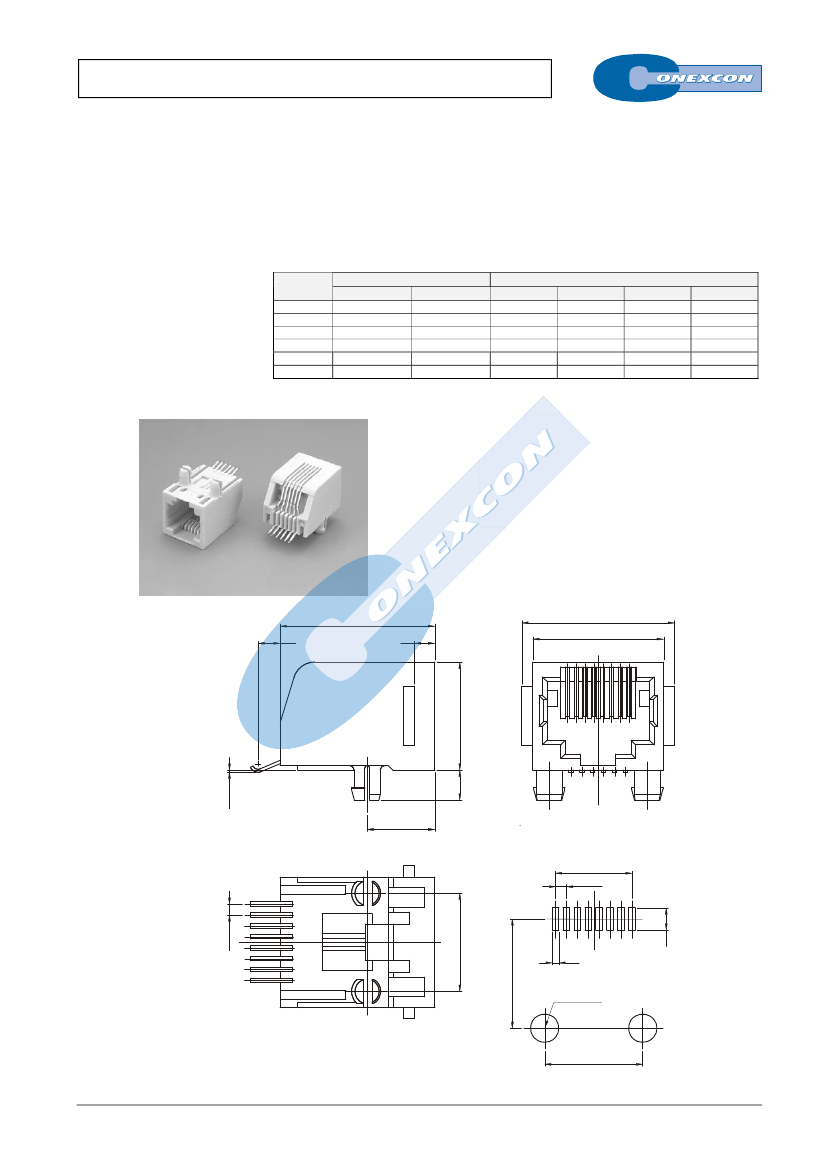

LOW PROFILE PCB JACK SMT TYPE

7643 SERIES.

For PCB solder. Side Entry SMT Type PCB Jack

Features



Available in 6/2, 6/4, 6/6, 8/6 and 8/8 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contacts: Golden phosphor bronze 0.35 mm thickness

Available with or without panel stop







Gold plating over nickel in Contact Area.

Tin plating over nickel in Solder Area

Mates with FCC-68 modular plugs

Optional with Key

Ordering and Dimensional Information

Dimensional Information

Circuit Size

6/2

6/4

6/6

8/6

8/8

Part Number

Without Flange

7643 –

T621

7643 –

T641

7643 –

T661

7643 –

T861

7643 –

T881

7643 –

T883*

* Jack with key

With Flange

7643 –

T622

7643 –

T642

7643 –

T662

7643 –

T862

7643 –

T882

7643 –

T884*

Dimensions

13.21(0.520)

15.24 (0.600)

10.16 (0.400)

11.43 (0.450)

1.27 (0.050)

3.81(0.150)

6.35 (0.250)

8.89 (0.350)

15.74 (0.620)

17.78 (0.700)

T = Contact Plating



T =

6 µ” gold over 50 µ” nickel

T =

15 µ” gold over 50 µ” nickel

T =

30 µ” gold over 50 µ” nickel

T =

50 µ” gold over 50 µ” nickel

18.03

2.54

2.36

0.25

7.87

RECOMMENDED PCB LAYOUT

1.27

3.50

12.57

12.70

0.76

2- ø 3.25

FULL LINE CATALOGUE

2.57

I-XX

7643-4642 Related Products

	7643-4642	7643-4862
Description	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Jack
Is it Rohs certified?	conform to	conform to
Maker	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.495 inch	0.495 inch
subject depth	0.81 inch	0.81 inch
body length	0.62 inch	0.7 inch
Body/casing type	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V	300VAC V
Durability	1000 Cycles	1000 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	7643	7643
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED
Plating thickness	10u inch	10u inch
Rated current (signal)	1.5 A	1.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	6	8
Base Number Matches	1	1
