BZT52C9V1S

Description
MOSFET -200v -12A 83W AEC-Q101 Qualified
CategoryDiscrete semiconductor    diode
File Size277KB,5 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BZT52C9V1S Online Shopping

Suppliers Part Number Price MOQ In stock
BZT52C9V1S - - View Buy Now

BZT52C9V1S Overview

MOSFET -200v -12A 83W AEC-Q101 Qualified

BZT52C9V1S Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTaiwan Semiconductor
package instructionR-PDSO-G2
Reach Compliance Codecompliant
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeR-PDSO-G2
Humidity sensitivity level1
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation0.2 W
Nominal reference voltage9.1 V
surface mountYES
technologyZENER
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance6.08%
Working test current5 mA
Base Number Matches1

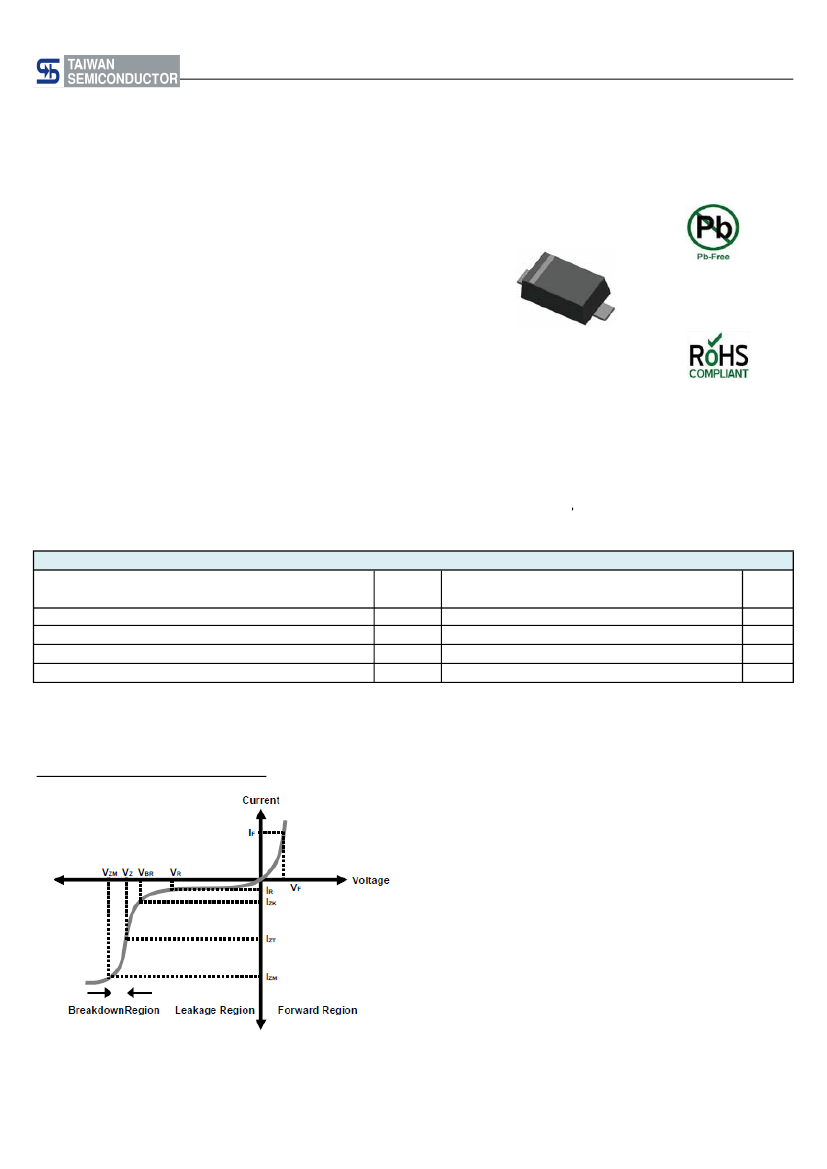

BZT52C2V4S thru BZT52C75S
Taiwan Semiconductor
Small Signal Product
5% Tolerance SMD Zener Diode
FEATURES
- Wide zener voltage range selection : 2.4V to 75V
- Surface Mount Device Type
- VZ Tolerance Selection of ±5%
- Matte Tin(Sn) lead finish with Nickel(Ni) underplate
- Moisture sensitivity level 1
- Pb free and RoHS compliant
- Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code
SOD-323F
MECHANICAL DATA

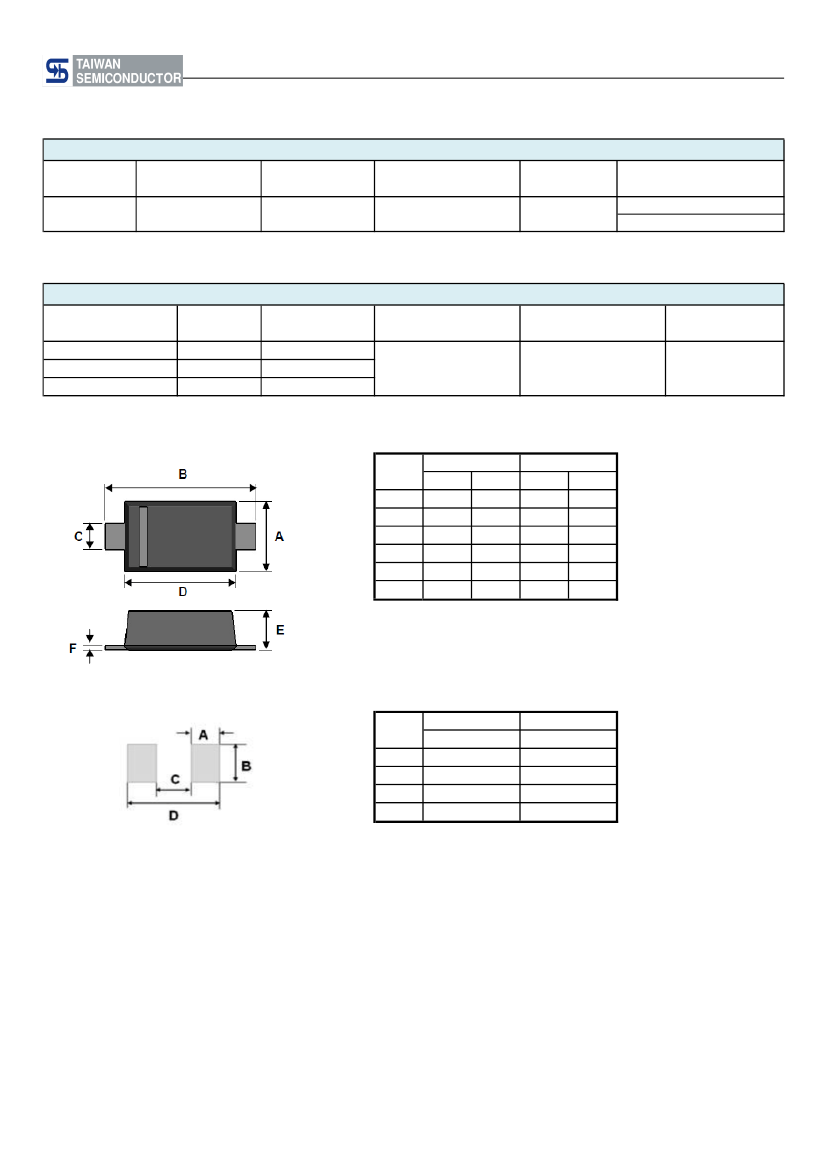

- Case: Flat lead SOD-323F small outline plastic package
- Terminal: Matte tin plated, lead free,
solderable per MIL-STD-202, Method 208 guaranteed
- High temperature soldering guaranteed: 260°C/10s
- Polarity: Indicated by cathode band
- Weight : 4.02 ± 0.5mg
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Forward Voltage
Power Dissipation
Thermal Resistance from Junction to Ambient
Junction and Storage Temperature Range
(Note 1)
@ I
F
= 10mA
SYMBOL
V
F
P
D
R
θJA
T
J
, T
STG
VALUE
1
200
625
-65 to +150
UNIT
V
mW
o
C/W
o
C
Note 1: Valid provided that electrodes are kept at ambient temperature.
Zener I vs. V Characteristics
V
BR
I
ZK
Z
ZK
I
ZT
V
Z
Z
ZT
I
ZM
V
ZM
: Voltage at I
ZK
: Test current for voltage V
BR
: Dynamic impedance at I
ZK
: Test current for voltage V
Z
: Voltage at current I
ZT
: Dynamic impedance at I
ZT
: Maximum steady state current
: Voltage at I
ZM
Version: F1603

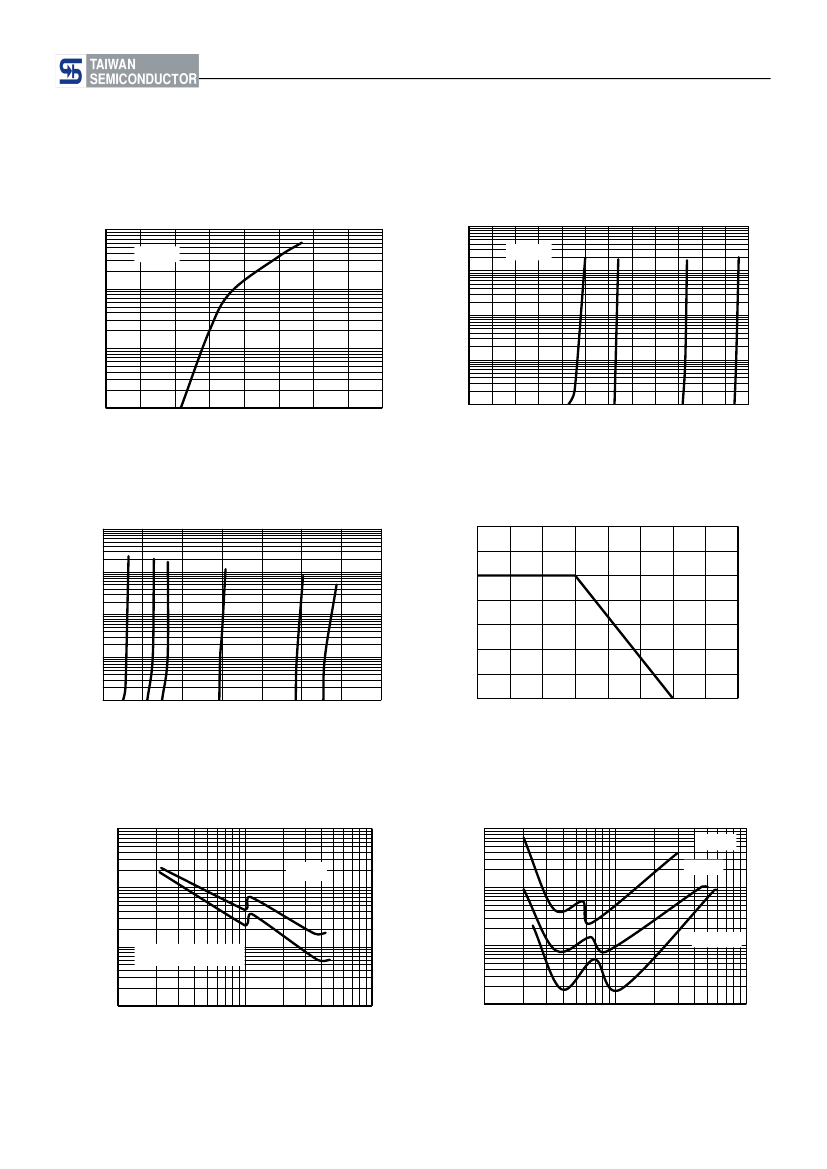

BZT52C9V1S Related Products

BZT52C9V1S BZT52C15S BZT52C8V2S BZT52C10S BZT52C2V4S BZT52C16S
Description MOSFET -200v -12A 83W AEC-Q101 Qualified Speakers u0026 Transducers 1W 8ohms 550Hz 23mm round IMUs - Inertial Measurement Units Zener Diodes 2.4 Volt 200mW 5% Wireless Charging Coils WE-WPCC Receiver Qi 47uH 1.4A 0.5Ohm
Is it Rohs certified? conform to conform to conform to conform to conform to conform to
Maker Taiwan Semiconductor Taiwan Semiconductor Taiwan Semiconductor Taiwan Semiconductor Taiwan Semiconductor Taiwan Semiconductor
package instruction R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2
Reach Compliance Code compliant compliant compliant compliant compliant compliant
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON
Diode type ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE
JESD-30 code R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2 R-PDSO-G2
Humidity sensitivity level 1 1 1 1 1 1
Number of components 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
polarity UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL
Maximum power dissipation 0.2 W 0.2 W 0.2 W 0.2 W 0.2 W 0.2 W
Nominal reference voltage 9.1 V 15 V 8.2 V 10 V 2.4 V 16 V
surface mount YES YES YES YES YES YES
technology ZENER ZENER ZENER ZENER ZENER ZENER
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum voltage tolerance 6.08% 6.12% 6.1% 6% 8.33% 5.56%
Working test current 5 mA 5 mA 5 mA 5 mA 5 mA 5 mA
Base Number Matches 1 1 1 1 1 -
Is Samacsys - N N N N -
