Features
n
3/8 ” Square/ Multiturn / Cermet /
Industrial / Sealed
n
Five popular terminal styles
n
Standoffs
n
RoHS compliant* version available
n
For trimmer applications/processing
guidelines, click here
*
*RR
o
oHH
S S C
COO
MMP
PL L
IAIAN
NT T

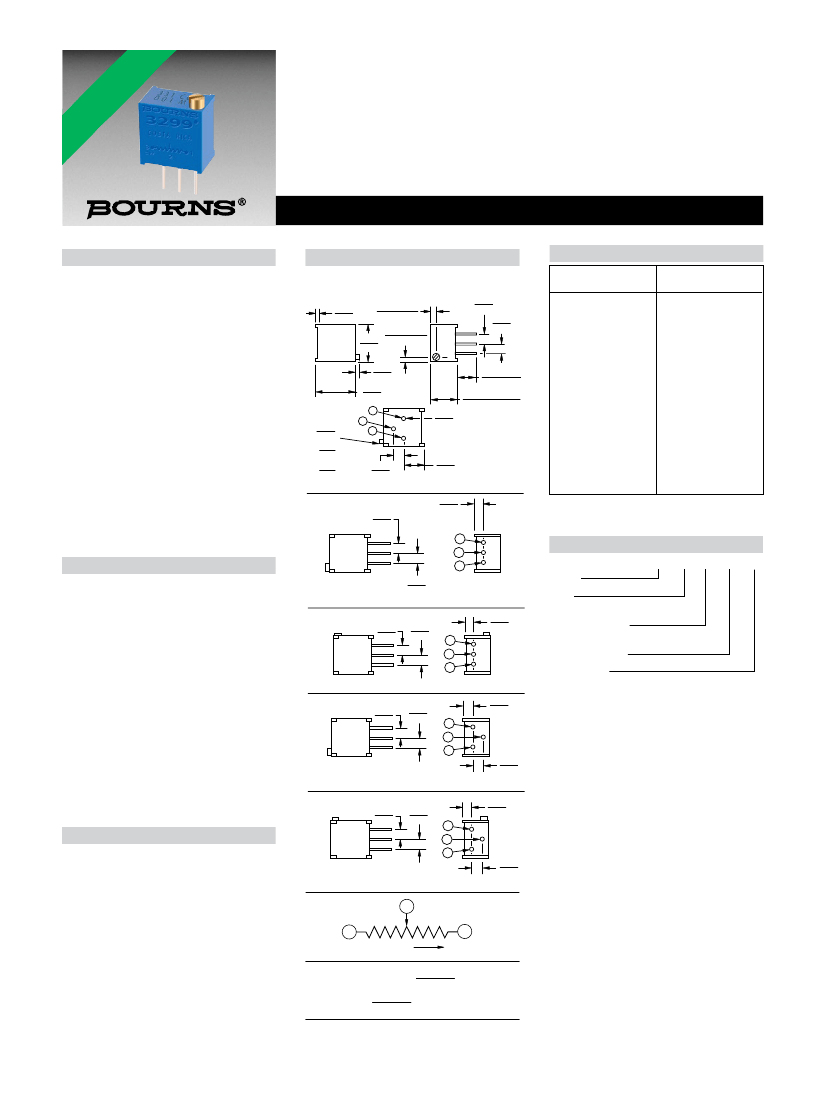

3299 - 3/8 ” Square Trimpot
®
Trimming Potentiometer
Product Dimensions
L
LE E
A
ADD
F FR
RE E
EE
Electrical Characteristics
Standard Resistance Range
................................10 to 2 megohms
(see standard resistance table)
Resistance Tolerance ........... ±10 % std.
(tighter tolerance available)
Absolute Minimum Resistance
........................... 1 % or 2 ohms max.
(whichever is greater)
Contact Resistance Variation
........................ 1.0 % or 3 ohms max.
(whichever is greater)
Adjustability
Voltage .................................. ±0.01 %
Resistance ............................ ±0.05 %
Resolution ................................... Infinite
Insulation Resistance ............... 500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level................................ 900 vac
70,000 Feet ............................ 350 vac
Effective Travel .................25 turns nom.
Environmental Characteristics
Power Rating (300 volts max.)
70 °C ...................................... 0.5 watt
125 °C ....................................... 0 watt
Temperature Range ... -55 °C to +125 °C
Temperature Coefficient ... ±100 ppm/°C
Seal Test ......................85 °C Fluorinert†
Humidity .......MIL-STD-202 Method 103
96 hours
(2 %
ΔTR,
10 Megohms IR)
Vibration ....... 20 G (1 %
ΔTR;
1 %
ΔVR)
Shock ......... 100 G (1 %
ΔTR;
1 %
ΔVR)
Load Life
............. 1,000 hours 0.5 watt @ 70 °C
(3 %
ΔTR;
3 % or 3 ohms,
whichever is greater, CRV)
Rotational Life .......................200 cycles
(4 %
ΔTR;
3 % or 3 ohms,
whichever is greater, CRV)
Physical Characteristics
Torque............................. 3.0 oz-in. max.
Mechanical Stops ................. Wiper idles
Terminals .......................Solderable pins
Weight ..................................... 0.035 oz.
Marking........................... Manufacturer’s
trademark, resistance code,
wiring diagram, date code,
manufacturer’s model
number and style
Wiper ............... 50 % (Actual TR) ±10 %
Flammability ..........................U.L. 94V-0
Standard Packaging .....50 pcs. per tube
Adjustment Tool..............................H-90
Standard Resistance Table
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
25,000
50,000
100,000
200,000
250,000
500,000
1,000,000
2,000,000
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
253
503
104
204
254
504
105
205
3299P
Common Dimensions
.38
(.015)
1.09 ± .254
(.043 ± .010)
2.54
(.100)
1.12 ± .254
9.53 (.044 ± .010)
(.375)
1.52
(.060)
10.03
(.395)
2.54
(.100)
3
.51
ADJ. SLOT
2
DIA. TYP.
(.020)
2.29 DIA.
1
(.090)
.56
WIDE
X
(.022)
5.23
.64
2.54
DEEP
(.206)
X
(.025)
(.100)
BOTTOM VIEW
1.91
3299W
(.075)
2.54
(.100)
3
2
1
R V L LE
Ro o VE ER EA A
H
HS SRS SI D D F
I O R
C COONNFRE E
OMM S S E E
P A
PL L A RR
IAIANE E
NT T
**
6.22 ± 1.14
(.245 ± .045)
6.10 +.30/-.25
(.240 +.012/-.010)
Popular distribution resistance values listed in
boldface. Special resistances available.
How To Order
Model
Style
1.91
(.075)
3299 W - 1 - 103 LF
2.54
(.100)
MIN.
BOTTOM VIEW
3299X
2.54
(.100)
2.54
(.100)
3
2
1
BOTTOM VIEW
Standard or Modified
Product Indicator
-1 = Standard Product
Resistance Code
Terminations
LF =
100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
Consult factory for other available options.
3299Y
2.54
(.100)
2.54
(.100)
1.91
(.075)
3
2
1
2.54
(.100)
BOTTOM VIEW
3299Z
2.54
(.100)
2.54
(.100)
1.91
(.075)
3
2
1
BOTTOM VIEW
2.54
(.100)
2
CCW
WIPER
1
CLOCKWISE
3
CW
REV. 11/16
“Trimpot” is a registered trademark of Bourns, Inc.
†“Fluorinert” is a registered trademark of 3M Co.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including
annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data
sheet can and do vary in different applications and
actual device performance may vary over time.
Users should verify actual device performance in their
specific applications.
