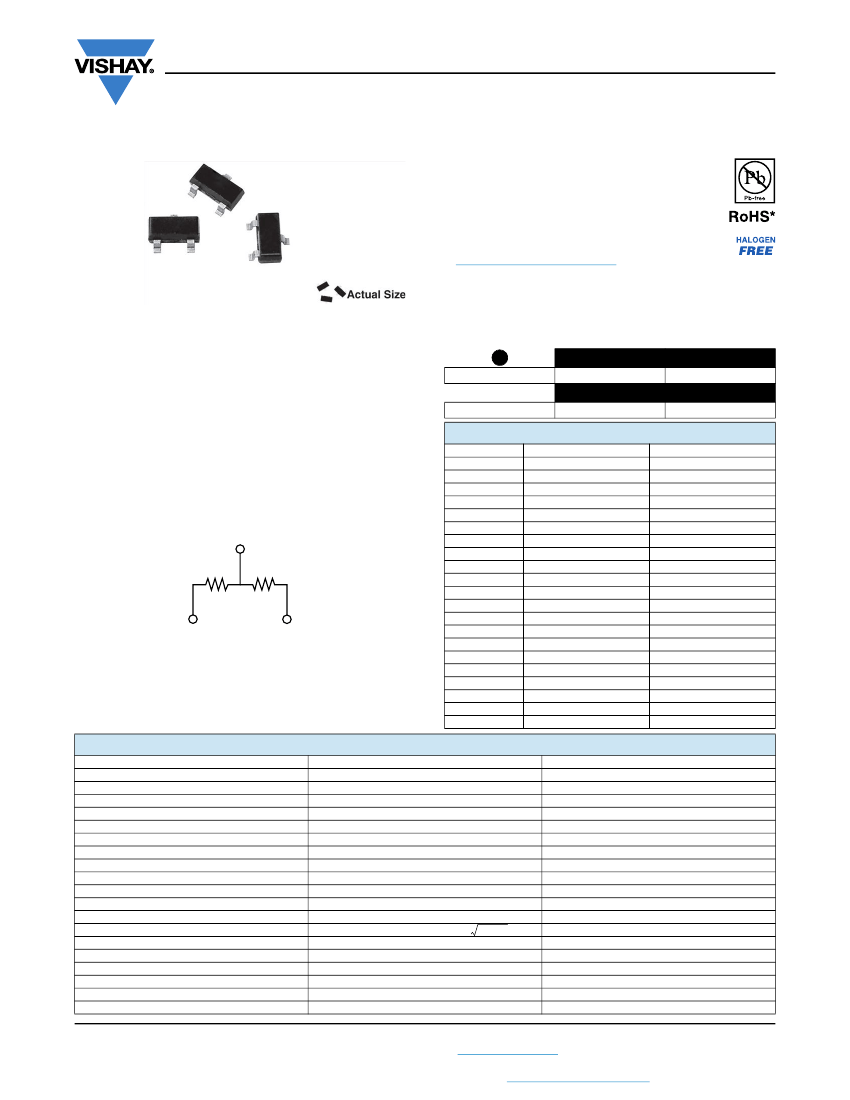

MPM (Divider)
www.vishay.com
Vishay Dale Thin Film
Molded, SOT-23 Thin Film Resistor, Surface Mount Divider Network
FEATURES
• Excellent long term ratio stability
(R ± 0.015 %, 2000 h, + 70 °C)
• Ratio tolerances to ± 0.01 %
• Low TCR tracking ± 2 ppm
• Standard JEDEC TO-236 package variation AB
• Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
Available
Vishay Dale Thin Film MPM Series Dividers provide
± 2 ppm/°C tracking and a ratio tolerance as tight as 0.01 %,
small size, and exceptional stability for all surface mount
applications. The standard SOT-23 package format with
unity and common standard resistance divider ratios
provide easy selection for most applications requiring
matched pair resistor elements. The ratios listed are
available for off the shelf delivery. If you require a
non-standard ratio, consult the applications engineering
group as we may be able to meet your requirements.
Note
*
This datasheet provides information about parts that are
RoHS-compliant and/or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information/tables in this datasheet for details.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
25
ABSOLUTE
0.1
TRACKING
2
RATIO
0.05
STANDARD DIVIDER RATIO
(R
2
/R
1
)
RATIO
100:1
50:1
25:1
20:1
10:1
9:1
6:1
5:1
5:1
4:1
4:1
2:1
2:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
R
2
()
100K
50K
25K
20K
10K
9K
6K
10K
5K
8K
4K
10K
2K
50K
25K
10K
5K
2.5K
1K
500
250
R
1
()
1K
1K
1K
1K
1K
1K
1K
2K
1K
2K
1K
5K
1K
50K
25K
10K
5K
2.5K
1K
500
250
SCHEMATIC
3
R
1
1
R
2
2
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Pin/Lead Number
Resistance Range
TCR: Absolute
TCR: Tracking
Tolerance: Absolute
Tolerance: Ratio
Power Rating: Resistor
Power Rating: Package
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability: Absolute
Shelf Life Stability: Ratio
Revision: 12-Jul-13
SPECIFICATIONS
Passivated nichrome
3
250
to 100 k per resistor
± 25 ppm/°C
± 2 ppm/°C (typical)
± 0.05 % to ± 1.0 %
± 0.01 % to 0.5 %
100 mW
200 mW
R
± 0.05 %
R
± 0.015 %
0.1 ppm/V
100 V max. not to exceed
P
x
R
- 55 °C to + 125 °C
- 55 °C to + 150 °C
< - 30 dB
0.2 μV/°C
R
± 0.01 %
R
± 0.002 %
CONDITIONS
-
-
-
- 55 °C to + 125 °C
- 55 °C to + 125 °C
+ 25 °C
+ 25 °C
Maximum at + 70 °C
Maximum at + 70 °C
2000 h at + 70 °C
2000 h at + 70 °C
-
-
-
-
-
-
1 year at + 25 °C
1 year at + 25 °C
Document Number: 60001
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MPM (Divider)
www.vishay.com
Vishay Dale Thin Film
INCHES
MIN.
MAX.
0.031
0.040
0.001
0.004
0.105
0.120
0.071
0.079
0.015
0.021
0.083
0.098
0.047
0.055
0.005
0.010
0.0035
0.0059
0.017
0.022
0
8°
MILLIMETERS
MIN.
MAX.
0.79
1.02
0.02
0.10
2.67
3.05
1.80
2.00
0.38
0.54
2.10
2.50
1.20
1.40
0.13
0.25
0.089
0.15
0.44
0.55
0
8°
DIMENSIONS AND IMPRINTING
in inches and millimeters
DIMENSION
3
W
B
H L
T
A
S
A1
K
J
Pin #
1
2
Ø
A
A1
B
S
W
L
H
T
J
K
Ø
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Body
Terminals
Lead (Pb)-free Option
Tin Lead Option
Tin Lead and Lead (Pb)-free Finish
Passivated nichrome
Silicon
Molded epoxy
Copper alloy
100 % matte tin
Sn85
Plated
DERATING CURVE
100
Percent of Rated Power
80
60
40
20
0
0
100
%
= 0.2 W
70
125
150
Ambient Temperature °C
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: MPM1003AWS
M
M
P
P
M
M
T
1
0
1
0
0
1
0
5
3
0
0
1
A
A
W
T
S
1
GLOBAL MODEL
(3 or 4 digits)
MPM
(Tin lead)
MPMT
(Lead (Pb)-free)
(e3)
RESISTANCE
(4 or 8 digits)
First 3 digits are significant
figures and the last digit
specifies the number of zeros
to follow. When like values are
required use total resistance.
When dual values are required
list both values.
Example:
(List R
1
first in part number
with dual values)
1002 = 10K (5K/5K)
1003 = 100K (50K/50K)
10011002 = 1K/10K divider
TOLERANCE AND
RATIO TOLERANCE
Abs. Tol.
A
= 0.1 %
B
= 0.1 %
C
= 0.25 %
D
= 0.5 %
F
= 1 %
Z
= 0.1 %
(1)
Q
= 0.05 %
(1)
Ratio
0.05 %
0.1 %
0.1 %
0.1 %
0.5 %
0.025 %
0.01 %
PACKAGING
BS
= BULK 100 min., 1 mult
WS
= WAFFLE 100 min., 1 mult
TAPE AND REEL
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
(2)
T3
= 300 min., 300 mult
T5
= 500 min., 500 mult
TF
= Full reel 4000
TS
= 100 min., 1 mult
Historical Part Number example: MPM1002BW (for reference purposes only)
MPM
SERIES
Notes
(1)
Tol. available 1K and up equal values only
(2)
Preferred packaging code
Revision: 12-Jul-13
Document Number: 60001
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
1002
RESISTANCE
B
TOLERANCE AND
RATIO TOLERANCE
W
PACKAGING

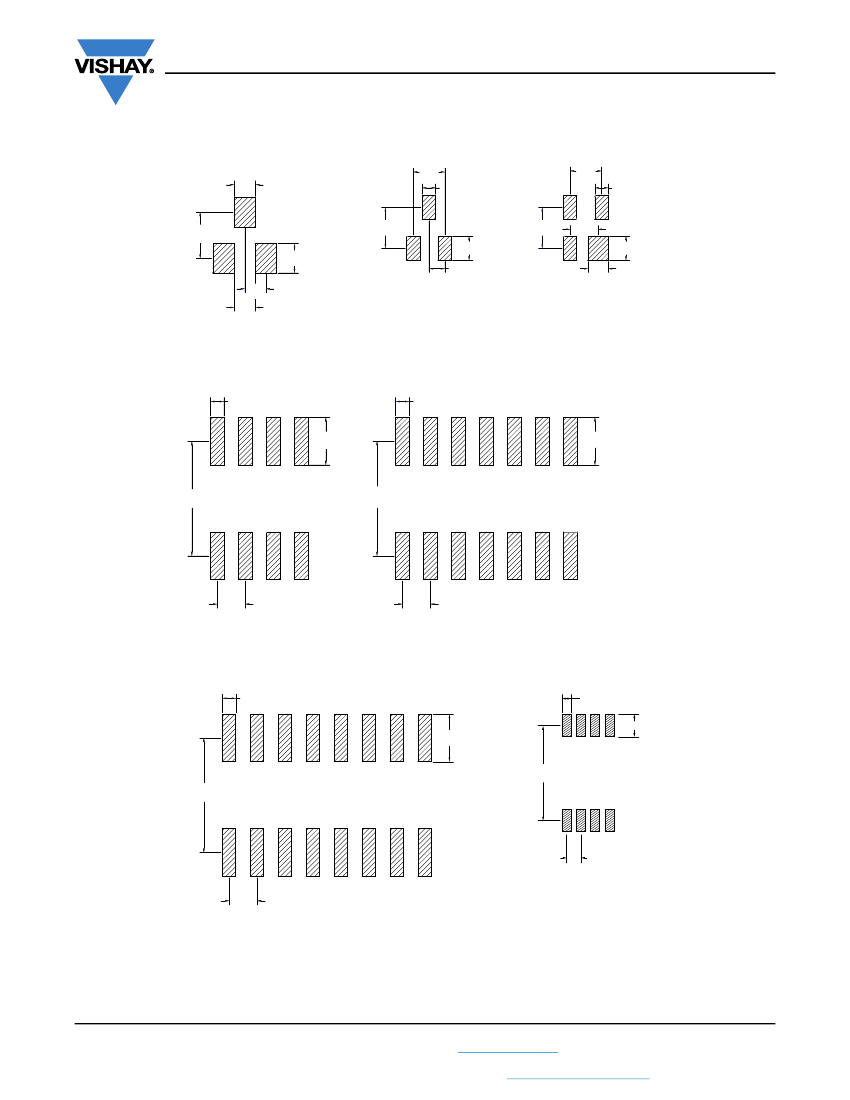

Land Patterns
www.vishay.com
Vishay Dale Thin Film
Vishay Dale Thin Film Land Patterns
1. Scope
This technical note provides sample land patterns for Vishay Dale Thin Film SMT resistive products. The following drawings are
based on IPC-SM-782 Surface Mount Design and Land Pattern Standard. These drawings are for reference only Vishay Thin
Film recommends that the user contacts their PC board supplier for actual land patterns required. The pads are intended for
lead (Pb)-free and tin / lead solder types.
2. Product Series
Thin Film Surface Mount Chip Resistors (FC, L, P, PTN, PLT, PLTT. PLTU, PAT, PATT, PNM, M/D55342 QPL Series)
0402 Land Pattern
0.072
(1.829)
0.024
(0.610)
0.022
(0.559)
0.025 (0.635)
0502 Land Pattern
0.082
(2.083)
0.027
(0.686)
0.020
(0.508)
0.031 (0.787)
0505 Land Pattern
0.083
(2.108)
0.052
(1.321)
0.021
(0.533)
0.031 (0.787)
0603 Land Pattern
0.092
(2.337)
0.034
(0.864)
0.030
(0.762)
0.031 (0.787)
0705 Land Pattern
0.105
(2.667)
0.052
(1.321)
0.043
(1.092)
0.031 (0.787)
1005 Land Pattern
0.130
(3.302)
0.052
(1.321)
0.066
(1.676)
0.032 (0.813)
1010 Land Pattern
0.131
(3.327)
1206 Land Pattern
0.156
(3.962)
0.067
(1.702)
0.084
(2.134)
0.036 (0.914)
1505 Land Pattern
0.190
(4.826)
0.054
(1.372)
0.116
(2.946)
0.037 (0.940)
0.101
(2.565)
0.065
(1.651)
0.033 (0.838)
2010 Land Pattern
0.252
(6.401)
2208 Land Pattern
0.275
(6.985)
0.076
(1.930)
2512 Land Pattern
0.300
(7.620)
0.100
(2.540)
0.050
(1.270)
0.175
(4.445)
0.125
(3.175)
0.049
(1.245)
0.154
(3.912)
0.049
(1.245)
0.202
(5.131)
Revision: 11-Oct-17
Document Number: 60119
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Land Patterns
www.vishay.com
Thin Film Surface Mount Chip Resistors (PHP, PCAN Series)
Vishay Dale Thin Film
0603 Land Pattern
0.0920
0.0340
1206 Land Pattern
0.1730
0.0710
0.0140
0.0390
0.0755
0.0220
0805 Land Pattern
0.1050
2512 Land Pattern
0.2910
0.0520
0.0200
0.0425
0.1260
0.1090
0.0910
Thin Film Surface Mount Chip Resistors Long Axis Termination (L Series)
0508 Land Pattern
0.076
0.076
0612 Land Pattern
0.091
(2.311)
1020 Land Pattern
0.131
(3.327)
1225 Land Pattern
0.154
(3.912)
0.090
(2.286)
0.146
(3.708)
0.016 (0.406)
0.030 (0.762)
0.031 (0.787)
0.030 (0.762 )
0.210
(5.334)
0.272
(6.909)
0.071
(1.803)
0.030 (0.762)
0.084
(2.134)
0.035 (0.889)
Revision: 11-Oct-17
Document Number: 60119
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Land Patterns
www.vishay.com
Surface Mount Networks (MPM, MP3, MP4 Series)
SOT-23
(MPM, MPMA)
0.040
(1.016)
Vishay Dale Thin Film
SC70-3
(MP3)
0.059
(1.499)
0.025 (0.635)
SC70-4
(MP4)
0.059
(1.499)
0.025 (0.635)
0.0865
(2.197)
0.055
(1.397)
0.040
(1.016)
0.040
(1.016)
0.0765
(1.943)
0.045
(1.143)
0.0295 (0.749)
0.0765
(1.943)
0.0525
(1.334)
0.045
(1.143)
0.038
(0.965)
Surface Mount Networks SOIC Narrow Body 150 mils (ORN, CSO, MOMC, HTRN, AORN, MORN Series)
SOIC-8
(ORN, HTRN, AORN, CSO-8)
0.024 (0.610)
SOIC-14
(NOMC-14, NOMCA-14, CSO-14)
0.024 (0.610)
0.085
(2.159)
0.085
(2.159)
0.205
(5.207)
0.205
(5.207)
0.050
(1.270)
0.050
(1.270)
SOIC-16
(NOMC-16, NOMCA-16, CSO-16, VSOR-16)
0.024 (0.610)
MORN MSOP MO-187AA
(MORN-8)
0.0160
0.0400
0.085
(2.159)
0.1700
0.205
(5.207)
0.0256
0.050
(1.270)
Revision: 11-Oct-17
Document Number: 60119
3
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
