Datasheet> All Categories > Passive components> inductor> RCH855NP-330K
PDF
Preview

RCH855NP-330K

Description
Programmers - Processor Based STM8S STM32 Programr 5V USB 2.0 JTAG DFU
CategoryPassive components    inductor
File Size218KB，7 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Environmental Compliance
Download Datasheet Parametric View All

RCH855NP-330K Online Shopping

Suppliers Part Number Price MOQ In stock
RCH855NP-330K - - View Buy Now

RCH855NP-330K Overview

Programmers - Processor Based STM8S STM32 Programr 5V USB 2.0 JTAG DFU

RCH855NP-330K Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSUMIDA
Reach Compliance Codeunknown
ECCN codeEAR99
Factory Lead Time15 weeks
structureUnshielded
DC Resistance0.17 Ω
Nominal inductance(L)33 µH
Inductor typeGENERAL PURPOSE INDUCTOR
Lead diameter0.7 mm
Lead length5 mm
lead spacing5 mm
Number of functions1
Number of terminals2
Package diameter7.8 mm
Package length5.5 mm
Package formRadial
Maximum rated current0.67 A
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldNO
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Test frequency2.52 MHz
Tolerance10%

Preview

Download Datasheet

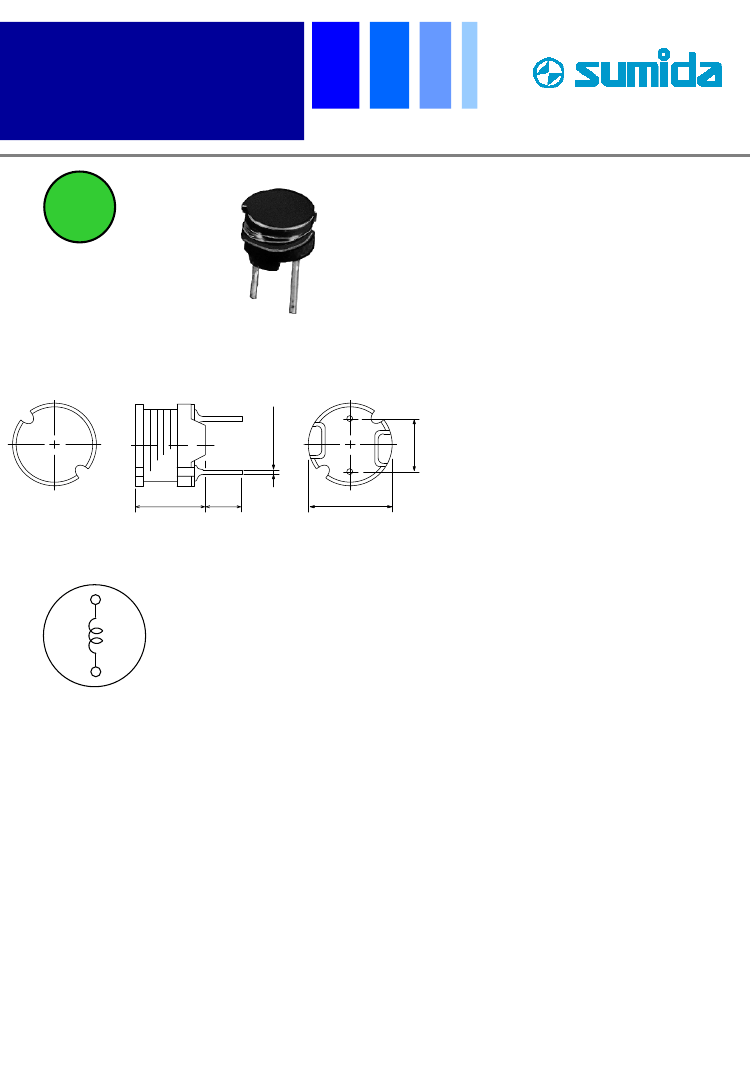

PIN Power Inductor
RCH-855
Description
• Ferrite drum core construction.
• Magnetically unshielded.
• L×W×H: 8.3×8.3×5.5mm Max.
• Product weight: 0.9g(Ref.)
• Moisture Sensitivity Level: 1
• RoHS compliance.
Environmental Data
• Operating temperature range: -40℃½+100℃
(including coil’s self temperature rise)
• Storage temperature range: -40℃½+100℃
+0.1
φ
0.7-0.05
5.0±0.3
φ
.
±
.
78 05
RoHS
Dimension - [mm]
Packaging
• Box packaging.
Applications
• Ideally used in Printers, LCD TV, DVD, Copy
Machine, Mainboard of the compounding
machines etc. as DC-DC Converter inductors.
MX55
A..
±
.
10
50
.
Schematics - [mm]
Page 1 of 7
Revised: 10-Jan-17
