Y00075K00000B0L datasheet, PDF

Datasheet> All Categories > Passive components> Y00075K00000B0L

Y00075K00000B0L: DescriptionMetal Foil Resistors - Through Hole 5Kohms 0.1% .6w; CategoryPassive components; File Size800KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

Y00075K00000B0L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Y00075K00000B0L	-	-	View	Buy Now

Y00075K00000B0L Overview

Metal Foil Resistors - Through Hole 5Kohms 0.1% .6w

Y00075K00000B0L Parametric

Parameter Name	Attribute value
Product Category	Metal Foil Resistors - Through Hole
Manufacturer	Vishay
RoHS	No
Resistance	5 kOhms
Power Rating	600 mW
Tolerance	0.1 %
Temperature Coefficient	2 PPM / C
Voltage Rating	300 V
Operating Temperature Range	- 55 C to + 125 C
Length	7.62 mm
Width	2.67 mm
Height	8.28 mm
Termination Style	Radial
Packaging	Bulk
Lead Spacing	3.81 mm
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Product	High Precision Metal Foil Resistors
Factory Pack Quantity	1
Type	Metal Foil

Preview

Download Datasheet

View All

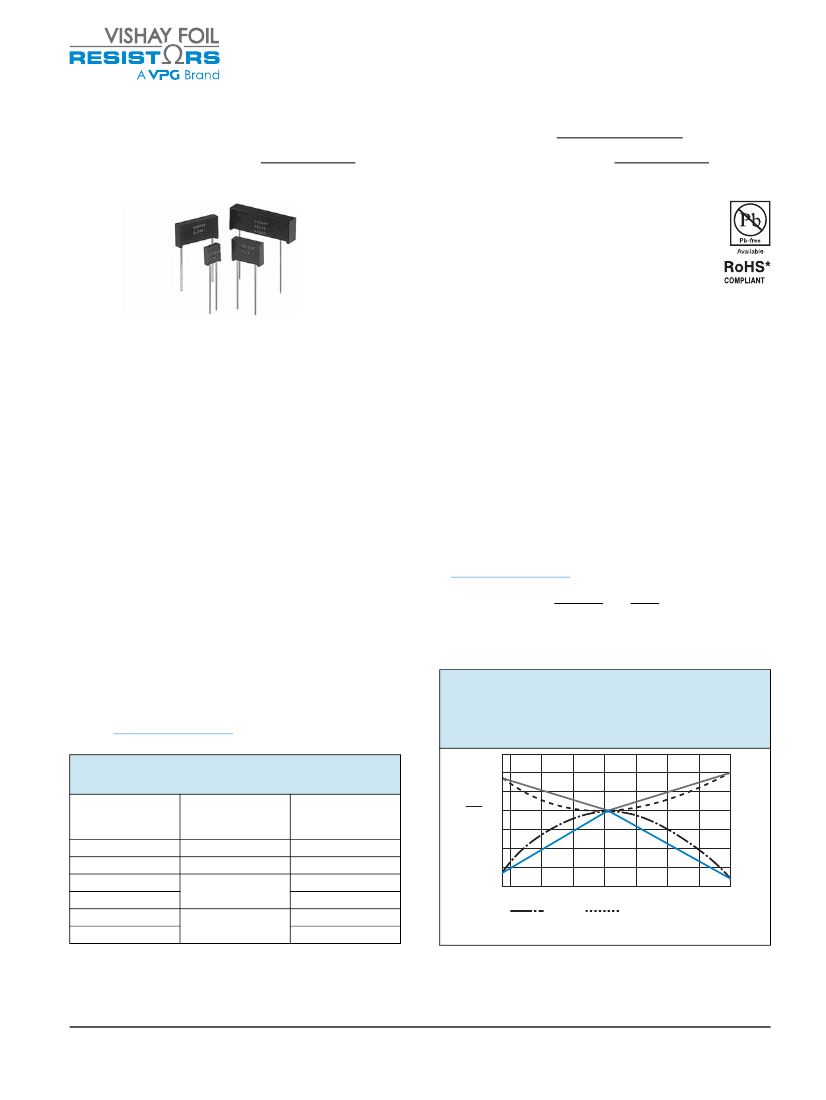

S Series

High Precision Foil Resistor with TCR of ± 2.0 ppm/°C,

Tolerance of ± 0.005 % and Load Life Stability of ± 0.005 %

FEATURES



Temperature coefficient of resistance (TCR):

- 55 °C to + 125 °C, 25 °C ref.

- S10XC / D series: ± 2 ppm/°C typical (see table

- S10XK series: ± 1 ppm/°C typical (see table 1)



Power rating: to 1 W at + 125 °C



Resistance tolerance: to ± 0.005 % (50 ppm)



Load life stability: ± 0.005 % at 70 °C, 2000 h at rated power



Resistance range: 0.5



to 1 M (for higher or lower

values, please contact Application Engineering)



Vishay Foil resistors are not restricted to standard values;

specific “as required” values can be supplied at no extra

cost or delivery (e.g. 1K2345 vs. 1K)



Electrostatic discharge (ESD) at least to 25 kV



Non inductive, non capacitive design



Rise time: 1 ns effectively no ringing



Current noise: 0.010 µV

RMS

/V of applied voltage (< - 40 dB)



Thermal EMF: 0.05 µV/°C



Voltage coefficient: < 0.1 ppm/V



Low inductance: < 0.08 µH



Non hot-spot design



Terminal finishes available: lead (Pb)-free, tin/lead alloy



Matched sets are available on request



(TCR tracking: to 0.5 ppm/°C)



Prototype quantities available in just 5 working days

or sooner. For more information, please contact

foil@vpgsensors.com



For better TCR performances please review the

datasheets for the

Z Series

and

Z203



INTRODUCTION

Bulk Metal

Foil (BMF) technology outperforms all other

resistor technologies available today for applications that

require high precision and high stability.

This technology has been pioneered and developed by

Vishay Foil Resistors (VFR), and products based on this

technology are the most suitable for a wide range of

applications. BMF technology allows the production of

customer-oriented products, designed to satisfy specific

challenging technical requirements.

The S series of BMF resistors offers low TCR, excellent load

life stability, tight tolerance, fast response time, low current

noise, low thermal EMF and low voltage coefficient, all in one

resistor.

The S series is virtually insensitive to destabillizing factors.

The resistor element is a solid alloy that displays the

desirable bulk properties of its parent material, thus it is

inherently stable and noise free. The standard design of

these resistors provides a unique combination of

characteristics found in no other single resistor.

VFR's application engineering department is available to

advise and to make recommendations. For non-standard

technical requirements and special applications, please

contact

foil@vpgsensors.com.

FIGURE 1 - TYPICAL RESISTANCE CHANGE

VERSUS TEMPERATURE CURVES AND

CHORD SLOPES (TCR) OF TWO ALLOY

TYPES IN MILITARY RANGE

+ 150

+ 100

TABLE 1 - RESISTANCE VERSUS TCR



(- 55 °C to + 125 °C, + 25 °C ref.)

RESISTOR

(1) (2)

S10X(C) / (D)

S10X(K)

S10X(C) / (D)

S10X(K)

S10X(C) / (D)

S10X(K)

(1)

(2)

RESISTANCE

VALUE ()

80 to < 1M

80 to < 600K

50 to < 80

0.5 to < 50

TYPICAL TCR AND

MAX SPREAD

(ppm/°C)

± 2 ± 2.5

± 1 ± 2.5

± 2 ± 3.5

± 1 ± 3.5

± 2 ± 4.5

± 1 ± 4.5

+ 50

–1 ppm/

+1 ppm/

(ppm)

- 50

- 100

- 150

- 200

- 50

- 55

+2 ppm/

–2 ppm/

- 25

+ 25

+ 50

+ 75

+ 100

+ 125

C Alloy

2 ppm/

K Alloy

1 ppm/

Temperature (°C)

refers to S Series model number - see Table 2

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 63001

Revision: 02-Mar-15

For any questions, contact

foil@vpgsensors.com

www.vishayfoilresistors.com
