BB02-BM031-K15-252500

Description
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle
CategoryThe connector    The connector
File Size81KB,1 Pages
ManufacturerGradConn Ltd

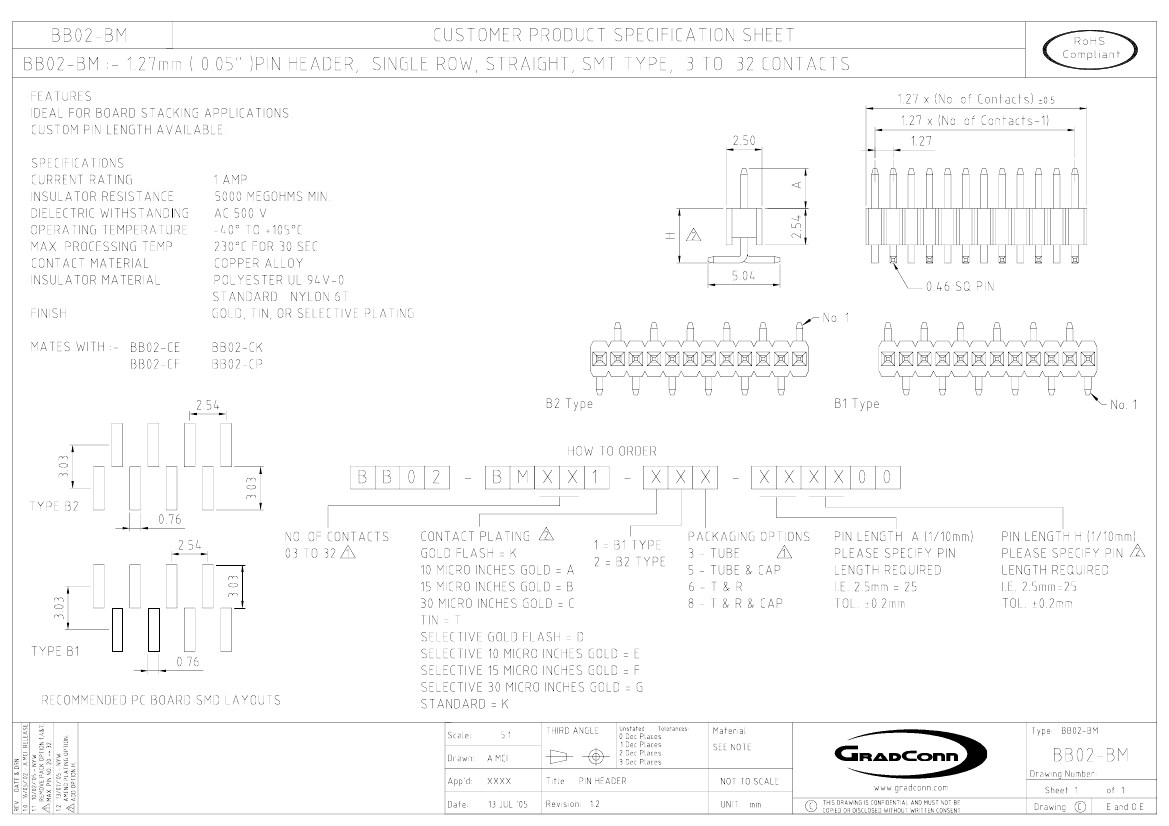

Download Datasheet Parametric View All

BB02-BM031-K15-252500 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

BB02-BM031-K15-252500 Parametric

Parameter NameAttribute value
MakerGradConn Ltd
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT, TUBE PACKAGING
body width0.098 inch
subject depth0.098 inch
body length0.15 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance5000000000 Ω
insulator materialNYLON
Manufacturer's serial numberBB02-BM
Plug contact pitch0.05 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
PCB contact row spacing3.048 mm
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts3
Base Number Matches1
