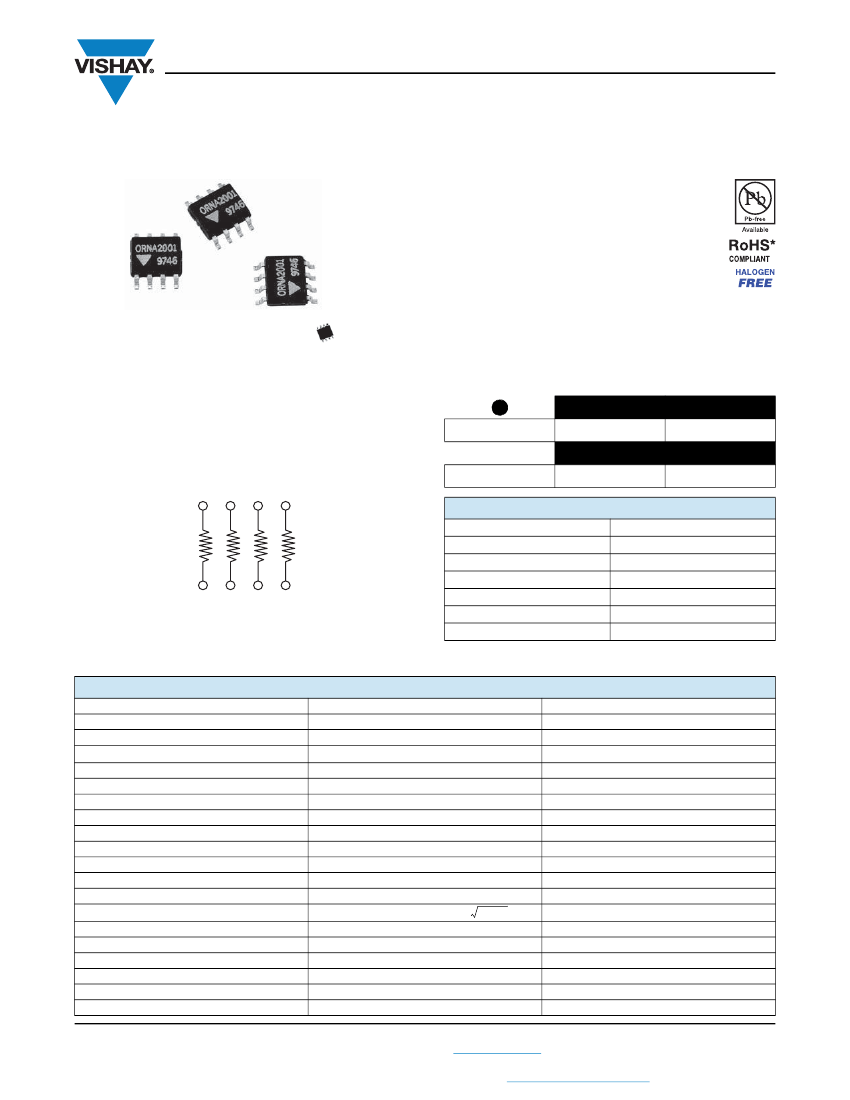

ORN
www.vishay.com
Vishay Dale Thin Film
Molded, 50 mil Pitch, Dual-In-Line Thin Film Resistor,
Surface Mount Network
FEATURES
• 0.068" (1.73 mm) maximum seated height
• Rugged molded case construction with no
internal solder
• Low temperature coefficient (± 25 ppm/°C)
• JEDEC MS-012 STD variation AA package
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21 definition
Actual Size
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
ORN series resistor networks feature four isolated resistors
with standard 50 mil pitch lead spacing. The networks
feature close TCR tracking and tight ratio tolerance and are
ideally suited for unity gain operational amplifier circuitry.
The standard resistance offering listed are available for
immediate delivery.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
25
ABSOLUTE
TOL.
0.1
TRACKING
5
RATIO
0.05
SCHEMATIC
8
7
6
5
STANDARD RESISTANCE OFFERING
(R
1
=)
49.9
R
1
R
1
R
1
R
1
10 k
20 k
50 k
100 k
200 k
500 k
100
500
1 k
1
2
3
4
2 k
4.99 k
5 k
Note
• Consult factory for additional values and schematics
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Pin/Lead Number
Resistance Range
TCR: Absolute
TCR: Tracking
Tolerance: Absolute
Tolerance: Ratio
Power Rating: Resistor
Power Rating: Package
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability: Absolute
Shelf Life Stability: Ratio
Revision: 02-Sep-11
SPECIFICATIONS
Passivated nichrome
8
33
to 500 k per resistor
± 25 ppm/°C
± 5 ppm/°C
± 0.05 % to ± 1.0 %
± 0.01 % to ± 0.5 %
100 mW
400 mW
R
± 0.05 %
R
± 0.015 %
0.1 ppm/V (typical)
100 V max. not to exceed
P
x
R
- 55 °C to + 125 °C
- 55 °C to + 150 °C
< - 30 dB
0.08 μV/°C
R
± 0.01 %
R
± 0.002 %
1
For technical questions, contact:
thinfilm@vishay.com
CONDITIONS
-
-
-
- 55 °C to + 125 °C
- 55 °C to + 125 °C
+ 25 °C
+ 25 °C
Maximum at + 70 °C
Maximum at + 70 °C
2000 h at + 70 °C
2000 h at + 70 °C
-
-
-
-
-
-
1 year at + 25 °C
1 year at + 25 °C
Document Number: 60005
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ORN
www.vishay.com
Vishay Dale Thin Film
DIMENSIONS AND IMPRINTING
in inches and millimeters
B
C
Resistance
Value Code
F
E
DIMENSION
A
B
C
D
G
INCHES
0.157
0.0165 ± 0.0025
0.050
0.195 max.
0.008 ± 0.001
0.028 ± 0.001
0.239 ± 0.005
0.068 max.
0.008 ± 0.002
2° to 6°
MILLIMETERS
3.99
0.4 ± 0.06
1.27
4.93
0.20 ± 0.03
0.71 ± 0.02
6.07 ± 0.13
1.73
0.22 ± 0.06
2° to 6°
ORNA
A
xxxx
Date
Code
E
F
G
H
D
ø
H
I
Seating
Plane
I
Ø
Note
• Marking - Vishay symbol, part number from ordering information
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Body
Terminals
Lead (Pb)-free Option
Tin Lead Option
Tin Lead and Lead (Pb)-free Finish
Passivated nichrome
DERATING CURVE
100
Precent of Rated Power
100
%
= 0.40 W
80
60
40
20
0
0
70
125
150
Silicon
Molded epoxy
Copper alloy
100 % matte tin
Sn90
Plated
Ambient Temperature °C
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: ORNA1002AUF
O
O
GLOBAL MODEL
(3 or 4 digits)
ORN
(Tin lead)
ORNT
(Lead (Pb)-free)
(e3)
R
N
N
T
A
A
1
1
0
0
0
0
2
3
A
Z
U
T
F
S
R
SCHEMATIC
A
= 4 isolated
equal resistors
RESISTANCE
The first 3 digits are significant
figures and the last digit
specifies the number of zeros
to follow. R designates the
decimal point.
Example:
1002 = 10 k
1003 = 100 k
4991 = 4.99 k
50R0 = 50
TOLERANCE AND
RATIO TOLERANCE
Abs. Tol.
A
= ± 0.1 %
(3)
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
=±1%
Q
= ± 0.05 %
(1)
Z
= ± 0.1 %
(1)
Ratio
± 0.05 %
± 0.1 %
± 0.1 %
± 0.1 %
± 0.5 %
± 0.01 %
± 0.025 %
PACKAGING
TAPE AND REEL
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
(2)
T3
= 300 min., 300 mult
T5
= 500 min., 500 mult
TF
= Full reel 3000
TS
= 100 min., 1 mult
UF
= TUBED
Historical Part Number example: ORNA1001F (for reference purposes only)
ORN
SERIES
Notes
(1)
Tol. available 1K and up
(2)
Preferred packaging code
(3)
Ratio tolerance available 250
and up
A
SCHEMATIC
1001
RESISTANCE
F
TOLERANCE AND
RATIO TOLERANCE
Revision: 02-Sep-11
2
For technical questions, contact:
thinfilm@vishay.com
Document Number: 60005
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

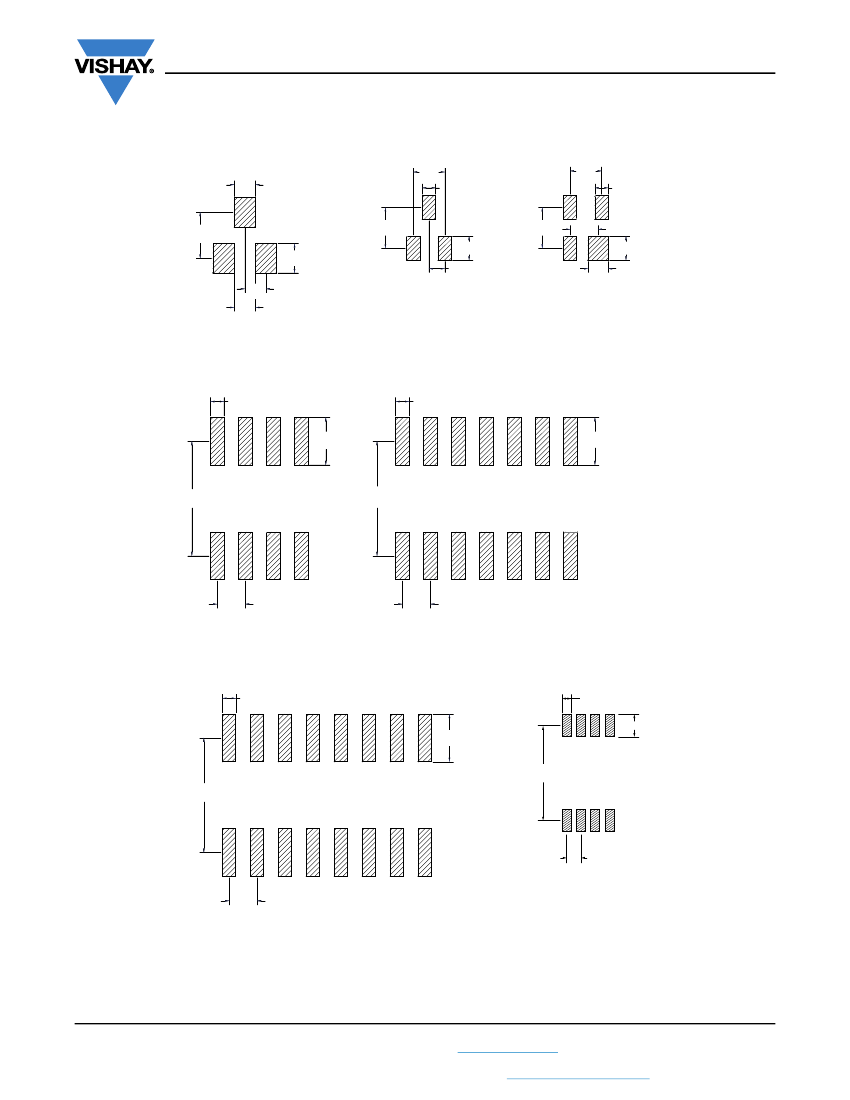

Land Patterns
