FILM CAPACITORS

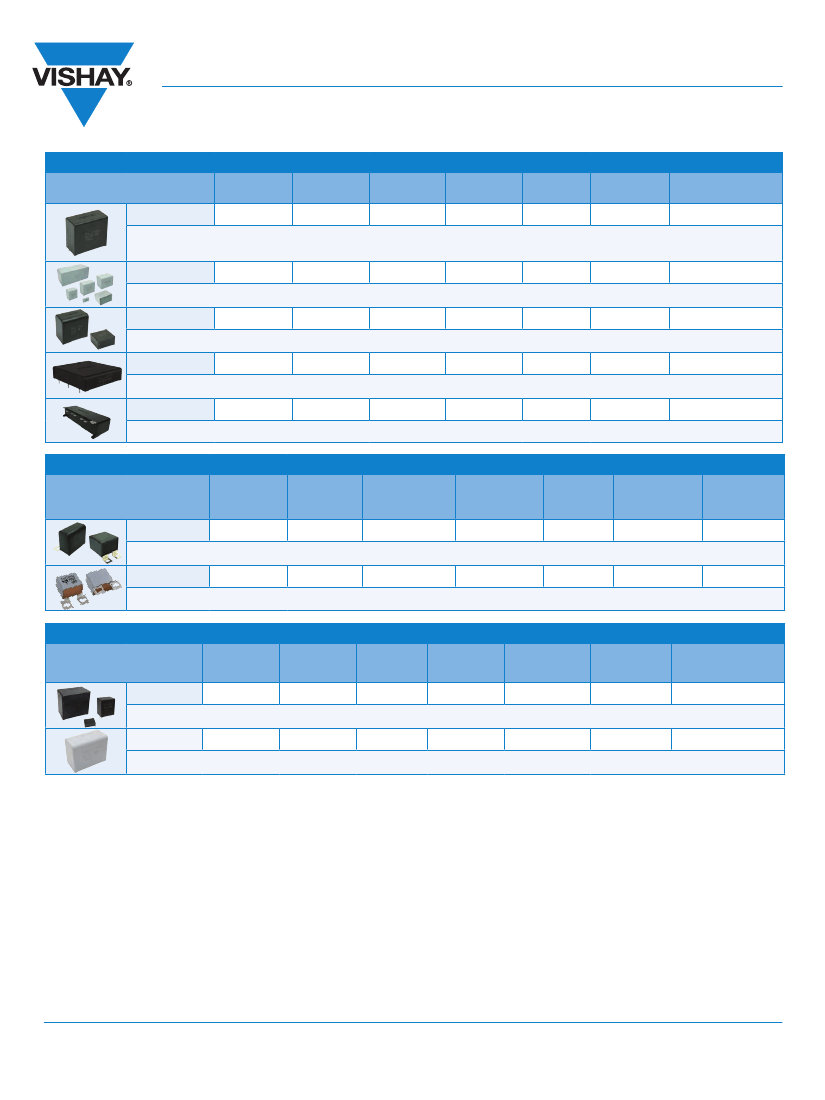

Focus Products
DC-Link Film Capacitors
Series
Capacitance
Min. (µF)
Capacitance
Max. (µF)
DC Voltage
Min. (V)
DC Voltage
Max. (V)
ESR
Min. (mΩ)
Ripple Current
Max. (A)
Pitch
MKP1848H
1
80
500
1200
2
22.5
27.5 mm to 52.5 mm
AEC-Q200 qualified, Vishay Automotive Grade DC-Link capacitor featuring high robustness under high humidity (85 ºC, 85 % RH)
for 1000 h at U
NDC
MKP1848
1
400
450
1200
1.3
54
27.5 mm to 52.5 mm
AEC-Q200 qualified, Vishay Automotive Grade DC-Link capacitor
MKP1848C
1
500
500
1200
1.5
55
27.5 mm to 52.5 mm
Industrial high-density economic pack
MKP1848S
2
100
500
1000
2
22
27.5 mm to 52.5 mm
Slim (low building height) DC-Link capacitor
MKP1849
500
500
500
900
0.25
140
-
AEC-Q200 qualified, Vishay Automotive Grade, DC-Link modules for eMobility. For further information contact
dc-film@vishay.com
Snubber Film Capacitors
Series
Capacitance
Min. (µF)
Capacitance
Max. (µF)
DC Voltage
Range (V)
AC Voltage
Range (V)
dV/dt
Max. (V/µs)
Terminal
Configurations
Dimensions
Max. (mm)
MKP386M
0.047
10
700 to 2500
420 to 800
2500
8
35 x 50 x 58
Single metallized snubber capacitor for IGBT mounting
MMKP386
0.1
4.7
630 to 2500
220 to 900
5500
4
30 x 46 x 44
Double metallized snubber capacitor for IGBT mounting
AC Filter
Series
Capacitance
Min. (µF)
Capacitance
Max. (µF)
AC Voltage
Min. (V)
AC Voltage
Max. (V)
Ripple Current
Min. (A)
Ripple Current
Max. (A)
Pitch
MKP1847H
1
40
250
480
2.5
23
27.5 mm to 52.5 mm
AC filter featuring segmented film technology with high robustness under high humidity (85 °C / 85 % RH) for 1000 h at U
RAC
MKP1847C
1
70
250
350
2.5
26
27.5 mm to 52.5 mm
AC filter with robustness under high humidity (40 °C, 93 % RH) for 56 days at rated voltage
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC
DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
V I S H AY I N T E R T E C H N O L O G Y, I N C .
FILM CAPACITORS
Focus Products

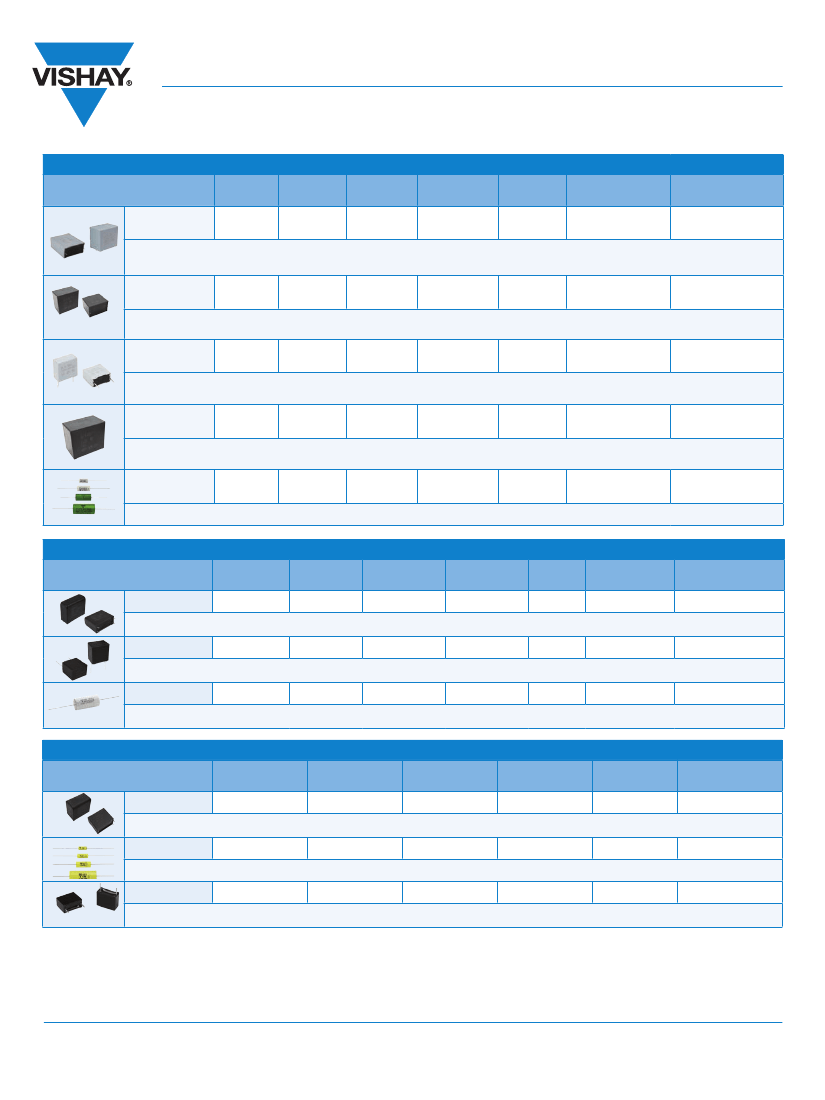

RFI X and Y Film Capacitors
Series
Rated AC
Voltage (V)
Capacitance
Min. (µF)
Capacitance
Max. (µF)
Rated
Construction
Temperature (°C)
Agency Approvals
Pitch
F339X2 305 V
AC
305
0.1
4.7
105
Mono
IEC / EN / UL /
CSA / CQC
15 mm to 27.5 mm
THB Vishay Automotive Grade X2 class capacitor; AEC-Q200 qualified; IEC 60384-14: 2013 / AMD1: 2016 Grade IIB; 85 °C, 85 % RH,
500 h at U
RAC
; compliant with 85 °C, 85 % RH, 1000 h at 240 V
AC
F340X2 305 V
AC
305
1
20
105
Mono
IEC / EN / UL /
CSA/ CQC
27.5 mm to 52.5 mm
THB interference suppression film capacitor class X2; IEC 60384-14: 2013 / AMD1: 2016 Grade IIIB; 85 °C, 85 % RH, 1000 h at U
RAC
F340Y2 305 V
AC
305
0.001
1
105
Series
IEC / EN / UL /
CSA / CQC
7.5 mm to 37.5 mm
THB Vishay Automotive Grade Y2 class capacitor; AEC-Q200 qualified; IEC 60384-14: 2013 / AMD1: 2016 Grade IIIB; 85 °C, 85 % RH,
1000 h at U
RAC
F340X1 480 V
AC
480
0.22
8.2
105
Series
IEC / EN / UL /
CSA / CQC
27.5 mm to 52.5 mm
THB interference suppression film capacitor class X1; IEC 60384-14: 2013 / AMD1: 2016 Grade IIIB; 85 °C, 85 % RH, 1000 h at U
RAC
;
maximum applicable AC voltage is 530 V
AC
F1773X2
253
0.01
2.2
100
Series
IEC / EN / UL /
CSA
Axial X2 capacitor for low building height applications
AC and Pulse
Series
Capacitance
Min. (µF)
Capacitance
Max. (µF)
DC Voltage
Range (V)
AC Voltage
Range (V)
dV/dt max
(V/µs)
Max.
Temperature (°C)
Pitch
MKP385
0.00047
82
160 to 2500
110 to 900
4000
110
5 mm to 37.5 mm
Single metallized AC and pulse capacitor
MKP383
0.001
4.7
250 to 2500
125 to 900
20000
105
7.5 mm to 27.5 mm
Double metallized AC and pulse capacitor
MKP1839HQ
0.1
3.3
630 to 1600
300 to 450
1000
85
-
Axial AC and pulse capacitor for low building height applications
General Purpose Film Capacitors
Series
Capacitance
Min. (µF)
Capacitance
Max. (µF)
DC Voltage
Min. (V)
DC Voltage
Max. (V)
Max.
Temperature (°C)
Pitch
MKT1820
0.001
560
63
1000
125
15 mm to 52.5 mm
AEC-Q200 qualified, Vishay Automotive Grade, featuring high temperature capabilities
MKT1813
0.001
22
63
1000
100
-
Axial MKT capacitor for low building height applications
MKT370
0.001
1.5
63
630
105
5 mm
AEC-Q200 qualified, Vishay Automotive Grade general-purpose capacitor
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC
DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
A
Complete Portfolio
of Film Capacitors
for
Power Applications
Advantages
of Vishay Film Capacitors
• High performance
• Robust design
• Customization possible
High robustness
against high humidity (up to 85 °C,
85 % RH, 1000 h at U
R
)
portfolio capabilities
For the Following
Applications
•
•
•
•
Onboard chargers
48 V boardnet
Power converters
RFI filters
For high performance DC-Link
applications, use our MKP1848
family for longer lifespan and
better reliability
With our broad range of
AEC-Q200 qualified standard
components, Vishay is your
“automotive driven” supplier
Useful
Links
• Film Capacitors Selector Guide
www.vishay.com/doc?49630
• Parametric Search
www.vishay.com/capacitors/film
AEC-Q200
QUALIFIED
