UFW1A332MHD1TO

Description
Aluminum Electrolytic Capacitors - Leaded 3300uF 10V 20% Aluminum Capacitor
CategoryPassive components
File Size308KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Download Datasheet Parametric View All

UFW1A332MHD1TO Online Shopping

Suppliers Part Number Price MOQ In stock
UFW1A332MHD1TO - - View Buy Now

UFW1A332MHD1TO Overview

Aluminum Electrolytic Capacitors - Leaded 3300uF 10V 20% Aluminum Capacitor

UFW1A332MHD1TO Parametric

Parameter NameAttribute value
Product CategoryAluminum Electrolytic Capacitors - Leaded
ManufacturerNichicon
RoHSDetails
Capacitance3300 uF
PackagingCut Tape
PackagingMouseReel
PackagingReel
Factory Pack Quantity500

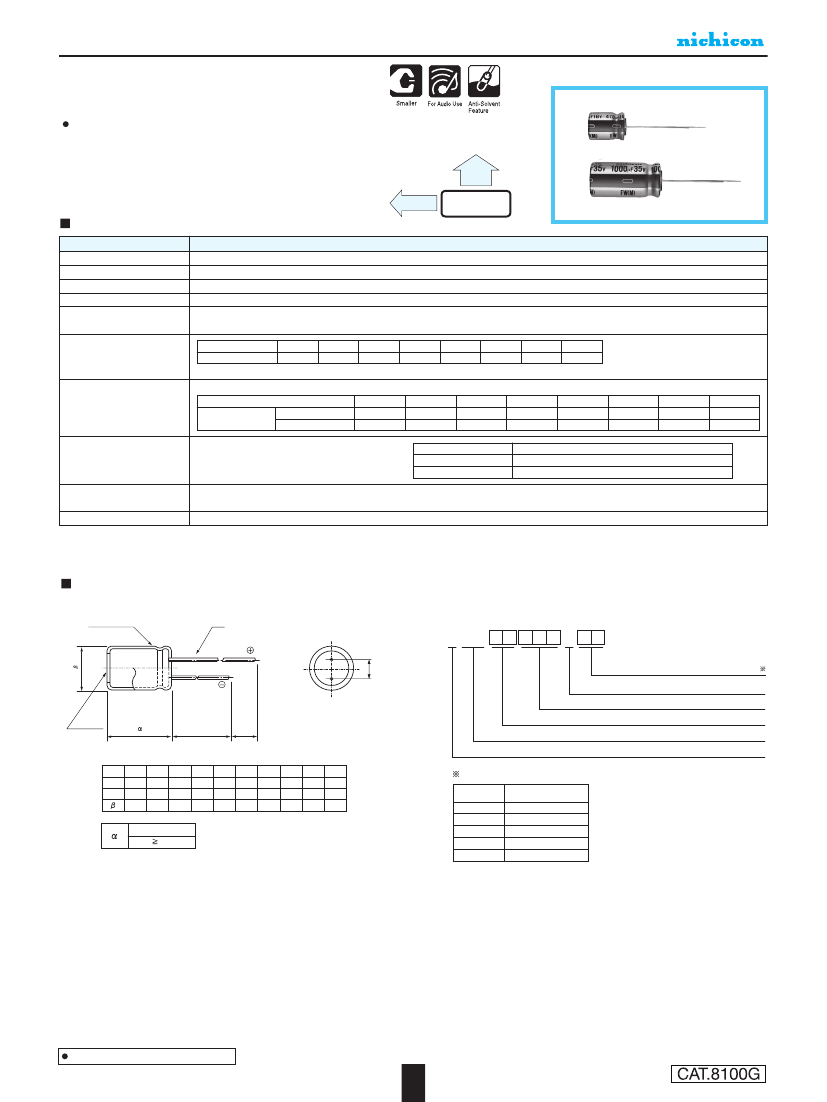

ALUMINUM ELECTROLYTIC CAPACITORS
UFW
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Standard, For Audio Equipment
Compliant to the RoHS directive (2011/65/EU).
UKW
High Sound
Quality
UFG
High Grade
UFW
Performance Characteristics
–40 to +85°C
6.3 to 100V
2.2 to 33000µF
± 20% at 120Hz, 20°C
After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.03 CV or 4 (µA) , whichever is greater.
After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01 CV or 3 (µA) , whichever is greater.
Rated voltage (V)
tan
δ
(MAX.)
Tangent of loss angle (tan
δ)
6.3
0.28
10
0.24
16
0.20
25
0.16
35
0.14
50
0.12
63
0.10
100
0.08
Measurement frequency : 120Hz at 20°C
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Measurement frequency : 120Hz
Rated voltage (V)
Z– 25°C / Z+20°C
Impedance ratio
Stability at Low Temperature
ZT / Z20 (MAX.)
Z– 40°C / Z+20°C
6.3
5
12
10
4
10
16
3
8
25
2
5
35
2
4
50
2
3
63
2
3
100
2
3
Endurance
The specifications listed at right shall be met
when the capacitors are restored to 20°C after
the rated voltage is applied for 2000 hours at
85°C.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with black color letter on Gold sleeve.
Radial Lead Type
Sleeve (P.E.T.)
Sleeve (P.E.T.)
φD
+
MAX.
φD
+
MAX.
Type numbering system (Example : 10V 1000
µ
F)
φ
d
φ
d
1
2
3
4
5
6
7
8
9 10
11
U FW 1 A 1 0 2 M PD
P ±
0.5 0.5
Configuration
Capacitance tolerance
(±20%)
Rated capacitance (1000µF)
Pressure
relief vent
Pressure
(φ6.3up)
relief vent
(φ6.3up)
L+
L+
MAX.
MAX.
15
MIN
15
MIN
4
MIN
4
MIN
(mm)
(mm)
25
Rated voltage (10V)
Series name
Type
Configuration
φ
D
5
6.3
8 ·10
12.5 to 18
20 to 25
Pb-free leadwire
Pb-free PET sleeve
φD
φD
P
P
φd
φd
5
5
2.0
2.0
0.5
0.5
0.5
0.5
6.3
6.3
2.5
2.5
0.5
0.5
0.5
0.5
8
8
3.5
3.5
0.6
0.6
0.5
0.5
10
10
5.0
5.0
0.6
0.6
0.5
0.5
12.5
12.5
5.0
5.0
0.6
0.6
0.5
0.5
16
16
7.5
7.5
0.8
0.8
0.5
0.5
18
18
7.5
7.5
0.8
0.8
0.5
0.5
20
20
10
10
1.0
1.0
0.5
0.5
22
22
10
10
1.0
1.0
1.0
1.0
25
12.5
12.5
1.0
1.0
1.0
1.0
DD
ED
PD
HD
RD
(φD < 20) 1.5
(φD 20) 1.5
(φD < 20) 2.0
(φD
20) 2.0
Please refer to page 20 about the end seal configuration.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
