UPS1E471MPD1TD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UPS1E471MPD1TD

UPS1E471MPD1TD: DescriptionAluminum Electrolytic Capacitors - Leaded 470UF 25V 105c; CategoryPassive components; File Size265KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UPS1E471MPD1TD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UPS1E471MPD1TD	-	-	View	Buy Now

UPS1E471MPD1TD Overview

Aluminum Electrolytic Capacitors - Leaded 470UF 25V 105c

UPS1E471MPD1TD Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - Leaded
Manufacturer	Nichicon
RoHS	Details
Termination Style	Radial
Capacitance	470 uF
Voltage Rating DC	25 VDC
Tolerance	20 %
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	10 mm
Length	16 mm
Lead Spacing	5 mm
Packaging	Cut Tape
Packaging	Reel
Product	Low Impedance Electrolytic Capacitors
Factory Pack Quantity	500

Preview

Download Datasheet

View All

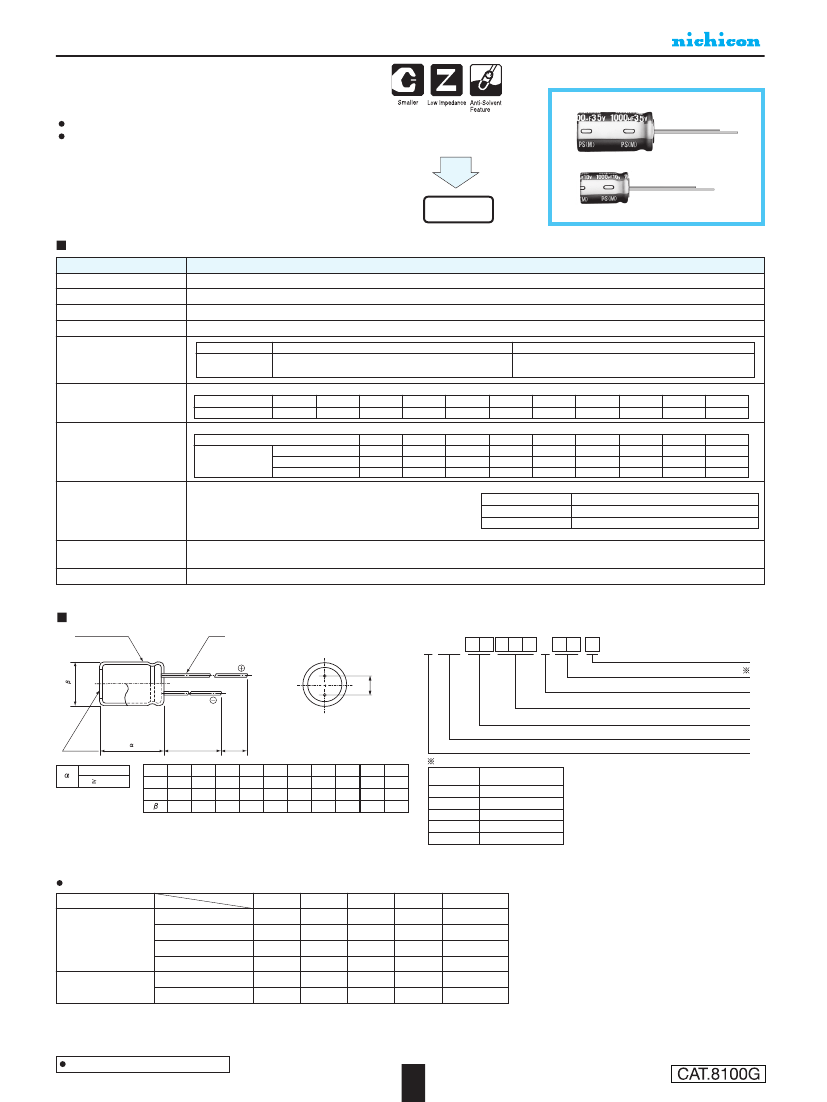

ALUMINUM ELECTROLYTIC CAPACITORS

UPS

Miniature Sized, Low Impedance,

For Switching Power Supplies

(Through 100V only)

Wide temperature range type, miniature sized.

Compliant to the RoHS directive (2011/65/EU).

UPJ

Smaller

UPS

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

–55 to +105˚C (6.3 to 100V), – 40 to +105˚C (160 to 400V), – 25 to +105˚C (450V)

6.3 to 450V

0.47 to 15000µF

± 20% at 120Hz, 20˚C

Rated voltage (V)

Leakage current

6.3 to 100

After 1 minute's application of rated voltage at 20°C, leakage current

is not more than 0.03CV or 4 (µA) , whichever is greater.

6.3

0.24

0.20

0.16

6.3 · 10

—

0.14

16 · 25

—

0.12

35 · 50

—

0.10

160 to 450

< 1000 :

= 0.1CV+40 (µA)max.

CV =

CV > 1000 :

= 0.04CV+100 (µA)max.

Measurement frequency : 120Hz at 20˚C

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF

Tangent of loss angle (tan

)

Rated voltage (

tan

(

MAX.

)

0.09

100

0.08

250

—

160 to 250 315 · 350 400 · 450

0.15

0.20

0.25

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

Z– 40˚C / Z+20˚C

(MAX.)

Z– 55˚C / Z+20˚C

63 · 100

160 · 200

—

Capacitance change

tan

Leakage current

315 · 350

—

400

—

450

—

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20˚C after D.C. bias plus rated ripple

current is applied for 3000 hours (2000 hours for

φD=

5 to 10) at

105˚C, the peak voltage shall not exceed the rated voltage.

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 25V 470

9 10 11

Size code

Configuration

P±

0.5

U P S 1 E 4 7 1 MPD

MAX.

φD

Capacitance tolerance (±20%)

Rated capacitance (470

Rated voltage (25V)

Pressure

relief vent

Series name

L+

MAX.

(φ6.3up)

MIN

φD

φd

2.0

0.5

6.3

2.5

0.5

MIN

(mm)

Type

Configuration

6.3

8 · 10

12.5 to 18

20 to 25

Pb-free leadwire

Pb-free PET sleeve

(L < 20) 1.5

(L 20) 2.0

3.5

0.6

0.5

5.0

0.6

0.5

12.5

5.0

0.6

0.5

7.5

0.8

0.5

7.5

0.8

0.5

10.0

1.0

0.5

10.0

1.0

12.5

1.0

•

Please refer to page 20 about the end seal configuration.

Frequency coefficient of rated ripple current

Cap.(µF)

Frequency

50Hz

—

0.30

0.57

0.75

0.80

0.90

120Hz

0.17

0.50

0.71

0.87

1.00

300Hz

0.40

0.65

0.82

0.96

1.25

1.10

1kHz

0.65

0.80

0.90

0.98

1.40

1.13

10kHz or more

1.00

1.60

1.15

6.3 to 100

160 to 450

2.2 to 4700

100 to 220.

330 to 680.

1000 to 15000

0.47 to 2200

330 to 470.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next pages.

236
