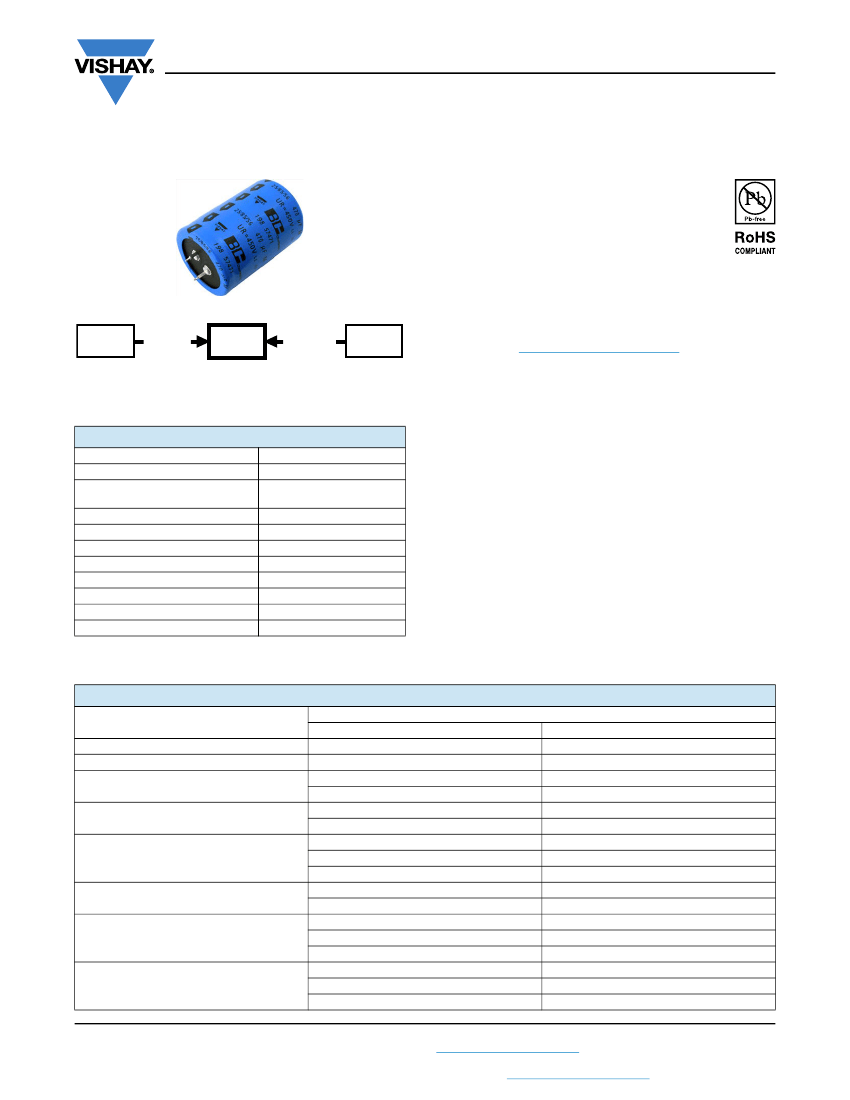

198 PHR-SI
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors,
Power High Ripple Current Snap-In
FEATURES
Useful life: 15 000 h at +85 °C
Very high ripple current capability
High reliability
Low ESR
Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, miniaturized dimensions, cylindrical
aluminum case, insulated with a blue sleeve
• Keyed polarity version available
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
•
•
•
•
•
057
PSM-SI
smaller
dimensions
198
PHR-SI
longer life
higher ripple
157
PUM-SI
Fig. 1
APPLICATIONS
•
•
•
•
VALUE
22 x 25 to 35 x 60
56 μF to 680 μF
± 20 %
400 V and 450 V
-25 °C to +85 °C
7000 h
15 000 h
1000 h
IEC 60384-4 / EN 130300
25 / 085 / 56
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size (Ø D x L in mm)
Rated capacitance range
(E6 / E12 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Shelf life at 0 V, 85 °C
Based on sectional specification
Climatic category IEC 60068
Motor control and industrial systems
Smoothing and filtering
Standard and switched mode power supplies
Energy storage in pulse systems
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM)
• Name of manufacturer
• Code for factory of origin
• “-” sign to identify the negative terminal, visible from the
top and side of the capacitor
• Code number
• Climatic category in accordance with IEC 60068
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
56
68
82
100
U
R
(V)
400
22 x 25
22 x 25
-
-
22 x 30
-
22 x 35
25 x 30
-
22 x 40
25 x 35
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
450
22 x 25
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
25 x 40
30 x 30
25 x 40
30 x 35
35 x 25
25 x 50
30 x 40
35 x 30
120
150
180
220
Revision: 17-Oct-16
Document Number: 28339
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
198 PHR-SI
www.vishay.com
Vishay BCcomponents
U
R
(V)
400
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
35 x 60
450
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
-
35 x 50
35 x 60
35 x 60
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
270
330
390
470
560
680

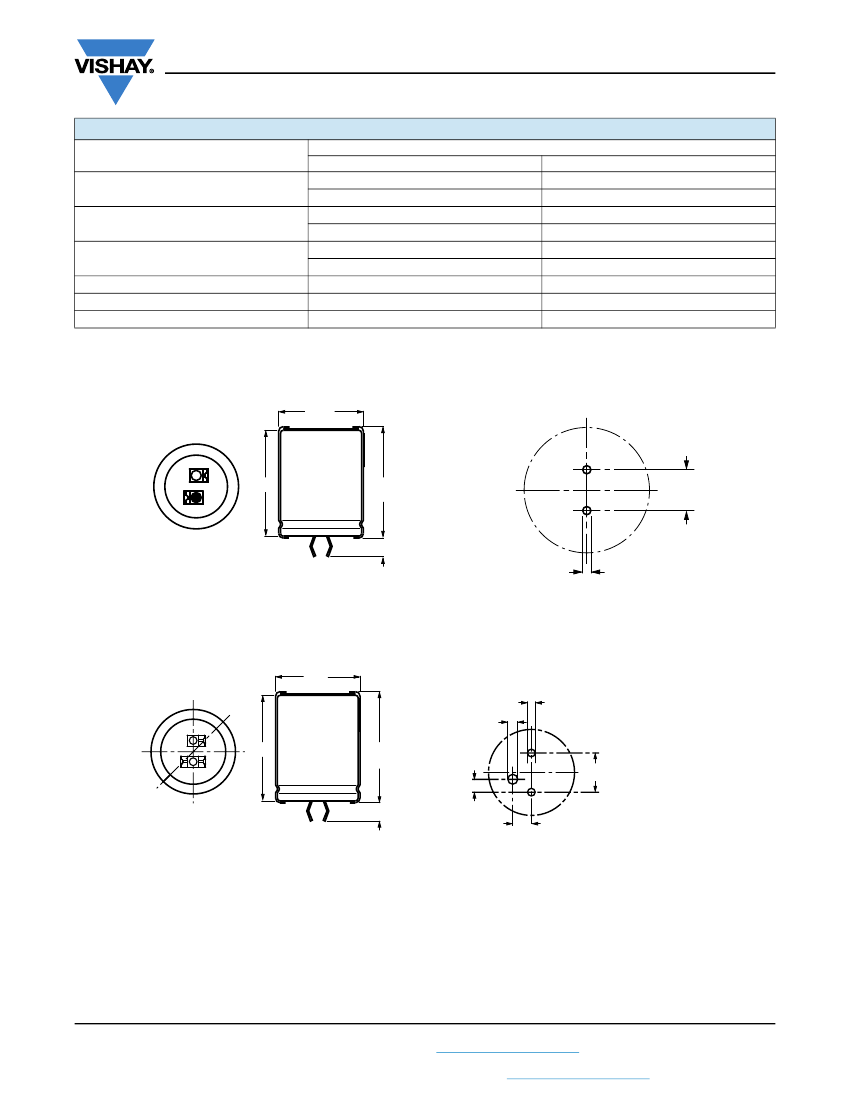

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
TWO TERMINAL SNAP-IN
ØD
+ TERMINAL
- TERMINAL
L
L+2
max.
10 ± 0.1
Bottom view
5.8
+0
-1
The minus terminal can be marked with a black dot or with an imprinted
“-”
sign.
Ø 2 ± 0.1 (2 x)
Fig. 2 - Two terminal snap-in
Fig. 3 - Mounting hole diagram
THREE TERMINAL SNAP-IN
ØD
Ø 2 ± 0.1 (2 x)
Ø 2.5 ± 0.1
+ TERMINAL
- TERMINAL
L+2
max.
10 ± 0.1
minus pole
marking
Bottom view
3.3 ± 0.1
4 ± 0.5
4.75 ± 0.1
The negative terminal has
TWO
pins which are
BOTH
electrically
connected.
The 10 mm
spacing
of the 2 pin
snap-in
is used as the base layout
and a third hole is added.
The third hole is closer to the
negative primary hole
so
that
polarization is always maintained,
together with added mechanical
stability.
L
Fig. 4 - Three terminal snap-in
Fig. 5 - Mounting hole diagram
Revision: 17-Oct-16
Document Number: 28339
2
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
198 PHR-SI
www.vishay.com
Table 1
Vishay BCcomponents
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
Ø
D x L
22 x 25
22 x 30
22 x 35
22 x 40
25 x 25
25 x 30
25 x 35
25 x 40
25 x 45
25 x 50
30 x 25
30 x 30
30 x 35
30 x 40
30 x 45
30 x 50
35 x 25
35 x 30
35 x 35
35 x 40
35 x 45
35 x 50
35 x 60
Ø D
max.
23
23
23
23
26
26
26
26
26
26
31
31
31
31
31
31
36
36
36
36
36
36
36
L
max.
27
32
37
42
27
32
37
42
47
52
27
32
37
42
47
52
27
32
37
42
47
52
62
MASS
(g)
12
16
20
23
20
22
24
27
32
38
25
30
35
40
45
50
33
40
48
55
63
72
87
PACKAGING QUANTITIES
(units per box)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
50
50
CARDBOARD BOX DIMENSIONS
LxWxH
(mm)
260 x 250 x 39
260 x 250 x 44
260 x 250 x 49
260 x 250 x 54
290 x 280 x 39
290 x 280 x 44
290 x 280 x 49
290 x 280 x 54
290 x 280 x 59
290 x 280 x 64
340 x 330 x 39
340 x 330 x 44
340 x 330 x 49
340 x 330 x 54
340 x 330 x 59
340 x 330 x 64
390 x 198 x 39
390 x 198 x 44
390 x 198 x 49
390 x 198 x 54
390 x 198 x 59
390 x 198 x 64
390 x 198 x 74
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
I
L5
ESR
Z
DESCRIPTION
Rated capacitance at 100 Hz
Rated RMS ripple current at 100 Hz, 85 °C
Max. leakage current after 1 min at U
R
Max. leakage current after 5 min at U
R
Typ. / max. equivalent series resistance at 100 Hz
Typ. / max. impedance at 10 kHz
ORDERING EXAMPLE
Electrolytic capacitor 198 PHR-SI
470 μF / 450 V; ± 20 %
Nominal case size: Ø 35 mm x 50 mm
2-terminal snap-in:
Ordering code: MAL2 198 57471 E3
Former 12NC: 2222 198 57471
3-terminal snap-in:
Ordering code: MAL2 198 77471 E3
Former 12NC: 2222 198 77471
Note
