ZXC-715XJLB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> ZXC-715XJLB

ZXC-715XJLB: DescriptionFixed Inductors ZXC RFID Coils 7.1mH 62Ohms 228pF; CategoryPassive components; File Size137KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric Compare View All

ZXC-715XJLB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZXC-715XJLB	-	-	View	Buy Now

ZXC-715XJLB Overview

Fixed Inductors ZXC RFID Coils 7.1mH 62Ohms 228pF

ZXC-715XJLB Parametric

Parameter Name	Attribute value
Product Category	Fixed Inductors
Manufacturer	COILCRAFT
RoHS	Details
Inductance	7.1 mH
Product	RF Inductors
Termination	-
Packaging	Cut Tape
Factory Pack Quantity	1

Preview

Download Datasheet

View All

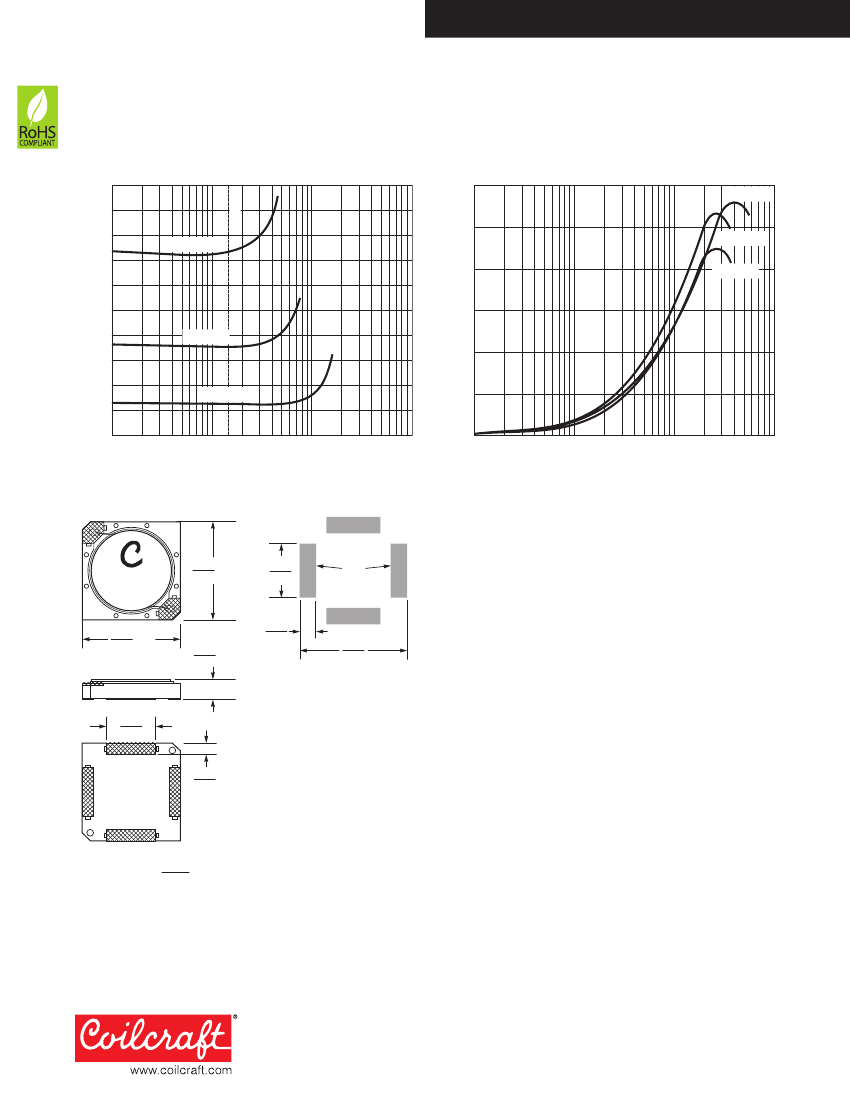

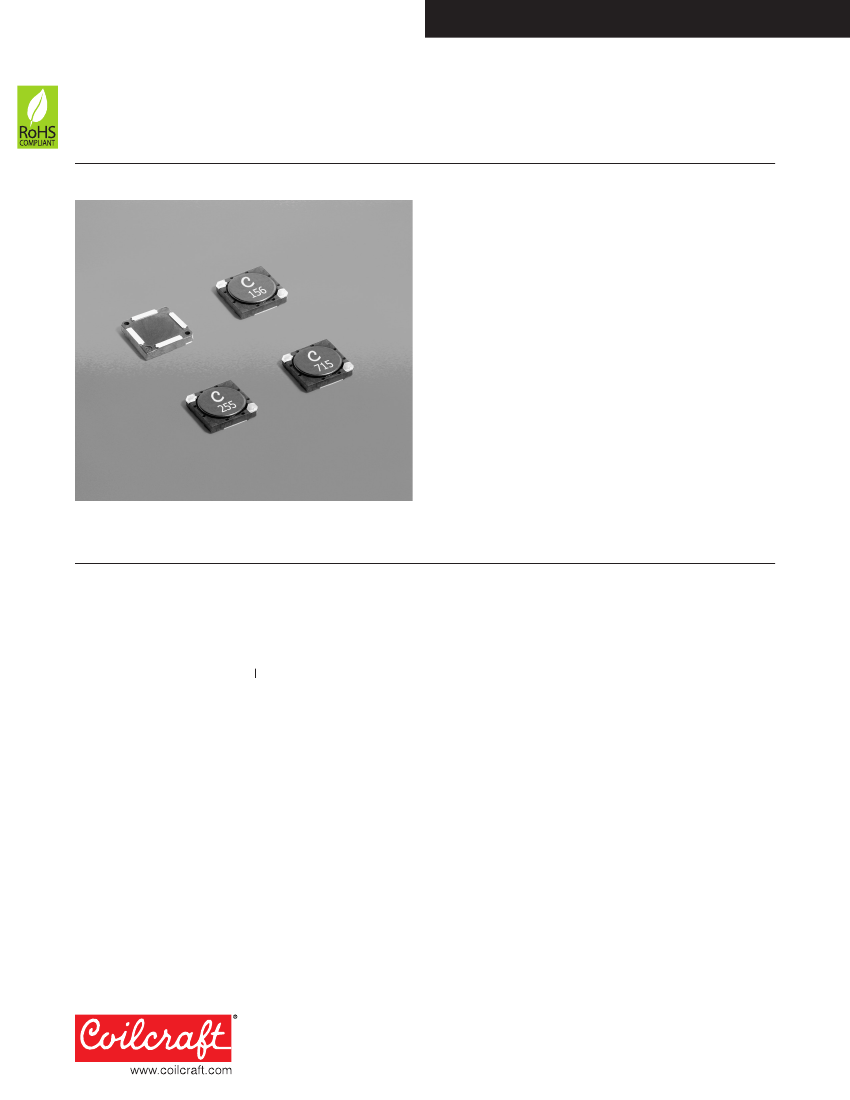

Document 597-1

Z-Axis RFID Transponder Coils – ZXC

• Z-axis RFID coil can be used with any of our other RFID coils

for a complete three-dimensional solution.

• Only 10 mm square and 2.2 mm tall

• Four mounting pads for exceptional board adhesion

Core material

Ferrite

Terminations

RoHS matte tin over nickel over phos bronze. Other

terminations available at additional cost.

Weight

0.53 – 0.56 g

Ambient temperature

–40°C to +125°C

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Temperature Coefficient of Inductance (TCL)

+25 to +200 ppm/°C

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Mean Time Between Failures (MTBF)

26,315,789 hours

Packaging

500/7″ reel; 2000/13″ reel Plastic tape: 24 mm wide,

0.3 mm thick, 12 mm pocket spacing, 2.24 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part number

Inductance

at 125 kHz

±5% (mH)

2.48

4.90

7.10

11.4

14.8

Q min

Read

distance

(inches/cm)

33 / 83.8

31 / 78.7

Sensitivity

(mV/µT)

9.75

18.0

25.0

50.0

77.0

Matching

capacitor

(pF)

654

331

228

142

110

DCR max

(Ohms)

110

160

SRF typ

(kHz)

1975

1370

1220

990

815

ZXC-255XJL_

ZXC-495XJL_

ZXC-715XJL_

ZXC-116XJL_

ZXC-156XJL_

1. When ordering, please specify

packaging

code:

ZXC-725XJLC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge), use code letter D instead.

= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2000 parts per full reel).

2. Inductance and Q measured using Agilent/HP 4192A impedance analyzer at 125 kHz. For recommended test procedures, contact Coilcraft.

3. Read distance measured using the KEELOQ

Transponder Evaluation Kit part number DM303005 from Microchip. Distance was recorded as the volt-

age across the resonant circuit dropped below 10 mV.

4. Sensitivity measured in accordance with Coilcraft application note “Measuring Sensitivity of Transponder Coils.”

5. Matching capacitor value required for parallel resonant circuit operating at 125 kHz.

6. DCR measured on micro-ohmmeter.

7. SRF measured using Agilent/HP 8753D network analyzer.

8. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 597-1

Revised 03/24/10

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
